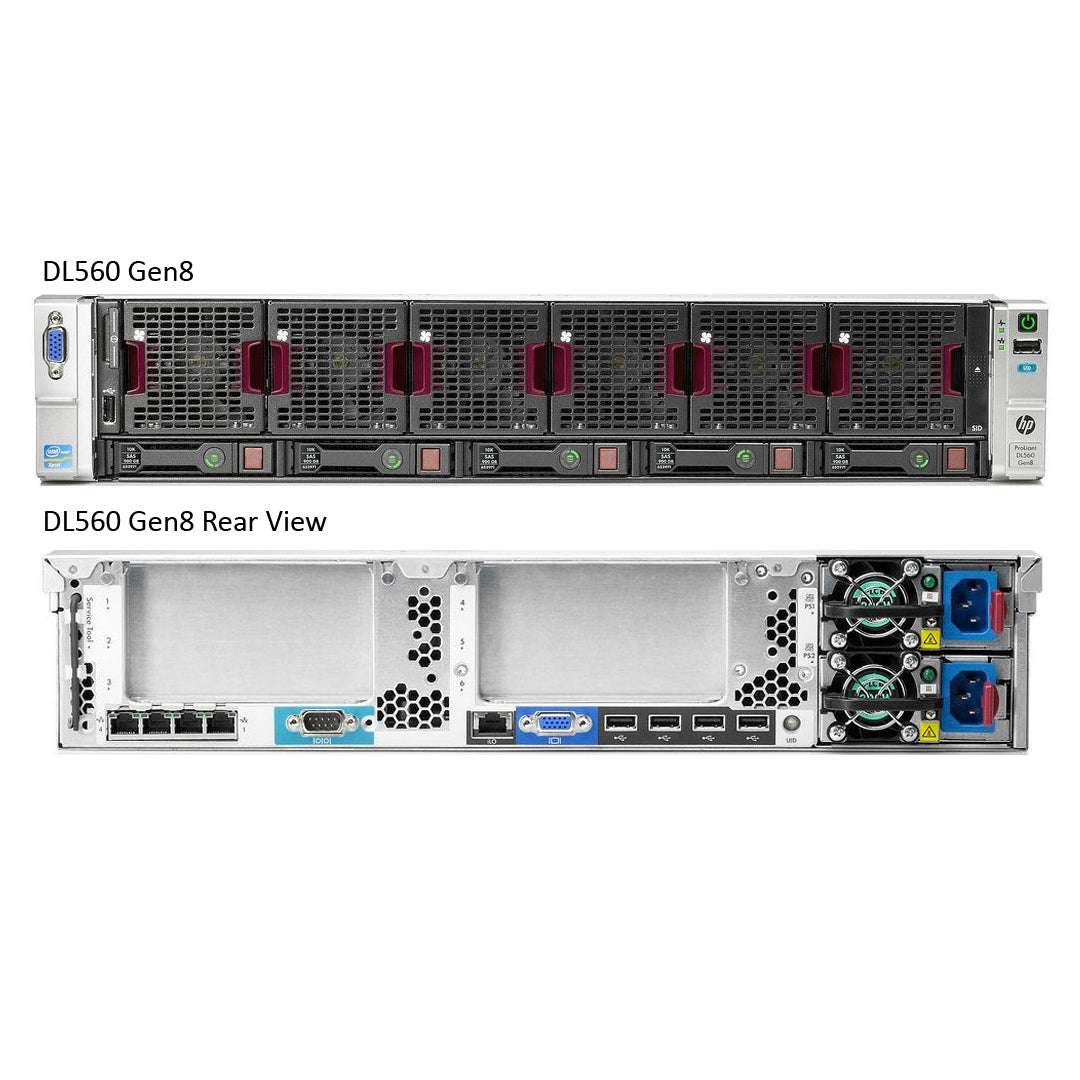

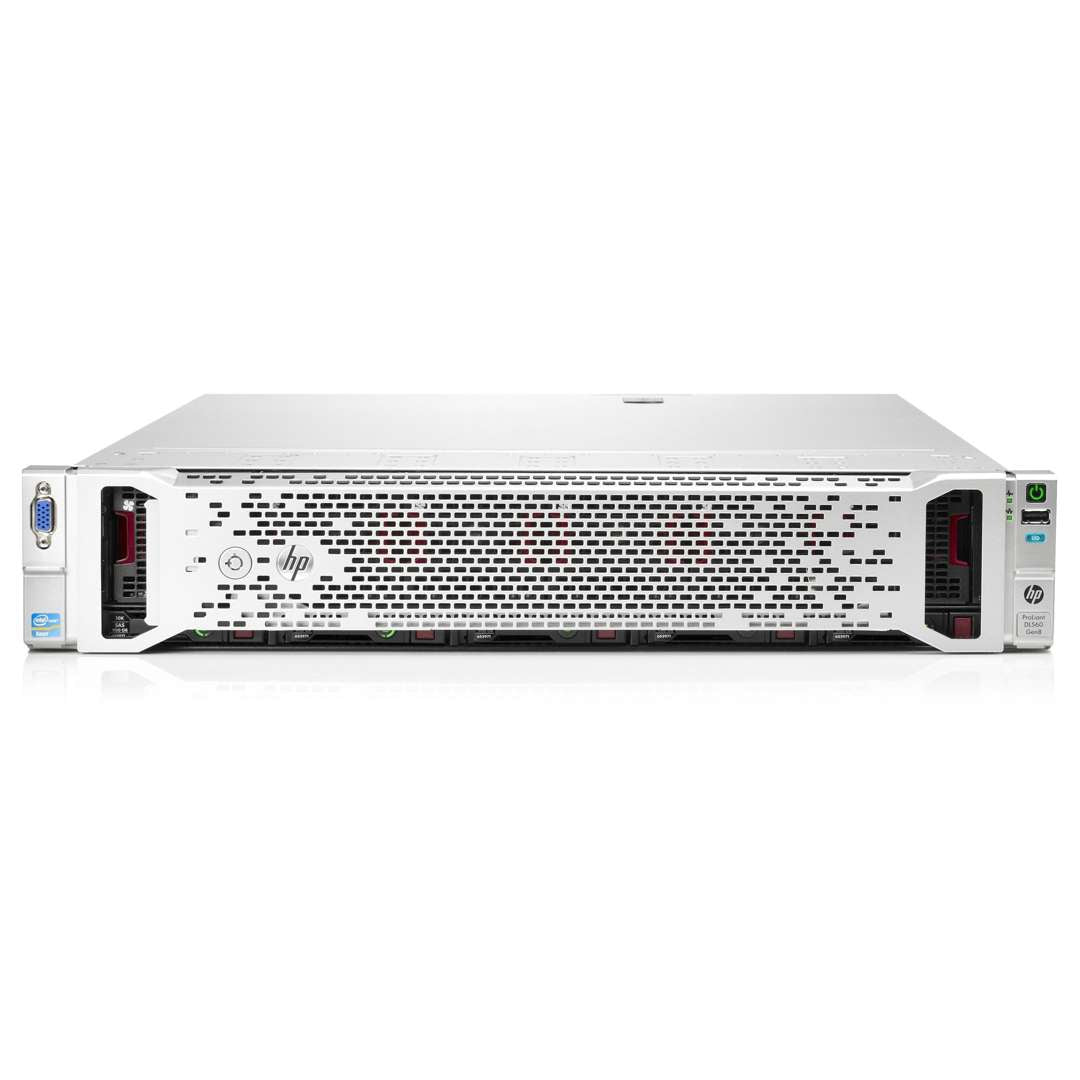

HPE ProLiant DL560 Rack Server (G8) CTO

HPE

| CTO Servers



-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs
What's New for DL560 Gen8

  • Support for the Intel Xeon E5-4600 v2 processor product family.

  • Support for Dual Data Rate (DDR3)-1600 1.35 V memory.

  • Support for DDR3-1866 1.5 V memory.

The refurbished HPE ProLiant DL560 Gen8 Server redefines Density-Optimized 4-socket rack server technology without compromising on performance, scalability, and expandability. Supporting the new High-Density and cost effective Intel Xeon E5-4600v2 processors, the DL560 Gen8 is ideal for virtualization, database, business processing, and general 4P Data-Intensive applications where optimization of data center space and price/performance is paramount.

Other Versions:

(Click to View)

Ideal for:
  • Corporate IT

HP ProLiant DL560 Gen8 Server Concentrated compute without compromise. The HP ProLiant DL560 Gen8 redefines density optimized four-socket rack server technology without compromising on performance, scalability, and expandability. The DL560 Gen8 scale-up server is ideal for virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where optimization of data center space and price/performance is paramount.

Ideal 4S/2U Dense Form Factor without Compromising on Performance, Scalability, and Expandability

Providing 4S computing in a dense 2U form factor, the ProLiant DL560 supports up to four cost-effective Intel Xeon E5-4600v2 processors each up to 12 cores and 130 watts without system configuration restrictions.

HPE Smart Storage technology is designed to remove storage bottlenecks and turbo-charge data-intensive application performance to accelerate workloads. Support for the HPE Smart Array P420i RAID controller with optional 1GB or 2GB Flash Backed Write Cache.

Up to six PCIe 3.0 expansion slots (up to 3 x16), this technology supports the highest performing option cards now and into the future and provides improved latency of up to 400% the bandwidth per I/O expansion slot compared to Gen7 servers.

HPE FlexibleLOM provides you a choice of networking bandwidth and fabric so you can adapt to changing business needs.

HPE SmartMemory prevents data loss and downtime with enhanced error handling while improving workload performance and power efficiency. Support for 48 DDR3-DIMM sockets for up to 1.5TB max capacity.

Please Upgrade Server

*This Configure to Order has not been created.
*You can still Contact Us for a quote on this server.
*Thank you.

The request has been sent.
Thank you.

Price as Configured:
$0

Base Standard Capabilities

Product features

Feature
Description
Processor (One or more of the following depending on model)
E5-4600 v2 series processors
  • Twelve-Core processors

    • Intel Xeon E5-4657L v2 (2.4 GHz/12-core/30MB/115 W) processor

  • Ten-Core processors

    • Intel Xeon E5-4650 v2 (2.4 GHz/10-core/25MB/95 W) processor

    • Intel Xeon E5-4640 v2 (2.2 GHz/10-core/20MB/95 W) processor

  • Eight-Core processors

    • Intel Xeon E5-4627L v2 (3.3 GHz/8-core/16MB/130 W) processor

    • Intel Xeon E5-4620 v2 (2.6 GHz/8-core/20MB/95 W) processor

    • Intel Xeon E5-4610 v2 (2.3 GHz/8-core/16MB/95 W) processor

  • Six-Core processors

    • Intel Xeon E5-4607 v2 (2.6 GHz/6-core/15MB/95 W) processor

  • Four-Core processors

    • Intel Xeon E5-4603 v2 (2.2 GHz/4-core/10MB/95 W) processor

E5-4600 series processors
  • Eight-Core processors

    • Intel Xeon E5-4650 (2.7 GHz/8-core/20MB/130 W) processor

    • Intel Xeon E5-4650L (2.6 GHz/8-core/20MB/115 W) processor

    • Intel Xeon E5-4640 (2.4 GHz/8-core/20MB/95 W) processor

    • Intel Xeon E5-4620 (2.2 GHz/8-core/16MB/95 W) processor

  • Six-Core processors

    • Intel Xeon E5-4617 (2.9 GHz/6-core/15MB/130 W) processor

    • Intel Xeon E5-4610 (2.4 GHz/6-core/15MB/95 W) processor

    • Intel Xeon E5-4607 (2.2 GHz/6-core/12MB/95 W) processor

  • Four-Core processors

    • Intel Xeon E5-4603 (2.0 GHz/4-core/10MB/95 W) processor

Cache memory (One of the following depending on model)

  • 30MB (1 x 30MB) Level3

  • 25MB (1 x 25MB) Level3

  • 20MB (1 x 20MB) Level3 (For Eight-Core processors)

  • 16MB (1 x 16MB) Level3 (For Eight-Core processors)

  • 15MB (1 x 15MB) Level3 (For Six-Core processors)

  • 12MB (1 x 12MB) Level3 (For Six-Core processors)

  • 10MB (1 x 10MB) Level3 (For Four-Core processors)

Chipset 1

  • Intel C600 series chipset

  • Intel E5-4600 and E5-4600v2 processor family

Upgradeability

  • Upgradeable to 4 processors (32-cores)

  • Up to 48 Dual In-lin Memory Module (DIMM) slots available for higher memory capacity

  • FlexibleLOM connector for 1Gb or 10Gb, Quadruple Data Rate (QDR) and Fourteen Data Rate (FDR) InfiniBand networking options

  • Small Form Factor (5SFF) hard drive bays

  • Optional 3 slot riser (x16, x8, x8), or 2 slot (x16, x16)2

On System Management Processor

  • HPE iLO (Firmware: HPE iLO 4)3

Memory protection

  • Advanced ECC4

  • Online spare5

  • Lock-Step mode6

Memory 7 (One of the following depending on model)

  • Type

    • HPE SmartMemory

    • DDR3 Load Reduced (LRDIMM), Registered DIMM (RDIMM)

  • DIMM Slots available

    • 48 (12 DIMM slots per processor/4 channels per processor/3 DIMMs per channel)

  • Standard (Entry model)

    • 16GB (1 x 4GB) PC3L-10600R (DDR3-1333) RDIMMs

  • Standard (Base models)

    • 32GB (4 x 4GB) PC3L-10600R (DDR3-1333) RDIMMs

  • Standard (High performance models)

    • 64GB (4 x 8GB) PC3-12800R (DDR3-1600) RDIMMs

  • Maximum capacity (RDIMM)

    • 1.5TB (48 x 32GB RDIMM @ 1600 MHz)

  • Maximum capacity(LRDIMM)

    • 1.5TB (48x 32GB LRDIMM @ 1866 MHz)

Network controller (One of the following depending on model)

  • Entry models

    • HPE Ethernet 1Gb 4-port 331FLR Adapter

  • Base models

    • HPE Ethernet 1Gb 4-port 331FLR Adapter

  • High performance models (One of the following depending on model)

    • HPE Ethernet 1Gb 4-port 331FLR Adapter

    • HPE Ethernet 10Gb 2-port 530FLR-SFP+ (Small Form Factor Pluggable Plus) Adapter

Expansion slots 8
Primary riser (standard)
Expansion slots #
Technology
Buswidth 9
Connector width 10
Bus number 10
Form factor
Notes
1
PCIe 3.0
X16
X16
7
Full length, full height slot
Proc 1
2
PCIe 3.0
X8
X8
10
Half length, full height slot
Proc 1
3
PCIe 2.0
X4
X8
13
Half length, full height slot
Chipset
PCIe riser (Optional 3-slot)
4
PCIe 3.0
X16
X16
16
Full length, full height slot
Proc 2
5
PCIe 3.0
X8
X8
20
Half length, full height slot
Proc 2
6
PCIe 3.0
X8
X8
23
Half length, full height slot
Proc 2
PCIe riser (Optional 2-slot)
4
PCIe 3.0
X16
X16
16
Full length, full height slot
Proc 2
5
PCIe 3.0
X16
X16
20
Half length, full height slot
Proc 2
Storage controller(One of the following depending on model)

  • Entry models

    • HPE Smart Array P420i/ZM (RAID 0/1/1+0)

  • Base models

    • HPE Smart Array P420i/1GB with Flash-Based Write Cache(FBWC) (RAID 0/1/1+0/5/5+0/6/6+0)

  • Performance models

    • HPE Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Internal storage devices 11

  • Diskette drive: None

  • Optical drive: None ship standard (Optional: USB DVD-RW available)

  • Hard drives: None ship standard

  • Drive bays standard: 5SFF drive bays total

Maximum internal storage

  • Hot-Plug SFF SAS: 6.0TB(5 x 1.2TB)

  • Hot-Plug SFF SAS SSD: 4.0TB(5 x 800GB)

  • Hot-Plug SFF SATA SSD:2.0TB(5 x 400GB)

Interfaces

  • Serial: 1

  • Video: 2 (1 front, 1 back) not active simultaneously

  • FlexibleLOM network ports: Some models come standard with 4 x 1GB ports while others come with 2 x 10GB ports.

  • HPE iLO Remote Management network port: 1Gb dedicated

  • Secure Digital (SD) slot 12: 1 internal secure

  • USB 2.0 Ports: Up to 7 total: up to 2 front, 4 back, 1 internal

System fans
6 fans (N+1 redundancy standard)
Graphics

  • Integrated Matrox G200 video standard

    • 1280 x 1024 (32 b/p)

    • 1920 x 1200 (16 b/p)

  • HPE iLO 4 On System Management Memory

    • 16MB Flash

    • 256MB DDR 3 with ECC (112MB after ECC and video)

Industry standard compliance

  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Microsoft Logo certifications

  • USB 2.0 Compliant

NOTE:
  1. To take advantage of the additional 3 PCI Slot upgrade, the second processor must be installed.

  2. Click here for more information on HPE iLO .

  3. Advanced ECC uses Single Device Data Correction (SDDC) to detect and correct single and all Multi-Bit error that occurs within a single DRAM Chip. Both x4 and x8 SDDC are supported (x8 requires lockstep mode).
  4. Memory online spare mode (Also known as rank spare mode) detects a rank that is degrading and switches operation to the spare rank.
  5. Memory lockstep mode is used to correct a single x8 Dynamic Random Access Memory (DRAM) device failure on a DIMM. The DIMMs in each paired memory channel must have identical HPE part numbers.

  7. When populating the second optional riser slot, the second processor must be installed. All slots support up to 150 W Peripheral Component Interconnect express (PCIe) cards, but an additional power cord option is required (P/N 669777-B21).
  8. Indicates the number of physical electrical lanes running to the connector.
  9. Default bus assignment (In decimal). Inserting cards with PCI bridges may alter the actual bus assignment number.
  10. All Pre-Configured models come populated with some hard drive blanks installed. Should the end user need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF Gen8 hard drive blank kit.
  11. The SD slot is not a Hot-Pluggable device. End users should not attempt to plug an SD Card into the SD Slot while the server is powered ON.

top

Specs 1

Software overview

Feature
Description
HPE Insight software

  • HPE Insight Control

  • HPE Insight Control Server Deployment

  • HPE Insight Control for Linux


High performance clusters
HPE Cluster Management Utility
Operating Systems (OS) and virtualization software support for ProLiant servers 1

  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Oracle Solaris

  • VMware

  • Citrix XenServer

NOTE:
  1. Check the below support matrix for more information on HPE's Certified and supported ProLiant Servers for OS and virtualization software and latest listing of software drivers available for the server:

    Click here to access the Support Matrix .

top

Physical specifications

Specifications
Description
Dimensions (H x W x D) (with bezel)
SFF drives: 8.73 x 44.55 x 74.93 cm (3.44 x 17.54 x 29.50 in)
Weight (approximate)
Maximum(all LSFF hard drives, power supply, and processor installed)

  • 27.66 kg (61.00 lb)

top

Electrical specifications

Specifications
Description
Input requirements (per power supply)
Rated line voltage

  • 100 to 120 V ac

  • 200 to 240 V ac

Rated input current (for 1200 W power supply)

  • 10 A (at 100 V ac)

  • 4.9 A (at 200 V ac)

Rated input frequency

  • 50 to 60 Hz

Rated input power (for 1200 W power supply)

  • 930 W (at 100 V ac)

  • 1348 W (at 200 V ac)

BTU rating
Maximum (For 1200 W power supply)

  • 3530 BTU/hr (at 100 V ac)

  • 4600 BTU/hr (at 200 V ac)

Power supply output (per power supply)
Rated steady-state power (for 1200 W power supply)

  • 800 W (at 100 V ac)

  • 900 W (at 120 V ac)

  • 1200 W (at 200 to 240 V ac)

Maximum peak power (for 1200 W power supply)

  • 800 W (at 100 V ac)

  • 900 W (at 120 V ac)

  • 1200 W (at 200 to 240 V ac)

Maximum peak power (for 750 W power supply)

  • 750 W (at 100 to 120 V ac)

  • 750 W (at 200 to 240 V ac)

Maximum peak power (for 460 W power supply)

  • 460 W (at 100 to 120 V ac)

  • 460 W (at 200 to 240 V ac)

top

Environmental specifications

Specifications
Description
System inlet temperature
Operating 1

  • 10° to 35°C (50° to 95°F)

Non-operating 2

  • -30° to 60°C (-22° to 140°F)

Relative humidity (non-condensing)
Operating

  • 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

  • 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude
Operating 3

  • 3048 m (10,000 ft)

Non-operating 4

  • 9144 m (30,000 ft)

Acoustic noise  5
Idle
L WAd

  • 4.1 B (Entry model)

  • 4.1 B (Base model)

  • 4.1 B (Performance model)

L pAm

  • 25 dBA (Entry model)

  • 25 dBA (Base model)

  • 25 dBA (Performance model)

Operating
L WAd

  • 4.3 B (Entry model)

  • 4.7 B (Base model)

  • 5.0 B (Performance model)

L pAm

  • 27 dBA (Entry model)

  • 31 dBA (Base model)

  • 35 dBA (Performance model)

Emissions classification 6 (EMC)
FCC rating

  • Class A

Normative standards

  • CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

NOTE:

  1. Measurement at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).

  2. Maximum rate of change is 20°C/hr (36°F/hr).

  3. This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

  4. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

  5. Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C (73.4°F) ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

  6. Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

top
