What’s New
- Up to 2 Intel® Xeon® 6 processors
- 32 DDR5 DIMM slots – maximum memory 8 TB
- Fans typically 4 or 6
- Up to 24 SFF or
up to 36 EDSFF E3.S NVMe drives
(plus LFF and rear drive options depending on configuration) - Up to 8 PCIe Gen5 slots (up to 6 x16 and up to 2 x8)
- 2x OCP 3.0 support (front or rear)
- Up to 2 Power supplies (dual hot-plug redundant 1+1)
- HPE NS204i-u Boot Device (front, rear, or internal install options)
- HPE iLO 7 management
- Up to three double-wide (DW) or
eight single-wide (SW) GPUs
Other Versions
(Click to View)

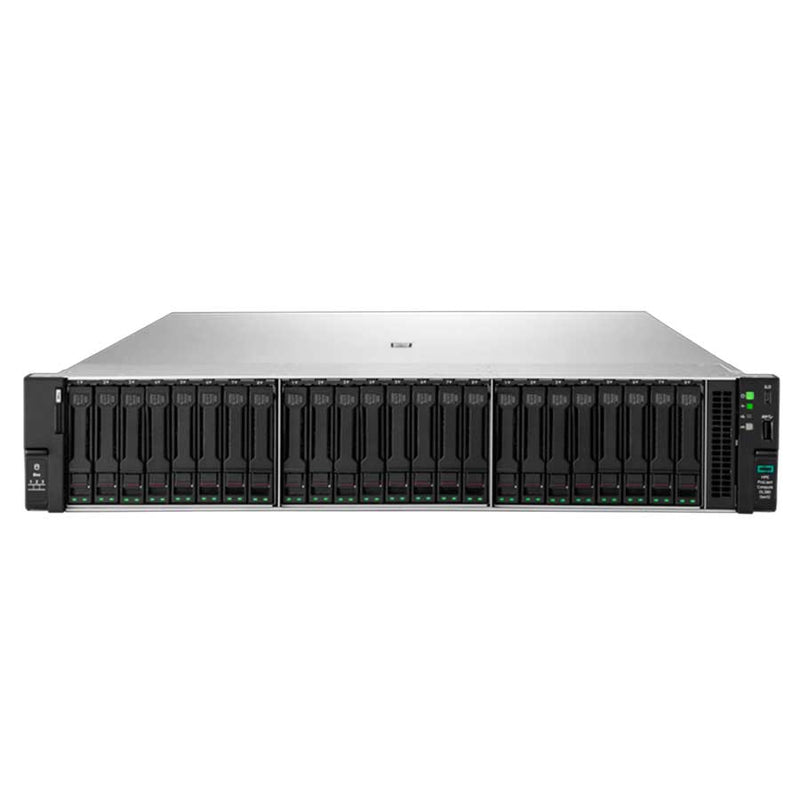

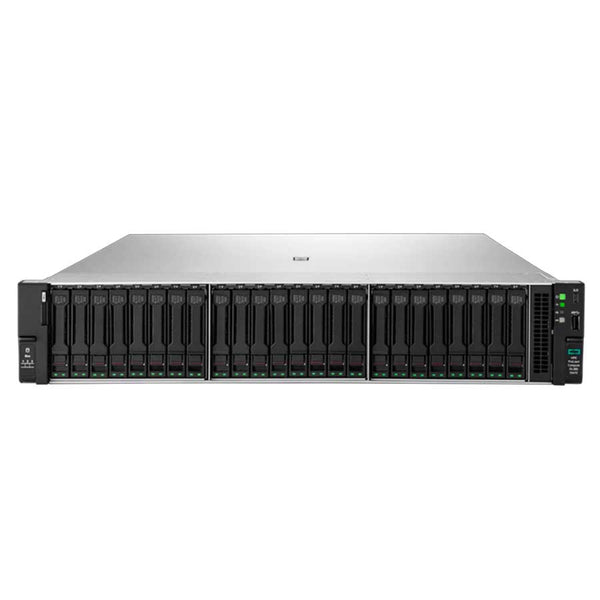

HPE ProLiant DL380 Gen12 Chassis Options
8 LFF
12 LFF
8 SFF
24 SFF
12 EDSFFPlease Upgrade Server
*This Configure to Order has not been created.
*You can still
Contact Us
for a quote on this server.
*Thank you.
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Technical specifications | HPE ProLiant Compute DL380 Gen12 |
|---|---|
| Processor type | Intel |
| Processor family | Intel® Xeon® 6 Scalable processors |
| Processor number | 1 or 2 |
| Processor core available | 8 to 144 core, depending on processor |
| Processor speed | 3.9 GHz maximum, depending on processor |
| Processor cache | 2.5 MB to 112.5 MB L3, depending on processor |
| Memory type | HPE DDR5 Smart Memory |
| Maximum memory | 8 TB with 256 GB DDR5 |
| Memory slots | 32 |
| Memory protection features | RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC) Intel® Optane™ Persistent Memory |
| Accelerators | Optional |
| System fan features | Hot-plug redundant fans, Standard Fan Kit or High Performance Fan Kit, depending on model |
| Expansion slots | Up to 8 PCIe Gen5, and 2 OCP 3.0 (front or rear), for detailed descriptions reference the QuickSpecs |
| Form factor | 2U Rack |
| Network controller | 1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor, depending on model. For detailed descriptions reference the QuickSpecs. |
| Storage controller | HPE MR216i-o and/or MR216 i-p, HPE MR416i-o and/or HPE MR416i-p, HPE MR408e-p, HPE 408i-0 and/or HPE MR408i-p, depending on model. For detailed descriptions reference the QuickSpecs. |
| Drive supported | 8 or 12 LFF SAS/SATA/SSD 8, 16, or 24 SFF SAS/SATA/SSD, depending on configuration. 6 SFF rear drive optional or 2 SFF rear-drive optional, 20 SFF NVMe optional, NVMe support through Express Bay will limit maximum drive capacity, depending on model. |
| Optical drive type | Optional DVD-ROM Optional through Universal Media Bay External support only. |
| Power supply type | 800W, 1000W, 1600W or 1800W-2200W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies, depending on model. |
