Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
- (1) Intel 4th/5th Generation XEON Processors
- (16) DDR5 - Max Memory 128 GB
- (2) PCIe5 x16 (16, 8, 4, 1)
- (1) OCP slot
- Supports up to (12 LFF or 10 SFF or 8 EDSFF) Drives
- Optional RAID 1 NVMe M.2 Boot device
- Embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
- HPE iLO 6 ASIC & TPM 2.0
- (2) GPU Supported
(Click to View)
- AI
- Edge Servers

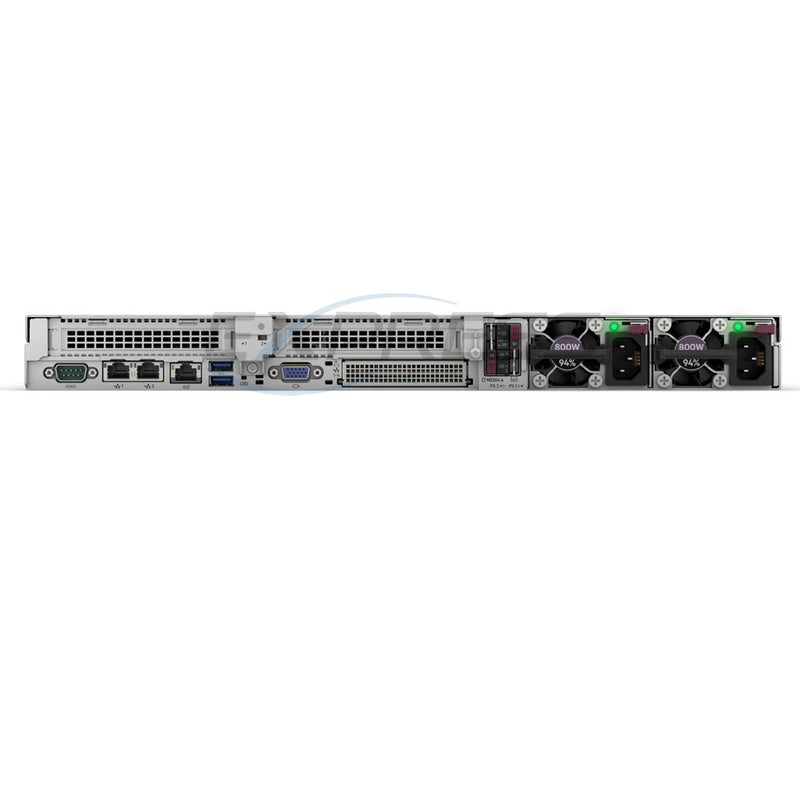

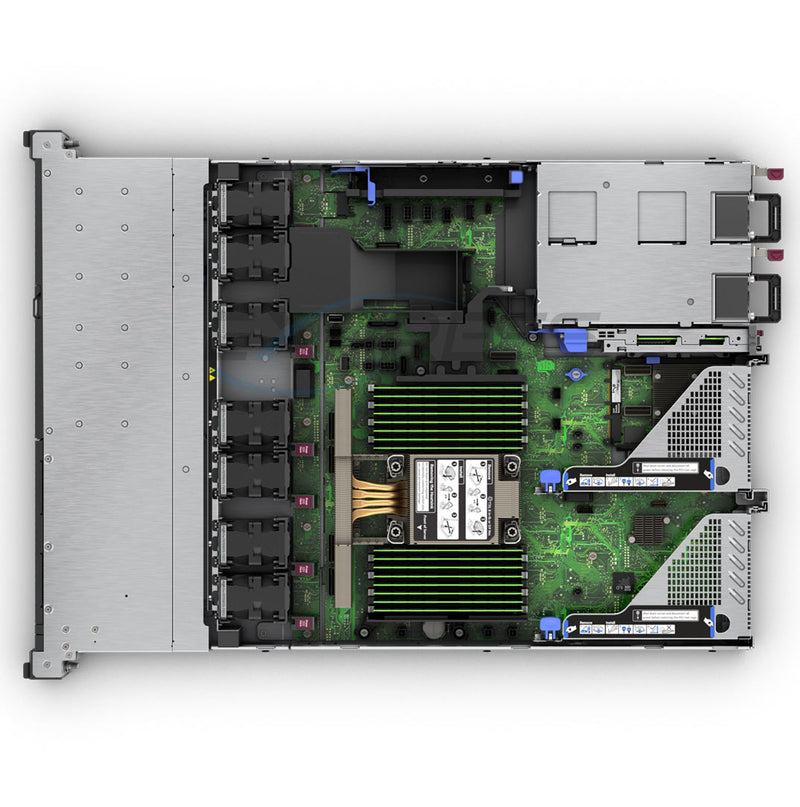

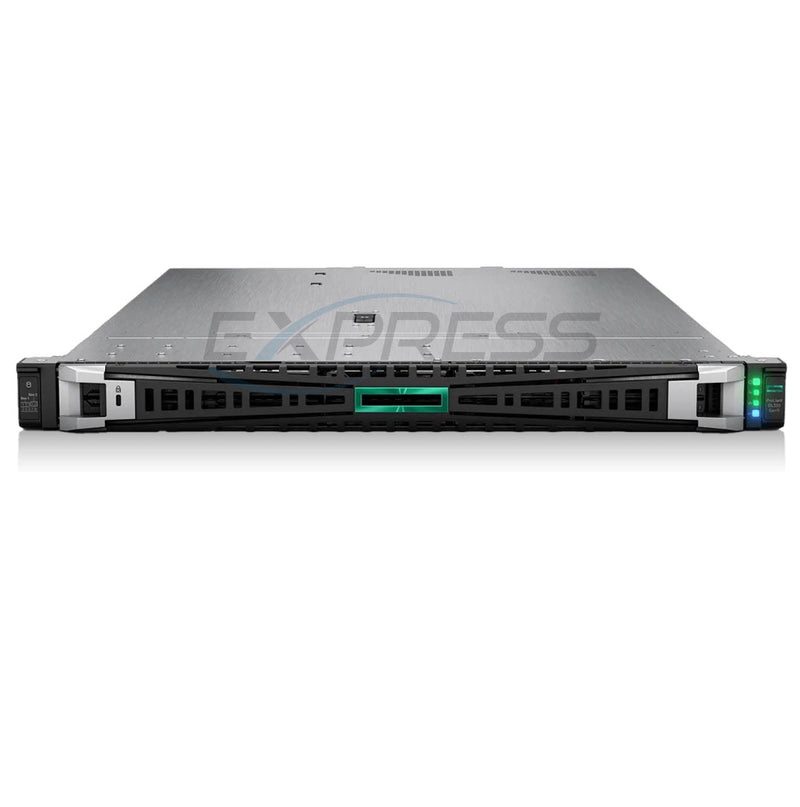

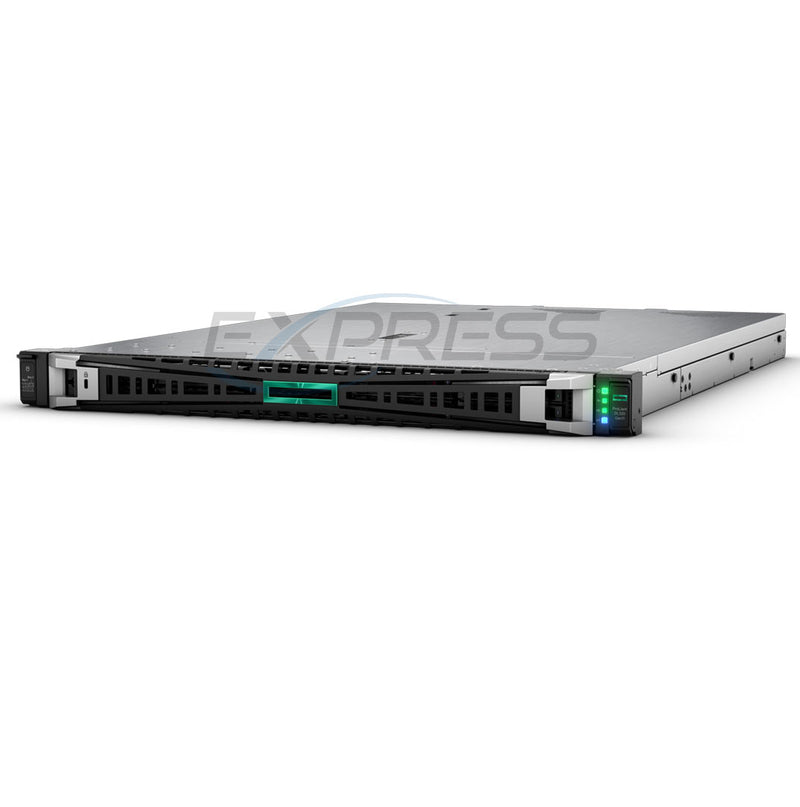

The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads.
DL320 G11 4x 3.5" P52765-B21
DL320 G11 12x 3.5P52767-B21
DL320 G11 8+2 2.5" SAS/SATA/NVMeP52766-B21
DL320 G11 GPU ChassisP61218-B21
4x 3.5" OptionsP48928-B21 - LFF DisplayPort/USB Kit
8x 2.5" OptionsP52743-B21 - 8SFF x1 Tri-Mode 24G
P52747-B21 - 8SFF x4 Tri-Mode 24G
P52751-B21 - 2SFF x4 Tri-Mode 24G
OR
P48926-B21 - DisplayPort/USB/Optical Drive Blank Kit
GPU CTO OptionsP61219-B21 - 8xEDSFF x4 NVMe Drive Cage Kit
P61221-B21 - 4xSFF x4 Tri-Mode 24G U.3 BC Drive Cage Kit
P62181-B21 - GPU 4x Direct Connected NVMe FIO Enablement Kit
Notes
- P52743-B21 - DA supports 8 SATA Drives only
- P52747-B21 - DA supports 8 NVMe U.3 Drives only
- P52751-B21 - DA supports either 2x NVMe U.3 drives or SATA drives.
- P61219-B21 - DA supports up to 4 EDSFF drives only
- P61221-B21 - DA supports up to 4 NVMe U.3 drives only.
- P62181-B21 - If 8EDSFF or 4SFF Drive cage is selected and MR416i-p is not selected, then "HPE DL320 G11 GPU 4xDC NVMe FIO Kit" must be selected.
Cannot be selected if MR416i-p controller is selected - There are tons of rules and cable kit information in the manuals. Please open the manuals above to few all the detailed information.
Standard Heatsink (STD)P48904-B21
Performance Heat SinkP52756-B21
High Performance FanP48908-B21
Notes
- P52756-B21 & P48908-B21 - TDP > 185W Processors or NVMe Drives
- If GPU CTO Model is selected, then Performance Heatsink must be selected
- P48907-B21 - 5 Fans
- P48908-B21 - 7 Fans
- P54697-B21 - 2 Fans
HPE NS204i-u Boot Device is an optional front-panel PCIe 5.0 module for the DL320 Gen11 with two hot-pluggable 2280 M.2 NVMe SSDs. It delivers dedicated hardware RAID 1 boot mirroring that auto-creates the volume at boot and supports Windows, Linux, and VMware via native drivers.
Requirements: N204i-u Boot device includes 2x 480GB M.2 NVMe SSDs, with pre-configured hardware RAID1. Server must use high performance fan kit when supporting NS204i-u for all CTO Configs.
Riser AssemblyP52753-B21
2x PCIe Gen5 x16 FHHL
Max 2 of PCIe and OROC internal controllers can be selected per server.
If "Slot 1 Riser Kit " is selected, then "Slot 2 Riser Kit " must be selected. These Riser cards are stacked ontop of eachother. To get power and PCIe lanes to the Slot 1 at the top. All risers cards need to be stacked.
NVIDIA L4 24GBS0K89
- 24 GB GDDR6
- 72 W TDP
- SW FH/FL
- 4.0 x16
NVIDIA A16 64GBR8T26C
- 64 GB GDDR6
- 250 W TDP
- DW LP
- 4.0 x16
NVIDIA L40 48GBS0K90C
- 48 GB GDDR6
- 300 W TDP
- DW
- 4.0 x16
NVIDIA L40S 48GBS2L70C
- 48 GB GDDR6
- 350 W TDP
- DW
- 4.0 x16
Notes:
- Cannot mix Doublewide and Singlewide GPU.
- If Doublewide GPU is selected, then Slot 1 Riser Kit cannot be selected
- If DW GPU is selected, then 1U Heat Sink, DW GPU Cable Kit and DW High Performance Fan Kit must be selected
- 2U heatsink is not supported with Nvidia L40S and RTX PRO 4500 GPU
MIL-STD-810H testing was performed on the HPE ProLiant DL320 Gen11 configured with the Military Ruggedization FIO Kit (P87008 B21). This factory installed option reinforces internal mechanical structures including drives, network adapters, power supplies, and retention mechanisms. The kit enables the system configuration to meet MIL-STD-810H environmental requirements for altitude, temperature, humidity, vibration, and shock.
Contact us today about the DL320 MIL Server
| Test Category | Method | Procedures | Notes |
|---|---|---|---|
| Altitude Storage | 500.6 | I | 40Kft |
| Altitude Operation | 500.6 | II | 15Kft |
| Altitude Operation | 500.6 | III | 8Kft/40Kft |
| High Temp Storage | 501.7 | I | +85 °C |
| High Temp Operation | 501.7 | II | +55 °C |
| High Temp Tactical Standby | 501.7 | III | +60 °C |
| Low Temp Storage | 502.7 | I | -55 °C |
| Humidity | 507.6 | II | 95%, 10 cycles |
| Vibration | 514.8 | I | Category 8, Propeller Aircraft |
| Vibration | 514.8 | I | Category 12, Jet Aircraft |
| Vibration | 514.8 | I | Category 20, Ground Vehicles (Common Carrier Profile) |
| Vibration | 514.8 | I | Category 21, Shipboard Random Vibration |
| Shock | 516.8 | I | Functional Shock; 20g, 11ms |
HPE iLO 6 is the 6th-generation Integrated Lights-Out management processor built into HPE ProLiant Gen11 servers (including the DL320 Gen11).
It delivers secure out-of-band remote management, allowing you to monitor, control, and troubleshoot the server even when the OS is down or the server is powered off.
Key features include a hardware Silicon Root of Trust, enhanced security (secure boot, attestation), Redfish-compliant RESTful API, improved remote console, virtual media, and seamless integration with HPE Compute Ops Management and OneView.
Current Configuration
(List below serves as quick links to each section)
Chassis Options
HPE Processors
Memory - AMD 8004 4800Mhz
Memory - AMD 8005 6400Mhz
Heatsink / Fan
Boot Options
Storage Contollers
Riser Options
Networking Adapters
OCP 3.0
Supported GPU
Drives 2.5" SAS/SATA
Drives 2.5" NVMe
Drives 1.8" EDSFF
Server Mount
Power Supply Unit (PSU)
Select Warranty
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Technical Specifications | HPE ProLiant DL320 Gen11 |
|---|---|
| Processor type | Intel® |
| Processor family | 5th Gen Intel® Xeon® Scalable Processors and 4th Gen Intel® Xeon® Scalable Processors |
| Processor core available | 8 to 60 core, depending on processor. |
| Processor cache | 22.50 – 300 MB L3, depending on processor. |
| Processor number | 1 |
| Processor speed | 3.9 GHz maximum, depending on processor. |
| Maximum memory | 2.0 TB per socket, one socket only, when populated with 128 GB DDR5 Memory. |
| Memory slots | 16 DIMM slots per socket, one socket only. |
| Memory type | HPE DDR5 Smart Memory |
| Memory protection features | HPE Fast Fault Tolerant Memory, Advanced ECC Memory, Online Spare Memory, Mirrored Memory |
| Drive supported | Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SSDs, depending on model. Up to 12 LFF SAS/SATA HDDs or SSDs, depending on model. Up to 8 EDSFF E3.s 1T, depending on model. Optional embedded 2 M.2 Boot SSD. Optional RAID 1 NVMe M.2 Boot device (internal or external accessible from rear wall with 2x NVMe M.2 incorporated). |
| Optical drive type | None included; optional HPE 9.5mm SATA DVD-RW Optical Drive or HPE Mobile USB DVD-RW Drive. |
| Security | UEFI Secure Boot and Secure Start support. Intel® Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. |
| Infrastructure management | Included: HPE Compute Ops Management, HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional: HPE iLO Advanced, and HPE OneView Advanced. |
| Power supply type | HPE 500W Flex Slot Platinum Hot Plug, HPE 800W Flex Slot Platinum Hot Plug, HPE 1000W Flex Slot Titanium, HPE 1600W Flex Slot Platinum Hot Plug, or HPE 1800–2000W Flex Slot Titanium Hot Plug Low Halogen — depending on model. |
| Expansion slots | Maximum 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5; for detailed descriptions refer to the QuickSpecs. |
| Network controller | Wide range of speeds, cabling, chipsets, and form factors (PCIe stand-up adapter and OCP 3.0). Refer to the QuickSpecs for network card choices. |
| Storage controller | Included: Embedded SATA controller (AHCI or Intel SATA Hybrid RAID). Optional: HPE Smart Array Gen11 Storage Controller in variety of protocols (including NVMe), port count, array utilities, and form factors (PCIe stand-up adapter and OCP 3.0). Refer to the QuickSpecs for selection. |
| System fan features | Standard Fan Kit or High Performance Fan Kit, depending on model. |
| Form factor | 1U Rack |
| Warranty | 3/3/3: Three years parts, three years labor, three years on-site support. Additional information at https://support.hpe.com and https://www.hpe.com/support. |
| Accelerators | Supports up to two double-wide or four single-wide PCIe Accelerators (GPU), depending on model. See QuickSpecs for details. |
