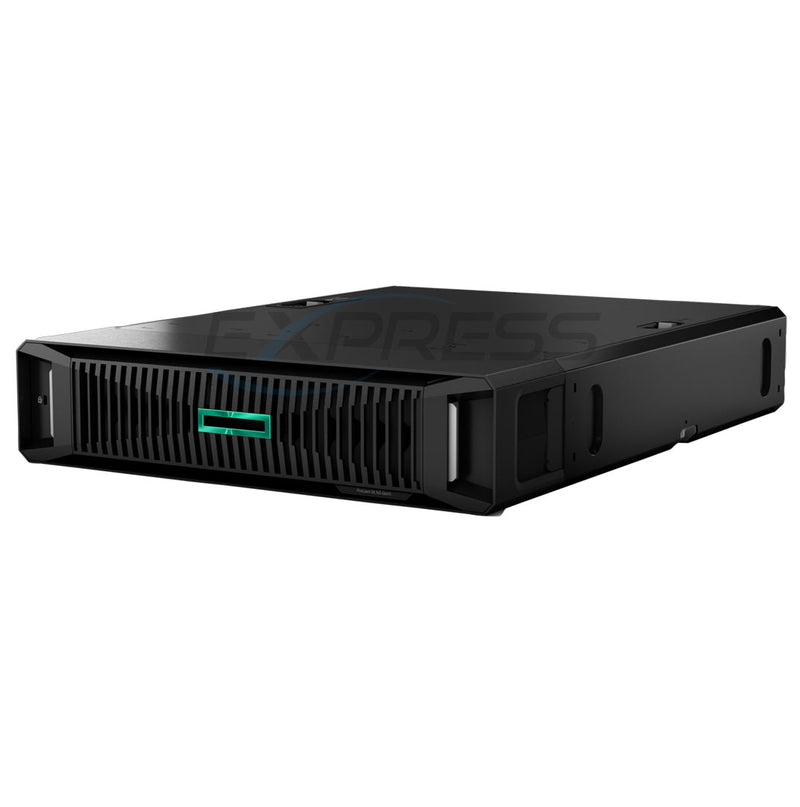

HPE ProLiant DL145 Rack Server (G11) Configuration | P71964-B21
Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
- (1) AMD 4th/5th Generation AMD EPYC™ Processors
- (6) 4800 or 6400 MT/s DDR5
- Max Memory 768 GB
- (3) PCIe5 x16 (16, 8, 4, 1)
- (1) OCP slot (External)
- Supports up to (2 SFF or 6 EDSFF) Drives
- Support NS204i-u v2 for boot
- HPE iLO 6 ASIC & TPM 2.0
- (3) GPU Supported
(Click to View)
- AI
- Edge Servers

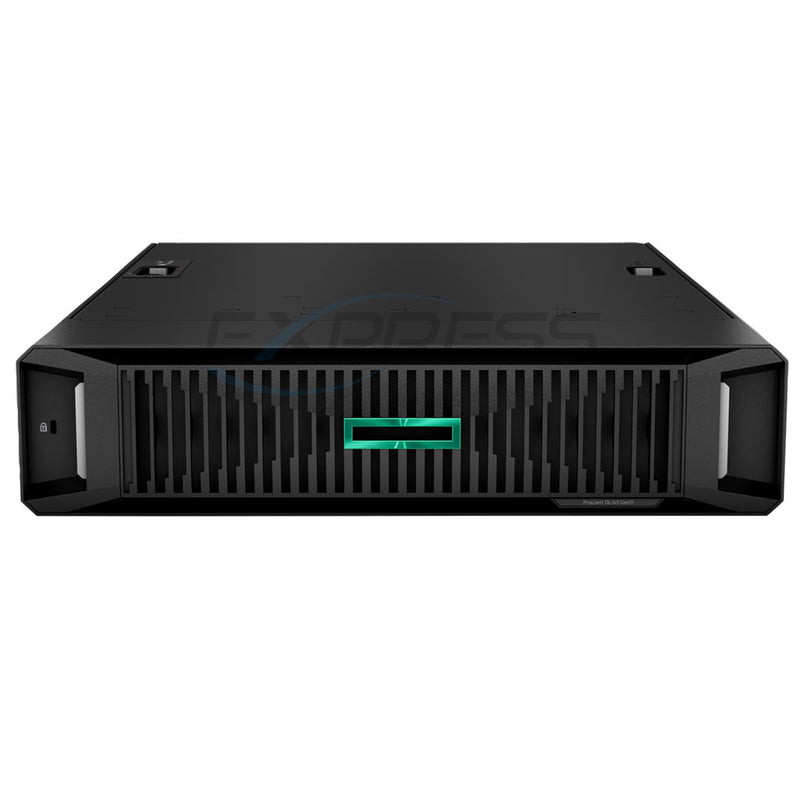

The HPE ProLiant DL145 Gen11 server is a 2U, single processor, robust edge computing server designed to cater to the needs of retail, manufacturing, telecommunications, and various other industries. It offers a compelling alternative to traditional servers with its sleek design, affordable pricing, and quiet operation.
DL145 G11 SFF P71977-B21
DL145 G11 4x EDSFFP71985-B21

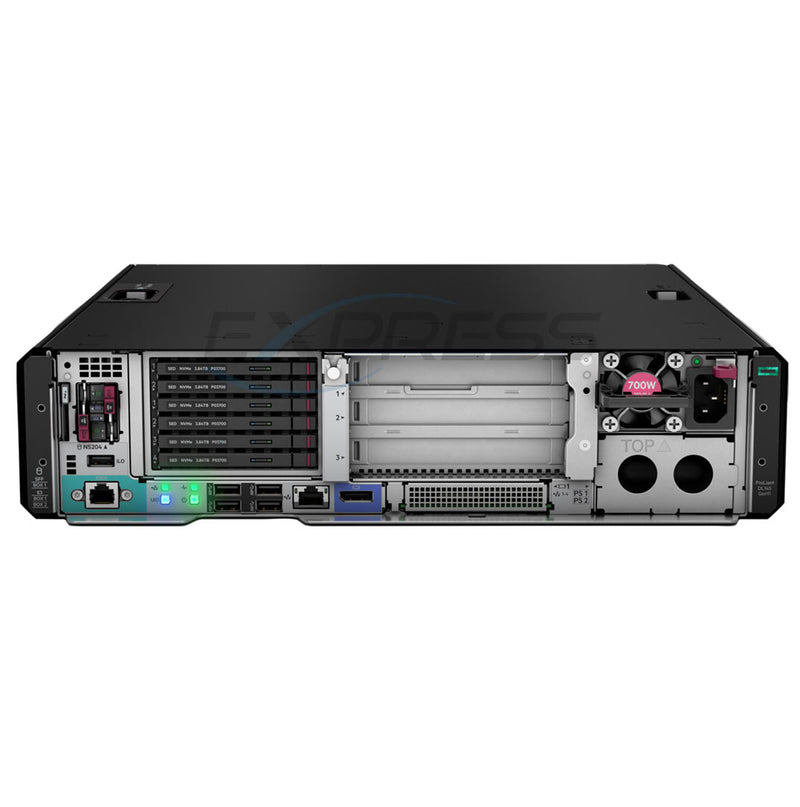

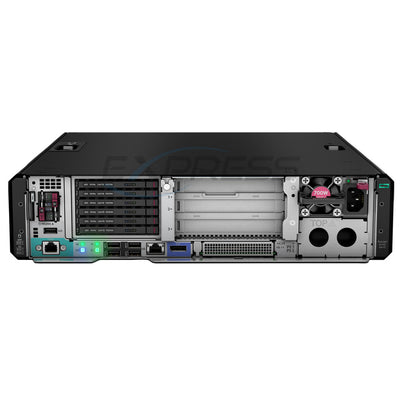

DL145 G11 6x EDSFFP71981-B21
The Dl20 G11 P65407-B21 HPE ProLiant DL20 Gen11 LP Serial Port/iLO/M.2 Enablement Kit. Provides 1 M.2 Drive slot, Enables the optional dedicated iLO management port. Also provides a serial port option.
The BOOT option P48183-B21 HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device. The N204i-u Boot device includes 2x 480GB M.2 NVMe SSDs, with preconfigured hardware RAID1. When installed the (P65410-B21) HPE ProLiant DL20 Gen11 NS204i-u Hot Plug Boot Optimized Storage Device Cable Kit is required.
The DL20 Gen11 only has 1 riser (P52753-B21) HPE ProLiant DL320 Gen11 x16 FHHL Riser Kit. This system also has a external slot for the OCP 3.0 Network card.
| Part number | Description | Slot Bus width (Gen5 lanes) | |
|---|---|---|---|
| #1 | #2 | ||
| P52753-B21 | HPE DL320 Gen11 x16 FHHL Riser Kit | X16 | x8 |
Riser 1 This is the main PCIe riser slot providing a full x16 PCIe 5.0 connection. It supports high-performance cards like GPUs, RAID controllers, or additional NICs depending on the riser card installed.
External OCP 3.0 NetworkingThis is the external OCP slot used for networking. It accepts standard OCP 3.0 network cards and is the one visible on the rear of the server.
Internal OCP 3.0 StorageThis is the internal OCP slot dedicated to storage. It supports Type-o storage controllers (the -o models like MR216i-o and MR416i-o) for adding RAID/HBA functionality without using the main PCIe slot.
- Entry-level professional graphics and AI accelerator with 4GB GDDR6 memory
- Designed for light AI inference, video analytics, and graphics workloads in HPE servers
- Low power consumption and ATX bracket for easy installation in rack servers
- Good entry point for small AI or visualization projects
- Mid-range professional GPU with 8GB GDDR6 memory and higher performance than the A400
- Suitable for more demanding AI, visualization, and compute workloads
- Offers better memory bandwidth and performance for medium AI inference or graphics tasks
- Popular choice when you need more GPU power without going to high-end cards like the A4000 or A6000
The DL20 Gen11 uses HPE iLO 6 for remote server management. By default, iLO shares the embedded Broadcom 1GbE port (NIC port 1), but you can add a dedicated iLO management port by installing the P65407-B21 enablement kit. It provides standard remote console, power control, health monitoring, and firmware management, with optional iLO Advanced licenses available for enhanced security and features.
Current Configuration
(List below serves as quick links to each section)
Chassis Options
HPE Processors
Memory
Box 1 option for 4x 2.5" Chassis
M.2 Support
Drives 3.5" Non-Hot-Plug
Drives 3.5" Hot Plug
Drives 2.5" SAS/SATA
Drives 2.5" NVMe U.3
Drives M.2
PCI Riser Options
Networking Adapters
GPU
OCP 3.0
Storage Controller
Power Supply Unit (PSU)
Select Warranty
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Specification | Details |
|---|---|
| Processor type | Intel |
| Processor family | Intel® Xeon® E-2400 Series |
| Processor cores available | 4 to 8 core, depending on processor. |
| Processor cache | Up to 16 MB Intel® Smart Cache, depending on processor. |
| Processor number | 1 |
| Processor speed | 5.8 GHz, maximum depending on processor. |
| Maximum memory | 128 GB |
| Memory slots | 4 DIMM slots, maximum |
| Memory type | HPE DDR5 Standard Memory |
| Memory protection | ECC |
| Drives supported | 2 Non-hot plug LFF or 2 Hot plug LFF or 4+2 Hot plug SFF. |
| Security | Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs. |
| Infrastructure management | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard); HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management. Refer to the HPE iLO 6 User Guide. |
| Expansion slots | Two maximum; for detailed descriptions refer to the QuickSpecs. |
| Network controller | HPE embedded 1Gb 4-port BCM5720 Network Adapter |
| Storage controller | Intel® VROC SATA (formerly known as Intel® RSTe) |
| Form factor | 1U Rack |
| Warranty | 3-year parts, 3-year labor, and 3-year on-site support with next business day response. Additional information available at www.hpe.com/services/support. |
