- 2U single-socket HPE ProLiant Compute DL345 Gen12
- 5th Gen AMD EPYC™ 9005 processors (up to 192 cores / 500W)
- 24 DDR5 DIMM slots – maximum memory 6 TB
- Front cages: 8 LFF, up to 24 SFF / 36 EDSFF E3.S, or GPU CTO
- Up to 6 PCIe Gen5 x16 slots and front/rear OCP 3.0
- HPE NS204i-u Boot Device (front or rear)
- Up to 4 double-width or 6 single-width GPUs
- Air or direct liquid cooling (DLC)
- Standard or Performance system fan kits
- Up to 2 M-CRPS hot-plug power supplies (800W–3200W)
- HPE iLO 7 management
(Click to View)

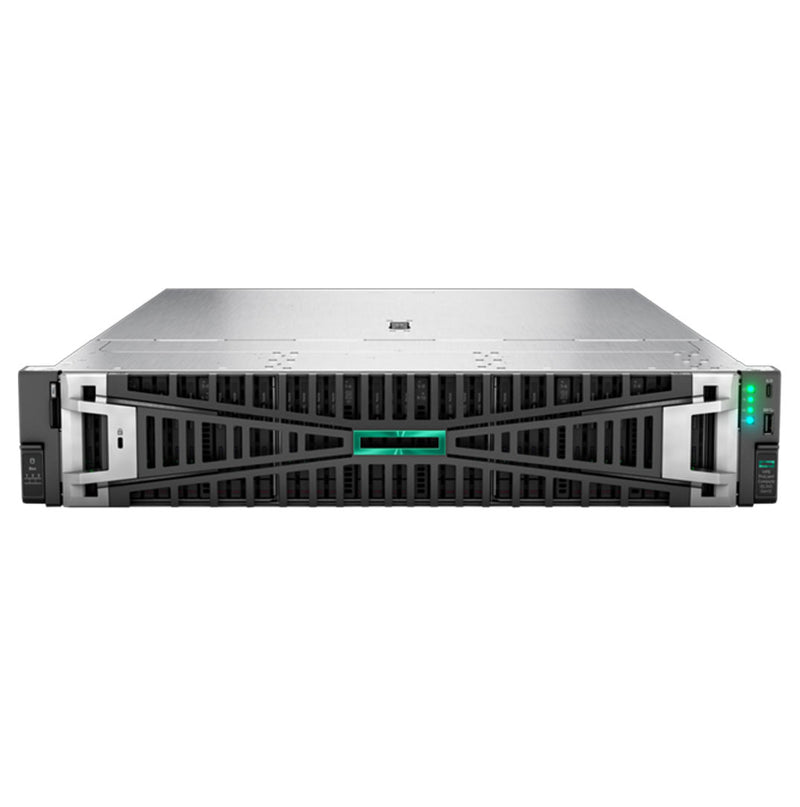

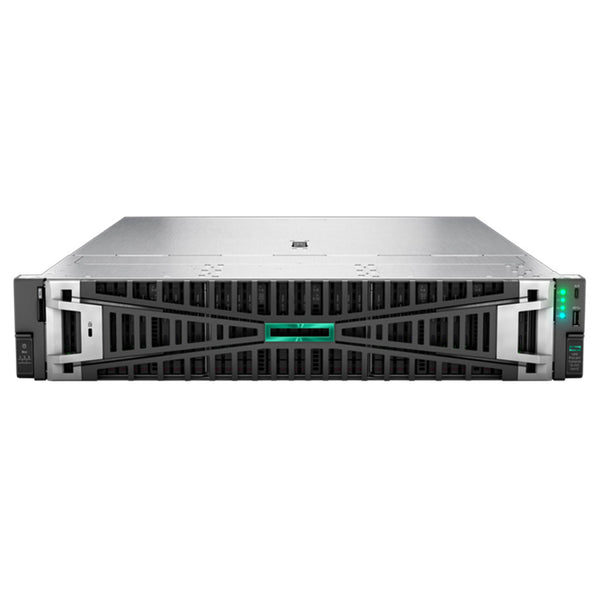

The HPE ProLiant Compute DL345 Gen12 is a 2U single-socket rack server for virtualized, SDS, and data-intensive workloads — AMD EPYC 9005 (up to 192 cores), up to 6 TB DDR5, PCIe Gen5, large LFF/SFF/EDSFF capacity, and iLO 7.
8 LFF CTOP81947-B21
SFF/EDSFF CTOP81948-B21
GPU CTOP81949-B21
Backplane and front-cage kits follow the CTO chassis — 8LFF (+ optional 4LFF / 2SFF side-by-side), SFF/EDSFF multipurpose cages, or GPU-front layouts (QuickSpecs).
4LFF BackplaneP75760-B21
LFF 2SFF Side-by-SideP74744-B21
8SFF x1 Tri-ModeP75740-B21
8SFF x4 Tri-ModeP75741-B21
4EDSFF CageP76450-B21
Multipurpose CageP76449-B21
SFF 2SFF EnablementP75807-B21
Rear 2SFF x4P87908-B21
One SP5 socket; 8–192 cores depending on SKU; up to 500W cTDP; 128 PCIe 5.0 lanes per processor. Maximum memory operating speed on DL345 Gen12 is 5200 MT/s (1DPC) / 4400 MT/s (2DPC). Processor table: QuickSpecs Standard Features.
- Example high-core: EPYC 9965 — 192C / 500W / 384 MB L3
- Example frequency: EPYC 9575F — 64C / up to 5 GHz / 400W
- Entry: EPYC 9015 — 8C / 125W
Select heat sink by CPU wattage. Air cooling uses Standard (P58458-B21) or Performance (P81952-B21) heat sinks with matching fan kits. Direct liquid cooling cold plate P81123-B21 pairs with QD tube set P62038-B21. Source: QuickSpecs Power and Cooling / Direct Liquid Cooling Options.
Standard HSP58458-B21
Performance HSP81952-B21
DLC Cold PlateP81123-B21
0.65m QD TubeP62038-B21
Choice of Standard Fan Kit P58464-B21 or Performance Fan Kit P58465-B21. Fan kits are designed for different configurations — see QuickSpecs Power and Cooling for ambient and GPU thermal tables.
Standard FanP58464-B21
Performance FanP58465-B21
HPE NS204i-u v2 hot-plug NVMe boot device installs front or rear. Front install uses Front Enablement Kit P74759-B21 (SFF/EDSFF / GPU Box 2 constraints apply). Rear install uses rear cable kit P71433-B21. Multipurpose cage P76449-B21 is required when front NS204i-u, Front OCP, or 4EDSFF kits share Box 2. Source: QuickSpecs OS Boot Device Options.
NS204i-u 480GBP78279-B21
NS204i-u 960GBP81160-B21
NS204i-u 960GB SEDP81162-B21
Front EnablementP74759-B21
Rear CableP71433-B21
The MR (MegaRAID) and SR (SmartRAID) controller families use different management tools and cannot be installed together in the same server. When paired with a tri-mode U.3 backplane, both series support SAS, SATA, and NVMe drives, allowing mixed drive types in one system. This server has no built-in software RAID. Direct-attached SATA drives run in AHCI mode only, so a hardware RAID controller is required for any RAID functionality.
SR Series (SmartRAID)
SR Series
Installation Service Manual
The SR series is the high-end controller line, only available in type-p PCIe form factor.
This is the go-to choice for high drive count configurations or maximum storage throughput. Like the cached MR controllers it requires a battery or capacitor for cache protection.
MR Series (MegaRAID) - View PDF
MR Series
Installation Service Manual
The MR series is the broader, more flexible controller line available in both type-o and type-p form factors.
The cached models (MR408i-o, MR416i-o, MR416i-p) add a Flash-Backed Write Cache (FBWC)
Choosing Between MR and SR
- All HPE MRxxx RAID controllers support SAS, SATA, and NVMe drives
- Need OCP slot deployment → MR type-o only
- Simple RAID, no cache needed → MR216i-o or MR216i-p
- Need cache, moderate drive count → MR408i-o or MR416i-o/p
- Maximum drive count or throughput → MR932i-p
- External SAS/SATA storage → E208e-p (Gen10, type-p, external only)
Every DL345 Gen12 starts with rear OCP 3.0 Slot A (x16). Use the kits below for Slot B bandwidth or front OCP on SFF/EDSFF and GPU CTO servers:
- P81908-B21 — OCP Slot B x8 Enablement: enables rear OCP Slot B (select one or two kits depending on required Slot B bandwidth).
- P77277-B21 — Front Primary OCP: Front GPU / Primary Front OCP enablement path for SFF/EDSFF and GPU CTO (QuickSpecs).
- P81903-B21 — Front Secondary OCP: select only after Front Primary; SFF/EDSFF and GPU CTO only.
- Shared NIC / Wake-on-LAN: rear OCP A/B and front Primary support shared-NIC and WOL; front Secondary supports WOL only. Keep at least one supported OCP Ethernet if shared-NIC/WOL through iLO is required.
OCP Slot B x8P81908-B21
Front Primary OCPP77277-B21
Front Secondary OCPP81903-B21
- Slot 6 PCIe 5.0 x16 is default on CTO servers; primary/secondary riser cages add Slots 1–5.
- P81904-B21 Slot 3 riser kit — select first when expanding primary riser.
- P81905-B21 Slot 1/2 riser kit — select after Slot 3 riser (P81904-B21).
- P81906-B21 Slot 4/5 riser kit — secondary riser cage.
- GPU CTO P81949-B21 adds front PCIe Slots 10/12 (default) and optional 15/17 for front GPUs.
- OCP B bandwidth depends on how many P81908-B21 enablement kits are selected (QuickSpecs Expansion Options).
Slot 3 RiserP81904-B21
Slot 1/2 RiserP81905-B21
Slot 4/5 RiserP81906-B21
- Up to 6 single-width or 4 double-width GPUs (card and thermal limits apply).
- 8LFF / SFF·EDSFF CTO: rear PCIe GPU installs; follow QS thermal table for fan / heatsink / ambient.
- GPU CTO P81949-B21: front GPU cage; use Front 4xGPU Enablement Kit P84160-B21 for four-GPU front layouts.
- High-power front GPUs (e.g. L40S / RTX PRO 4500) need the matching GPU power cable kits (QuickSpecs Graphics Options).
- High-TDP CPU + multi-GPU configs may require Direct Liquid Cooling — see QS GPU / DLC notes.
Front 4xGPU EnablementP84160-B21
NVIDIA L40S 48GBS2L70C
RTX PRO 4500 32GBS6W30C
Up to two HPE Modular Common Redundant Power Supplies (M-CRPS). Titanium kits rated for high efficiency; 800W Platinum also available. Source: QuickSpecs Power Supplies.
800W PlatinumP73190-B21
1000W TitaniumP67240-B21
1500W TitaniumP67244-B21
2400W TitaniumP67252-B21
3200W TitaniumP67248-B21
- Silicon Root of Trust
- Firmware signed with CNSA 2.0 approved algorithms
- Supports quantum-resistant (PQC) cryptography
- Continuous integrity checking and secure recovery
- Dedicated iLO management port
- iLO Service Port on the front for direct local access
- Remote console and virtual media
- RESTful API / Redfish support
- Integration with HPE Compute Ops Management and OneView
- Real-time server health monitoring
- Integrated Management Log (IML)
- Support for chassis intrusion detection
- iLO 7 embedded with Intelligent Provisioning (standard)
- Optional iLO Advanced / Advanced Premium Security Edition
Current Configuration
(List below serves as quick links to each section)
Chassis
Processors
Cooling Options
Fans
Memory
LFF Backplane / Drive Cage
SFF/EDSFF & GPU Backplane / Drive Cage
Boot Options
Storage Controllers
Networking
OCP
Host Bus Adapter | HBA
Riser Options
Optical Disk Drive | ODD
GPU
Drives LFF
Drives SFF
Drives NVMe
Drives EDSFF
Power Supply Units | PSU
Rail Kit
ECS Warranty
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Technical specifications | HPE ProLiant Compute DL345 Gen12 |
|---|---|
| Processor type | AMD |
| Processor family | 5th Generation AMD EPYC™ Processors |
| Processor number | 1 |
| Processor core available | 8 to 192 core, depending on processor |
| Processor speed | 5 GHz maximum, depending on processor |
| Processor cache | 64 - 512 MB L3, depending on processor |
| Memory type | HPE DDR5 Smart Memory |
| Maximum memory | 6.0 TB with 256 GB DDR5 |
| Memory slots | 24 DDR5 DIMM slots |
| Memory protection features | On-Die ECC (Error Correction Code) designed to correct bit errors within the DRAM |
| Accelerators | Up to 4 double-width 400W or 6 single-width 75W GPUs |
| System fan features | Standard or Performance fan kits |
| Expansion slots | Up to 6 PCIe Gen5 slots (x16 lanes/each) & front/rear OCP 3.0 |
| Form factor | 2U Rack |
| Network controller | Optional - Minimum 1 to be selected. Wide range of speeds, cabling, chipsets and form factors (PCIe stand-up adapter and OCP3.0 in rear/front). See QuickSpecs for network card choices. |
| Storage controller | Optional - HPE ProLiant Compute Smart Array / MR / SR controllers in PCIe or OCP form factors. Optional NS204i-u OS boot device front or rear. See QuickSpecs. |
| Drive supported | Up to 12 LFF SAS/SATA, 24 SFF SAS/SATA/NVMe, or 36 EDSFF E3.S NVMe, depending on model |
| Optical drive type | Optional DVD-ROM / DVD-RW via Universal Media Bay; external USB support |
| Power supply type | Up to 2 HPE Modular Common Redundant (M-CRPS) Power Supplies, wattage depending on model |
| Infrastructure management | Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced |
