HPE ProLiant Apollo 4200 Server (G10) CTO
Configure for Pricing
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What's New
- 2U (28 LFF or 54 SFF) Chassis Options
- Optional rear drive up to 6 SFF/NVMe or 4 LFF
- (2) Intel Xeon 1st & 2nd Gen Scalable processors
- (16) 2933MT/s DDR4 DIMMs | 8 DIMMs per processor
- HPE Persistent Memory Support
- Supports up to 2.0TB of DDR4 memory
- (7) PCIe 3.0 slots
- HPE iLO 5
- HPE NS204i-p OS Boot Device Support
- HPE Smart Array P824i-p MR Gen10 12G SAS Controller
- Rear NVMe Drives Support
- No GPU Supported
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Cloud Servers
- Data Analytics
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Hyper-Converged infrastructure (HCI)
- Machine Learning (ML)
- Video Analytics
- Video Streaming
- Virtualization
- Virtual Machines (VM)
- Web Tech
- Anything as a service (Xaas)
The HPE Apollo 4200 Gen10 Server delivers enhanced storage density and performance in a 2U form factor, designed for modern data-intensive workloads. It supports up to 28 LFF or 54 SFF hot-plug drives, providing exceptional capacity and flexibility. The LFF chassis allows up to 448 TB of storage using 16 TB drives, scaling to over 8 PB in a standard 42U rack. For high-performance applications, the SFF chassis supports up to 54 NVMe, SAS, or SSD drives, offering increased throughput and reduced latency—ideal for workloads like big data analytics, AI, and content delivery. With support for NVMe storage and HPE Smart Array controllers, the Gen10 version delivers faster performance and improved scalability over its predecessor.
The HPE Apollo 4200 Gen10 Server focuses on storage-intensive and compute-friendly workloads but does not natively support GPU accelerators. Instead, its design prioritizes high-capacity storage, flexible drive configurations, and advanced management features, making it a robust solution for enterprise applications like big data, data analytics, and video streaming environments.
CTO Configuration Support
Need help with the configuration? Contact us today!

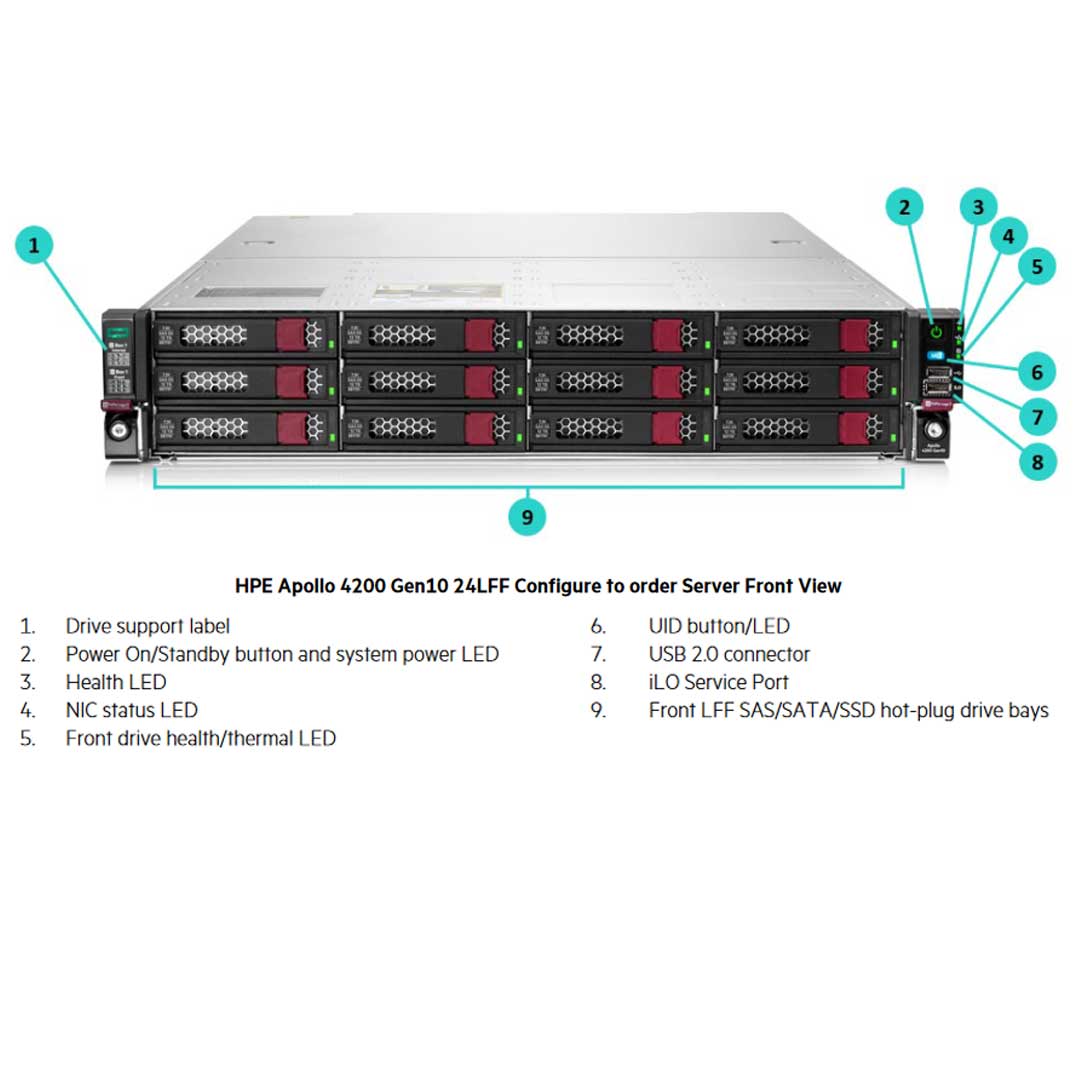

Chassis Options
Apollo 4200 Gen10 LFFP07244-B21
Rear Drive Options
Dimensions: (H) x (W) x (D)
- 4LFF Rear Cage Kit (P07943-B21)
- 2SFF Rear Drive + 2 FLHL Riser Kit (P07248-B21)
- 6SFF Rear Cage Kit (P14010-B21)
- 6NVMe Rear Cage Kit (P07250-B21)
- SAS 560TB (24+4) x 20TB
- SAS SSD 107.52TB (24+4) x 3.84TB
- SATA 560TB (24+4) x 20TB
- SATA SSD 215.04 TB (24+4) x 7.68TB
- NVMe 92.16 TB (6) x 15.36TB
Dimensions: (H) x (W) x (D)
- 3.44 x 17.63 x 32.50 in
- 8.75cm x 44.8 x 82.55 cm
- Min: 49.25 lb (22.34 kg)
- Max: 89.51 lb (40.6 kg)

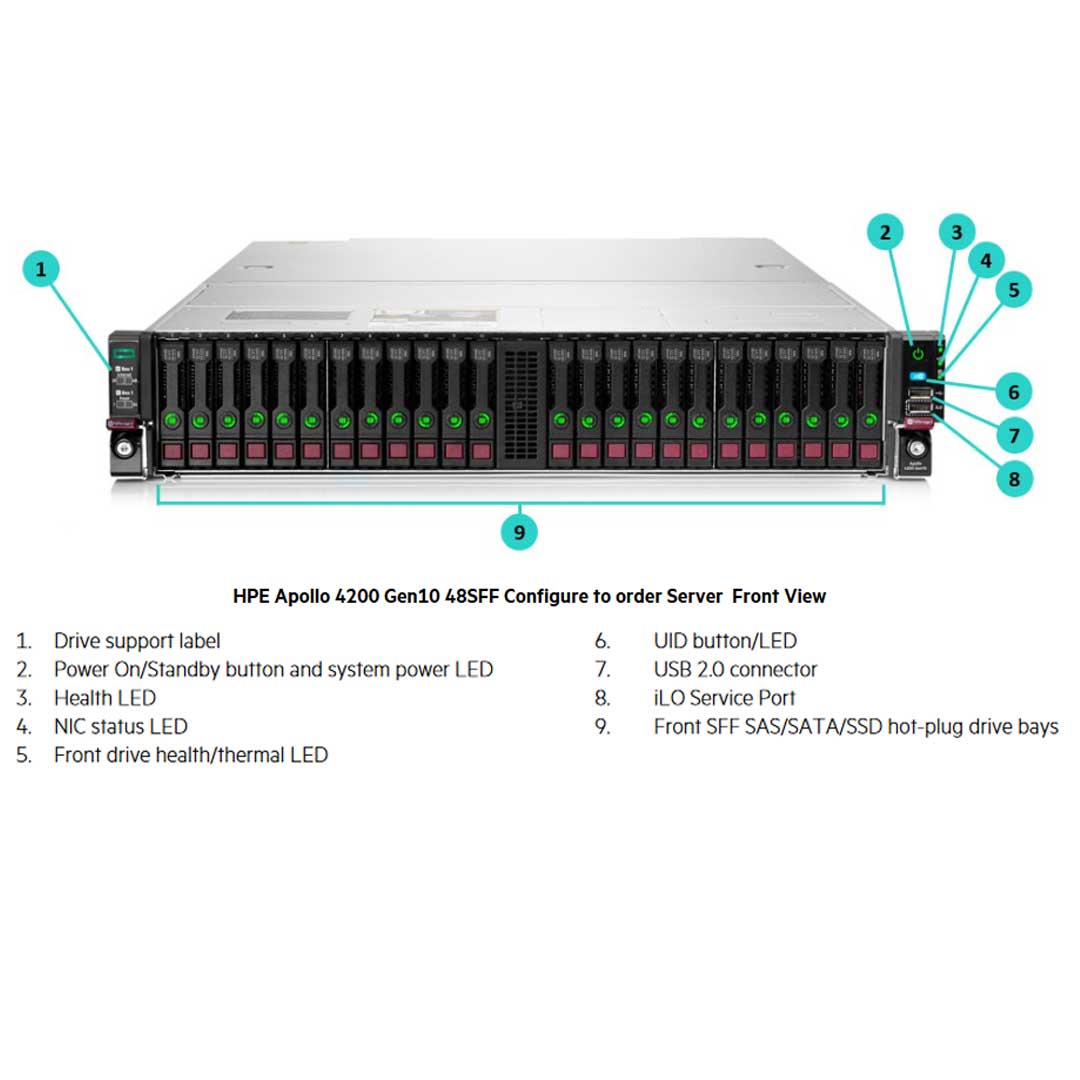

Apollo 4200 Gen10 SFFP07246-B21
Rear Drive Options
Dimensions: (H) x (W) x (D)
- 2SFF Rear Drive + 2 FLHL Riser Kit (P07248-B21)
- 6SFF Rear Cage Kit (P14010-B21)
- 6NVMe Rear Cage Kit (P07250-B21)
- SAS 129.6TB (48+6) x 2.4TB
- SAS SSD 829.44TB (48+6) x 15.36TB
- SATA 108TB (48+6) x 2TB
- SATA SSD 414.72TB (48+6) x 7.68TB
Dimensions: (H) x (W) x (D)
- 3.44 x 17.63 x 32.50 in
- 8.75cm x 44.8 x 82.55 cm
- Min: 51.59 lb (23.40 kg)
- Max: 81.28lb (36.87kg)
HPE Apollo 4200 Gen10 NVMe Drives | 6 NVMe
The HPE Apollo 4200 Gen10 server supports up to 6 SFF NVMe drives in the rear drive cage. By default, all drives connect to Processor 1 via PCIe slot 2 without requiring a controller mode. For better performance, optional modes are available: the HPE NVMe CPU2 x6 FIO Controller Mode (P09657-B21) routes all 6 drives to Processor 2 via PCIe slot 6, while the HPE NVMe CPU1 x4/CPU2 x2 FIO Controller Mode (P09658-B21) splits 4 drives to Processor 1 and 2 to Processor 2. These options optimize PCIe bandwidth for high-performance NVMe workloads.
- HPE NVMe CPU2 x6 CTRL Mode (P09657-B21)
- HPE NVMe CPU1 x4/CPU2 x2 CTRL Mode (P09658-B21)

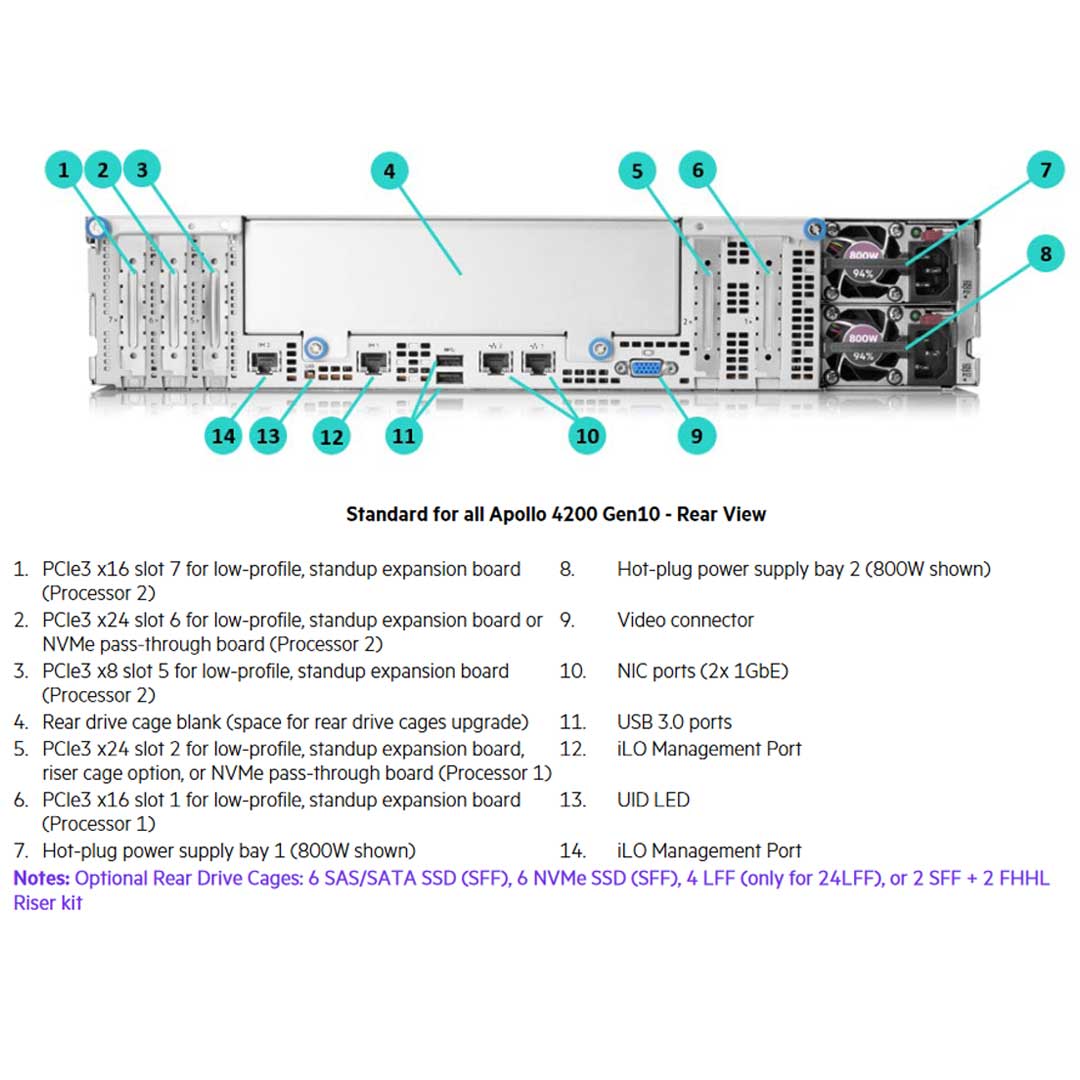

HPE Apollo 4200 Gen10 PCI Risers | 7 PCIe Slots
There are 7 Total PCIe slots but Slots 4 and 5 are only available with the rear riser cage installed (P07248-B21). This Riser cage will provide 2 extra SFFs and 2 FHHL PCIe slots. When this Riser cage is installed PCIe slot 2 will not be available. This slot is where the riser cage sits.
2 SFF + 2FHHL Riser Kit (P07248-B21)
| Default Expansion Slots | Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
|---|---|---|---|---|---|---|
| 1 | PCIe 3.0 | x16 | x16 | CPU1 | Low Profile | |
| 2 | PCIe 3.0 | x24 | x24 | CPU1 | Low Profile | |
| 5 | PCIe 3.0 | x8 | x8 | CPU2 | Low Profile | |
| 6 | PCIe 3.0 | x24 | x24 | CPU2 | Low Profile | |
| 7 | PCIe 3.0 | x16 | x16 | CPU2 | Low Profile | |
| 2 SFF + 2FHHL Riser Kit | Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
| 3 | PCIe 3.0 | x16 | x16 | CPU1 | Full-height; half length | |
| 4 | PCIe 3.0 | x8 | x8 | CPU1 | Full-height; half length |

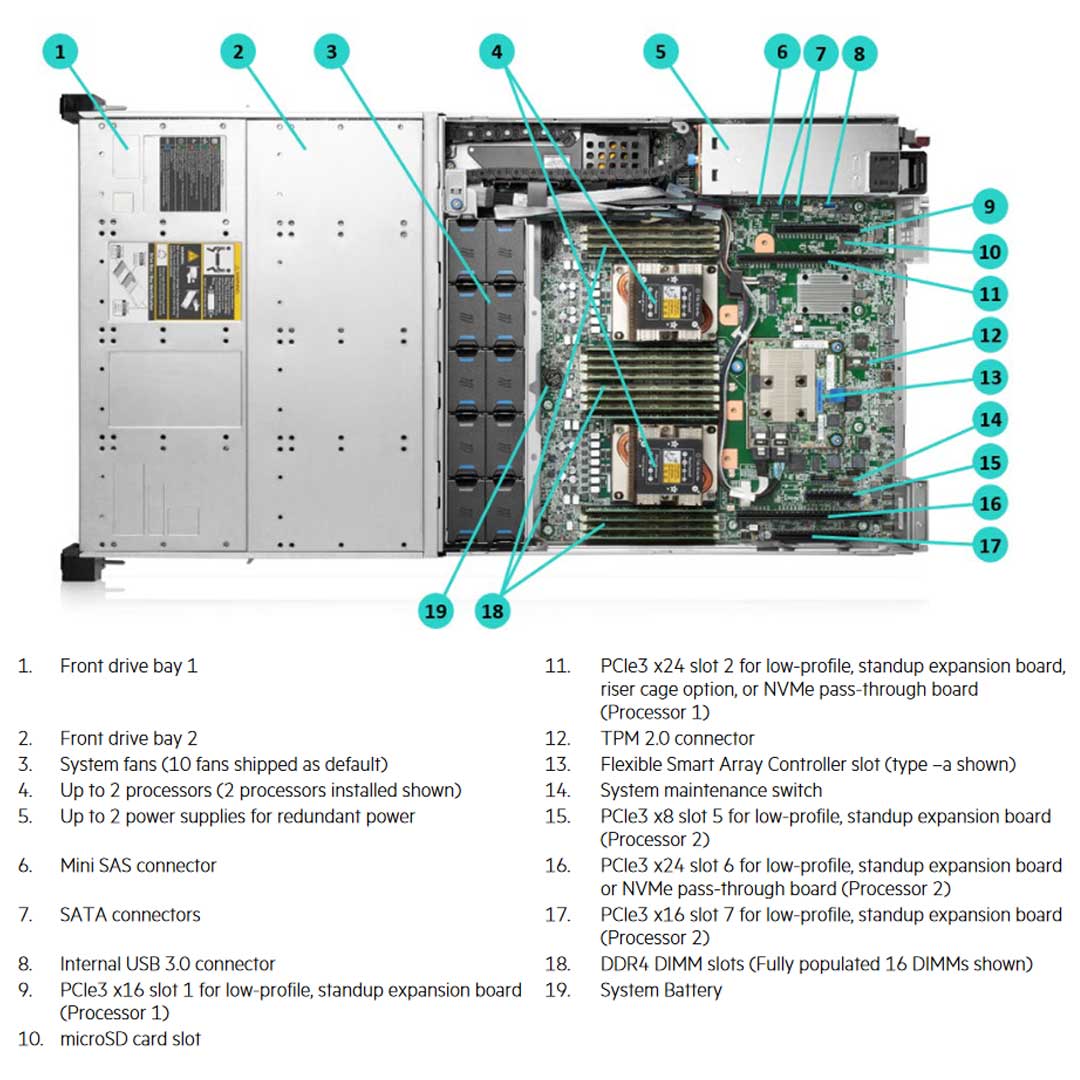

HPE Apollo 4200 Gen10 Cooling | 10 Fans
The HPE Apollo 4200 Gen10 server features an advanced cooling system to ensure efficient thermal management in its dense 2U form factor. The system is equipped with 10 hot-swappable fans as standard, which are strategically placed to deliver front-to-back airflow. These fans are essential for maintaining proper cooling, especially when components like drives, processors, and PCIe cards are fully populated
HPE NS204i-p NVMe OS Boot Device
The HPE NS204i-p NVMe OS Boot Device is a dedicated hardware RAID 1 solution, specifically designed to ensure reliable and secure operating system boot functionality in the HPE Apollo 4200 Gen10 server. It features two M.2 NVMe SSDs configured in RAID 1, providing automatic mirroring for redundancy and fault tolerance. This device utilizes a PCIe3 x8 interface with x2 lanes, delivering high-speed boot performance while conserving valuable storage drive bays for data.
HPE P824i-p MR Enablement Kit | 24 LFF Chassis Only
The HPE P824i-p Smart Array Controller Enablement Kit (P11274-B21) supports up to 24 SAS/SATA drives in the 24 LFF chassis with 12G SAS lanes for high performance and advanced RAID (0, 1, 5, 6, 10, 50, 60) or JBOD flexibility. Featuring a 4 GB flash-backed write cache (FBWC) and integration with the HPE Smart Storage Battery, it enhances I/O performance while protecting data during power loss. With tools like HPE MR Storage Administrator and features for data integrity, it delivers reliable, efficient storage management for large-capacity workloads.
View P824i-p MR Manual
HPE Apollo 4200 Gen10 Flex Slot your power!
Mixing of 2 different power supplies is NOT allowed.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
