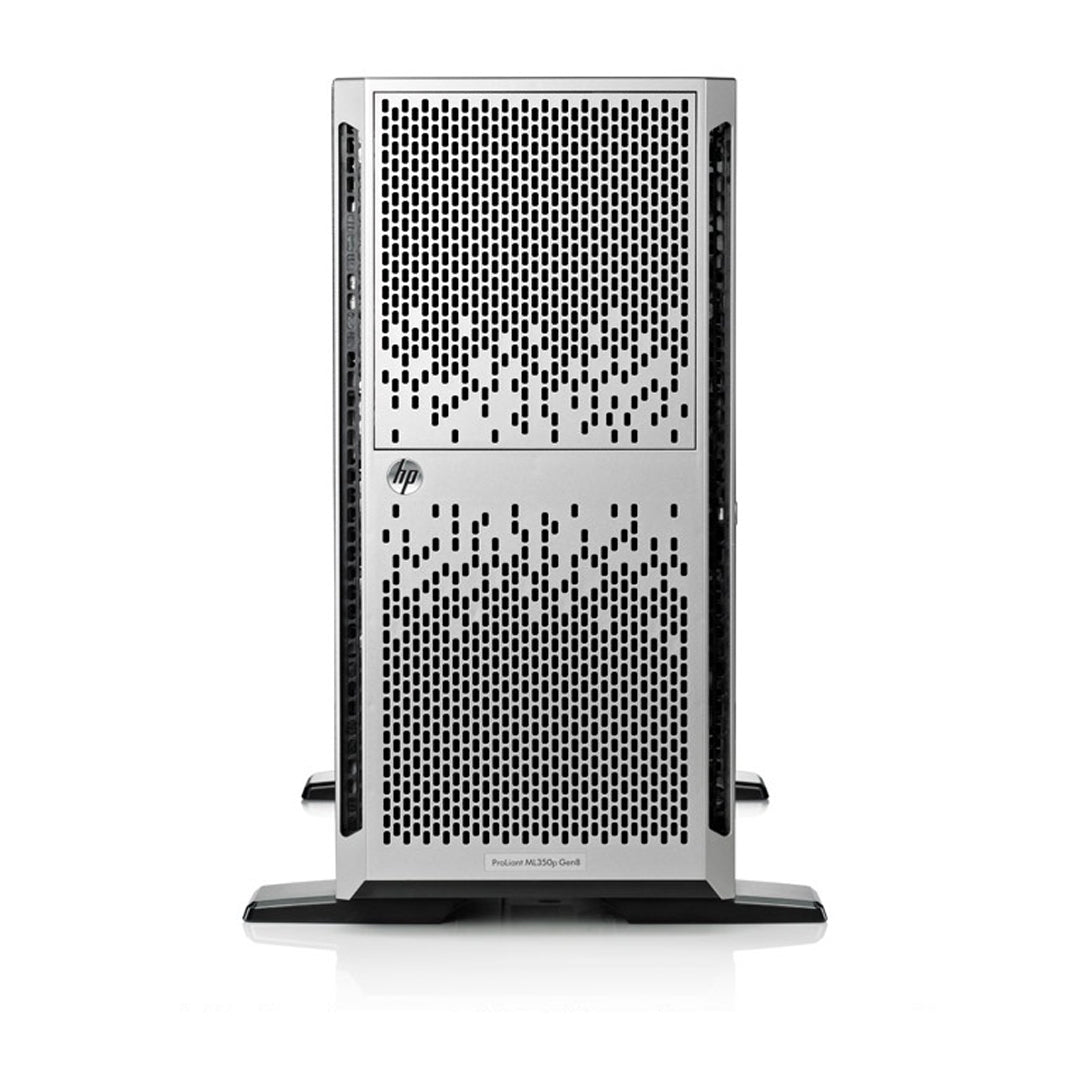

HPE ProLiant ML350e Gen8 v2 CTO Rack Tower Server

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What's New for ML350e Gen8 v2
  • Up to 25% performance increase with the new Intel Xeon E5-2400 v2 processors

  • New low voltage DIMMs running at 1600 MHz

  • Latest HP Smart Array Controllers designed to maximize data availability, performance and capacity

  • Simplify user experience with the new configuration and management tool, Smart Storage Administrator

  • First controller-based encryption solution to provide an extra level of data protection

  • New dedicated GPU support for graphics-intensive applications


The refurbished HP ProLiant ML350e Gen8 v2 is a dual processor tower platform, which is built on the latest Intel Xeon E5-2400 v2 processors to create a unique system architecture. This unique architecture, as well as flexible deployment options, allows businesses to scale as needed. The HP ProLiant ML350e Gen8 v2 delivers the industry's most powerful embedded management technology, HP integrated Lights-Out 4 (iLO4), enabling businesses to manage the servers anytime and from anywhere.

Processors | (2) Intel E5-2400 v2

Up to 2 processors supported. Mixing different processor models is not supported. If one processor is installed, only 6 DIMM slots are available. When populating with two processors 12 DIMM slots are available.

Cooling Fans

System Fans Two (2) Non-hot plug, non-redundant fans ship standard (support up to 4 fans).

NOTE: Redundant Enablement Kit (PN 738661-B21) is required when redundant fans are needed.

Memory | 12 DDR3 DIMMs

If one processor is installed, only 6 DIMM slots are available. When populating with two processors 12 DIMM slots are available.

Redundant Enablement Kit (PN 738661-B21) is required when Registered DIMM is purchased.

Maximum Memory
  • Maximum (RDIMM) 192 GB (12 x 16 GB) RDIMMM
  • Maximum (UDIMM) 96 GB (12 x 8 GB) UDIMM
Network | 4 PCIe 3.0 and 2 PCIe 2.0 I/O slots

Default Controller HP Ethernet 1Gb 2-port 361i Adapter.

Up to 6 PCIe slots, 4 PCIe 3.0 and 2 PCIe 2.0 I/O slots. The HPE ML350e Tower / Rack Server can handle up to 10Gb on Dual ports. A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

Read the manuals below for all the options this server can support.

HPE ML350e Gen 8 Networking PCIe slots
Storage Controller

Default Controller HP Dynamic Smart ArrayB120i/ZM SATA Controller (RAID 0/1/1+0) and can support up to 4 SATA drives.

A SAS controller is required to support more than 4 drives and support SAS drives.


Drive Cage Upgrades

Mixing of SFF and LFF drive cages is not allowed.
NOTE: A second SFF Hot Plug Drive Cage requires a separate Smart Array controller. A second LFF Hot Plug Drive cage can be supported with a P222, or both LFF drive cages can be supported with a single P430.

HPE ML350 Gen 8 Tower / Rack Server
Dimensions & Weight
Dimensions (H x W x D)

Inches: 18.19 x 8.58 x 29.13 in

Centimeter: 46.2 x 21.8 x 74.0 cm

Weight (approximate)

Maximum: (all hard drives, power supplies, and processors installed) 96.67 lb (43.85 kg)

Minimum:Minimum (one hard drive, power supply, and processor installed) 57.21lb (25.95 kg)



Please Upgrade Server

*This Configure to Order has not been created.
*You can still Contact Us for a quote on this server.
*Thank you.

Welcome to the Request Express Quoting Form!

for: HPE ProLiant ML350e Gen8 v2 CTO Rack Tower Server


This streamlined form is designed to simplify the quoting process for you. Whether you're uncertain about specific parts or seeking a hassle-free experience, you're in the right place.

Provide us with the necessary details, and we'll generate a customized quote for your server. Even if you're unsure about the exact components you need, we've got you covered. Our team will tailor a solution based on the information you provide.

Let's get started!
Simply fill out the form, and we'll take care of the rest.


Name *
Email *
Message *
Preferred Brand
Form Factor
Rack Unit of Height (#U)
Processor(s)
Memory
Total Amount of Memory
Total Amount of Usable Storage

Storage Type


RAID

List Networking Connection needed:
Rack Space Restrictions
Which OS do you plan on using:


Price as Configured: 0

Product Specs

Base Standard Capabilities

Product features

Feature
Description
Processor (One of the following depending on Model)
E5-2400 v2 Series processors
  • Intel Xeon E5-2470 v2 (2.4 GHz/10-core/95 W/25MB) Processor

  • Intel Xeon E5-2450 v2 (2.5 GHz/8-core/95 W/20MB) Processor

  • Intel Xeon E5-2440 v2 (1.9 GHz/8-core/95 W/20MB) Processor

  • Intel Xeon E5-2430 v2 (2.5 GHz/6-core/80 W/15MB) Processor

  • Intel Xeon E5-2420 v2 (2.2 GHz/6-core/80 W/15MB) Processor

  • Intel Xeon E5-2407 v2 (2.4 GHz/4-core/80 W/10MB) Processor

  • Intel Xeon E5-2403 v2 (1.8 GHz/4-core/80 W/10MB) Processor

E5-2400 Series processors
  • Intel Xeon E5-2470 (2.3 GHz/8-core/95 W/20MB) Processor

  • Intel Xeon E5-2450 (2.1 GHz/8-core/95 W/20MB) Processor

  • Intel Xeon E5-2450L (1.8 GHz/8-core/70 W/20MB) Processor

  • Intel Xeon E5-2440 (2.4 GHz/6-core/95 W/15MB) Processor

  • Intel Xeon E5-2430 (2.2 GHz/6-core/95 W/15MB) Processor

  • Intel Xeon E5-2430L (2.0 GHz/6-core/60 W/15MB) Processor

  • Intel Xeon E5-2420 (1.9 GHz/6-core/95 W/15MB) Processor

  • Intel Xeon E5-2407 (2.2 GHz/4-core/80 W/10MB) Processor

  • Intel Xeon E5-2403 (1.8 GHz/4-core/80 W/10MB) Processor

Cache memory
  • 25MB (1 x 25MB) L3 (For Ten-core processors)

  • 20MB (1 x 20MB) L3 (For Eight-core processors)

  • 15MB (1 x 15MB) L3 (For Six-core processors)

  • 10MB (1 x 10MB) L3 (For Quad-core processors)

Memory protection
  • Advanced ECC

  • Online Spare

  • Lock-step mode

Chipset
  • Intel C600 Chipset

  • Intel E5-2400 v2 Processor family

Upgradeability
  • Upgradeable to two (2) processors

  • Up to 12 DIMM slots available for higher memory capacity

  • Up to 16 SFF hard drives or 8 LFF hard drives for expanded storage

  • 4 PCIe 3.0 and 2 PCIe 2.0 I/O slots for additional communications and storage expansion

  • Redundant Power Supplies (92% and 94% efficiency)

  • Tower to rack conversion

  • Optical drive bays (up to 2)

On system management chipset
HP iLO (Firmware: HP iLO4)
Memory
Type
HP SmartMemoryDDR3 Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available
12 DIMM slots (6 DIMM slots per CPU)
Maximum (RDIMM)
192GB (12 x 16GB) RDIMMM
Maximum (UDIMM)
96GB (12 x 8GB) UDIMM
Network controller
HP Ethernet 1Gb 2-port 361i Adapter
Storage controller
HP Dynamic Smart Array B120i/512MB FBWC SATA Controller (RAID 0, 1, 1+0, Optional RAID 5)
Maximum internal storage
Hot Plug LFF SAS
32TB
8 x 4TB
Hot Plug LFF SATA
32TB
8 x 4TB
Hot Plug SFF SAS
19.2TB
16 x 1.2TB
Hot Plug SFF SATA
16TB
16 x 1TB
Non-Hot Plug LFF SATA
16TB
4 x 4TB
Hot Plug SFF SAS SSD
1.6TB
16 x 100GB
Hot Plug LFF SATA SSD
1TB
8 x 100GB
Internal storage devices
Optical drives
HP Half-Height SATA DVD-ROM/RW Optical Drive
Hard drives
None ship standard
Hard drive bays
  • (4) Non-hot plug LFF SATA HDD bays

  • (4) Hot plug LFF SAS/SATA HDD bays; upgradable to (8)

  • (8) Hot plug SFF SAS/SATA HDD bays; upgradable to (16)

Interfaces
Serial
1
Video
1 (rear)
SD slot
1 (internal)
USB 2.0
8 (2 front, 4 rear, 2 internal)
Network RJ-45 (Ethernet)
3 (1 dedicated for HP Integrated Lights-Out)
HP iLO RemoteManagement NetworkPort
1 Gb Dedicated
Industry standard compliance
  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Novell Certified

  • IPMI 2.0, SMASH CLP, DCMI 1.0 compliant

  • Microsoft Logo certifications

  • USB 2.0 Support

  • SMBIOS 2.7.1

Form factor
Tower 5U
Graphics
Integrated Matrox G200 video standard
  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

Security
  • Power-on password

  • Setup password

  • Serial interface control

  • Power switch security

  • Administrator's password

top

Software overview

Feature
Description
Operating Systems andVirtualization SoftwareSupport for ProLiantServers
  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Canonical Ubuntu

  • VMware

top

Physical specifications

Specification
Description
Dimensions (H x W x D) ((with feet/bezel)
43 x 20 x 63 cm (16.93 x 7.87 x 24.8 in)
Weight (approximate):
Maximum (all hard drives, power supplies, and processors installed)
27 kg (72.34 lb)
Minimum (one hard drive, power supply, and processor installed)
20 kg (53.58 lb)

top

Electrical specifications

Specification
Description
Rated line voltage
100 to 240 V ac
Rated input current
7.1 A (at 120 V ac) to 3.5 A (at 240 V ac)
Rated input frequency
50 to 60 Hz
Rated input power
852 W
Maximum peak power
  • 460(750) W (at 100 V ac)

  • 460(750) W (at 200 V ac)

Rated steady-state power
  • 460(750) W (at 100 V ac)

  • 460(750) W (at 200 V ac)

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35°C (50° to 95°F)
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Operating relative humidity
10% to 90% non-condensing
Non-operating relative humidity
5% to 95% non-condensing
Operating altitude
3048 m (10,000 ft)
Non-operating altitude
9144 m (30,000 ft)

top

Safety certifications

Specification
Description
FCC Rating
Class A
Normative standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
