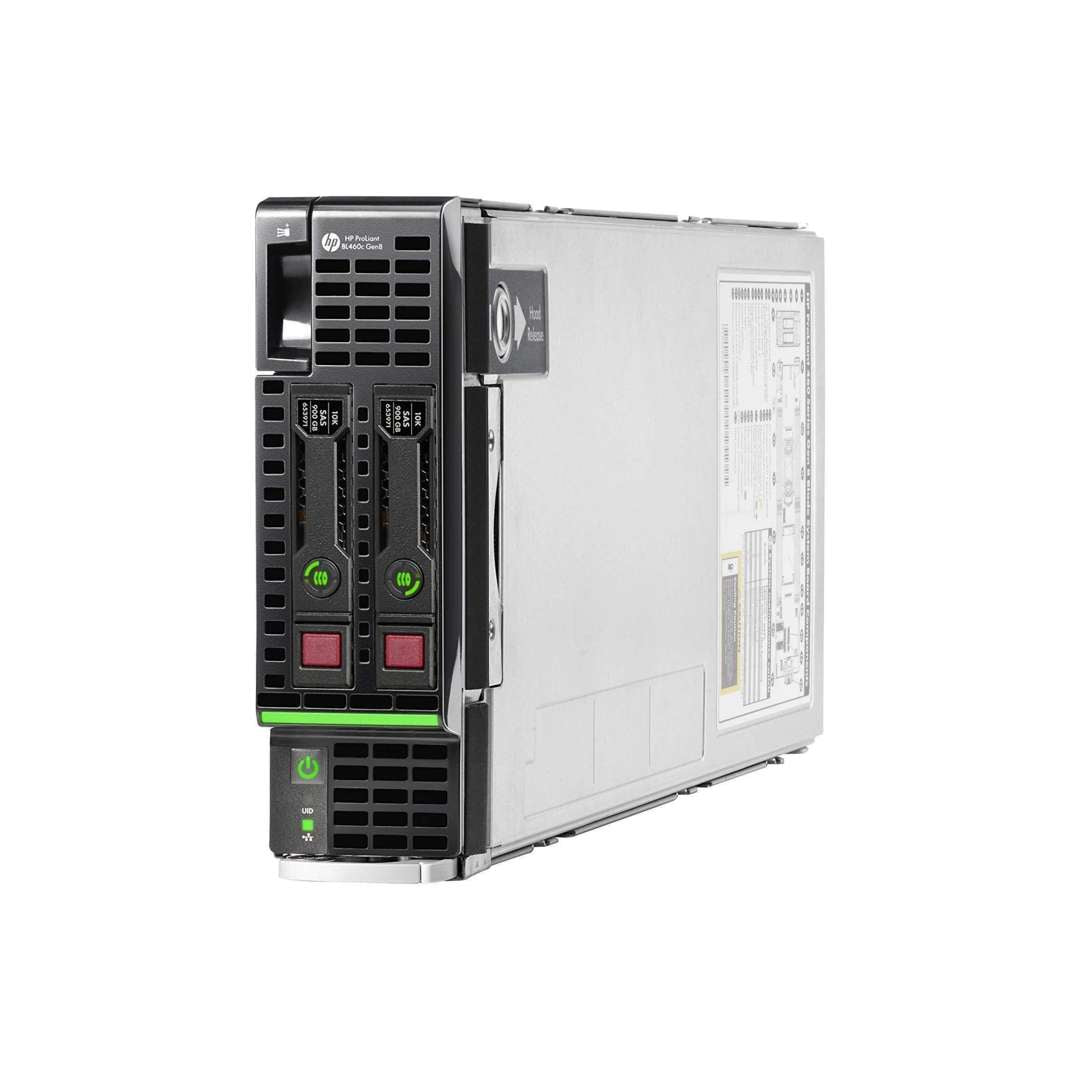

HPE ProLiant BL460c Gen8 CTO Server Blade

Contact for Pricing Price: Configure for Price

Brand:

HPE

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

What's New for BL460c Gen8

Support for HPE Oneview software license
Support for HPE Secure encryption, a data security option for the HPE Smart Array P731m and the P230i Controllers
New HPE SmartMemory 24GB -1333 Memory low voltage option kit (761501-B21)
Support for HPE FlexFabric 20Gb 2-port 630 FLB FlexibleLOM

HPE ProLiant BL460c Gen8 is a dual-socket server blade, which packs in more performance. With a 33% increase in memory DIMM count, Intel Xeon E5-2600 processor, faster I/O slots and enhanced Smart Array Controller that no W ships With 512MB Flash Back Write Cache (FBWC) standard. In addition, it is also more flexible. With the HPE FlexibleLOM which provides the ability to customize server net working today and the ability to meet future needs without over hauling server hardware.

Supported Enclosures:

Other Versions:

Ideal for:

Cloud Servers
Corporate IT
Database
Retail Servers

CTO Configuration Support

Need help with the configuration? Contact us today!

Processors | (2) Intel® Xeon® E5-2600

Up to two (2) Intel® Xeon® E5-2600 family processors

The HPE ProLiant BL460c Gen8 supports one or two Intel Xeon E5-2600 series processors, offering options for enhanced performance with Intel® Hyper-Threading and Intel® Turbo Boost technologies (except for certain models like the E5-2603 and E5-2609). These processors require identical models in both slots and do not support mixed configurations. Memory compatibility and speed depend on the processor model; for example, DIMM slots 4 and 5 are unavailable with higher-end models like the E5-2690. Additionally, the server includes two I/O mezzanine expansion slots, with each slot accessible only if a processor is installed in the corresponding processor slot.

Supports up to two identical Intel Xeon E5-2600 processors (no mixing models).
Hyper-Threading and Turbo Boost are available on most models.
High-end processors limit access to DIMM slots 4 and 5.
Memory speed and voltage vary by processor; some models don’t support 1.35V.
Two I/O mezzanine slots, each requiring an active processor for access.

Memory | 16 DIMMs

Each Intel® Xeon® E5-2600 family or Intel® Xeon® E5-2600 family processor socket contains four memory channels that support two DIMMs each for a total of eight (8) DIMM per installed processor or a grand total of sixteen (16) DIMMs for the server. Up to 32GB capacity DIMMs are supported for 512GB of memory (16 DIMM slots x 32GB per DIMM).

Memory Rules and Guidelines:

A minimum of one DIMM is required per processor.
Install DIMMs only if the corresponding processor is installed.
If only one processor is installed in a two-processor system, only half of the DIMM slots are available
DIMM sizes can be mixed in channel.
DIMMs of different speeds may be mixed
LRDIMM, RDIMM, and UDIMMs cannot be mixed.

Networking | Mezzanine Expansion Slot 1, 2

The HPE server features two I/O expansion mezzanine slots: Expansion Slot 1 is a x16 PCIe 3.0 Type A slot that supports dual-port mezzanine cards, with one port routed to interconnect module bay 3 and the other to bay 4. Expansion Slot 2 is a x16 PCIe 3.0 Type B slot, compatible with both Type A and Type B mezzanine cards. This slot supports dual-port and quad-port mezzanine cards—dual-port cards route one port each to bays 5 and 6, while quad-port cards route to bays 5, 6, 7, and 8. Note that Expansion Slot 2 requires a second processor to be installed for activation.

Mezzanine card options include:

Dual-port 10Gb FlexFabric, Dual-port 20Gb FlexFabric, 10Gb Flex-10, 10GbE options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports.
Dual-port 8Gb and 16Gb Fibre Channel HBA for SAN connectivity.
QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity.
I/O accelerator mezzanine options for high transaction rate local storage

HPE BL460c Gen 8 Mezzanine Expansion slot 1 & 2

Type A vs B

Type A: x8 slot, moderate bandwidth, and limited to Type A slots.
Type B: x16 Slot, high bandwidth, compatible with both Type A & B

Expansion Slot 1

x16 PCIe 3.0
Type A Controllers
Supports Dual-port Mezz Cards
Ports routed to interconnect module bays 3 and 4.

Expansion Slot 2

Requires a second processor
x16 PCIe 3.0
Type A or B Controllers
Supports Dual-port and Quad-port Mezz Cards
Dual-Ports routed to interconnect module bays 5 & 6.
Quad-Ports routed to interconnect module bays 5, 6, 7, & 8.

FlexibleLOM

HPE FlexibleLOM provides the ability to customize server networking today and the ability to meet future needs without overhauling server hardware. Provides choice of bandwidth and fabric (Ethernet, FCoE, InfiniBand), supports WOL, and provides a shared iLO port for ease of use.

FlexibleLOM: Provides basic, customizable external network connectivity, allowing the blade to communicate with the outside network through the enclosure’s interconnect bays.

FlexibleLOM & Expansion Interconnect Mapping

HPE BL460c Gen 8 Interconnect c7000 Mapping

Server blade signal	Interconnect bay	Interconnect bay labels
FlexibleLOM	1 and 2	🟠
Mezzanine 1	3 and 4	🟡
Mezzanine 2	5 and 6	🔵
Mezzanine 2	7 and 8	🔷

HPE BL460c Gen 8 Interconnect c3000 Mapping

Server blade signal	Interconnect bay number	Interconnect bay label	Notes
FlexibleLOM	1	🟠	—
Mezzanine 1	2	🟡	Four port cards connect to bay 2.
Mezzanine 2	3 and 4	🔵🔷	Four port cards Ports 1 and 3 connect to bay 3. Ports 2 and 4 connect to bay 4.

HPE ProLiant BL460c Gen8 CTO Server Blade Spec Sheet

Manuals

Base Standard Capabilities

Product features

Feature

Description

Processor

E5-2600 v2 series Processors:

Intel Xeon E5-2697 v2 (2.7 GHz/12-core/30MB/8.0GT-s QPI/130 W, DDR3-1866, HT, Turbo2-3/3/3/3/3/3/3/4/5/6/7/8)
Intel Xeon E5-2695 v2 (2.4 GHz/12-core/30MB/8.0GT-s QPI/115 W, DDR3-1866, HT, Turbo2-4/4/4/4/4/4/4/4/5/6/7/8)
Intel Xeon E5-2690 v2 (3.0 GHz/10-core/25MB/8.0GT-s QPI/130 W, DDR3-1866, HT, Turbo2-3/3/3/3/3/3/3/4/5/6)
Intel Xeon E5-2680 v2 (2.8 GHz/10-core/25MB/8.0GT-s QPI/115 W, DDR3-1866, HT, Turbo2-3/3/3/3/3/4/5/6/7/8)
Intel Xeon E5-2670 v2 (2.5 GHz/10-core/25MB/8.0GT-s QPI/115 W, DDR3-1866, HT, Turbo2-4/4/4/4/4/4/5/6/7/8)
Intel Xeon E5-2660 v2 (2.2 GHz/10-core/25MB/8.0GT-s QPI/95 W, DDR3-1866, HT, Turbo2-4/4/4/4/4/4/5/6/7/8)
Intel Xeon E5-2650 v2 (2.6 GHz/8-core/20MB/8.0GT-s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/5/6/7/8)
Intel Xeon E5-2650L v2 (1.7 GHz/10-core/25MB/8.0GT-s QPI/70 W, DDR3-1600, HT, Turbo2-2/2/2/2/2/2/2/2/3/4)
Intel Xeon E5-2667 v2 (3.3 GHz/8-core/25MB/8.0GT-s QPI/130 W, DDR3-1866, HT, Turbo2-3/3/3/3/4/5/6/7)
Intel Xeon E5-2643 v2 (3.5 GHz/6-core/25MB/8.0GT-s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)
Intel Xeon E5-2637 v2 (3.5 GHz/4-core/15MB/8.0GT-s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/2/3)
Intel Xeon E5-2640 v2 (2.0 GHz/8-core/20MB/7.2GT-s QPI/95 W, DDR3-1600, HT, Turbo2- 3/3/3/3/3/3/4/5)
Intel Xeon E5-2630 v2 (2.6 GHz/6-core/15MB/7.2GT-s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)
Intel Xeon E5-2630L v2 (2.4 GHz/6-core/15MB/7.2GT-s QPI/60 W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4)
Intel Xeon E5-2620 v2 (2.1 GHz/6-core/15MB/7.2GT-s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)
Intel Xeon E5-2609 v2 (2.5 GHz/4-core/10MB/6.4GT-s QPI/80 W)
Intel Xeon E5-2603 v2 (1.8 GHz/4-core/10MB/6.4GT-s QPI/80 W)

E5-2600 series Processors:

Intel Xeon E5-2690 (2.9 GHz/8-core/20MB/8.0GT-s QPI/135 W, DDR3-1600, HT, Turbo2- 4/4/4/5/5/7/7/9)
Intel Xeon E5-2680 (2.7 GHz/8-core/20MB/8.0GT-s QPI/130 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)
Intel Xeon E5-2670 (2.6 GHz/8-core/20MB/8.0GT-s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)
Intel Xeon E5-2665 (2.4 GHz/8-core/20MB/8.0GT-s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)
Intel Xeon E5-2667 (2.9 GHz/6-core/15MB/8.0GT-s QPI/130 W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6)
Intel Xeon E5-2660 (2.2 GHz/8-core/20MB/8.0GT-s QPI/95 W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8)
Intel Xeon E5-2650 (2.0 GHz/8-core/20MB/8.0GT-s QPI/95 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)
Intel Xeon E5-2650L (1.8 GHz/8-core/20MB/8.0GT-s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/3/3/4/4/5/5)
Intel Xeon E5-2643 kit (3.30 GHz/4-core/10MB/130 W) processor
Intel Xeon E5-2640 (2.5 GHz/6-core/15MB/7.2GT-s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel Xeon E5-2637 (3.0 GHz/2-core/5MB/8.0GT-s QPI/80 W, DDR3-1600, HT, Turbo2- 5/5)
Intel Xeon E5-2630 (2.3 GHz/6-core/15MB/7.2GT-s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel Xeon E5-2630L (2.0 GHz/6-core/15MB/8.0GT-s QPI/60 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel Xeon E5-2620 (2.0 GHz/6-core/15MB/7.2GT-s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel Xeon E5-2609 (2.4 GHz/4-core/10MB/6.4GT-s QPI/80 W)
Intel Xeon E5-2603 (1.8 GHz/4-core/10MB/6.4GT-s QPI/80 W)

Chipset

Intel C600 series chipset
Intel E5-2600 and 2600v2 processor families

Upgradeability

Upgradeable to two (2) processors

On system management chipset

HPE iLO (Firmware: HPE iLO 4)

Memory protection

Advanced ECC
Memory mirroring
Memory online spare mode (Rank spare mode)

Memory

Type	HPE SmartMemory DDR3 Load Reduced (LRDIMM), Registered (RDIMM), or Unbuffered ECC (UDIMM)
Standard (Pre-configured models)	64GB (8 x 8GB) DDR3 1600 MHz RDIMMs at 1.5 V
	64GB (4 x 16GB) DDR3 1866 MHz RDIMMs at 1.5 V
	32GB (4 x 8GB) DDR3 1600 MHz RDIMMs at 1.5 V
	32GB (2 x 16GB) DDR3 1866 MHz RDIMMs at 1.5 V
	32GB (4 x 8GB) DDR3 1333 MHz RDIMMs at 1.35 V
	32GB (2 x 16GB) DDR3 160 0MHz RDIMMs at 1.35 V
	16GB (2 x 8GB) DDR3 1866 MHz RDIMMs at 1.5 V
	16GB (4 x 4GB) DDR3 1333 MHz RDIMMs at 1.35 V
	16GB (2 x 8GB) DDR3 1600 MHz RDIMMs at 1.35 V
Maximum (LRDIMM)	512GB (16 x 32GB) up to 1333 MHz at 1.35 V
Maximum (RDIMM)	256GB (16 x 16GB) up to 1866 MHz at 1.5 V 384GB (16 x 24GB) up to 1333 MHz at 1.35 V
Maximum (UDIMM)	128GB (16 x 8GB) up to 1600 MHz at 1.5 V

Network controller

One (1) HPE FlexFabric 10Gb 2-port 534FLB FlexibleLOM, HPE FlexFabric 10Gb 2-port 554FLB FlexibleLOM, HPEFlexFabric 20Gb 2-port 650FLB DlexibleLOM, or HPE FlexFabric 20Gb 2-port 630FLB FlexibleLOM
One (1) HPE Flex-10 10Gb 2-port 530FLB FlexibleLOM
One (1) HPE Ethernet 10Gb 2-port 560FLB FlexibleLOM

Standard iLO Network Controller:

One (1) 10/100 Mb/s port for the HPE iLO 4 to onboard administrator link. The onboard administrator (With10/100/1000 Mb/s) to BladeSystem link is 1 Gb/s

Expansion slots

Two (2) I/O expansion mezzanine slots

x16 PCIe 3.0 type A (Supports type A mezzanine cards) (Expansion slot 1)
x16 PCIe 3.0 type B (Supports type A and type B mezzanine cards (Expansion slot 2)

Mezzanine card options include:

Dual-port 20Gb FlexFabric, Dual-port 10Gb FlexFabric, 10 GbE options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports
Dual-port 16Gb Fibre Channel HBA for SAN connectivity
QDR and FDR InfiniBand for low latency and high bandwidth server inter connectivity
I/O accelerator mezzanine options for high transaction rate local storage

Security

Power-on password
Administrator's password
Keyboard password (QuickLock)
HPE iLO 4 on system management chipset with:
- SSL encryption
- Secure shell version 2
- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) onbrowser, CLP and XML scripting interface
- AES and RC4 encryption of video
External USB port enable/disable
Network server mode
Serial interface control
Trusted Platform Module (TPM ) 1.2 option

Fibre channel support

Up to two (2) optional Fibre Channel mezzanine HBAs are supported on the HPE ProLiant BL460c Gen8

Compatible SAN

HPE ProLiant BL460c Gen8 server blades are optimized for HPE MSA, EVA and XP
HPE ProLiant BL460c Gen8 server blades are compatible with select 3rd party SANs

Insight management software

HPE Insight Control
HPE Matrix OperatingEnvironment
HPE iLO Scale-Out
HPE iLO Advanced
License for ProLiantServers

High performance clusters

HPE Cluster Platforms
HPE HPC Interconnects
HPE Insight ClusterManagement Utility

Storage software

Data Protection and Recovery Software
Data Archive and Migration Software
Storage Resource Management Software (SRM)
Data Replication Software
Storage Device Management Software
HPE StoreVirtual VSA

Expansion blade support

Supports one (1) optional storage, tape, or PCI expansion blade

Storage controller

All BTO models

One (1) HPE Smart Array P220i Controller with 512MB Flash-Backed Write Cache (FBWC)supporting RAID 0 and RAID 1

Maximum internal storage

Hot Plug SFF SAS	4.0TB	2 x 2.0TB
Hot Plug SFF SATA	4.0TB	2 x 2.0TB
Hot Plug SFF SAS SSD	3.2TB	2 x 1.6TB
Hot Plug SFF SATA SSD	3.2TB	2 x 1.6TB

Interfaces

Micro SDHC slot: One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 port: One (1) internal USB 2.0 connector for USB flash media drive keys

Industry standard compliance

ACPI 2.0
Microsoft logo certifications
USB 2.0 support
IMPI 2.0
Secure digital 2.0
TMP 1.2 support
IEEE (Specific IEEE standards depending on Ethernet adapter card(s) installed)
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP
SSL 2.0
DMTF systems management architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active directory v1.0
PCIe 3.0

Graphics

Integrated Matrox G200eh video controller

1280 x 1024 (32 bp)
1920 x 1200 (16 bp)

HPE iLO management on system management memory

16MB flash video memory
256MB DDR 3 with ECC (112MB after ECC and video)

Form factor

HPE ProLiant BL460c Gen8 is a half-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures

Cache memory

For twenty two-core processors

30MB (1 x 30MB) L3 cache

For six, eight or ten-core processors

25MB (1 x 25MB) L3 cache

For eight-core processors:

20MB (1 x 20MB) L3 cache

For quad or six-core processors:

15MB (1 x 15MB) L3 cache

For quad-core processors:

10MB (1 x 10MB) L3 cache

For dual-core processors:

5MB (1 x 5MB) Level 3 cache

Enclosures

HPE offers two different c-Class server blade enclosures to meet users individual needs:

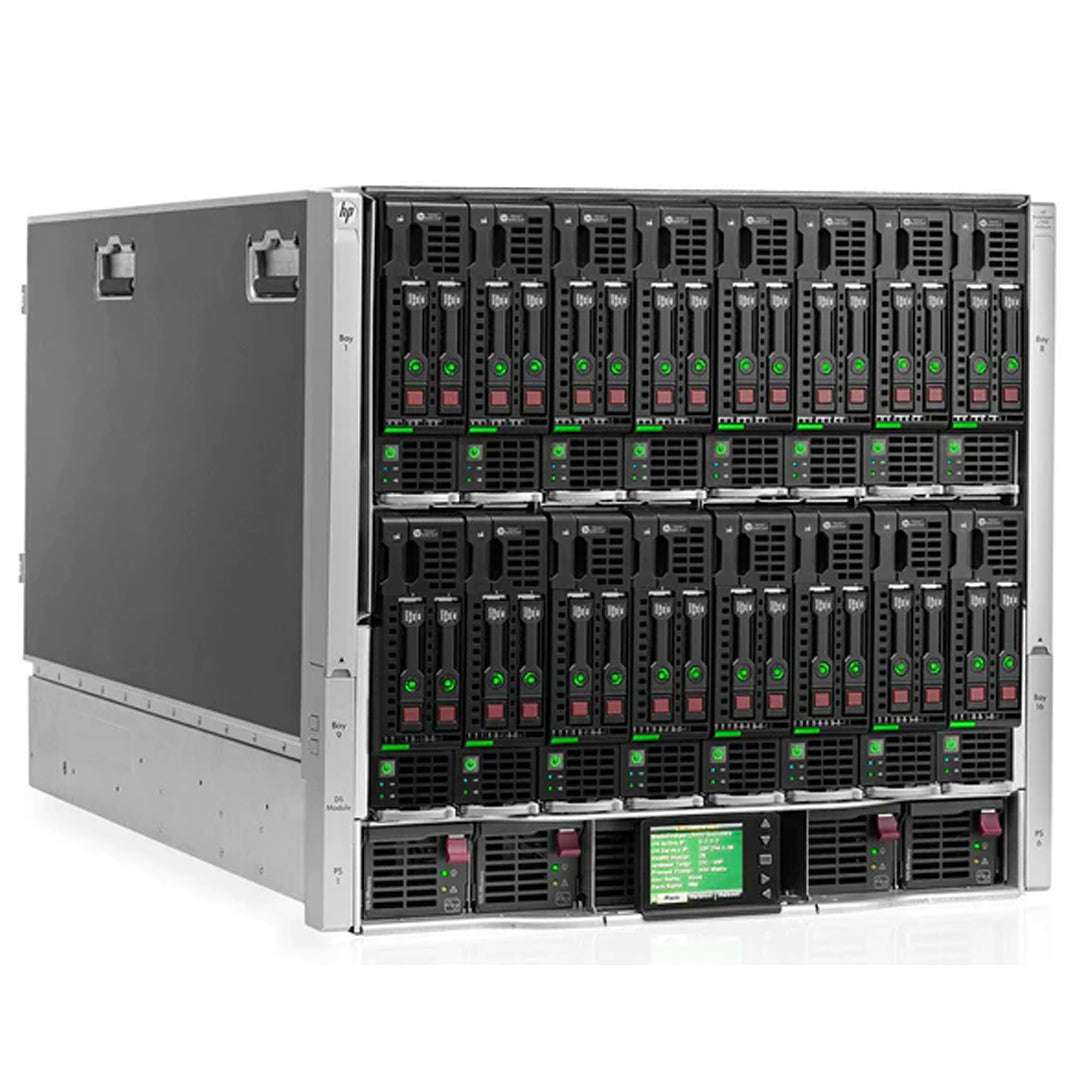

The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL460cGen8 servers plugged vertically
The HPE BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HPE ProLiant BL460cGen8 servers plugged horizontally
Server blades, storage blades, interconnect modules, power supplies, fans, and redundant onboardadministrator modules are all designed to fit into the c3000 and c7000 enclosures

System management

HPE iLO
HPE Agentless Management
HPE Active Health System
HPE Intelligent Provisioning
HPE iLO Mobile App

top

Software overview

Feature	Description
Operating System (OS) and virtualization software	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu Oracle Solaris VMware Citrix XenServer

top

More Specs

Physical specifications

Feature	Description
Dimensions (H x W x D)	18.07 x 5.54 x 51.76 cm (7.11 x 2.18 x 20.37 in)
Weight (Approximate)	Maximum (All processors, 16 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed): 6.33 kg (14 lb) Minimum (One processor and 2 DIMMs installed): 4.75 kg (10.50 lb)

top

Environmental specifications

Feature	Description
Operating temperature	10° to 35°C (50° to 95°F)
Non-operating temperature	-30° to 60°C (-22° to 140°F)
Extended ambientoperating support	Minimum: 5° to 10°C (41° to 50°F) Maximum: 35° to 40°C (95° to 104°F)
Operating relative humidity	10% to 90% non-condensing
Non-operating relative humidity	5% to 95% non-condensing
Operating altitude	3,050 m (10,000 ft)
Non-operating altitude	9,144 m (30,000 ft)
Acoustic noise	For acoustic noise specifications, please see the HPE BladeSystem c-Class Enclosures QuickSpecs HPE BladeSystem c3000 Enclosure QuickSpecs: Click here to access the "HPE BladeSystem c3000 Enclosure" . HPE BladeSystem c7000 Enclosure QuickSpecs: Click here to access the "HPE BladeSystem c7000 Enclosure" .

top

Technical specifications

HPE Smart ArrayP244br controller
Feature	Description
Disk drive interface	12 Gb/s SAS (Serial attached SCSI) 6 Gb/s SATA (Serial ATA)
Server interface	x8 PCIe 3.0 provides 8 GB/s maximum bandwidth
Cache memory	1GB flash backed write cache (FBWC) cache standard
Logical drivessupported	64 (With included 1GB cache)
Host memory addressing	64-bit, supporting servers memory space greater than 4GB
RAID support	RAID 1 (Mirroring), RAID 0 (Striping), RAID 10
Other	Upgradeable firmware with recovery ROM Online drive flash (With SAS drives)

HPE Smart HBAH244br controller
Feature	Description
Disk drive interface	12 Gb/s SAS (Serial attached SCSI) 6 Gb/s SATA (Serial ATA)
Server interface	x8 PCIe 3.0 provides 8 GB/s maximum bandwidth
Cache memory	None
Logical drivessupported	64
Host memory addressing	64-bit, supporting servers memory space greater than 4GB
RAID support	RAID 1 (Mirroring) and RAID 0 (Striping)
Other	Upgradeable firmware with recovery ROM Online drive flash (With SAS drives)

HPE DynamicSmart Array B140icontroller
Feature	Description
Disk drive interface	6 Gb/s SATA (Serial ATA)
Server interface	Embedded x4 PCIe 2.0
SAS connectors	2 internal SATA ports
Cache memory	None
SAS speed	6 Gb/s SATA links
Logical drivessupported	Up to 10 logical volumes (2 Physical drives)
Host memoryaddressing	64-bit, supporting greater than 4GB server memory space
Hot plug support	Yes
RAID support	RAID 1 (Mirroring) RAID 0 (Striping)
Other	Upgradeable firmware with recovery ROM

HPE FlexFabric10Gb2-port 536FLBFlexibleLOM
Feature	Description
Type	Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE, hardware-basediSCSI, iSCSI boot, TCP/IP offload engine, and autosensing 1Gb/10Gb Ethernet capability)
Network processor	QLogic 57840S with integrated MAC/PHY
Data transfermethod	x8 PCI Express 3.0
Network transferrate	Two ports, each at 20 Gb/s full duplex; 40 Gb/s aggregate full duplex theoretical bandwidth NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb or 10Gb HPE BladeSystem c-Class interconnect components. Both ports will operate at thesame speed Each port on the 536FLB adapter transmits from the server at 20 Gb/s(Theoretical) full duplex
Standard features	Full hardware offload of iSCSI and FCoE storage protocol processing for highestperformance converged Ethernet data and storage networks Dual-port 10 GbE Flex-10 FlexibleLOM network adapter that provides the flexibility tochoose thetype of LOM to meet growing infrastructure needs: Industry-leading throughput and latency performance Supports the HPE Flex-10 blade interconnect technology User configurable bandwidth settings when combined with the 10Gb Flex-10 virtualconnect module. From 100 Mb/s to10 Gb/s on up to four Physical Function NICs per port, inincrements of100 Mb/s for NIC. The combined bandwidth of NICs cannot exceed port bandwidth i.e.10 Gb Up to 40Gb/s bi-directional near line rate throughputHardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE)improved small packet performance Support for Preboot eXecution Environment (PXE) Integrated PHY and MAC Supports for SR-IOV Support for Network Partitioning (NPAR)

HPE FlexFabric20Gb2-port 650FLBFlexibleLOM
Feature	Description
Type	Integrated dual-port KR2 20Gb FlexibleLOM with FlexFabric (Flex-20, FCoE, RoCE,Tunnel Offload with VXLAN/NVGRE, hardware-based iSCSI, iSCSI boot, TCP/IP offloadengine, and autosensing Ethernet speed capability)
Network processor	Emulex XE-104
Data transfermethod	x8 PCI Express 3.0
Network transferrate	Two ports, each at 40 G b/s bi-directional; 80 Gb/s aggregate bi-directional theoreticalbandwidth
Standard features	Dual 20Gb ports provide up to 80Gb bi-directional per adapter Multi-speed adapter operates at either 20 GbE or 10 GbEConverges FCoE or RoCE with LAN traffic on a single Ethernet wire Tunnel offload support for VXLAN and NVGRE RDMA over Converged Ethernet (RoCE) for greater server efficiency and lower latency(6125XLG only) Advanced storage offload processing freeing up valuable CPU cyclessupports UEFI and legacy boot options Mixed Storage ? supports NIC + FCoE on one port, and NIC + iSCSI on the otherconcurrent storage ? concurrently supports NIC, FCoE, and iSCSI storage functions onthe same port (NIC + FCoE + iSCSI) Industry-leading throughput and latency performance Over eight million small packets/s, ideal for web/mobile applications, mobile messaging,and social media User configurable bandwidth settings when combined with the 20Gb Flex-20 VirtualConnect module. From 100 Mb/s to10 Gb/s on up to four Physical Function NICs perport, in increments of 100 Mb/s for NIC The combined bandwidth of NICs cannotexceed port bandwidth i.e. 20 Gb/s Greater bandwidth with PCIe 3.0 jumbo frames support Supports Wake On LAN (WOL) Support for Preboot eXecution Environment (PXE) Support for Microsoft Windows SMB direct Optimized host virtualization density with SR-IOV support

top

Safety certifications

Feature	Description
IEEE compliance	FlexFabric10Gb2-port 536FLBFlexibleLOM 802.1p 802.1q 802.1qau 802.3ad 802.3ae 802.3ap (10GBase-KX4) 802.3x	FlexFabric20Gb2-port 650FLBFlexibleLOM 802.3ae 802.1Q 802.3x 802.1p 802.3ad/LACP 802.1AB(LLDP) 802.1Qbg 802.1Qbb 802.1Qaz 802.3ap

top

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Leave a Message
