Maximum Raw Capacity (HA): 104TB
Maximum Disk Drives: 104
Maximum Internal Drives: 20
Controller Form Factor: 4U
Max Memory: 4GB
Disk Type: Fibre Channel, SAS, SATA
Disk Form Factor: 2.5", 3.5"
Host Connectivity: 1Gb Fibre Channel (FC), 2Gb Fibre Channel (FC), 4Gb Fibre Channel (FC), 1GbE
Storage Protocols Supported: CIFS (NAS), NFS (NAS), iSCSI (IP SAN), HTTP, Fibre Channel (FC)
Supported RAID: RAID 4, RAID 6 (RAID-DP)
*Available in Single or Dual Controller ('C' Cluster / 'A' Active-Active / 'HA' High-Availability). Ask for pricing with disks. Call for Details and Pricing

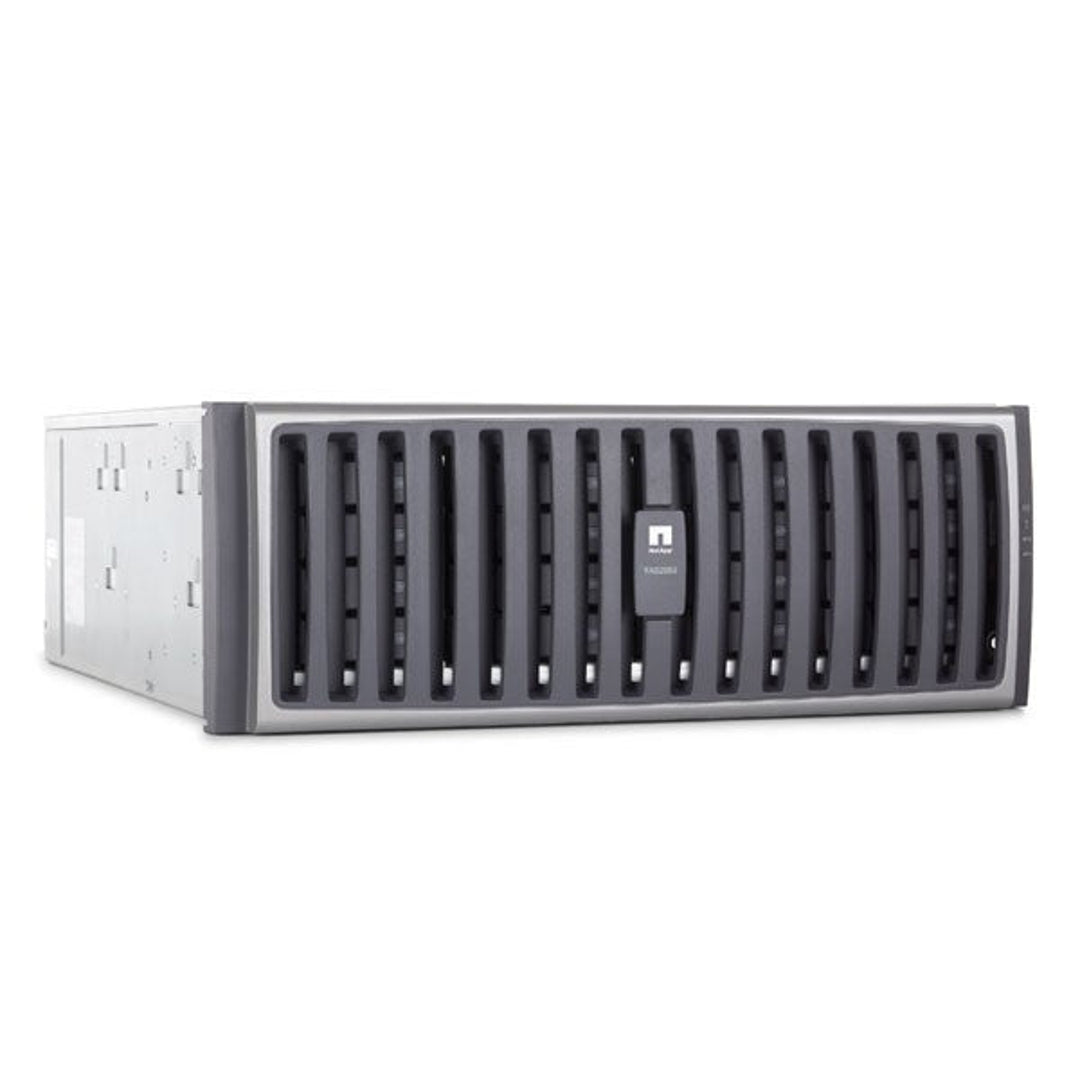

The NetApp FAS2000 series provides a powerful range of technologies to help increase the efficiency of your storage administrators. FAS2000 series rapidly deploys within minutes and also helps to cut storage costs by up to 50% with features such as deduplication and thin provisioning.
The FAS2050 offers some of the highest internal drive count and advanced I/O connectivity (10GbE, FCoE, additional FC/CbE ports). Easily scalable and able to handle multiple workloads and Windows applications. Offered in easy-to-order, preconfigured systems that include high-capacity drives.
The FAS2050 utilizes up to 104 drives and can support up to 104TB of max storage in a 4U/20 drive configuration.
| FAS2050 OVERVIEW | |
|---|---|
| Form Factor | 4U/20 Drive |
| Dual Controllers | Yes |
| Maximum Disk Drives | 104 |
| Maximum Raw Capacity | 104TB |
| Maximum Ethernet Ports | 8 |
| Onbaord SAS Ports | 4 |
| Maximum Fibre Channel ports | 8 |
| 10GbE Support | Yes |
| FCoE Support | Yes |
| Multipath Expansion | Yes |
| Remote Management | Yes |
| Storage Protocols | FCP, iSCSI, NFS, CIFS |
| TECHNICAL SPECIFICATIONS FOR SINGLE AND HA CONFIGURATIONS | |
|---|---|
| Maximum Raw Capacity (HA) | 104TB |
| Recommended Min Raw Capacity Array LUNs (GB) | N/A |
| Absolute Min Raw Capacity Array LUNs (GB) | N/A |
| Maximum Storage Devices (HA) | 104 Disks |
| Max DS2246 Shelves (HA) | 4 |
| Max DS4243 Shelves (HA) | 4 |
| Max DS4246 Shelves (HA) | 4 |
| Max DS4486 Shelves (HA) | N/A |
| Max DS14-Class Shelves (HA) | 6 |
| Max Nodes per Cluster (NAS) | Not Supported |
| Max Nodes per Cluster (SAN) | Not Supported |
| Aggregate Size 32 bit (TiB) | 16 |
| Aggregate Size 64 bit (TiB) | N/A |
| Min Size for an Array LUN Aggregate (GB) | N/A |
| Flex Volume Size 32 bit (TiB) | 16 |
| Flex Volume Size 64 bit (TiB) | N/A |
| Max Infinite Volume Data Constituent Size (TiB) | Not Supported |
| Max Volume Count (Single) | 200 |
| Max Array LUN Size (GB) | N/A |
| Min Array LUN Size (GB) | N/A |
| Min Array LUN Size - Root Volume (GB) | N/A |
| Min Root Volume Size (Single/HA) | 15GB / 15GB |
| Spare Core Array LUN Min Size (GB) | N/A |
| Max RAID Groups in an Aggregate | N/A |
| Block Size (Bytes) | N/A |
| Chassis Height | 6.89" |
| Chassis Width | 17.60" |
| Chassis Depth | 22.52" |
| Rack Units (Single/HA) | 4U/4U |
| Operating Temperature Range | 50°F to 104°F |
| Storage Temperature Range | -40° to 140°F |
| Input Power Voltage | 100v to 120v, 200v to 240v |
| Processor (Single) | 1x 32-bit 2.20Ghz |
| Memory (Single/HA) | 2GB/4GB |
| NVRAM (Single) | 256MB (NVMEM) |
| Ethernet Ports (Single) | 2x RJ45 (1Gbps) |
| Fibre Channel Ports (Single) | 2x SFP (4Gbps) |
| UTA2 Ports (Single) | N/A |
| Expansion Slots (Single) | 1x PCIe |
| SAS Ports (Single) | N/A |
| Max Back-End FC Loops (HA) | 2 |
| Min Version of Data ONTAP 7 | 7.2.2L1 |
| Min Version of Data ONTAP 8 (both modes) | N/A |
| Max Version of Data ONTAP 8 (both modes) | N/A |
Ask about our NetApp Disk Shelves! We can create custom Turn-Key configurations based on your needs!
