Spec Sheet 4

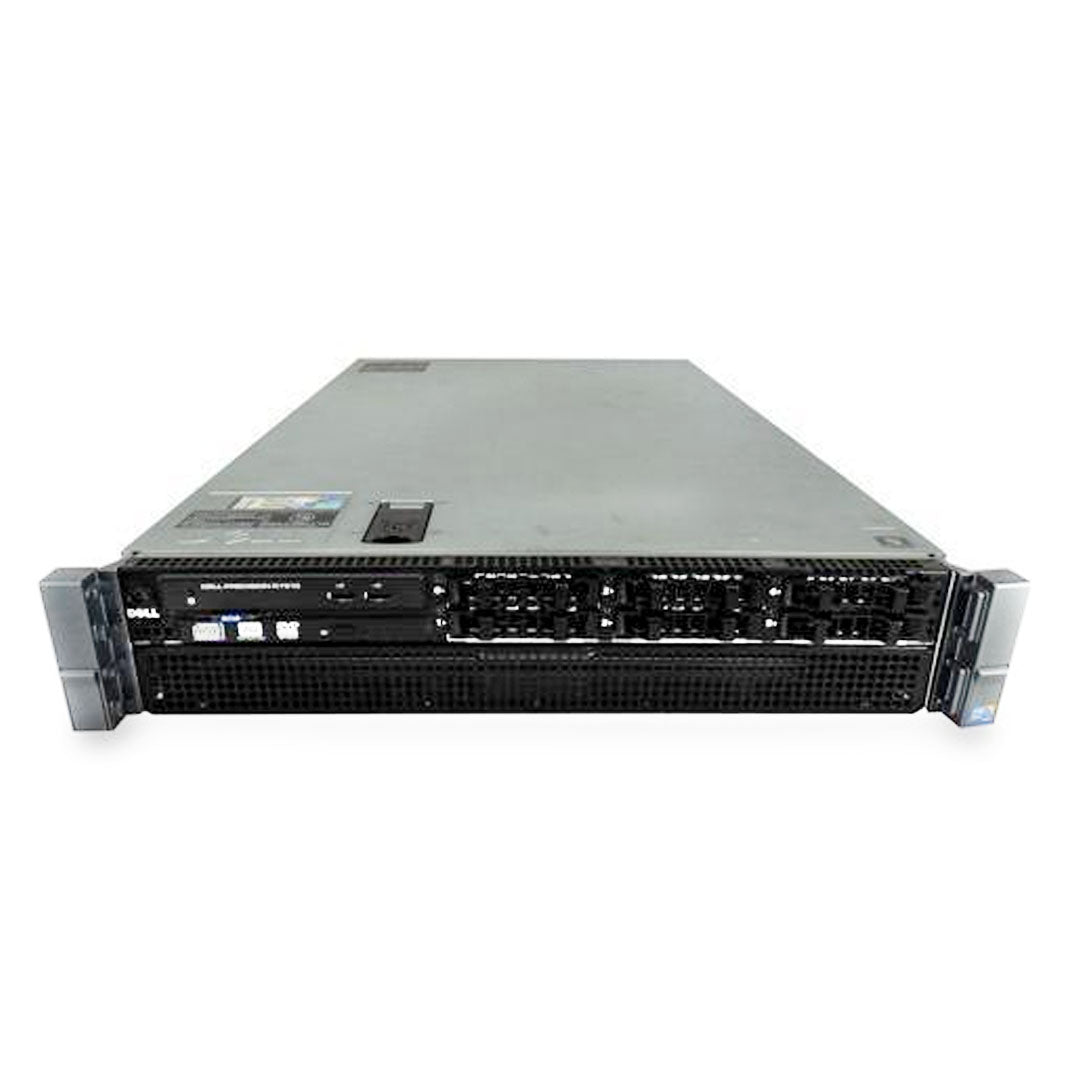

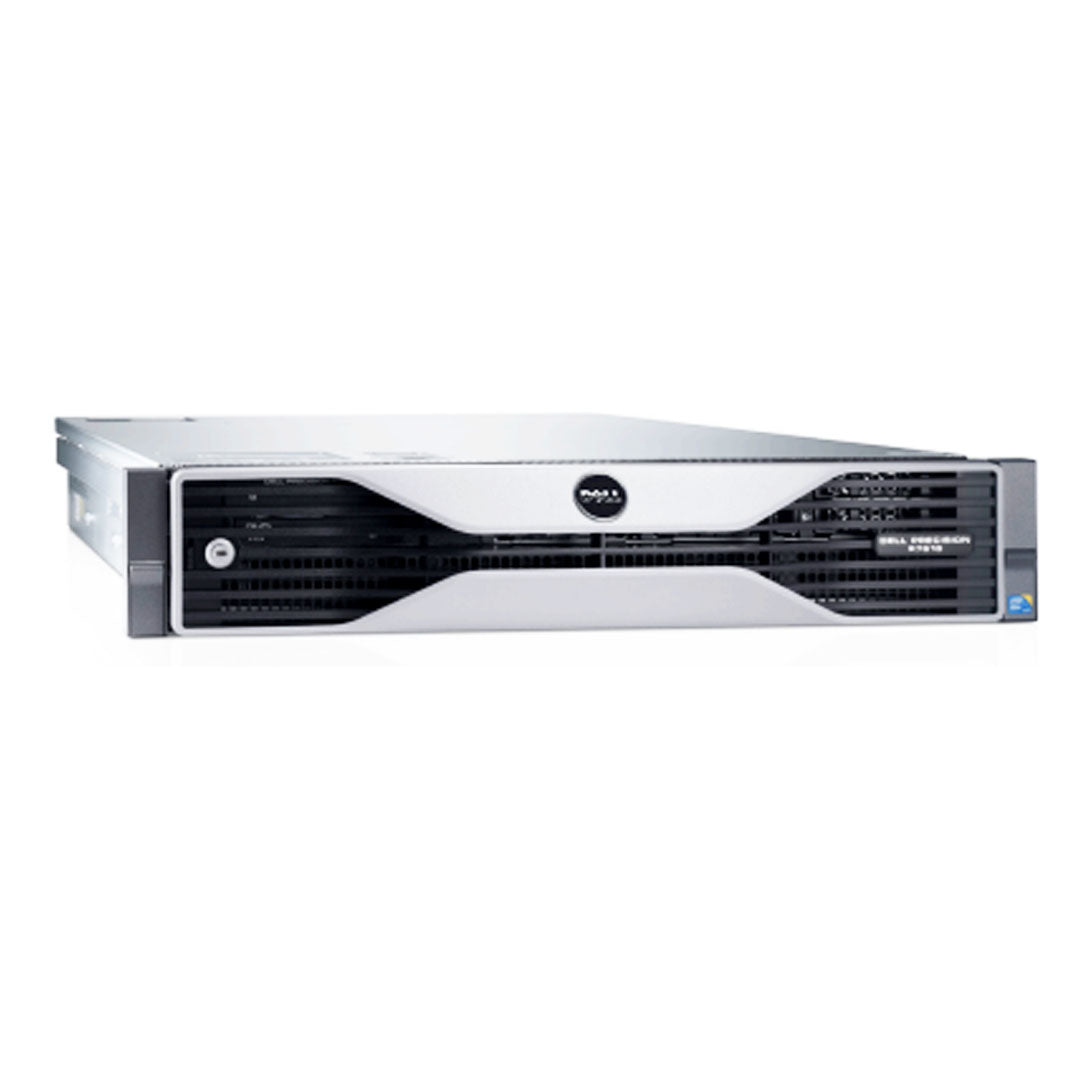

| Dell Precision R7610 Rack Workstation Technical Specifications | ||||
| Processors | One or two; Intel® Xeon® processor E5-2600 v2 family with up to twelve cores and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New Instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology | |||
| Operating System | Windows® 8 Ultimate (64-Bit); Genuine Windows® 7 Ultimate 32-Bit; Genuine Windows® 7 Ultimate 64-Bit; Genuine Windows® 7 Professional 32-Bit; Genuine Windows® 7 Professional 64-Bit; Red Hat® Enterprise Linux® WS v.6.4 EM64T (also certified to run Red Hat Enterprise Linux Version 5.8 64-Bit); Ubuntu 12.04 LINUX (China only) | |||
| Chipset | Intel C602J | |||
| Memory | Up to 512GB 1600MHz ECC RDIMM memory; 16 DIMM slots (8 per processor) | |||
| Graphics | Support for up to four PCIe® x16 cards up to 675W (total for graphics): | |||
| High End 3D NVIDIA Quadro K6000 NVIDIA Quadro K5000 | Mid-range 3D AMD FirePro W5000 NVIDIA Quadro K4000 NVIDIA Quadro K2000 | Entry 3D NVIDIA Quadro K600 | Professional 2D AMD FirePro 2270 NVIDIA Quadro NVS 510 NVIDIA Quadro NVS 310 | |
| GPU | One or two NVIDIA Tesla® K20C GPGPUs – Supports NVIDIA Maximus™ technology | |||
| Virtualization | Workstation virtualization for up to four users via GPU pass-through on select configurations with certified hypervisors | |||
| Storage Options | Up to six 2.5” SATA or SAS drives: | |||
| SATA 7200RPM Up to 10TB | SAS 10K RPM Up to 900GB | SAS 15K RPM Up to 300GB | SSD / PCIe SSD SSD: Up to 512GB Micron P320h 350GB | |
| Intel CAS-W – Caching Acceleration Software for Workstations: requires 128GB SSD + standard storage hard drive | ||||
| Storage Controller | Integrated: LSI 2308 6Gb/s SATA, SAS controller (RAID 0, 1, 10); Optional: LSI 9271-8i 6Gb/s SATA, SAS controller with 1GB cache (RAID 0, 1, 5, 10) | |||
| Communications | Integrated: Intel 82579 Gigabit Ethernet; Optional: Intel X520-T2 10GbE (PCIe) | |||
| Remote Access | Optional Tera2 dual display PCoIP PCIe host card (for Wyse P25 zero client) | |||
| Audio | Integrated Realtek ALC269Q High Definition Audio | |||
| Standard Ports | Location | |||
| Front 2x USB 2.0 System ID Button/LED | Internal 1x USB 2.0 | Rear 4x USB 2.0 2x USB 3.0 (optional) Audio out/in Serial RJ45 System ID Button/LED | ||
| 2U Rack Chassis | HxWxD: 3.40" x 17.35" x 29.67" (31.21" with bezel) Bays: Six external 2.5” bays; one 5.25” slimline optical bay Slots: Up to five PCIe full length/full-height Outer Riser: 1x PCIe x16 (wired x16), 1x PCIe x16 (wired x4) Center Riser (choose one): • 1x PCIe x16, 1x PCIe x8 (default, CPU not required) • 1x PCIe x16 (2nd CPU required), 1x legacy 32-bit PCI Power Supply: One or two hot-pluggable 90% efficient units – 1100W or 1400W (220V) | |||
| Monitors | Dell UltraSharp (21.5"–30") with PremierColor; Dell Professional (17"–24") | |||
| Keyboard | Dell Smartcard Keyboard; Dell Business Multimedia Keyboard | |||
| Mouse | Dell USB Optical Mouse; Dell USB 6-Button Mouse | |||
| Speakers | Dell 2.0 and 2.1 stereo speakers; Dell sound bar (select displays) | |||
| Optical Drive | Tray load DVD-ROM; DVD+/-RW; Blu-ray™ | |||
| Security Options |
TPM 1.2; Intrusion switch; BIOS Password; I/O Interface Security Kensington lock slot; Padlock ring; Bezel lock; Lockable PSU Dell Data Protection (DDP): Security Tools, Protected Workspace, Encryption | |||
