Quick Specs
Form Factor: 2U rack server

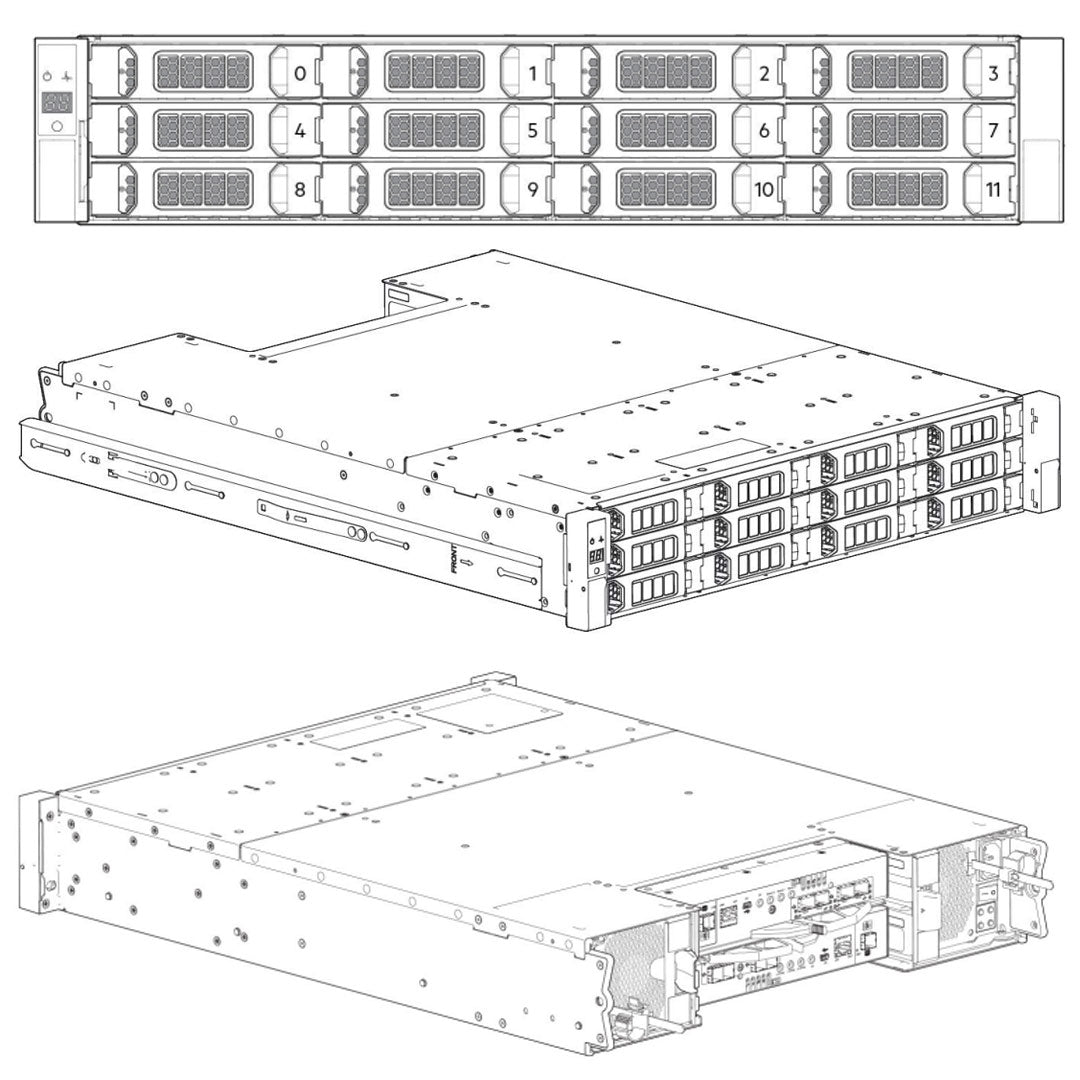

Storage: 12 x 3.5” drive bays (2.5” supported)
Max Storage: 264 Drives | 3.1PB (with ME484 expansion)
Controller: Supports up to 2
Controller Options: - 4x 16Gb/s FC or 10 GbE iSCSI
- 4x 10Gbase-T iSCSI
- 4x 12Gb mini-SAS
Processor Per Controller: Intel® 2-core, 2.2GHz
Cache Per Controller: 8GB
Ports Per Controller: - One 1GbE RJ-45 Ethernet port for Remote Management
- One 12Gb/s SAS port for Expansion Connectivity
Other ME Options
Expansion Options

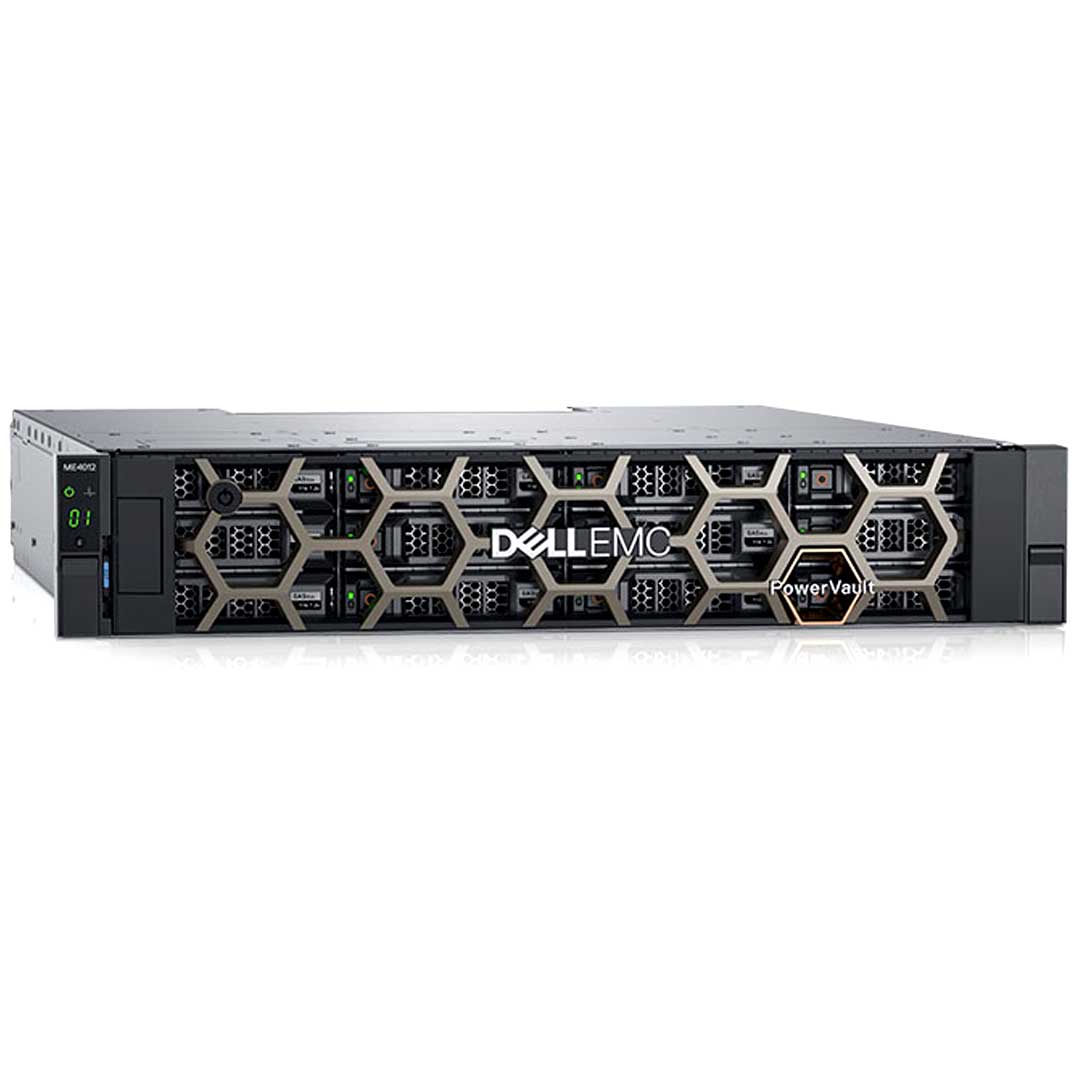

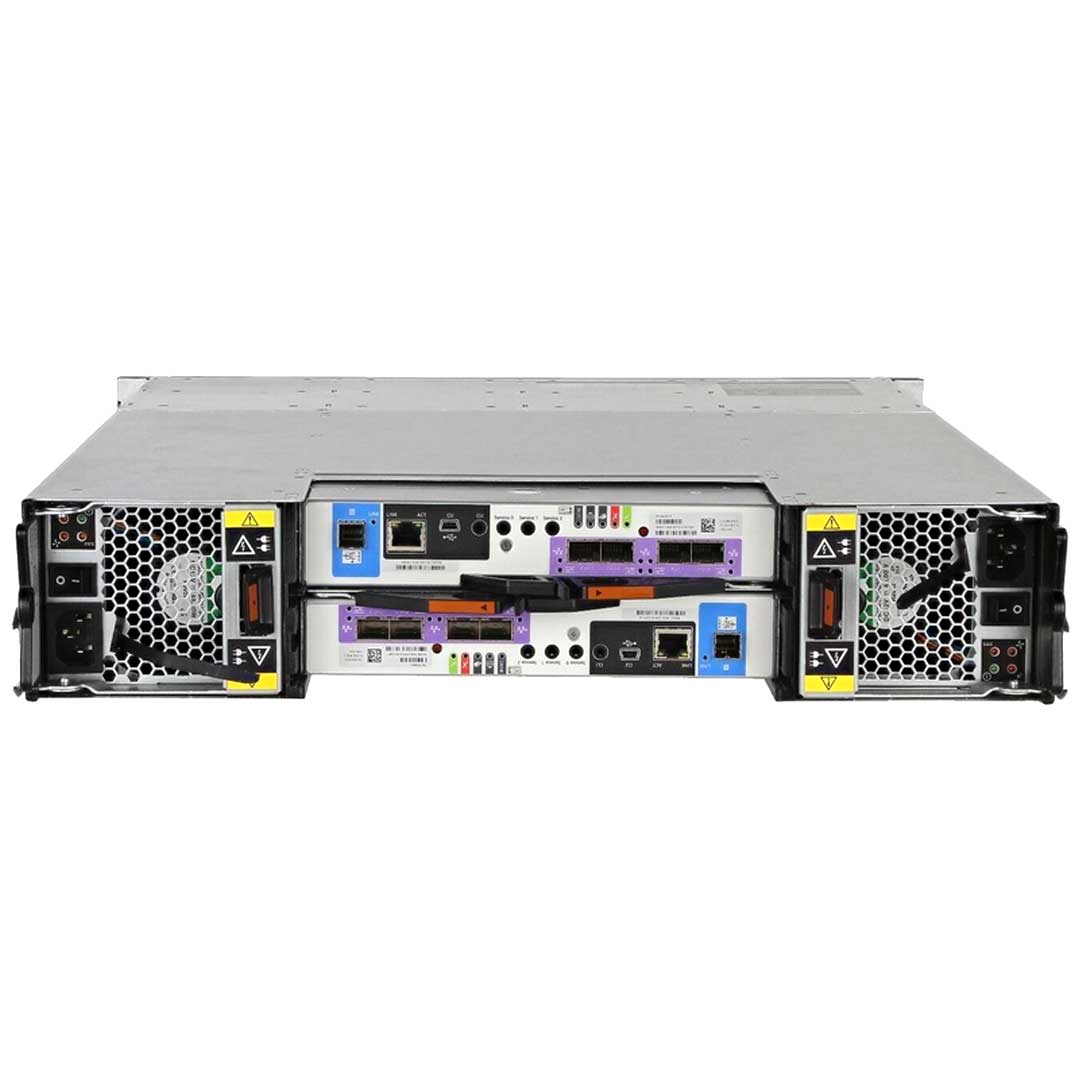

The Dell PowerVault ME4012 is an exceptional storage array that offers high-speed data transfer and ample cache memory for optimal performance. With 8GB of cache in the 12 3.5" HDDs chassis, this storage array is designed to meet the needs of small businesses that require a reliable and efficient storage solution.

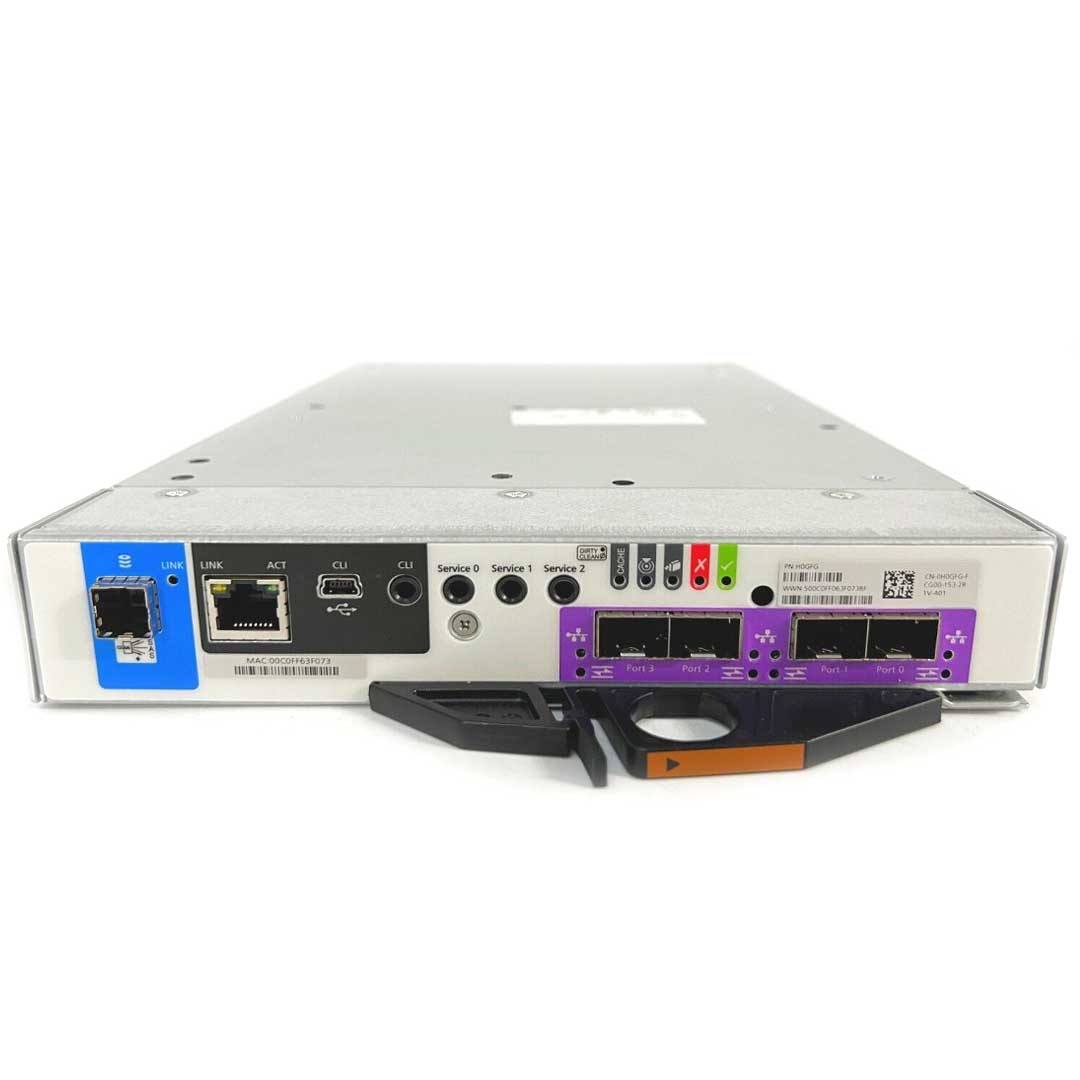

Dell ME4 Converged Network Controller (CNC) Modules
One of the standout features of the Dell PowerVault ME4 is the flexibility it offers in terms of storage controller options. With three different options to choose from you can select the protocol that best suits your needs.

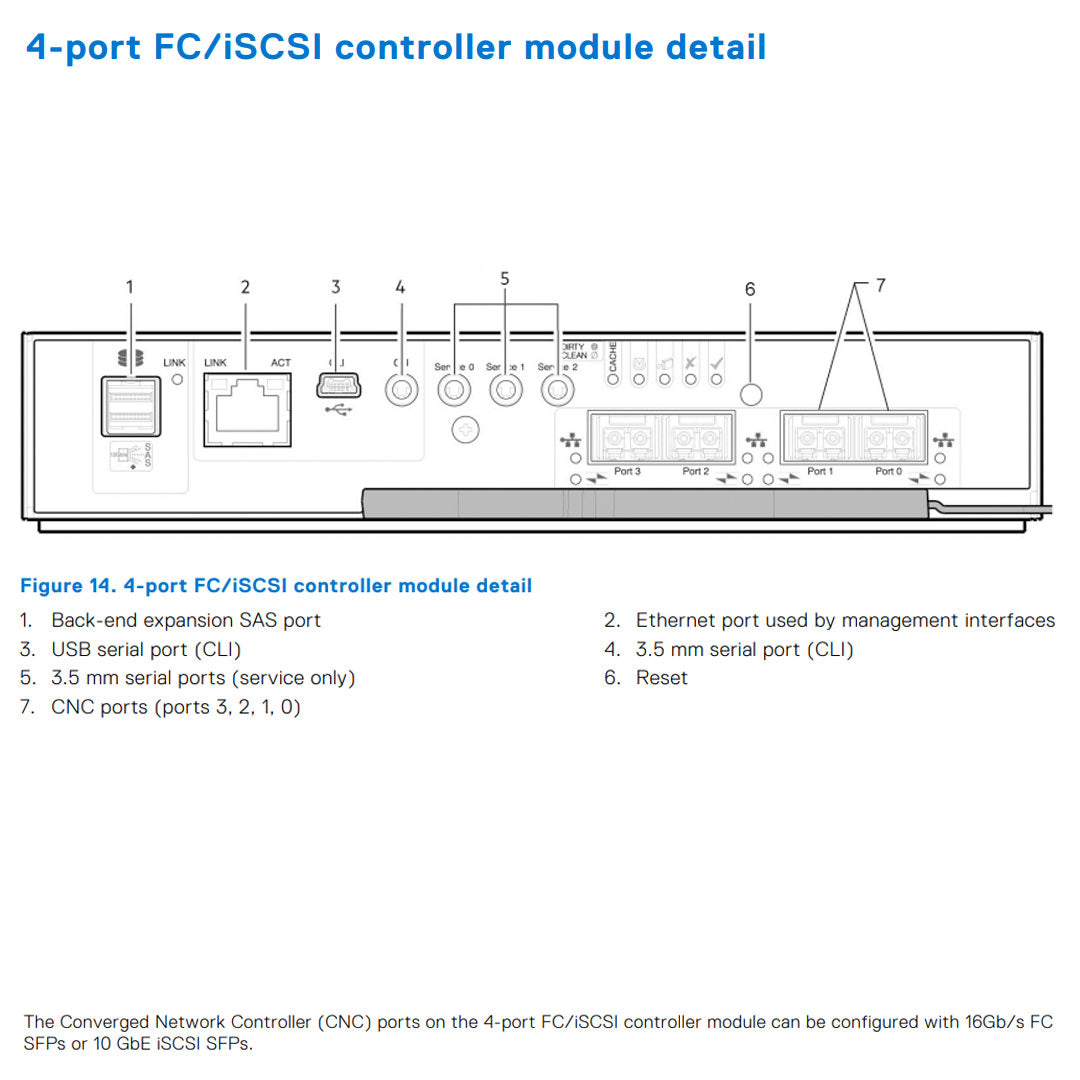

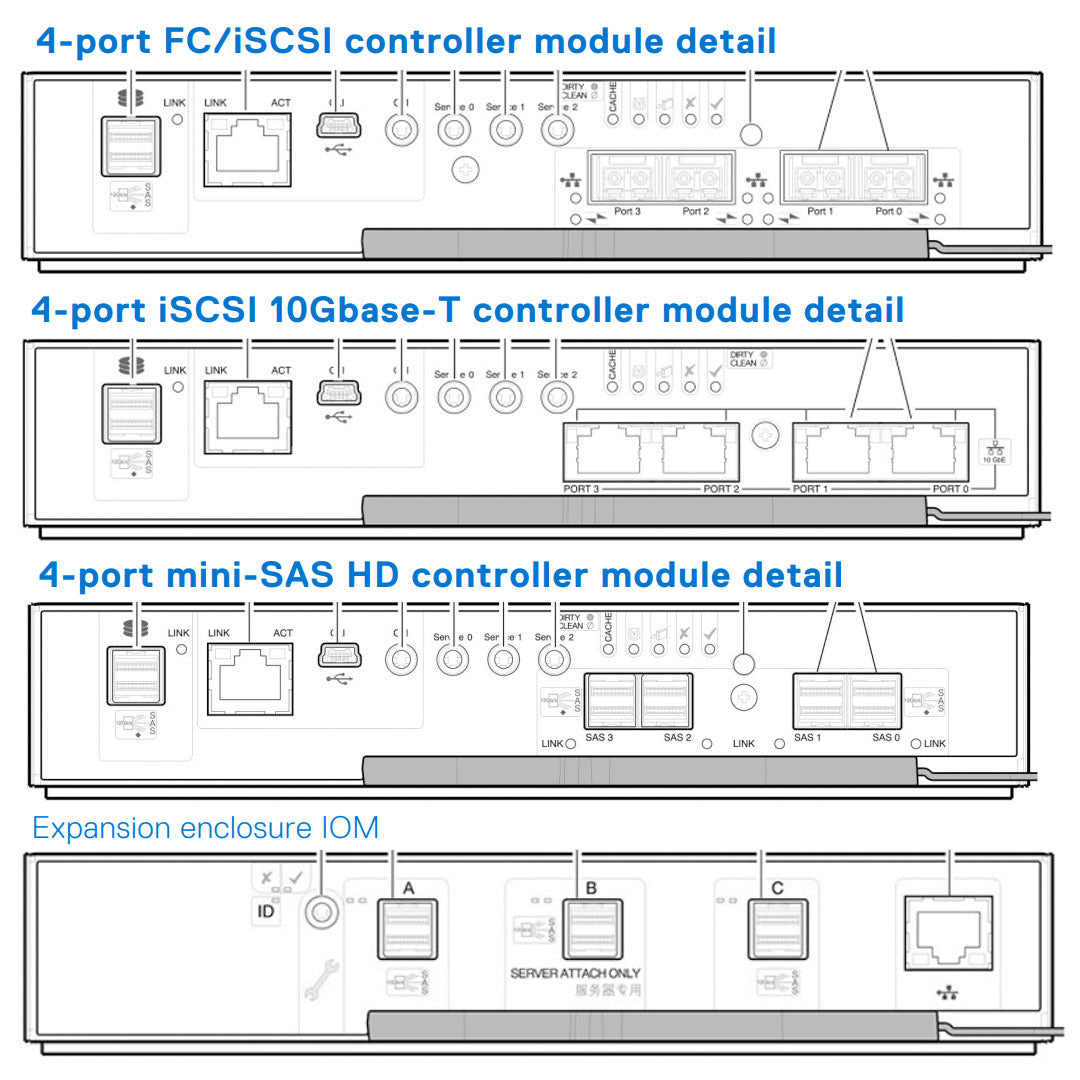

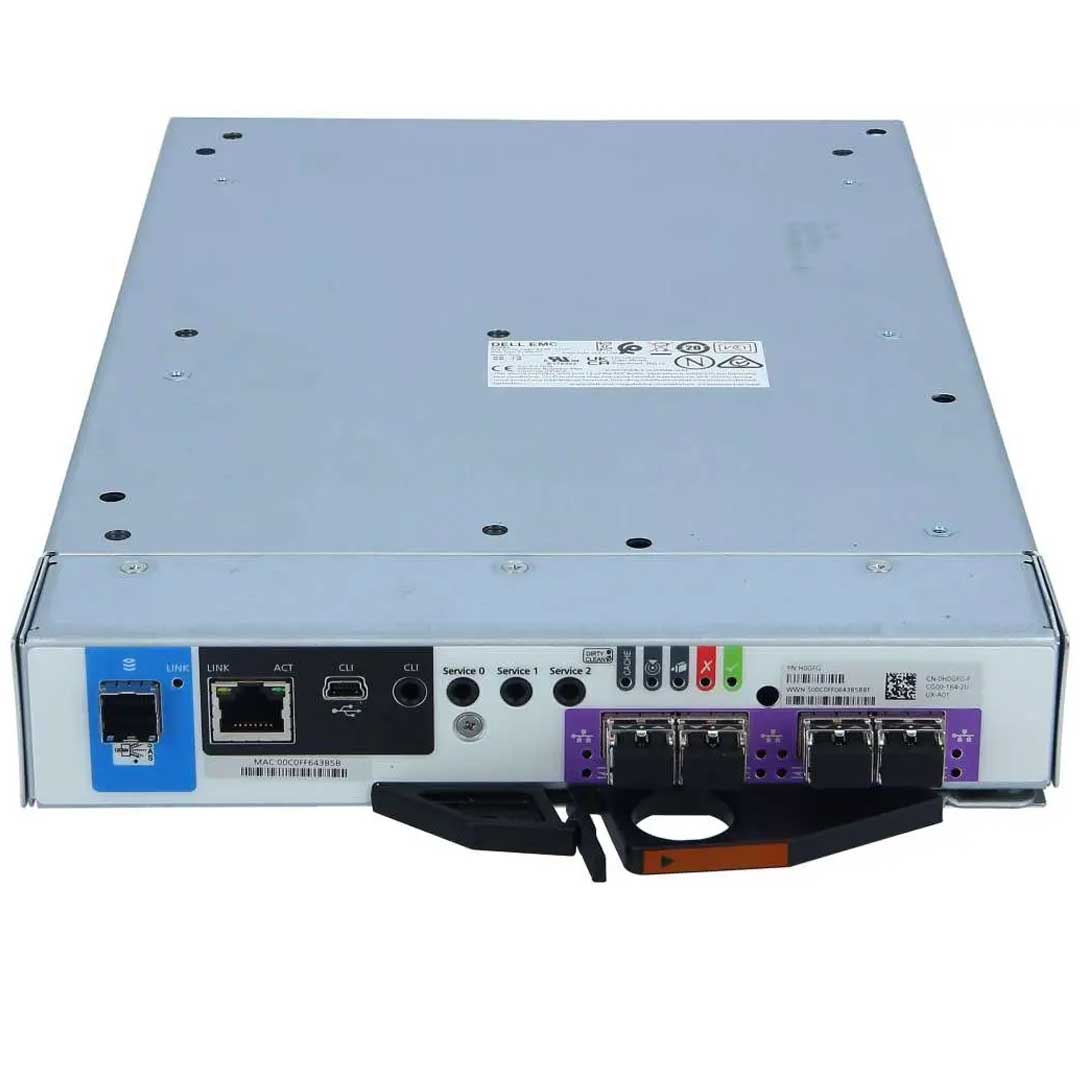

4-port FC/iSCSI View Controller
- Four Port 16Gb/s FC or 10GbE iSCSI
- One Port 1GbE RJ-45 Network
- One Port 12Gb mini-SAS HD Expansion
- 8GB Cache

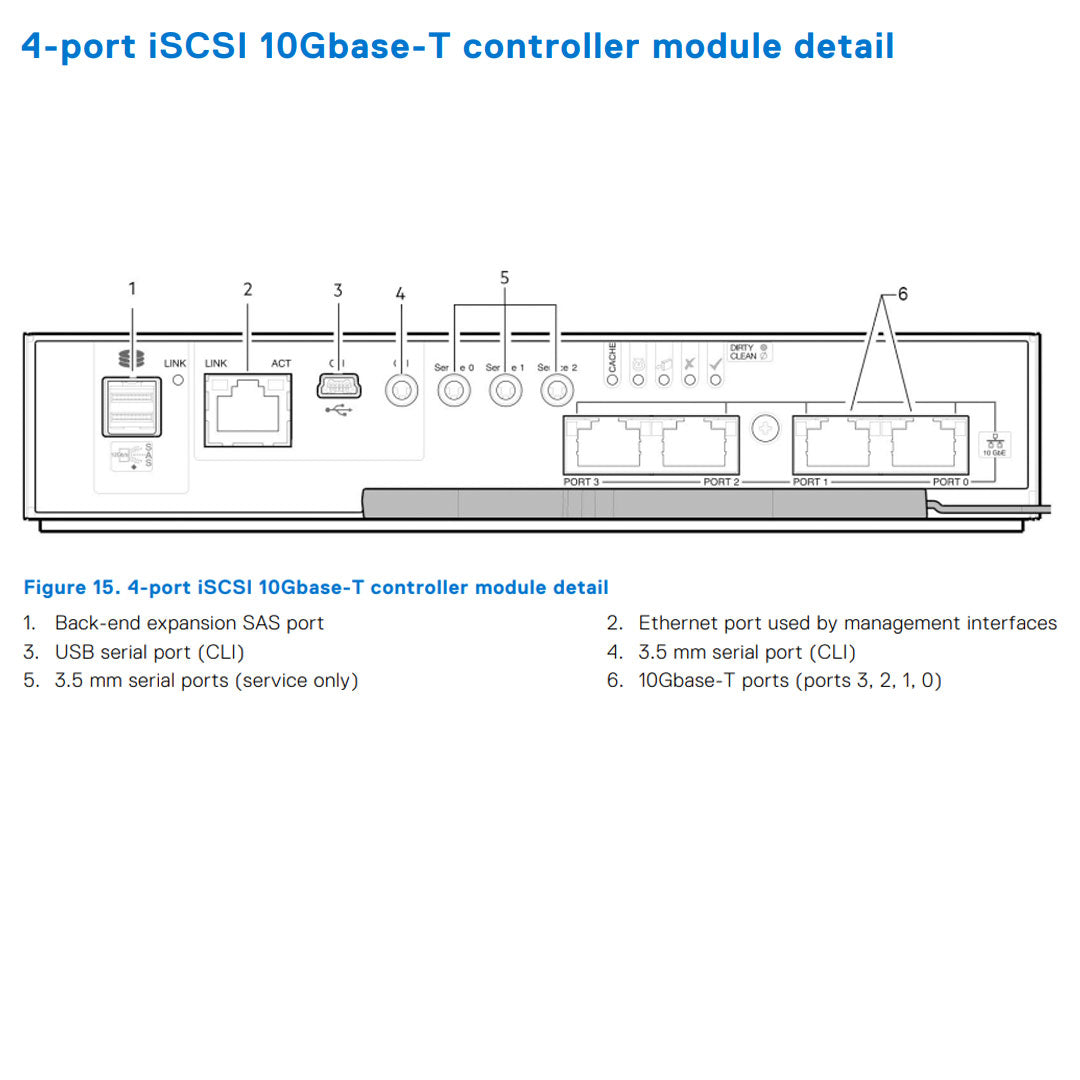

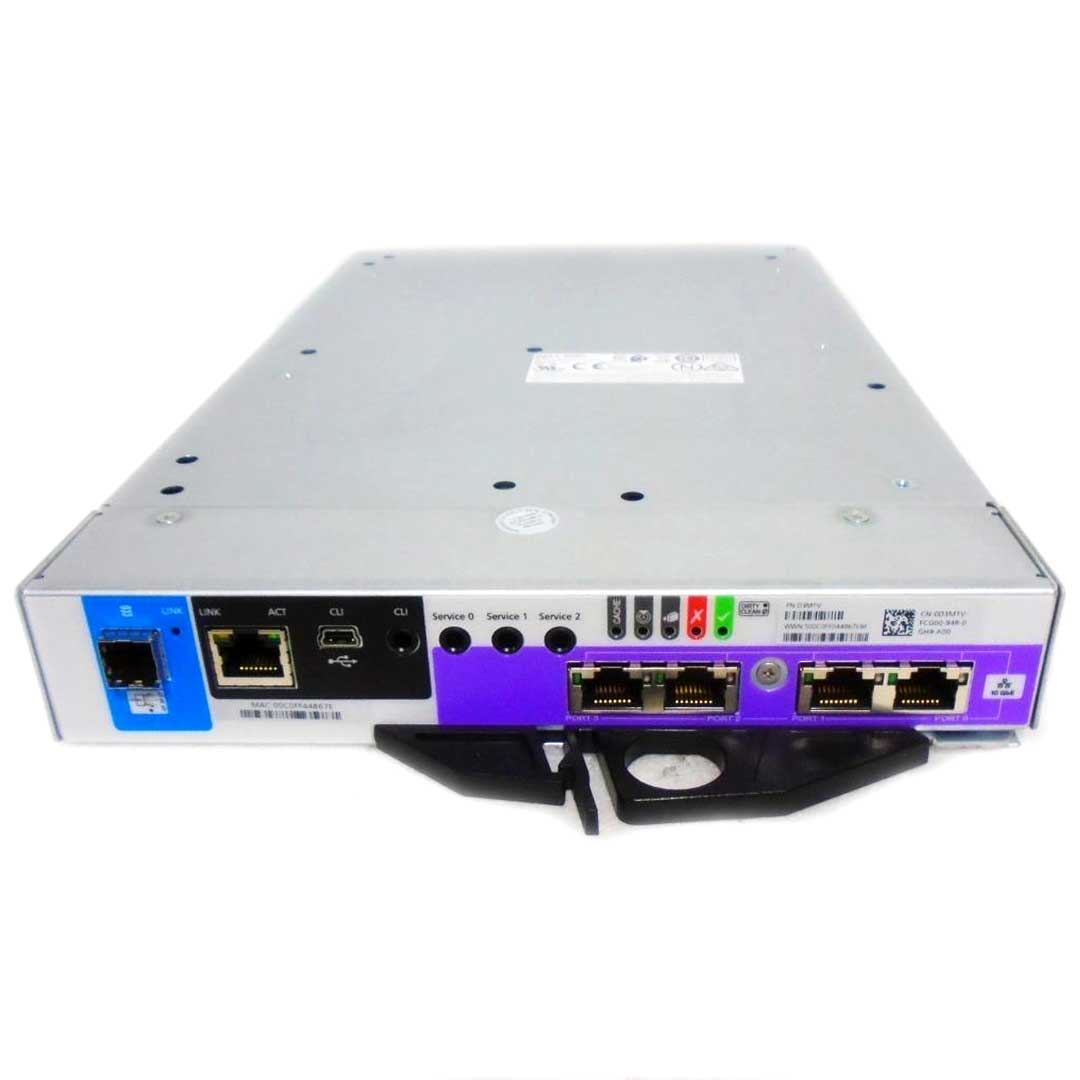

4-port iSCSI 10Gbase-T View Controller
- Four Port 10Gbase-T iSCSI
- One Port 1GbE RJ-45 Network
- One Port 12Gb mini-SAS HD Expansion
- 8GB Cache

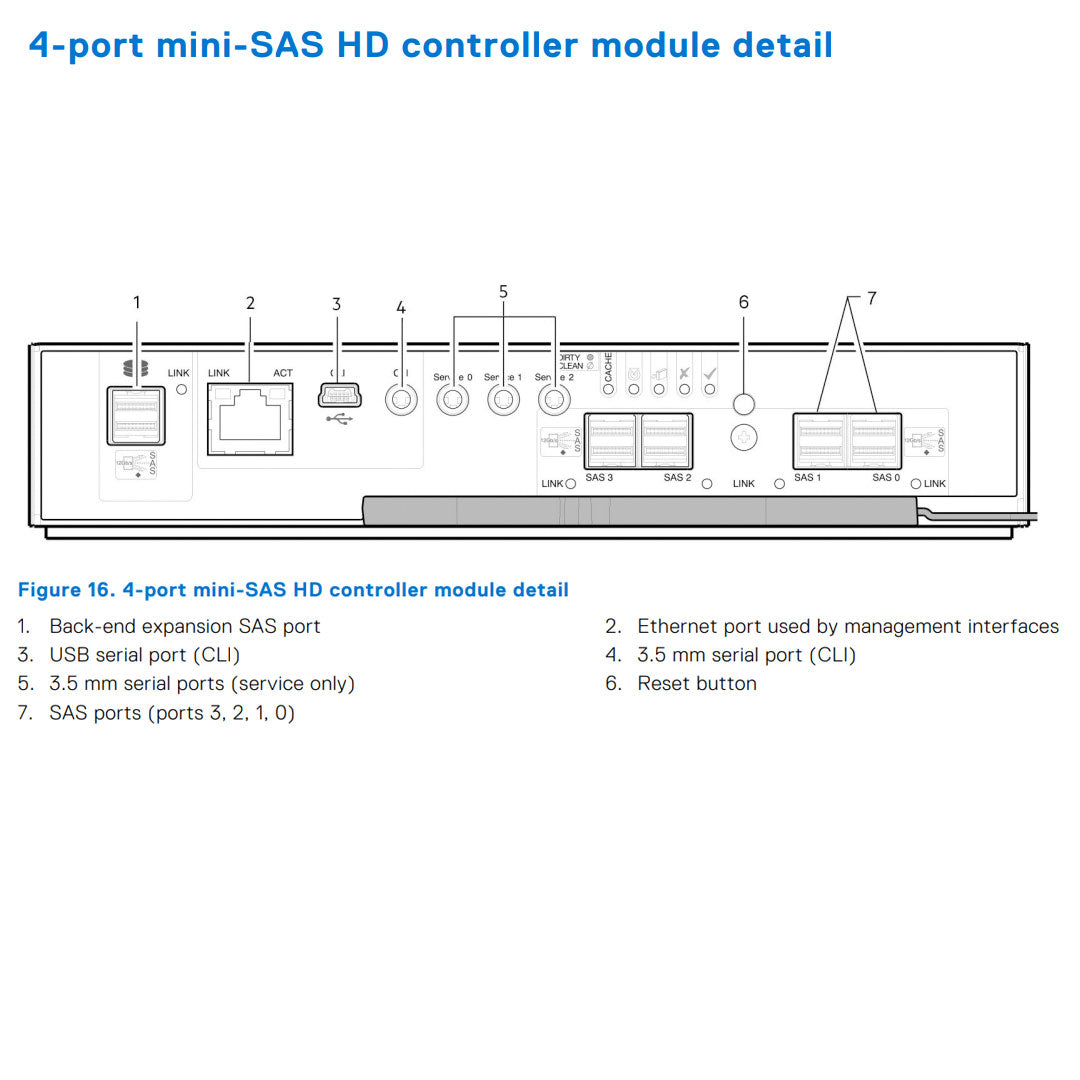

4-port mini-SAS HD View Controller
- Four Port 12 Gb mini-SAS HD
- One Port 1GbE RJ-45 Network
- One Port 12Gb mini-SAS HD Expansion
- 8GB Cache
Expansion Options (ME412, ME424, ME484)
3 port 12Gb SAS Expansion Module 6 x 12Gb SAS ports per array
These same chassis form factors are used for the supported expansion enclosures; but with I/O modules instead of controller modules. To make this system an expansion Array you simply need to install the 3-port 12Gb IOM SAS Module in the rear of the system. With this new I/O Module installed you can daisy chain up to 9 2U or 3 5U Systems to the ME4024 SAN Storage Array.
Rule |
SAS |
10GBaseT iSCSI |
CNC |
System maximum is up to 4 PB or 336 disk drives, whichever comes first. For example:
- 336 disk drives x 12 TB = 4 PB
- 252 disk drives x 16 TB = 4 PB
- 224 disk drives x 18 TB = 4 PB
|
X |
X |
X |
Up to nine additional ME412/ME424 expansion enclosures or three ME484 expansion enclosures are supported. A combination of ME412/ME424 and ME484 expansion enclosures is not supported.
- 2U12 storage system + nine 2U12 expansion enclosures = 120 disk drives
- 2U12 storage system + nine 2U24 expansion enclosures = 228 disk drives
- 2U12 storage system + three 5U84 expansion enclosures = 264 disk drives
- 2U24 storage system + nine 2U12 expansion enclosures = 132 disk drives
- 2U24 storage system + nine 2U24 expansion enclosures = 240 disk drives
- 2U24 storage system + three 5U84 expansion enclosures = 276 disk drives
|
X |
X |
X |
Embedded SMI-S provider:
- Maximum mapping paths (where a path is a volume that is presented through a host port to an initiator) = 250
- SMI-S is not supported for a system with 5U84 enclosures
|
X |
X |
X |
Presenting the same volume (LUN) through FC AND iSCSI to one or more hosts or host groups is not supported.
- Maximum mapping paths (where a path is a volume that is presented through a host port to an initiator) = 250
- SMI-S is not supported for a system with 5U84 enclosures
|
N/A |
N/A |
X |
The ME4012 and ME4024 base arrays are available in non-dense configurations starting at 2U, while the dense ME4084 array starts at 5U. Both models include dual controllers with Dual-core Intel Xeon processors, 8GB per controller, and 4x10Gb iSCSI, 4x12Gb SAS, and 4x16Gb FC network connections (auto-negotiation supported on iSCSI and FC).
ME4012 and ME4024 storage systems support up to nine ME412/ME424 expansion enclosures or three ME484 expansion enclosures. However, a combination of ME412/ME424 and ME484 expansion enclosures is not supported. ME4084 storage systems support up to three ME484 expansion enclosures.
