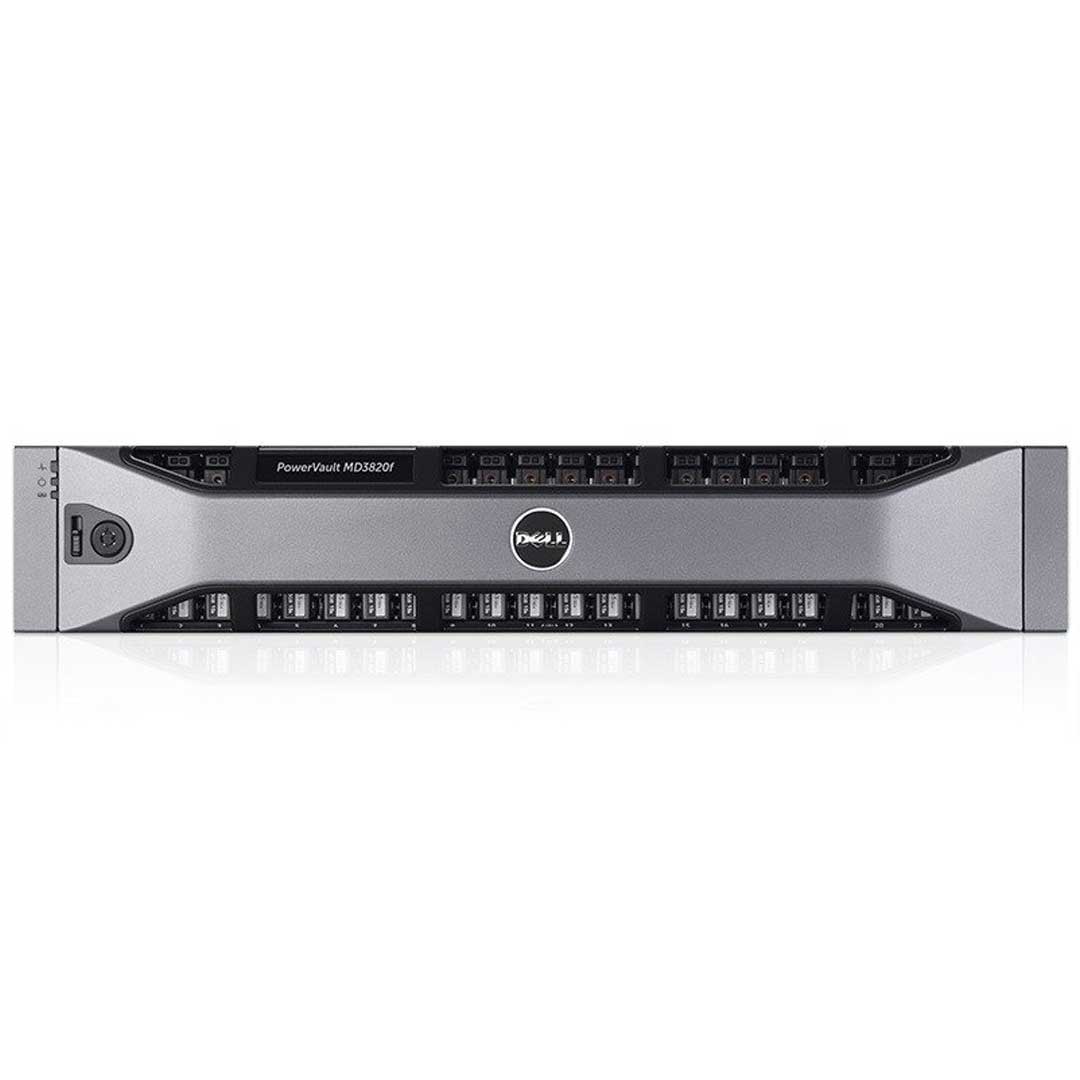

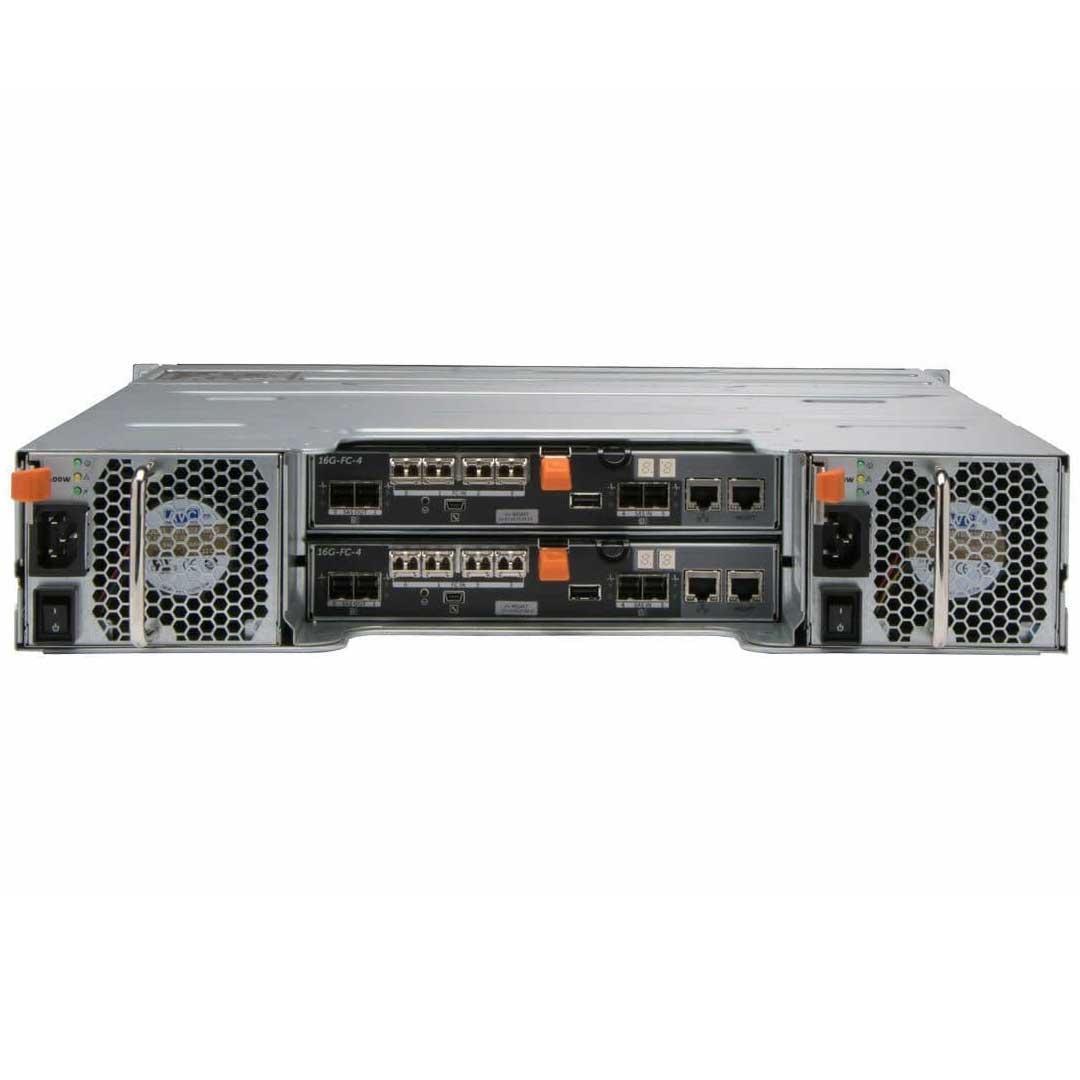

    Dell PowerVault MD3820f (24x2.5") Chassis


    Price: Request a Quote

    Brand:
    MPN:
    DPV-MD3820f-Chassis
    Type:
    Chassis
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    Dell PowerVault MD3820f (24x2.5") Chassis

    Quick Specs

    Form Factor:

    2U rack server

    Storage | Max: 120

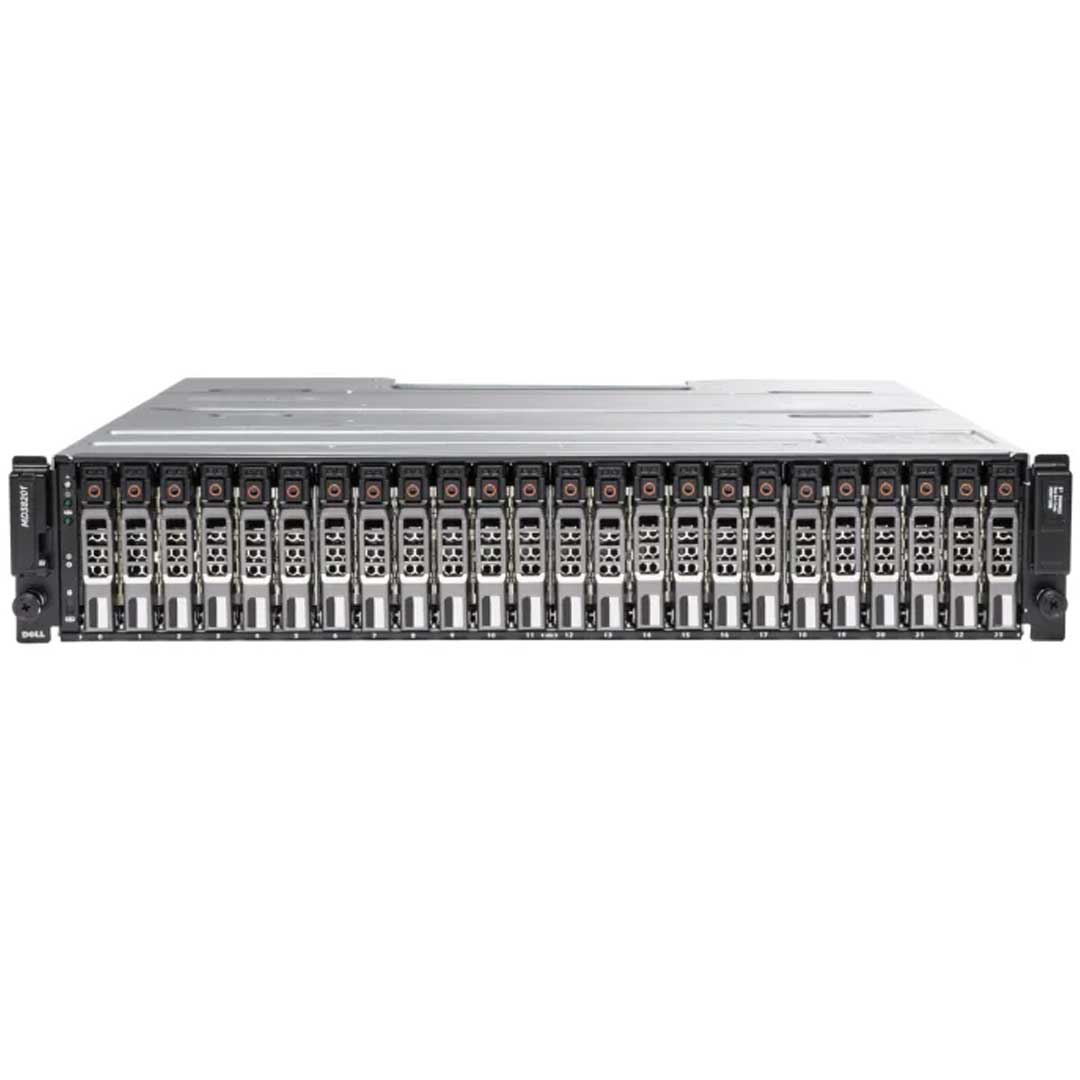

    24 SFF SAS (HDD/SSD)

    Mix and match drives:

    Supported

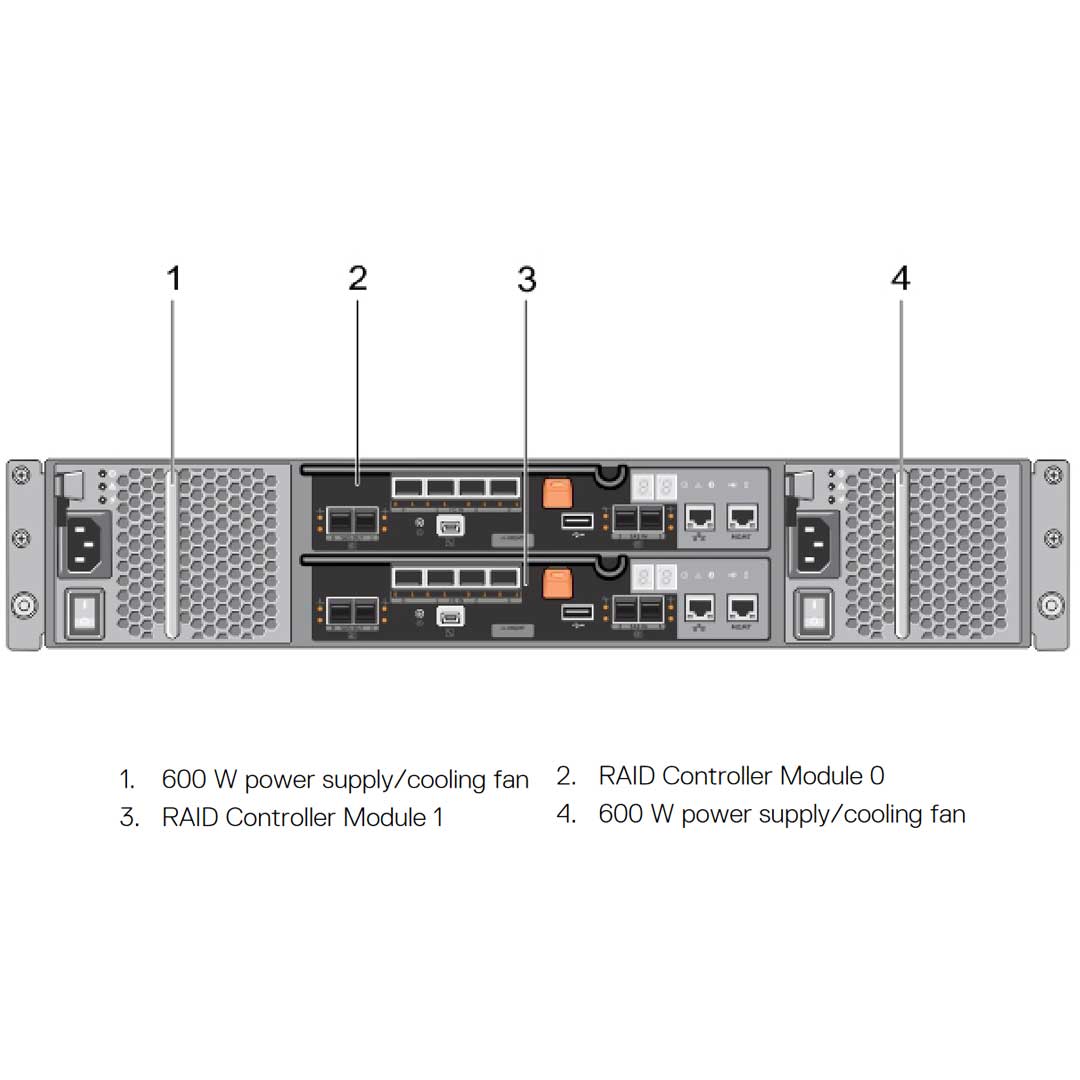

    Controllers:

    Supports up to 2

    Cache Per Controller:

    4GB or 8GB

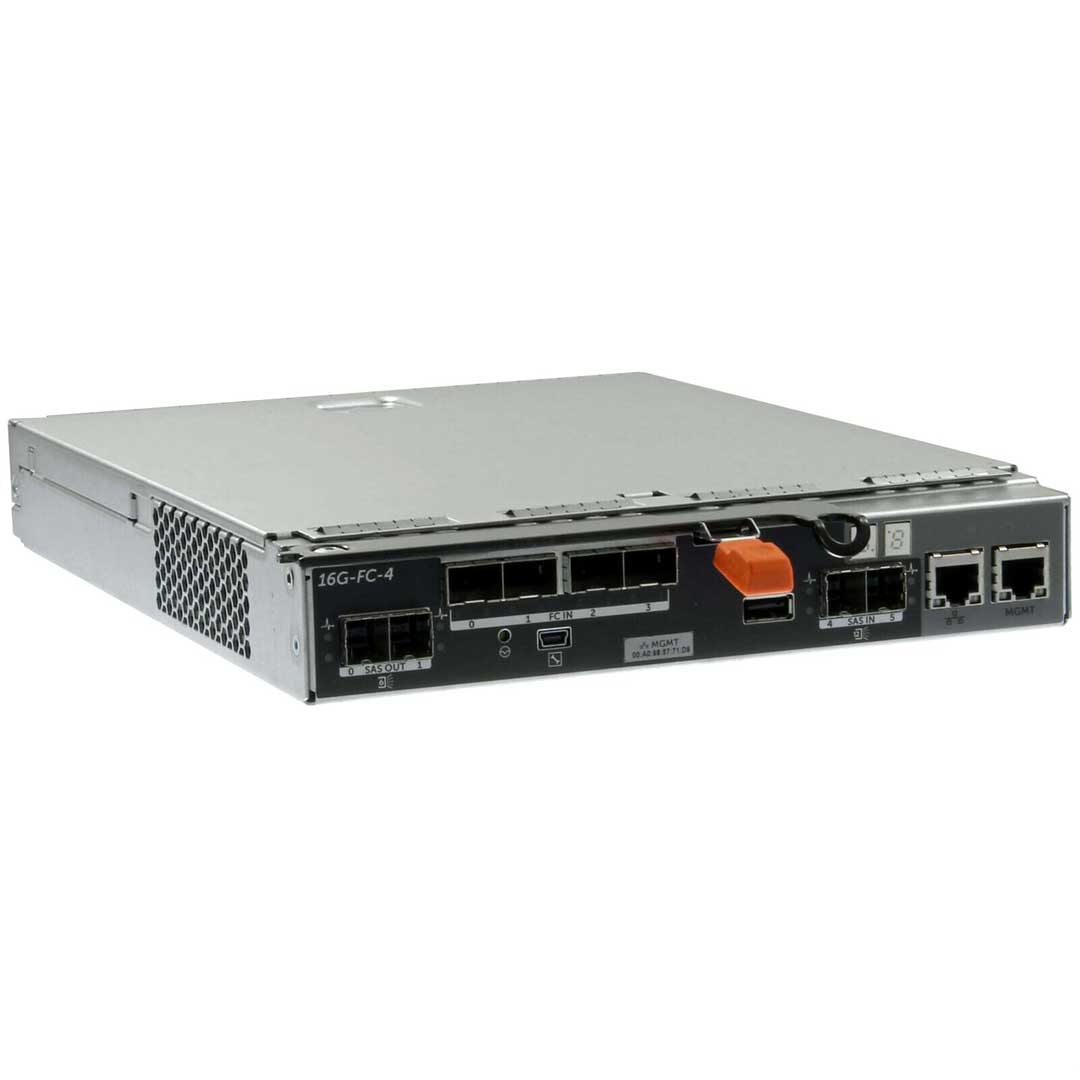

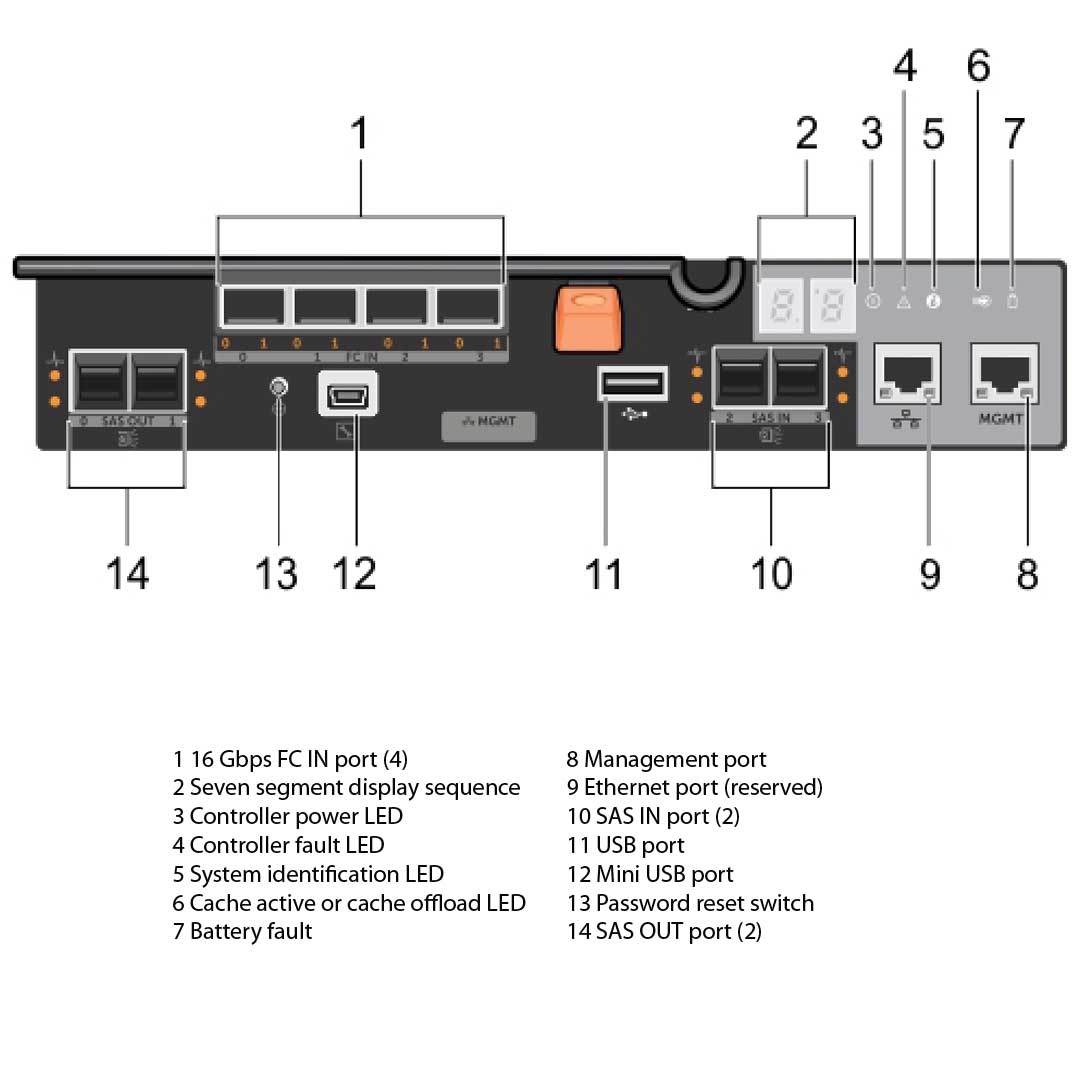

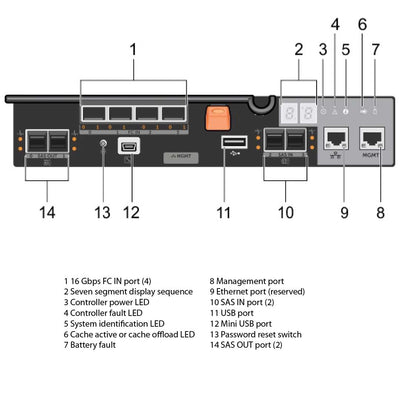

    Ports Per Controller:
    • Four x4 16Gb FC SFP &
      Two 12Gb SAS Host Connectivity
    • Two 12Gb SAS Expansion Connectivity
    • One RJ-45 1Gb Ethernet Remote Management
    • One PS/2 Serial Service Management
    Host Connectivity:
    Single or Dual Controller Models:

    Support up to 64 servers

    Expansion Storage:

    Scale up to 120 (192 disks with premium feature kit) total drives using MD1200 and/or MD1220 expansion enclosures

    The Dell PowerVault MD3820f is a powerful storage system that can support up to 24 2.5" HDD/SSD and up to 32 servers directly connected per controller (maximum 64 hosts). You can maximize performance with 16Gb Fibre Channel (FC), 4GB, or 8GB cache per controller, and SSD support. Single and dual controller models are available, with a maximum of 16GB (8GB per controller).


    Keeping pace with the latest technology

    With four 16Gb Fibre Channel ports per controller, you can enjoy high-speed connectivity and improved performance with double the existing bandwidth. The MD3 series also offers 8GB cache on dual controller options in Fibre Channel, providing up to 16GB total cache per array. You get high availability and high performance without sacrificing ease of use, which is synonymous with the PowerVault MD family.

    The Dell PowerVault MD3 series lets you mix and match drives to create a tiered storage environment that meets your specific requirements. You can scale up to 120 drives with MD1200 and/or MD1220 expansion enclosures, ensuring that your storage needs are met as your business grows.

    With dimensions of 68cm (3.42”) x 44.63cm (17.57”) x 56.1cm (22.09”) and a weight of 9.3kg (64.59 lb)), the Dell PowerVault MD3800f is compact and easy to manage. With the ability to reduce the effort required to store and manage your data, this storage solution is an excellent choice for businesses of all sizes. The 12-drive form factors can scale up to 120 drives when attached to the PowerVault MD1200 or MD1220 expansion enclosures, ensuring that your storage needs are met as your business grows.
