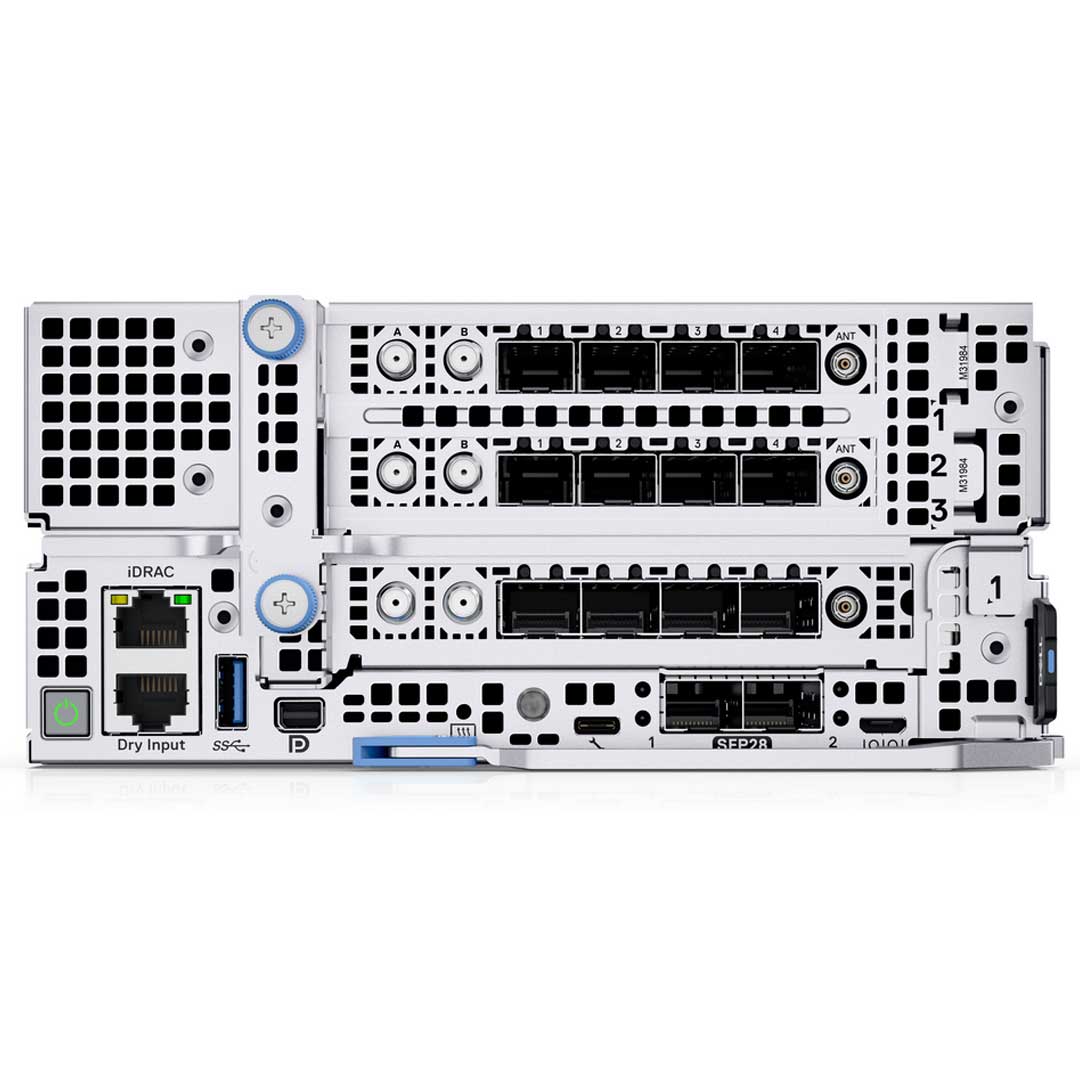

This Node comes with the 2 x 25 GbE SFP 28 LOM connectors
Quick Specs
Form Factor:
XR8620t: 2U Rack Server
Processor | Max: 32 Cores1 x 4th Generation Intel® Xeon® Scalable processor with optional vRAN boost up to 32 cores
Memory | Max: 512GB8 DDR5 RDIMM 4800Mhz
Storage | Max: N/AXR8620t: BOSS N1 with 2 x 2280 NVMe SSDs RAID 0/1

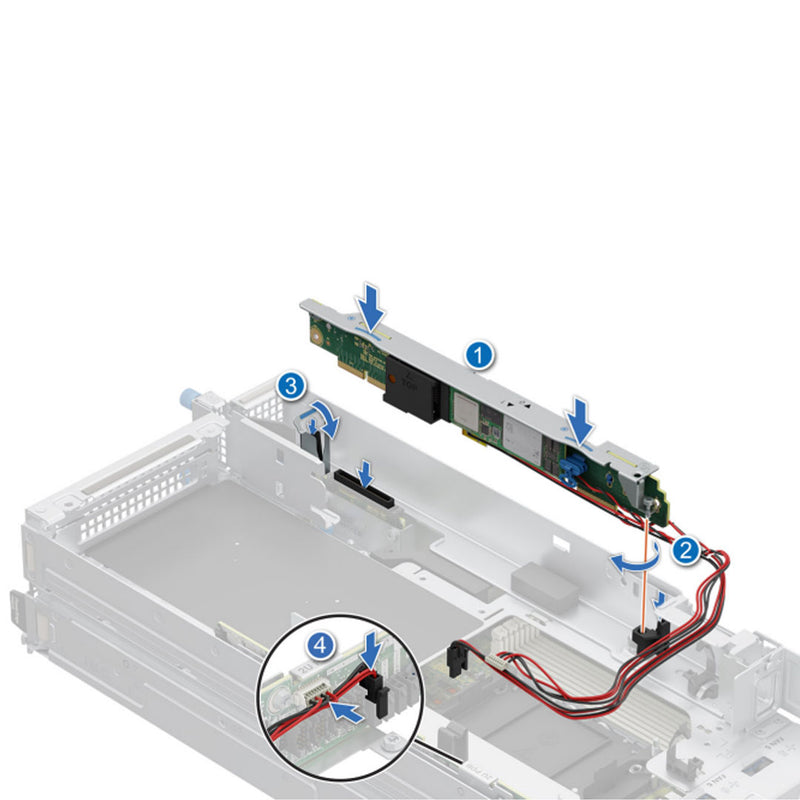

OR, 2x Dual M.2 NVMe direct Riser Module (non-RAID)
BOSS-N1 with RAID 0/1
Boot Options:BOSS N1
LOM:None
Remote Management:iDRAC9 with Lifecycle Controller
PCIe Slots:XR8610t: 1 x16 Gen5
XR8620t: 3 x16 Gen5
None
Ideal for:
- Centralized RAN
- Distributed RAN
- Edge Servers
- Military
- Point-of-Sale (POS)
Dell Technology’s multi-node, short depth, dense compute for the edge
Experience ultimate flexibility at the edge with Dell’s purpose-built server featuring an innovative sled-based architecture positioned to take us farther than any other Edge product. Designed for a broad range of workloads with the flexibility to extend from RAN at the cell site to AI/ML on a factory floor. This short-depth Class 1 server delivers high-performance compute in the harshest of environments with TCO at the center of every design decision.
Ultimate Flexibility for Scalability
Choose from multiple sled configurations with up to 4 nodes per chassis to meet all your growing and changing workloads.
Choose from multiple sled configurations with up to 4 nodes per chassis to meet all your growing and changing workloads.
- 1U and 2U sled options for optimum compute configurations enabling common platforms across Core, Edge, Far-edge, and RAN
- 4th generation Intel® Xeon® Scalable Processors up with optional vRAN boost upto 32 cores
- Both DC and AC power supply options
TCO Optimized Design
Reduce support and maintenance costs, decrease service outages, and capitalize on energy savings
- Advanced system power design enables dual PSUs to support up to 4 sleds
- Integrated fan infrastructure to support higher efficiency cooling
- Compute, power, sleds and chassis are serviceable separately simplifying field maintenance
Purpose-built for the Edge
Achieve high-performance compute in any environment.
- BBuilt rugged to operate in temperatures from -5°C to 55°C
- Offers easy serviceability with front I/O and power
- Short-depth (430 mm) chassis to fit in space-constrained environments
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Sled Options

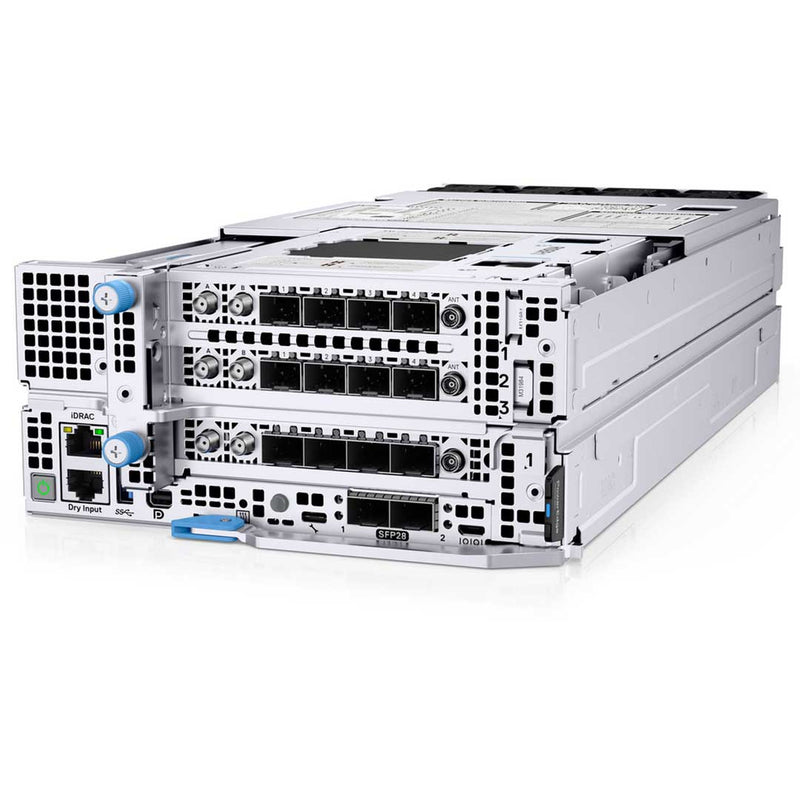

2U XR8620t Sled Highlights
XR8620t - Installation Service Manual
- 4th generation Intel® Xeon® Scalable Processor and with optional vRAN boost up to 32 cores
- 2 x FHHL (up to 125W) 1 x FHHL (up to 45W) (Gen5)
- Up to 2 x M.2 NVMe BOSS N1 ET
- 8 memory slots; up to 512 GB total
- Optional RAID
- -5°C to 55°C operating temperature
- Hot-swap fans are not supported.
- Minimum cold boot temperature +5°C w/o Heater Manager subsystem.

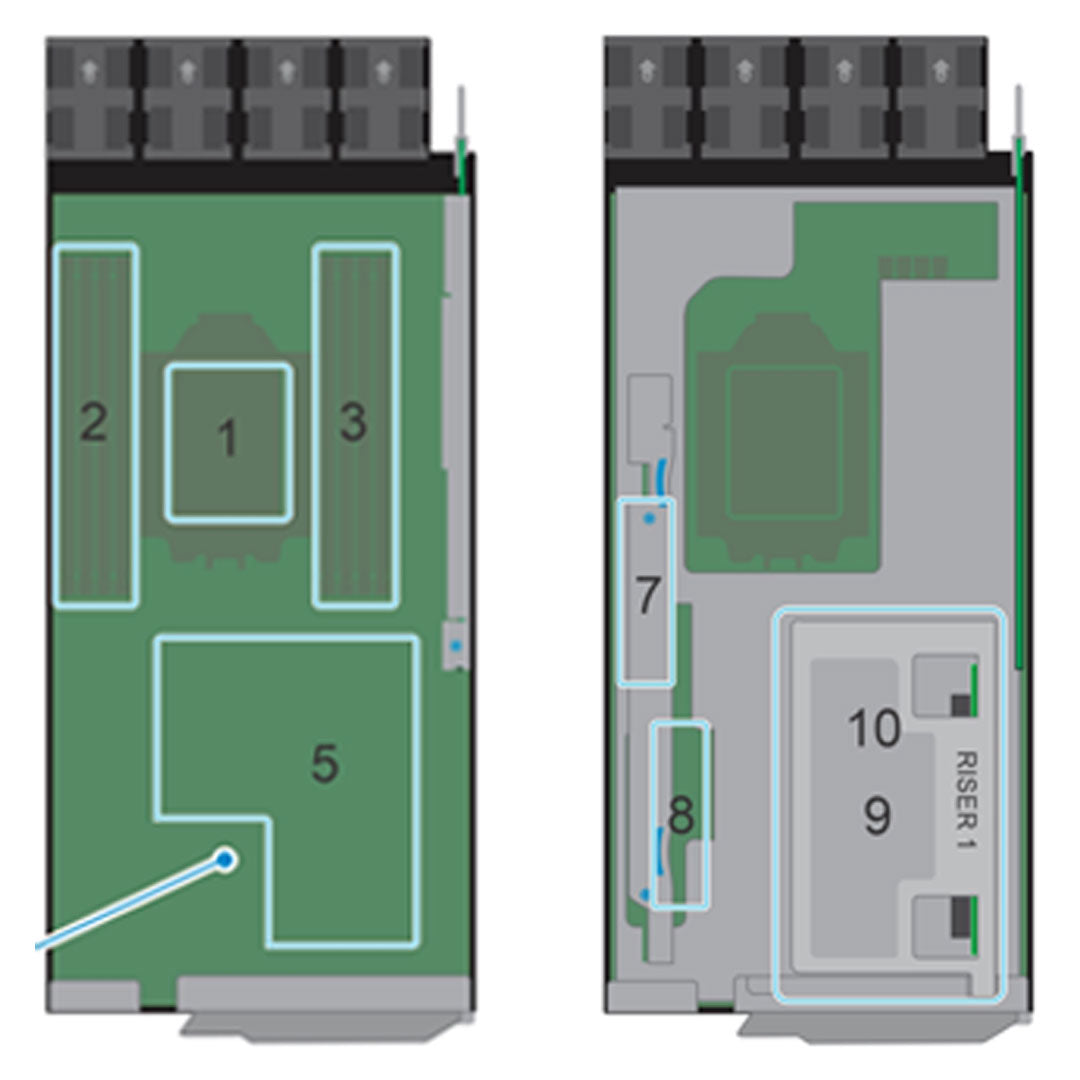

- Minimum cold boot temperature -20°C with Heater Manager subsystem.
- Dual PSUs are required while ambient ≥ 55°C.
- Only PSU with eTemp range is supported for NEBS3 H, GR3108C1 L & GR3108C1+ environment class.
- Non-Dell PCIe Cards are not supported.
- DIMM Blank is required in empty slots.
- Sled blank is required in empty slots.

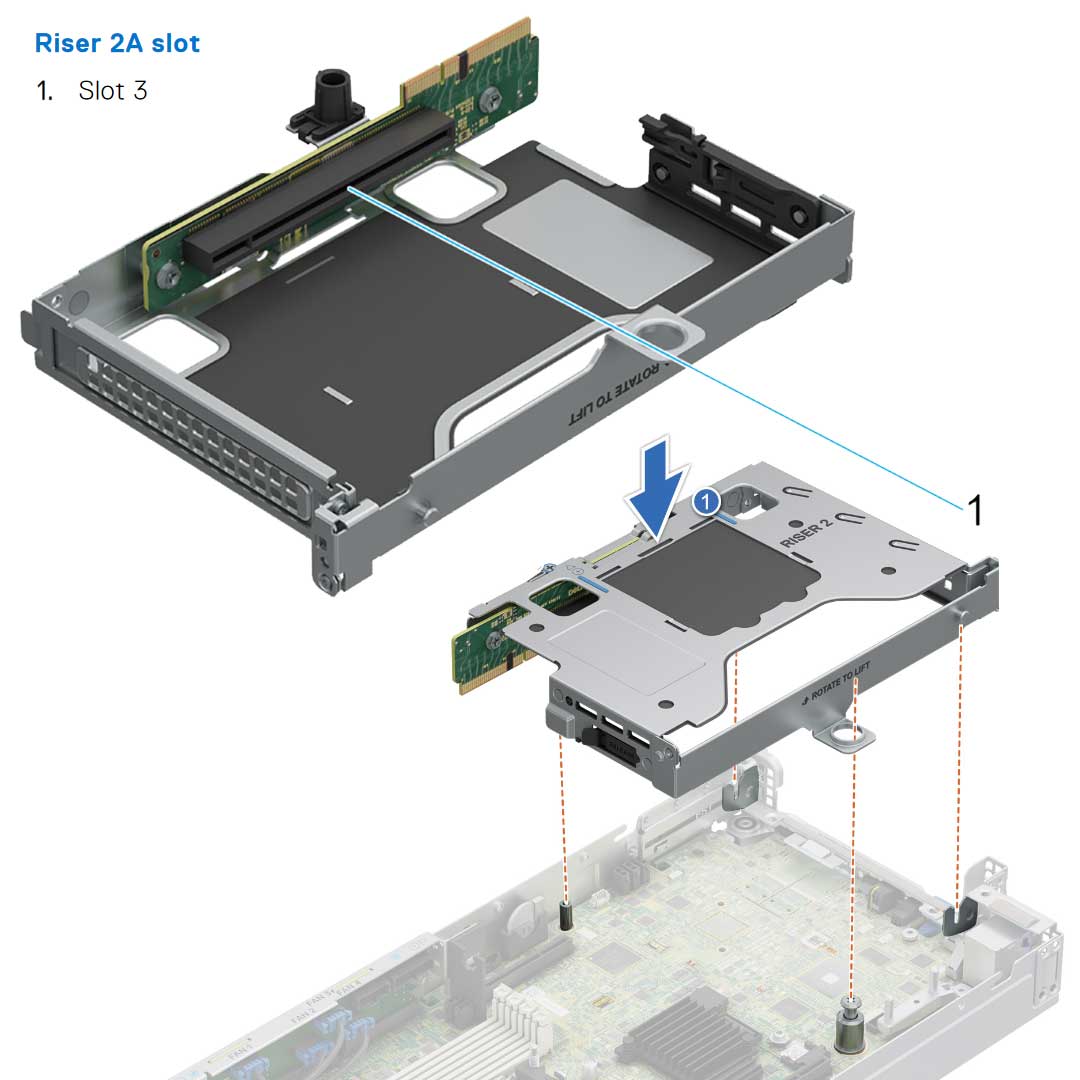

- PCIE blank is required in empty slots for slot-1&2.
- PCIE blank is required in empty slot for slot-3.
- PSU blank is required in empty slot.
- Heater Module is not supported with Intel Ethernet 100G 2P E810-2C.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Technical Specifications for XR8000r XR8610t and, XR8620t | ||
|---|---|---|---|
| Processor | 1 x 4th Generation Intel® Xeon® Scalable processor with optional vRAN boost up to 32 cores | ||
| Memory | • 8 x DDR5 DIMM slots, supports RDIMM total 512 GB with max speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only | ||
| Storage | • 2 x M.2 2280 or 22110 direct connect NVMe drives with dual M.2 NVMe direct riser module (non-RAID) in XR8620t • BOSS N1 with 2 x 2280 NVMe SSDs in XR8620t and XR8610t | ||

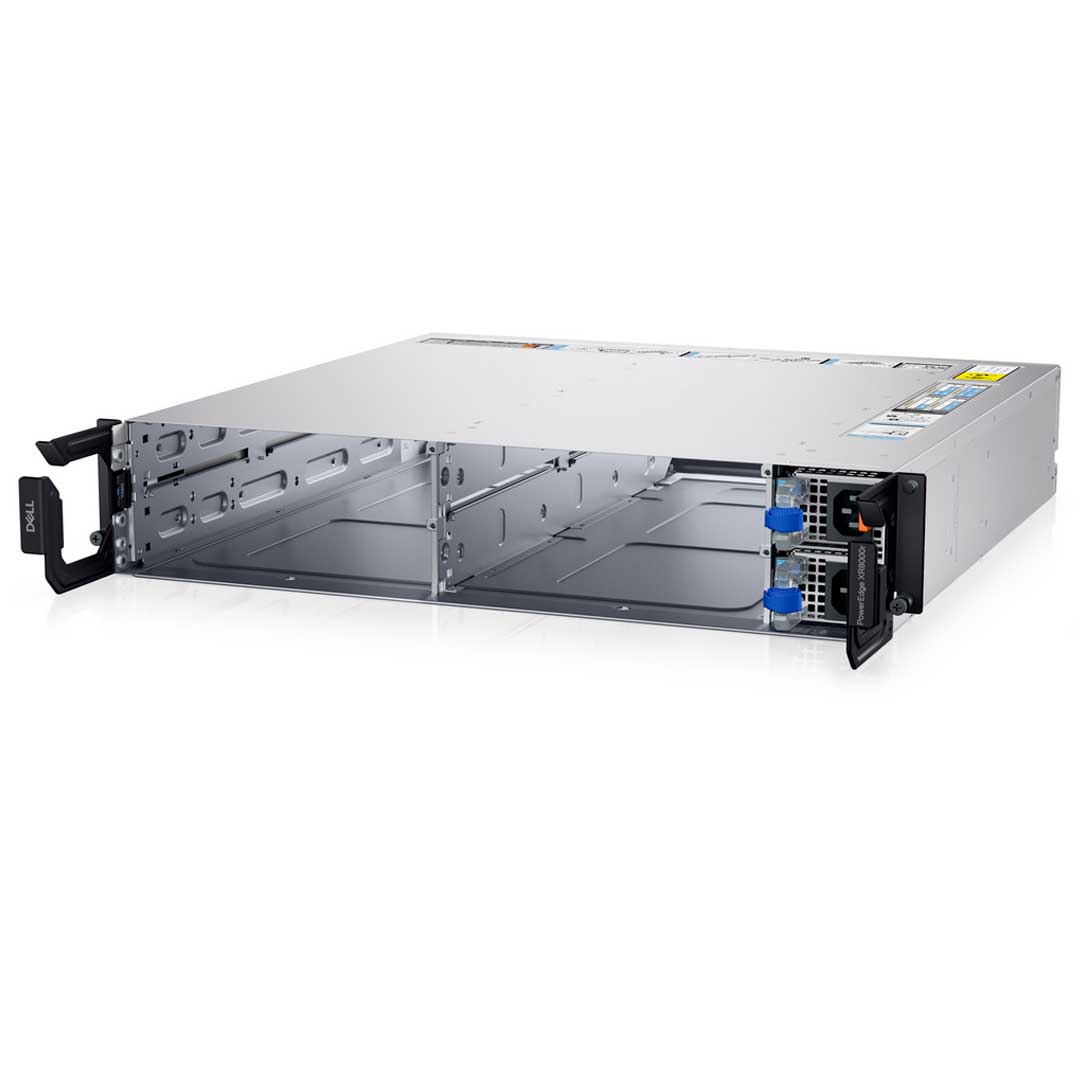

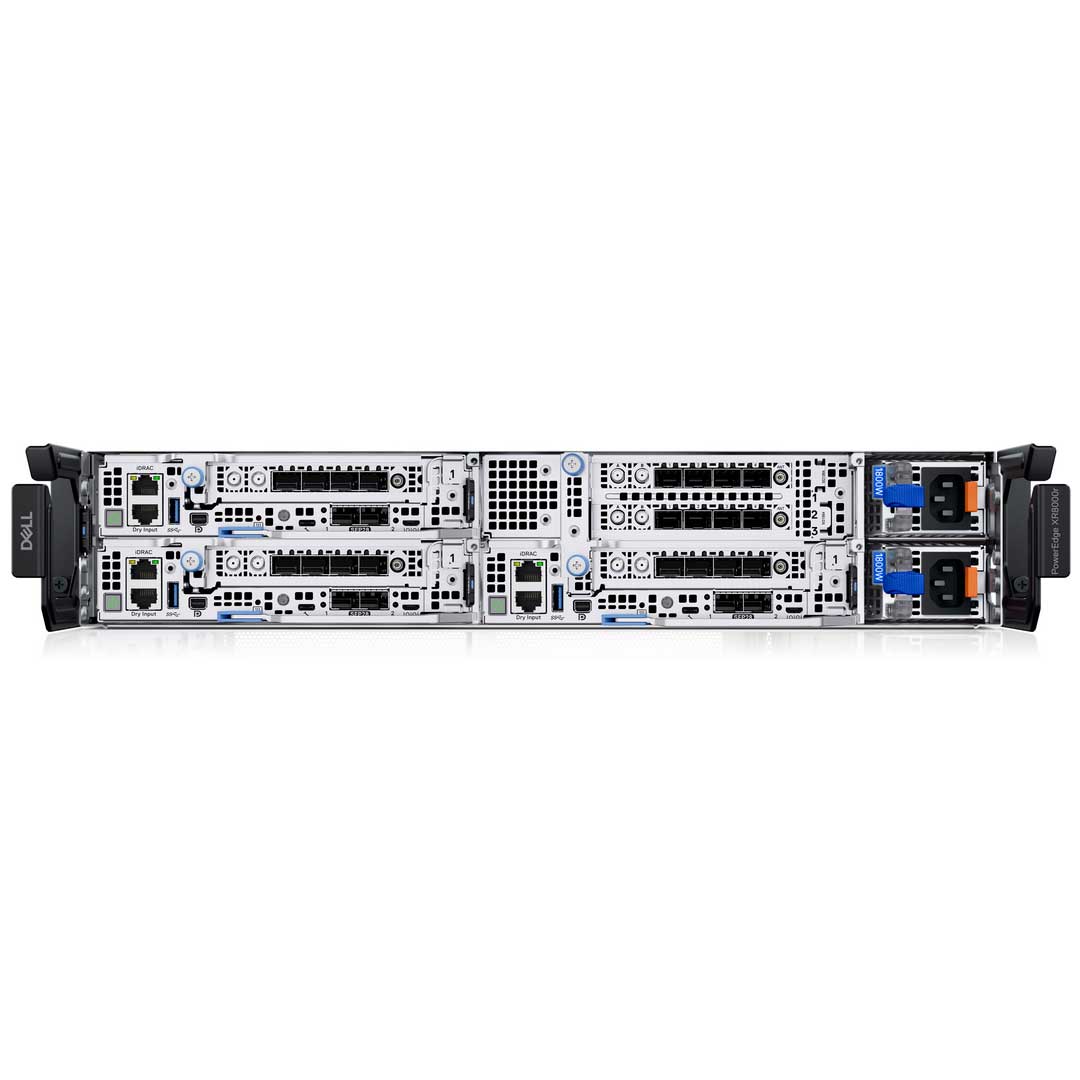

| Chassis | • XR8000r | ||
| Sled | • XR8610t and XR8620t | ||
| Hot swap Redundant Power Supplies | • 1800 W Titanium 200—240 VAC or 240 HVDC • 1400 W Platinum 100—240 VAC or 240 HVDC • 1400W DC/ -48 — (-60) V • 1100W DC/ -48 — (-60) V • 800W DC/ -48 — (-60) V | ||
| Cooling Options | • Air cooling | ||
| Fans | Up to 4 standard cabled cooling fans with reverse air-flow installed in XR8610t sled and up to 8 Standard (STD) cabled cooling fans with reverse air-flow installed in XR86620t sled | ||
| Dimensions and Weight | XR8000r • Height — 87.05 mm (3.42 inches) • Width — 482 mm (18.97 inches) with mount ear • — 448 mm (17.63 inches) without mount ear • Depth — 430 mm (16.92 inches) cable management to rear wall • — 350 mm (13.77 inches) mounting surface to rear wall • Weight — 18.52 kg (40.84 pounds) | XR8610t • Height — 41.25 mm (1.62 inches) • Width — 184.8 mm (7.27 inches) • Depth — 433.5 mm (17.06 inches) • Weight — 5.36 kg (11.83 pound) | XR8620t • Height — 83.28 mm (3.27 inches) • Width — 184.8 mm (7.27 inches) • Depth — 433.5 mm (17.06 inches) • Weight — 6.02 kg (13.27 pound) |
| Form Factor | 2U chassis and 1U and 2U half-width sleds | ||
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module | ||
| Bezel | Not supported | ||
| OpenManage Software | • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin | ||
| Mobility | OpenManage Mobile | ||
| OpenManage Integrations | • BMC Truesight • Microsoft System Center • OpenManage Integration with Service Now • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager | ||
| Security | • Cryptographically signed firmware • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | ||
| Embedded NIC | • 2 x 25 GbE SFP 28 LOM connectors (optional) | ||
| Ports | Front ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 3.0 • 1 x Micro USB serial port • 1 x Mini-DisplayPort • 1 x RJ45 iDRAC9 ethernet port • 1 x RJ45 Alert\Dry contact input connector | ||

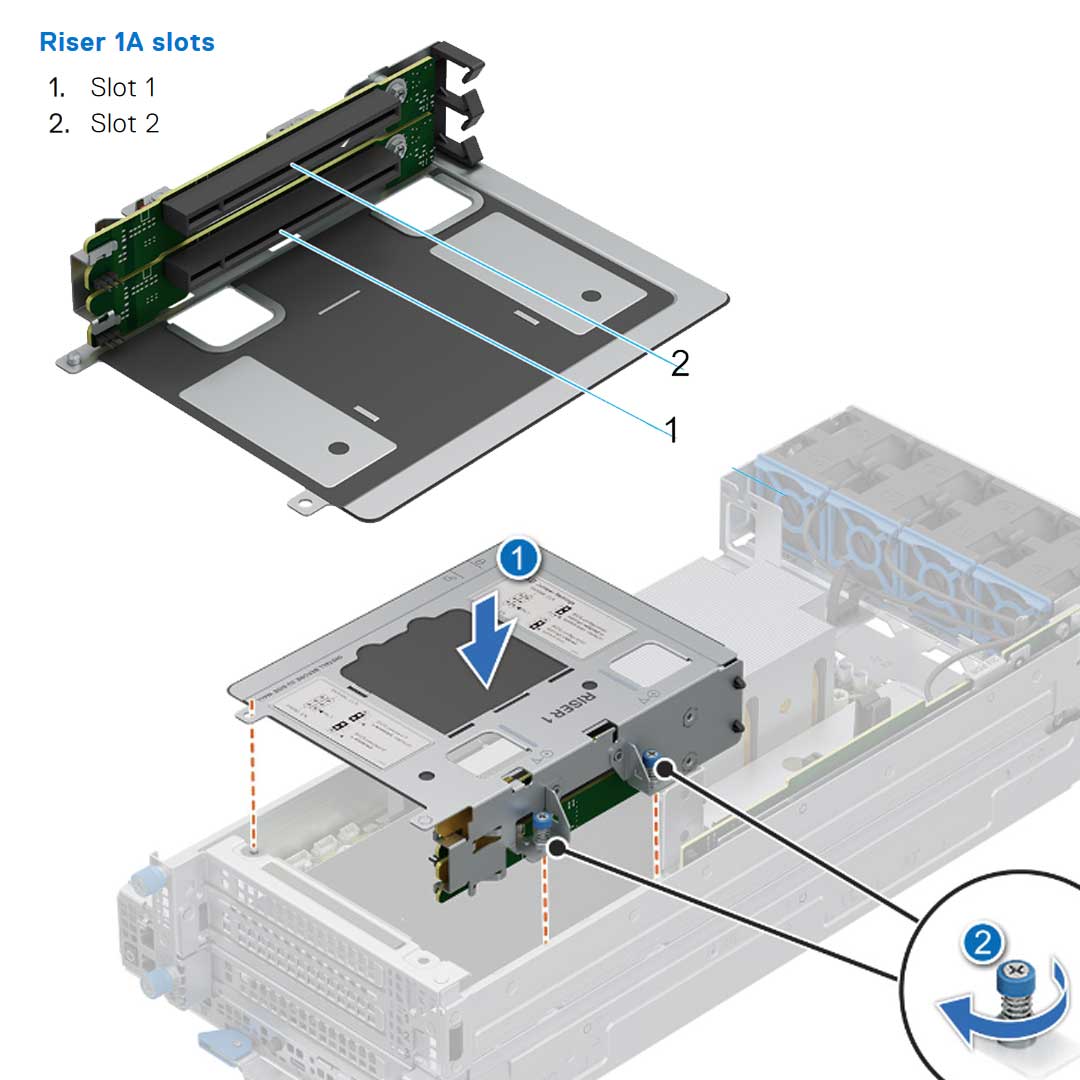

| PCIe | • 1 CPU configuration: Up to 3 PCIe slots: (3 x16 Gen5) in XR8620t • 1 CPU configuration: 1 PCIe slot: (1 x16 Gen5) in XR8610t | ||
| Operating System and Hypervisors | • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi • Wind River | ||
Spec Sheet 4
| PowerEdge XR8000 Components | PowerEdge XR8620t | PowerEdge XR8610t |
|---|---|---|
| Form factor | 2U, single-width, 1-processor server sled | 1U, single-width, 1-processor server sled |
| Description | This general purpose compute sled offers three FHFL PCIe slots. | This dense compute optimized sled offers one FHFL PCIe slot. |
| Ideal workloads | Distributed Unit (DU), Centralized Unit (CU), vRAN and Open RAN, Distributed RAN, Network Edge and MEC, Cloud Services, AI Inferencing, Field Operations | Distributed Unit (DU), Centralized Unit (CU), vRAN and Open RAN, Distributed RAN, Network Edge and MEC, Cloud Services, AI Inferencing, Field Operations |
| Chassis enclosure | Up to 2 sleds per PowerEdge XR8000r chassis | Up to 4 sleds per PowerEdge XR8000r chassis |
| Processor | One 4th Generation Intel Xeon Scalable processor with up to 32 cores with optional vRAN boost | One 4th Generation Intel Xeon Scalable processor with up to 32 cores with optional vRAN boost |
| Memory | 8 x DDR5 DIMM slots, supports RDIMM 512 GB max, with speeds up to 4800 MT/s | 8 x DDR5 DIMM slots, supports RDIMM 512 GB max, with speeds up to 4800 MT/s |

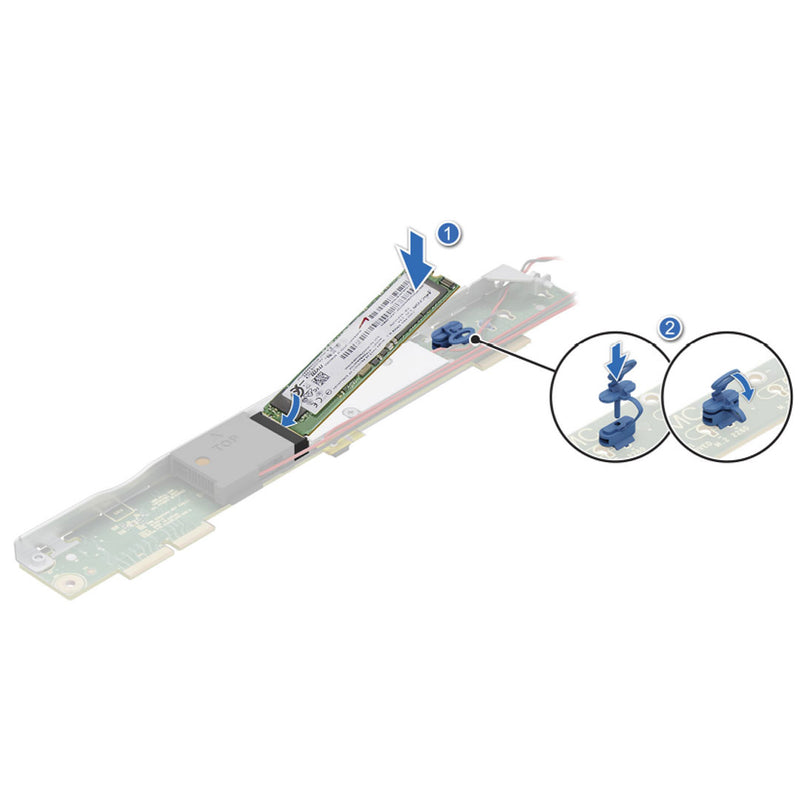

| Storage | 2 x M.2 2280 or 22110 direct connect NVMe drives with dual
M.2 NVMe direct riser module (non-RAID) and 2 x M.2 2280 with BOSS-N1 card |
2 x M.2 2280 SSDs on BOSS-N1 card |
| PCIe slots | 1 CPU configuration: Up to 3 PCIe slots: (3 x16 Gen5) | 1 CPU configuration: 1 PCIe slot: (1 x16 Gen5) |
| Security | Cryptographically signed firmware
Secure Boot Secure Erase Silicon Root of Trust Secured Component Verification (Hardware integrity check) System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
Cryptographically signed firmware
Secure Boot Secure Erase Silicon Root of Trust Secured Component Verification (Hardware integrity check) System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
