4U rack server, air cooled
Processor | Max: 86 Cores per CPU2x Intel Xeon 6 P-core (6700P)
Memory | Max: 4TB32 DDR5 RDIMM slots, up to 6400 MT/s
GPU:Up to 8x DW PCIe Gen5 GPUs (600W) or
16x SW PCIe GPUs (75W)
8 x EDSFF E3.S Gen5 NVMe (direct attached)
Boot Options:BOSS-N1 DC-MHS (2 x M.2 NVMe, RAID 1)
Networking Options (NOC):1x OCP 3.0 (x8)
1GbE dedicated iDRAC port
iDRAC10
PCIe Slots:8x Gen5 x16 FHHL (front serviceable)
(Click to View)
- Artificial Intelligence (AI)
- LLM Fine-Tuning & Inference
- Deep Learning (DL)
- High-Performance Computing (HPC)
The Dell PowerEdge XE7740 is a 4U, dual-socket, air-cooled AI server for fine-tuning and inference. It pairs two Intel Xeon 6 P-core processors (up to 86 cores each) with up to 8 double-wide 600W PCIe GPUs such as the NVIDIA H200 NVL or RTX Pro 6000, or 16 single-wide L4 cards, plus 32 DDR5 DIMMs (up to 4TB), 8 x E3.S Gen5 NVMe drives and 8 PCIe Gen5 slots for AI cluster networking.
- 8 front hot-swap EDSFF E3.S Gen5 NVMe bays, up to 122.88 TB

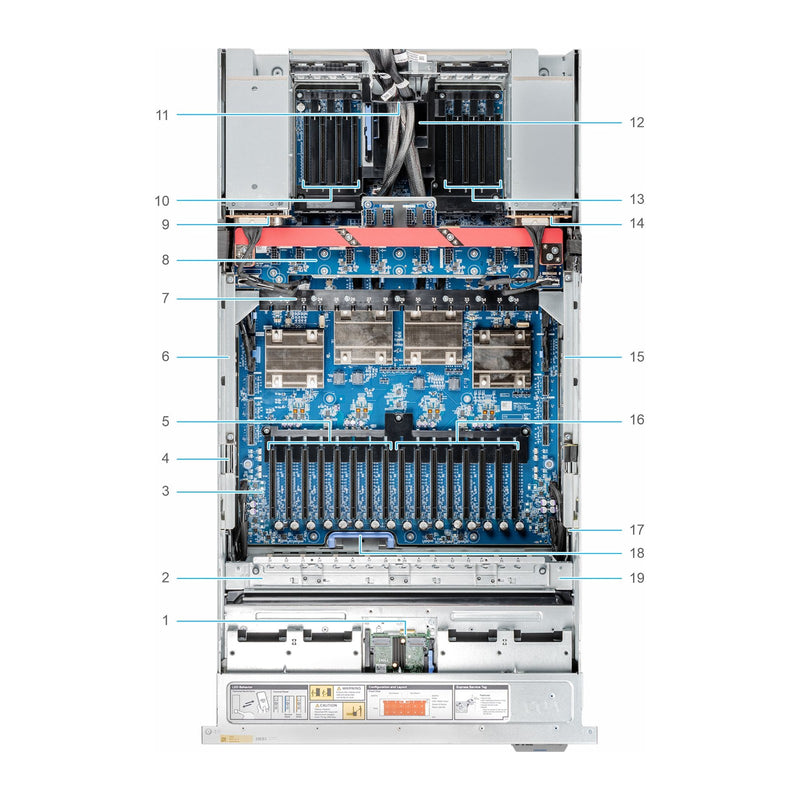

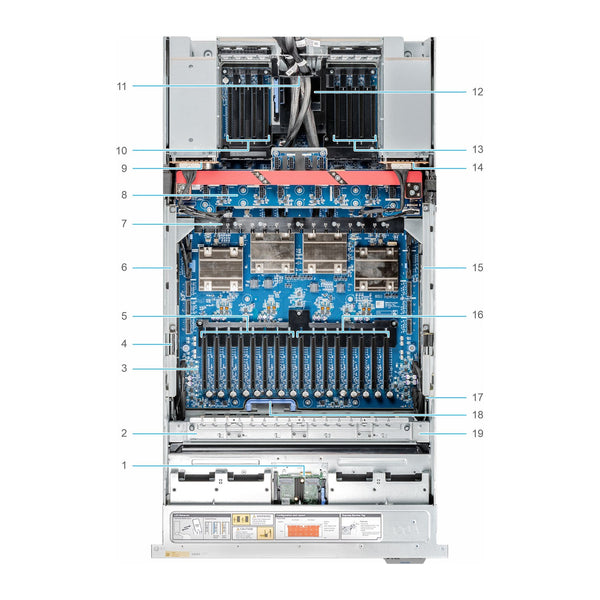

- 1U CPU zone (top) + 3U GPU zone (bottom)

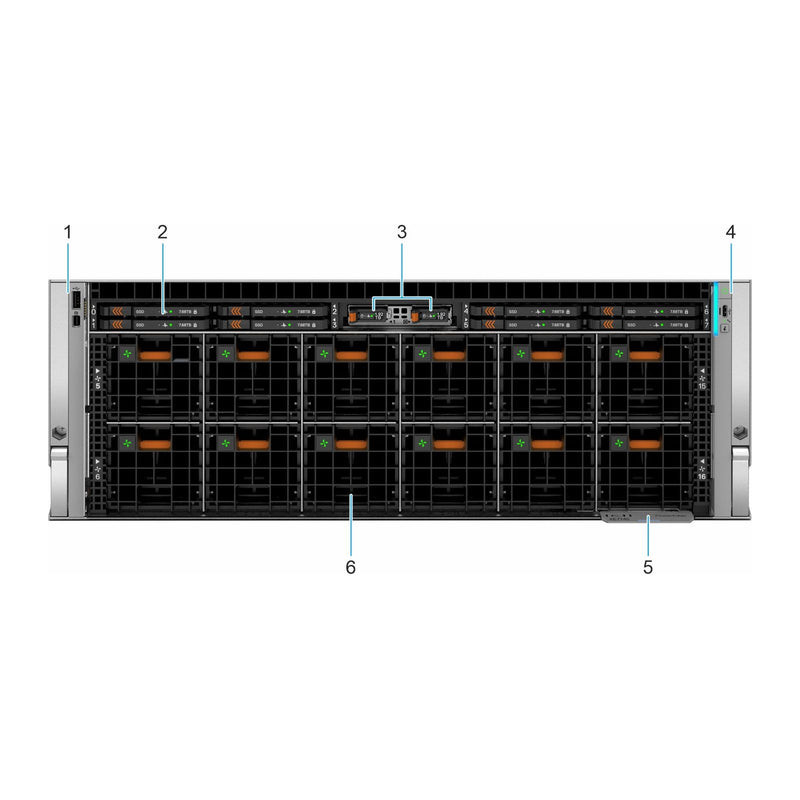

- Front: BOSS-N1 bay, 12 GPU fans, USB-C iDRAC Direct, optional USB / Mini-DP
- Direct-attached NVMe only: no PERC, SAS, SATA or rear drives
- One chassis option for this server
- Air cooled only; no liquid-cooling option
Two Intel Xeon 6 P-core processors (Granite Rapids, 6700P), up to 86 cores each.
- Up to 86 cores / 172 threads per CPU
- Up to 4 UPI 2.0 links at 24 GT/s
- 88 PCIe Gen5 lanes per CPU
- 2 processors required; do not mix
- Supported: 6787P, 6767P, 6747P
- Air-cooled CPU heatsink supports all TDPs (up to 350 W)
- 8 x16 Gen5 DW FHFL slots (21-35, odd) up to 600 W
- or 16 x16 SW FHFL slots (21-36) for L4
- 4 PCIe switches on the PCIe base board (PBB)
- One GPU model per system; do not mix
- Install in matched sets (see table)
- NVLink: H200 NVL 4-way bridge (4x or 8x), H100 NVL 2-way bridges
| GPU | Width | Supported quantity |
|---|---|---|

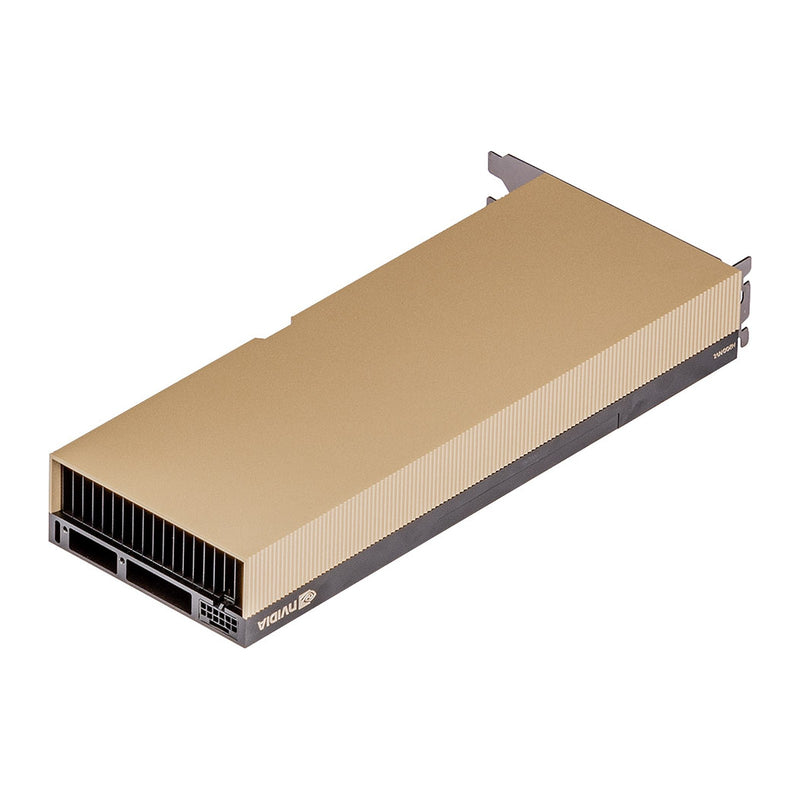

| NVIDIA H200 NVL 141GB | DW | 2, 4, 6 or 8 |
| NVIDIA H100 NVL 94GB | DW | 2, 4 or 8 |
| NVIDIA RTX Pro 6000 96GB | DW | 2, 4, 6 or 8 |
| NVIDIA L40S 48GB | DW | 4 or 8 |
| Intel Gaudi 3 128GB | DW | 4 or 8 |
| NVIDIA L4 24GB | SW | 8 or 16 |
ⓘ GPU More GPUs need more system memory: 8x H200 NVL, RTX Pro 6000 or Gaudi 3 needs at least 64GB x 32 or 96GB x 16 DIMMs.
| DIMM type | Rank | Capacity | Rated speed | Maximum system capacity |
|---|---|---|---|---|
| RDIMM | 2R | 32 GB | 6400 MT/s (1DPC) 5200 MT/s (2DPC) |
1 TB |
| 64 GB | 2 TB | |||
| 96 GB | 3 TB | |||
| 128 GB | 4 TB |
ⓘ Memory 16 DIMM slots per processor (8 channels, 2 DPC), 1.1 V. RDIMM only; do not mix capacities.
- Hardware RAID 1 across 2 x M.2 NVMe SSDs
- M.2 SSDs: 480 GB or 960 GB
- Front-accessible, hot-plug carriers (slot 41)
- 1 x OCP 3.0 slot (Gen5 x8)
- 1GbE to 100GbE: Broadcom, Intel, NVIDIA Mellanox
- 100GbE OCP cards need 85°C optics or DAC
- 8 x16 Gen5 FHHL slots (1-4, 6-9), up to 150 W
- 100GbE, 200GbE and 400GbE NICs for the AI back-end fabric
- BlueField-3 B3220 DPU (2x 200GbE)
- 12 front GPU fans (hot swap)
- 4 dual-fan modules in the mid tray for the CPUs
- Separate shrouds for the 1U CPU and 3U GPU zones
- Up to 35°C ambient; 30°C with 8x H200 NVL or 8x RTX Pro 6000
- iDRAC10 with dedicated iDRAC Ethernet port
- iDRAC Direct (front USB Type-C)
- iDRAC RESTful API with Redfish
- TPM 2.0 FIPS, Secure Boot, Silicon Root of Trust
- Intel SGX, System Lockdown, Secure Erase
- Secured Component Verification
| Form factor | Output | Power cord |
|---|---|---|
| Redundant 73.5 mm (up to 8 PSUs) | 3200 W Titanium mixed mode | C19 |
| 3200 W Titanium 277 V AC & HVDC | APP/Saf-D-Grid | |
| 2400 W Titanium mixed mode | C19 |

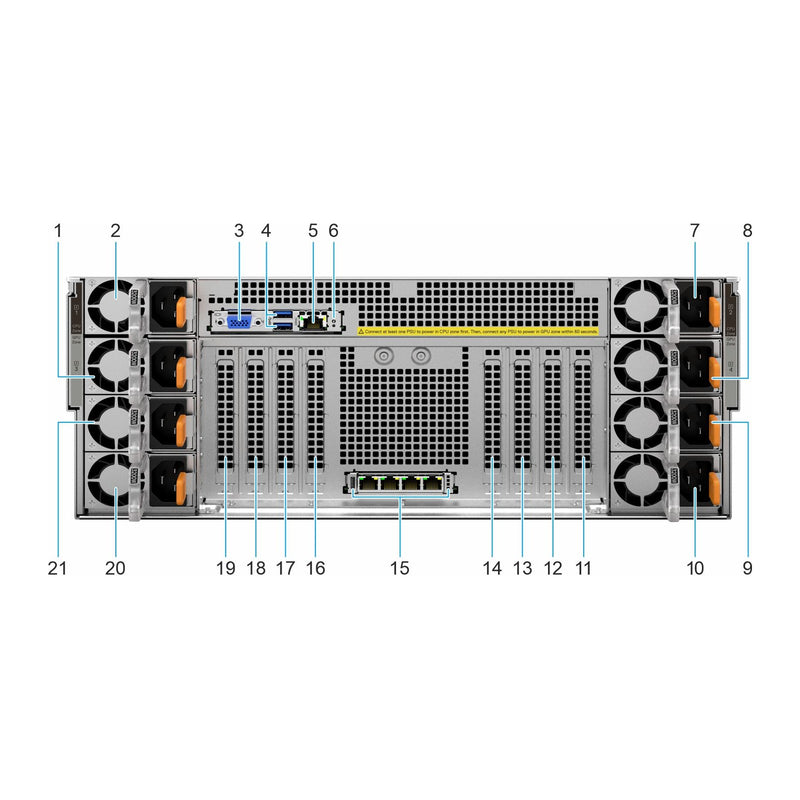

ⓘ PSU Two power zones: 2 PSUs in the CPU zone (1+1) and 6 in the GPU zone (3+3). At least one PSU per zone is required. Do not mix PSU types or vendors.
- Height: 174.3mm (6.86")
- Width: 482mm (18.98")
- Depth: 899.56mm (35.42") with bezel, 886.73mm (34.91") without
- Max 71.35 kg (157.30 lbs)
- Use a server lift over 54.4 kg (120 lbs)
