Base Standard Capabilities
| Feature | PowerEdge T640 Technical specification | |
|---|---|---|
| Processor | Up to two 2nd Generation Intel® Xeon ® Scalable processors, up to 28 cores per processor | |
| Memory | 24 DDR4 DIMM slots, Supports RDIMMS/ LRDIMMS, speeds up to 2993MT/s, 3TB max Up to 12 NVDIMM, 192GB max Supports registered ECC DDR4 DIMMs only | |
| Storage controllers | Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140 External PERC (RAID): H840 External HBAs (non-RAID): 12Gbps SAS HBA Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 120GB, 240 GB | |
| Drive bays |
| |
| Power supplies | Titanium 750W Platinum 495W, 750W, 1100W, 1600W, 2000W and 2400W 48VDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy Up to 8 fans with N+1 redundancy (6 hot-pluggable internal fans plus 2 external fans) | |
| Dimensions and weight | Form factor: Tower or rack, 5U | Chassis max depth: 708.7 mm |
| Bezel | Optional security bezel | |
| Embedded / At-Server | iDRAC9 iDRAC Direct Quick Sync 2 BLE/wireless module | |
| Consoles & Mobile |
| |
| Integrations and connections | Integrations:
| Connections:
|
| Tools |
|
|
| Security |
|
|
| I/O & Ports |
| |
| GPU options |
| |
| Supported Operating systems | Canonical® Ubuntu® LTS Citrix® Hypervisor Microsoft Windows Server® LTSC with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® | |
Compare Servers
| Feature | PowerEdge T640 | PowerEdge T630 |
|---|---|---|
| Processor | 2x 2nd Generation Intel® Xeon® processor Scalable Family | 2x Intel Xeon E5-2600 v3 (Haswell-EP), Broadwell |
| Memory Module | • 24 DDR4 DIMM slots • Supports RDIMMs/LRDIMMs • Speeds up to 2933MT/s, 3TB max • Up to 12 NVDIMM, 192GB max | • Up to 24 DDR4 DIMM slots • 1.5TB max memory • Speeds up to 2400MT/s |
| Chipset | Intel Ultra Path Interconnect (UPI) | Intel QuickPath Interconnect (QPI) |
| Hard drive bays | 8x3.5 -inch, 18x3.5 -inch, 16x2.5 -inch, 16x2.5 -inch + 8x NVMe, 32x2.5 -inch - 12Gb SAS, 6Gb SATA | 8x3.5 -inch, 18x3.5 -inch, 16x2.5 -inch, 32x2.5 - inch - 12Gb SAS, 6Gb SATA |
| Storage Controllers | Adapters: HBA330, H330, H730P, H740P, H840, 12Gb SAS HBA Mini Mono: HBA330, H330, H730P, H740P SW RAID: S140 | Adapters: HBA330, H330, H730, H730P, H830 (ext) Mini Mono: HBA330, H330, H730, H730P SW RAID: S130 |
| PCIe SSD | Up to 8x PCIe SSD (NVMe) | 4x PCIe SSD |
| PCIe Slots | Max 8 PCIe 3.0 + 1 internal | Max 7 PCIe Gen3 + 1 internal |
| LOM | 2x 10GbE (10GBASE-T) Broadcom 57416 | 2x 1GbE |

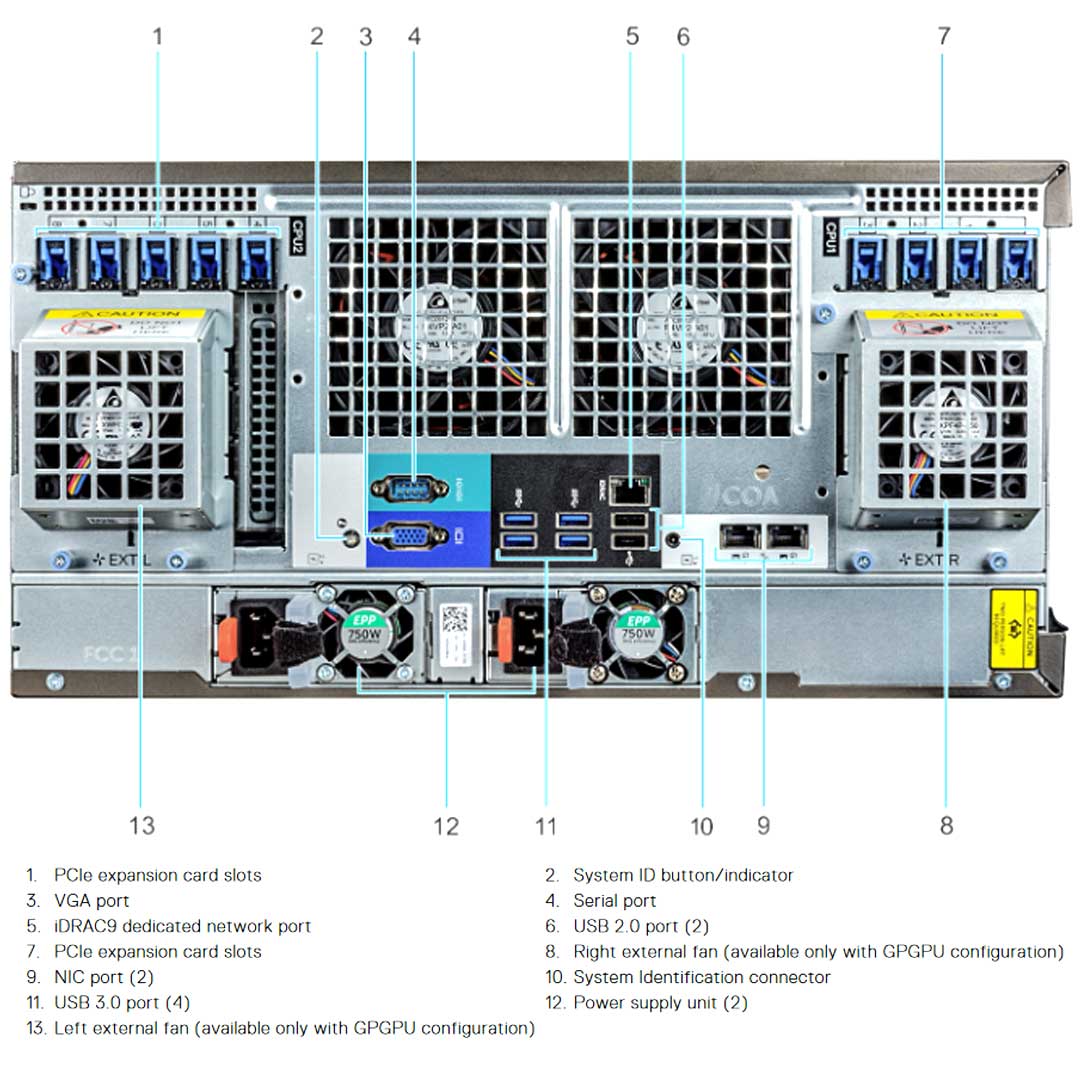

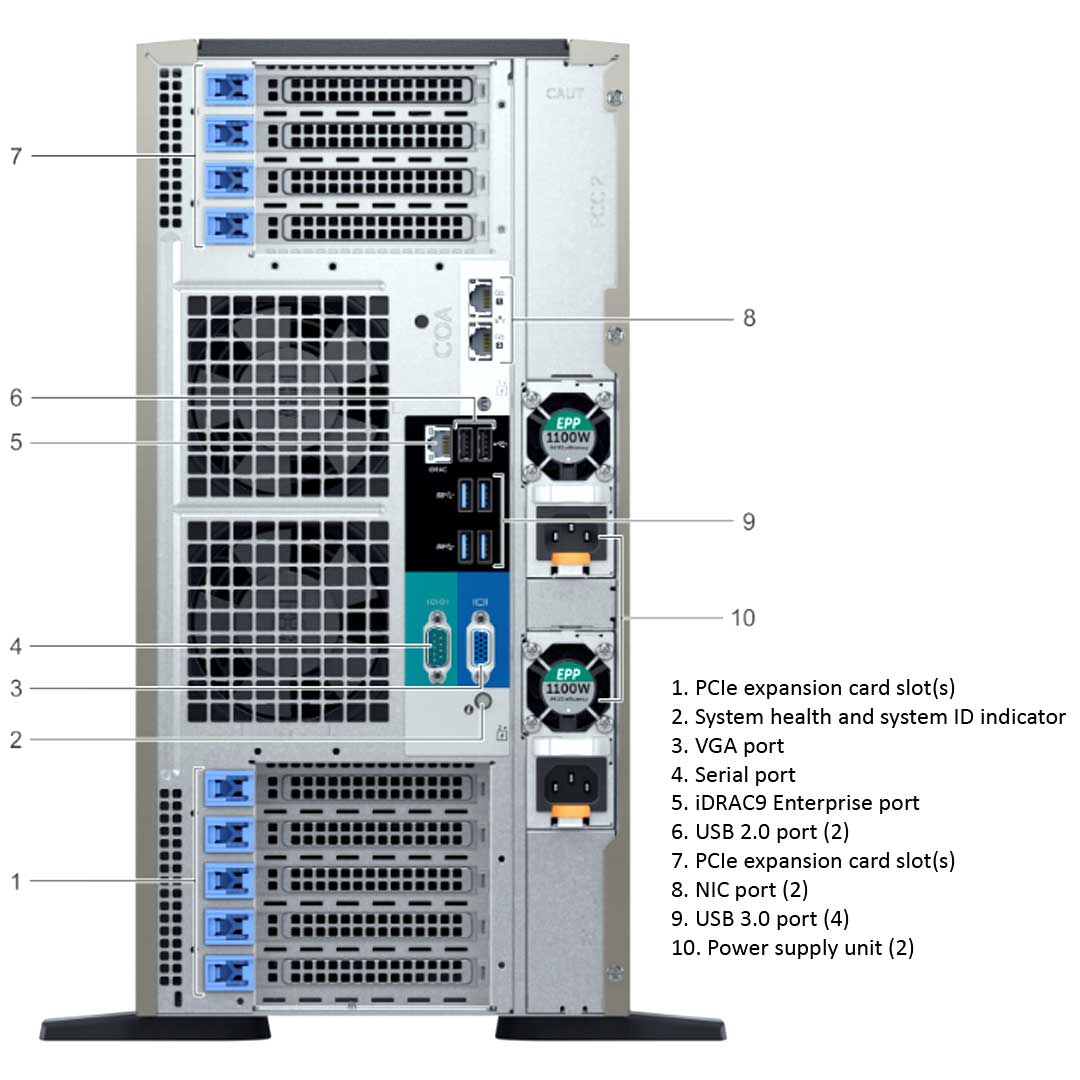

| USB Ports | Front: 1 port (USB 3.0), 1 port (USB 2.0), dedicated iDRAC, serial, video, 6x USB2.0/3.0 | Front: 1 port (USB 3.0), 1 port USB2.0, dedicated iDRAC, serial, video,4x USB 2.0 |
| Tower/Rack | 5U (rack) | 5U (rack) |
| Power Supplies | • 2400W Platinum (AC only) • 2000 Platinum (AC only) • 1600W Platinum (AC only) • 1100W Platinum (AC/DC) • 750W Platinum/Titanium (AC only) • 750W Platinum Mixed Mode DC (For china only) • 495W Platinum (AC only) | AC: 495W, 750W, 1100W DC: 1100W Mixed Mode: 750W 1100W DC, 1600W |
| Remote Management | iDRAC9 | iDRAC8 |
| Internal GPU | 4x 300W (DW) Passive or 8x 150W (SW) | 4x 300W (DW) Active or 7x 150w (SW) |
| Availability | • Hot-plug Drives • Hot-plug Redundant Cooling • Hot-plug Redundant Power Supplies • BOSS • IDSDM | • Hot-plug Drives • Hot-plug redundant Cooling • Hot-plug Redundant Power Supplies • IDSDM Support |
