Current Configuration
(List below serves as quick links to each section)
Server Chassis
Processors
Bezel
Memory
HDD (3.5") Drives
HDD (2.5") Drives
SSD (2.5") Drives
RAID Controllers
Boot Optimized Storage Subsystem (BOSS-S2):
Internal Dual SD Module (IDSDM)
Internal USB Card
Optical drive
Trusted Platform Module (TPM)
iDRAC9
Power Supply Units (PSU)
ECS Warranty
Quick Specs
Form Factor:
Tower server | 4.5U (Rack Conversion)
Processor | Max: 8 Cores1x Intel E-2300, or Pentium (2 cores)
Memory | Max: 128GB4 DDR4 UDIMM 3200Mhz
Storage | Max: 160TBUp to 4x 3.5" SAS/SATA (HDD/SSD)
Up tp 8x 3.5" SAS/SATA (HDD/SSD)
Note: Supports 2.5-inch drive in 3.5-inch hybrid drive carrier
Boot Optimized Server Storage (BOSS-S2)
IDSDM
USB
S150 (SW RAID SATA)
PERC H355, H755, HBA355i, HBA355e (non-RAID)
2 x 1GbE LOM
Remote Management:iDRAC9
PCIe Slots: 42 x Gen 4 PCIe slots
2 x Gen 3 PCIe slot
Not Supported
Other Versions
(Click to View)
Ideal for:
- Cloud Servers
- Database
- Video Analytics
- Web Tech

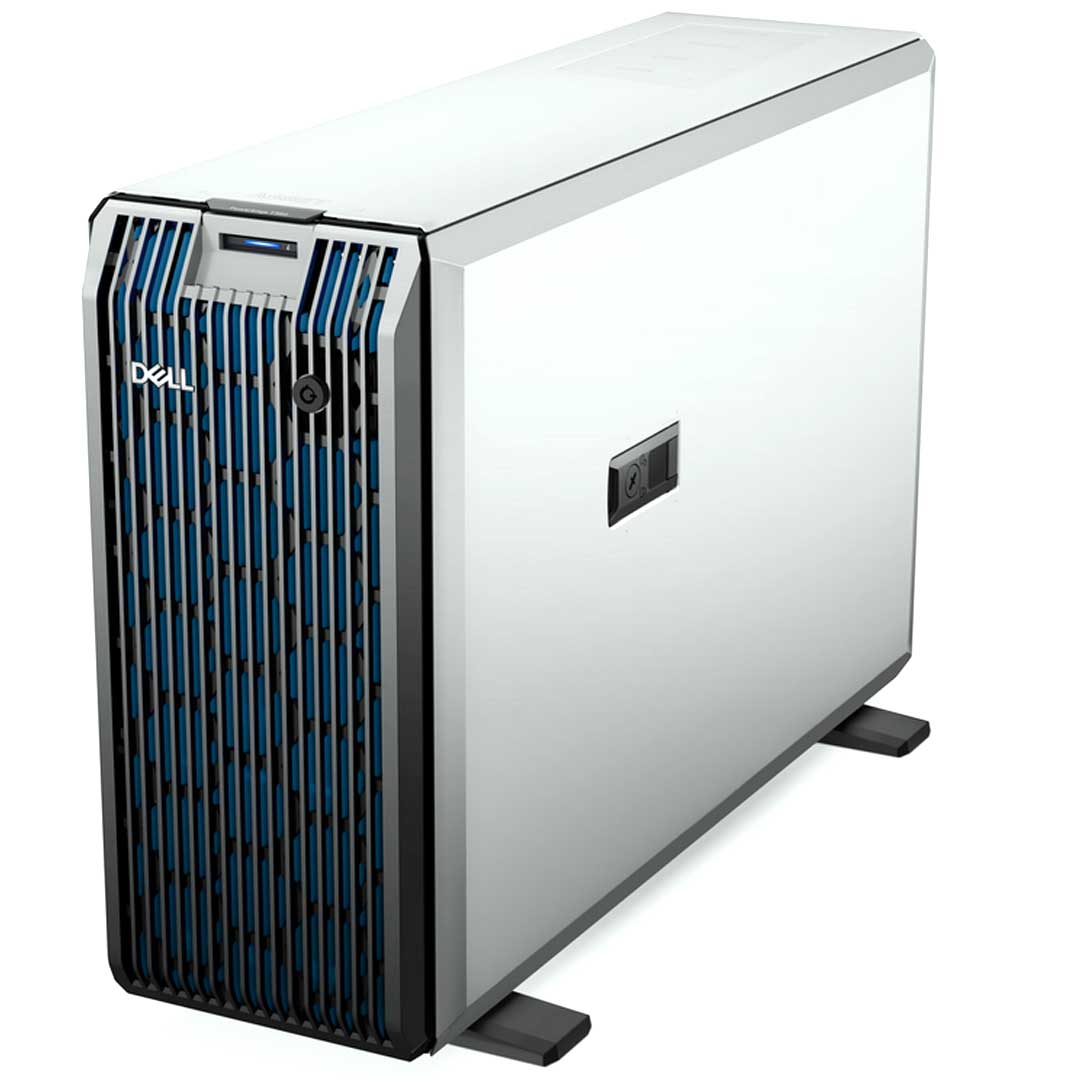

The Dell PowerEdge T350 addresses evolving compute demands with an easy-to-manage tower server designed for businesses looking for affordable enterprise features.
Your Innovation Engine for businesses of all sizes
The Dell PowerEdge T350, powered by Intel® Xeon® E-2300 processors, delivers increased performance and is designed for productivity and data-intensive applications. It supports 3200 MT/s DDR4 speeds and 32 GB UDIMMs, up to 128 GB for memory-intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge T350 supports PCIe Gen 4 and offers enhanced thermal efficiency to support increasing power and thermal requirements. With a smaller chassis design that reduces the size by 37% without losing any features or performance, the PowerEdge T350 is ideal for use inside or outside the data center. The PowerEdge T350 addresses business critical workloads including database management, as well as cloud infrastructure needs and point of sale transactions.
Increase efficiency and accelerate operations with autonomous compute infrastructure
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience The Dell PowerEdge T350 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages
- Prevent unauthorized configuration or firmware change with system lockdown
- Securely and quickly wipe all data from storage media, including hard drives, SSDs, and system memory with System Erase
- UEFI Secure Boot prevents systems from booting from unsigned or unauthorized pre-boot device firmware, applications, and OS boot loaders, protecting systems from malware corrupting the startup process
Memory
T350 supports up to 4 DIMM slots, with up to UDIMM 128 GB of memory and speeds of up to 3200 MT/s.
| DIMM type | Rank | Capacity | DIMM rated voltage and speed | Operating speed for DIMMs per Channel (DPC) |
|---|---|---|---|---|
| UDIMM | 1 R | 8 GB / 16 GB | DDR4 (1.2 V), 3200 MT/s | 3200 MT/s |
| 2 R | 32 GB | DDR4 (1.2 V), 3200 MT/s | 3200 MT/s |
PCIe Configuration
| PCIe slot | Risers | Processor Connection | PCIe slot height | PCIe slot length | PCIe slot width |
|---|---|---|---|---|---|
| Slot 1 (Gen4) | N/A | Processor 1 | Full height | Half length | x4 link in x8 slot |
| Slot 2 (Gen4) | N/A | Processor 1 | Full height | Full length | x16 |
| Slot 3 (Gen4) | N/A | Platform Controller Hub (PCH) | Full height | Half length | x1 |
| Slot 4 (Gen4) | N/A | Platform Controller Hub (PCH) | Full height | Half length | x4 link in x8 slot |
| NOTE: Slot 1 is disabled, when system is installed with Intel Pentium processor. | |||||
Storage Controller
| Performance Level | Controller and Description |
|---|---|
| Entry | S150 (SATA), SW RAID SATA |
| Value | H345, H355, HBA355 (Internal) |
| Premium Performance | H755 |
| External Controllers | HBA355e |
Boot Options
BOSS-S2
IDSDM
Internal USBPower & Dimensions
Power Supply Unit (PSU)
- 450W AC Bronze Cabled
- 600W AC Platinum
- 600W Mixed Mode HVDC
- 700W AC Titanium
- 700W Mixed Mode HVDC Titanium
Dimensions
- Length: 581.12mm (22.87")
- Width: 175mm (6.88")
- Height: 369.5mm (14.54")
- Weight:
- 4x 3.5": 19.54kg (43.07 lbs)
- 8x 3.5": 25.34kg (55.86 lbs)
