Quick Specs
Form Factor:
2U rack server
Processor | Max: 8 Core2x or 4x Intel E5-4600
Memory | Max: 1.5TB48 DDR3 RDIMM 1600Mhz
Storage | Max: 16TB4 SFF Express Flash PCIe SSD
8 SFF SAS/SATA (HDD/SSD)
16 SFF SAS/SATA (HDD/SSD)
None
Boot Options:USB
IDSDM (Virtualized Platforms only)
Up to 7 Gen: 2.0
-Two x16 half-length, full-height
-One x8 half-length, full-height
-Three x8 half-length, half-height
-One x8 half-length, full-height for the RAID controller
iDRAC7 Express with Lifecycle Controller
LOM:Broadcom® 5720 4x1Gb Base-T
RAID controllers (PERC 8) | Max: 2S110 (Software RAID)
PERC H310, H710, H710P, H810, 6Gbps SAS HBA
Default Mini-Mono unless PCIe card installed is between half-length and ¾-length, then use the adapter-type PERC.
Supported
Other Versions
(Click to View)
Ideal for:
- Database
- High-Performance Computing (HPC)
- Retail Servers
- Virtual Desktop Interface (VDI)
- Virtualization
The Dell PowerEdge R820 is designed to excel at running a wide range of applications and virtualization environments for both mid-size and large enterprises, the Dell PowerEdge R820 rack server is a compute-intensive performance platform with highly scalable memory (up to 1.5TB) and impressive I/O capabilities to match. With four Intel Xeon E5 processors, and the ability to support dual RAID controllers, the R820 can readily handle very demanding, mission critical workloads, like Enterprise Resource Planning (ERP), data warehousing, e-commerce, Virtual Desktop Infrastructure (VDI), databases, and data node High Performance Computing (HPC.)
Manage data overload
Keep pace with the explosion of data in the virtual age with the flexible, powerful I/O and storage capabilities of the R820. Up to 16 internal hard drives and integrated PCIe Gen3-enabled expansion slots greatly increase your capacity, while optional hot-plug, front-access PCIe SSDs (up to 4) enable performance-enhancing, in-box storage tiering. Moreover, Dell Select Network Adapters, our flexible embedded NIC technology, let you choose the right network fabric to match your needs without using up a valuable PCIe slot.
Accelerate the solution
Boost the performance of your HPC or 2D VDI environment by combining the PowerEdge R820’s memory density with an optional Graphics Processing Unit (GPU) accelerator. Choose from a range of GPU options for greater assisted performance.
Concentrated power and capacity
Enhance data center application capacity by expanding your virtual environment using the massive memory footprint, I/O (input/output) options, processing power and flexible fabric choices of the PowerEdge R820.
Virtualize more with the R820
Maximize your data center’s application capacity by expanding your virtual environment using the PowerEdge R820’s large memory footprint, I/O options, flexible fabric choices, and up to 32 cores in a four-processor configuration. Choose an industry-leading hypervisor and take advantage of our system management capability to manage both physical and virtual assets. The R820 can also help maximize your virtual machines’ uptime using redundant failsafe hypervisors on its Internal Dual SD Module. Finally, Dell’s Virtual Integrated System (VIS) solution lets you enable complex virtualization environments in just a few mouse clicks.
Advanced I/O and virtualization
Help enhance your data center performance with the balanced, scalable I/O (input/output) capabilities of the PowerEdge R820 that include integrated PCIe Gen3-capable expansion slots.
Flexible and scalable networking
Tailor your network throughput to match your application needs with features like switch independent partitioning that allow you to take full advantage of your additional I/O performance.
Unrestrained production
Unleash your most demanding virtualization and scalable database applications with the efficient and easily managed PowerEdge R820 rack server.
Peak server performance
Tap the improved, state-of-the-art processing power of the Intel Xeon processor E5-4600 and E5-4600 v2 product families and hyper-dense, 48-DIMM memory. Built using 22-nanometer process technology with up to twelve cores per processor, the Intel Xeon processor is designed for super-fast performance for compute-intensive tasks.
Powerful systems management
Enjoy easy lifecycle manageability with intelligent hardware-driven systems administration, extensive power management and other innovative management tools.
Improved operational efficiency
Help ensure high-level data center productivity, security and maintenance with next-generation reliability, availability and serviceability (RAS) features throughout the R820’s design.
Versatile storage capacity and performance
Keep pace with exponential data growth and effectively manage your assets with flexible I/O (input/output) and storage options, including Express Flash PCIe technology in the PowerEdge R820 rack server.
Backplane Configuration Options
This system can support Dual RAID Controllers. You can install one 8 Bay backplane along with 4 Bay PCIe SSD Backplane. Each backplane can be connected to different PERC Controllers in the rear. Below are the configuration options supported for the Dell PowerEdge R820 Rack Server.
- 8 x 2.5-inch drives
- 8 x 2.5-inch drives plus 4 x 2.5-inch Express Flash PCIe SSDs
- 8 + 8 x 2.5-inch drives
- 16 x 2.5-inch drives
Processor Options

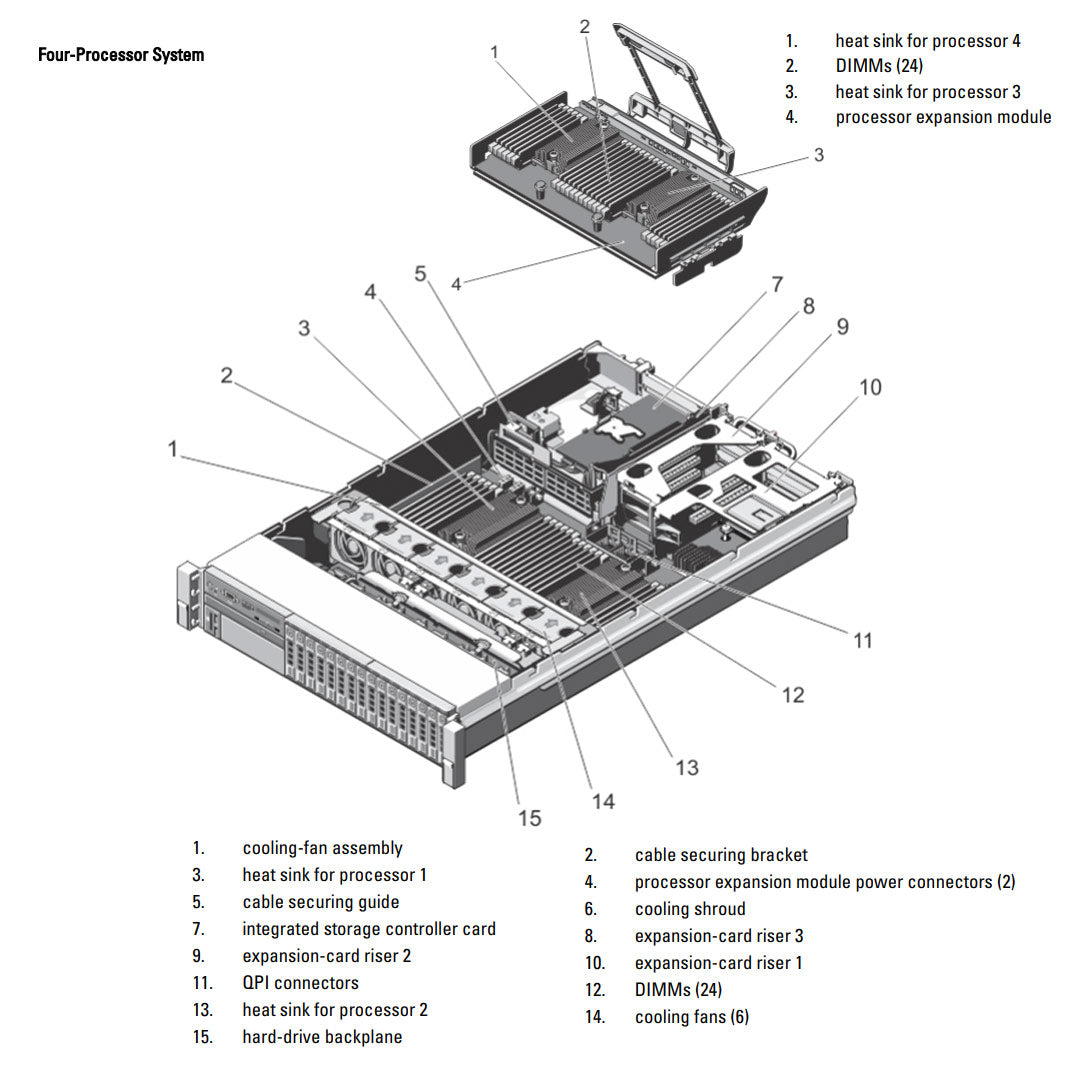

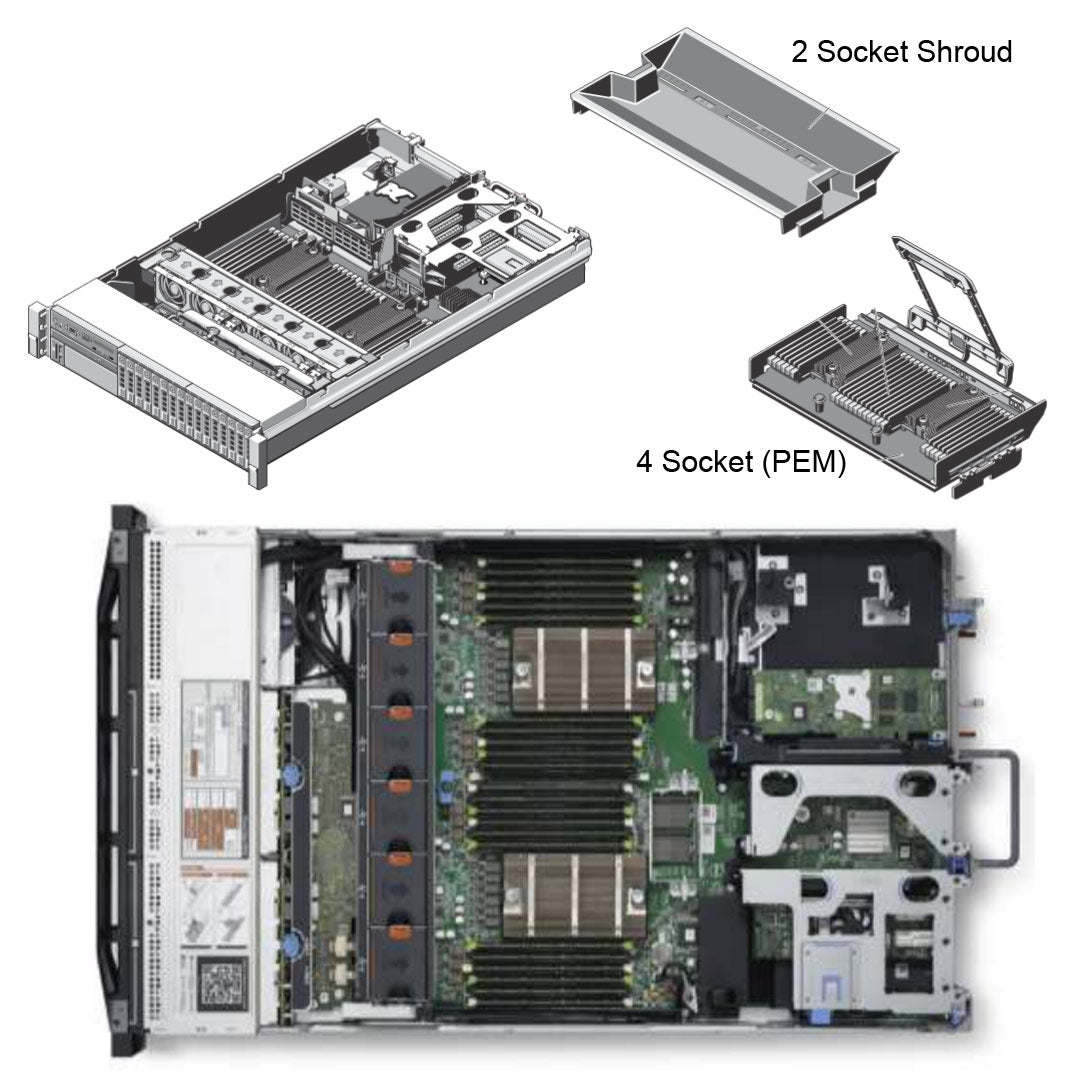

The R820 supports up to four processors with up to eight cores per processor. Your system supports two or four processor configurations. A cooling shroud is present only in a two-processor system. In a four-processor system, the cooling shroud is replaced by a processor expansion module (PEM).
A processor expansion module (PEM) is present only in systems with four processors. This PEM sits on top of the 2 Sockets installed on the system board.
Riser Options
NOTE: To use the PCIe slots 1 ,2, 4, and 5 on the risers, processors 1 and 2 must be installed. The expansion-card slots are not hot-swappable.
Riser 1
GPUs can be installing Slots 1 or 6. If you install a GPU in Slot 1 you will need to change the PERC from a mini mono to an adapter PERC which will be installed in Riser 1 (Slot 2) or Riser 3 (Slots 7). The Default PERC type in Mini Mono, This style saves a PCIe slot.
Riser 2
When installing PCIe cards, be sure to check which slot holds Low Profile cards vs full Height cards. Please take note of the PCIe slot width (x8 or x16). For more information, you can look up the "Expansion Cards Installation Guidelines" in the Installation manuals below.
Riser 3
Not all cards can go into any PCIe slot. The GPU and the Storage Controller Adapters can only go into dedicated slots for cooling and power reasons. GPUs can only go into Slot 1 and 6 while Storage Controllers Adapters can only go into PCIe slot 7 and slot 2.
Storage Controller Options
Default is Mini Mono Controllers unless a GPU or a 3/4 Length card is installed in Riser 1. If there is a GPU card installed in Riser 1 or a 3/4 Length card. Then the PERC much be an Adapter type Storage Controller and not a Mini Mono.
| Controller | Description | Features | RAID Modes Supported | Form Factor | Usage Model |
|---|---|---|---|---|---|
|
PERC H810 External |
Eight-port, external and 6Gb/s PCIe RAID controller | Includes 1GB NV DDR3 cache, premium performance and feature set, security SED/EKMS, and SSD as cache |
0, 1, 10, 5, 50, 6, 60 | Adapter | Premium performance |
|
PERC H710P Internal |
Eight-port, internal 6Gb/s PCIe RAID controller that supports up to 32 SATA and SAS hard drives or SSDs | Includes 1GB NV DDR3 cache, premium performance and feature set, security SED/EKMS, and SSD as cache |
0, 1, 10, 5, 50, 6, 60 | Integrated mini-type and adapter-type | Premium performance |
|
PERC H710 Internal |
Eight-port, internal 6Gb/s PCIe RAID controller that supports up to 32 SATA and SAS hard drives or SSDs | Includes 512MB DDR3 cache, advanced feature set, security SED/EKMS |
0, 1, 10, 5, 50, 6, 60 | Integrated mini-type and adapter-type | Performance |
| PERC H310 Internal | Eight-port, internal 6Gb/s PCIe RAID that supports up to 32 SATA and SAS hard drives or SSDs | Supports hot-plug drives, expansion, pass-through |
0, 1, 10, 5, 50 | Integrated mini-type and adapter-type | Value |
| PERC S110 Software RAID | 3Gb/s SATA software RAID controller that supports up to 4 physical disks or 8 virtual disks | Supports up to 4 hot-plug SATA drives, no expansion, Microsoft Windows only |
0, 1, 5, 10 | System board embedded SATA | Entry-level |
| Adapter-type required with the two-PCIe slot chassis and required when configuring an internal GPU or ¾-length PCIe card | |||||
GPU Rules
The R820 was only tested and validated with the Quadro 2000 for HPC use
- Higher wattage (>75W) or larger physical GPUs cannot be supported in the R820.
- Up to two GPU cards supported in the R820.
- Requires the two PCIe x16 slot configuration of the R820. Both Riser 1 and 3 are required.
- GPU card dimensions limited to ¾ length and single-wide cards.
