Base Standard Capabilities
| Feature | Technical Specifications | |
|---|---|---|
| Processor | Up to two AMD EPYC 4th Generation 9004 Series with up to 128 cores per processor | |
| Memory | • 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only | |
| Storage controllers | • Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 | |

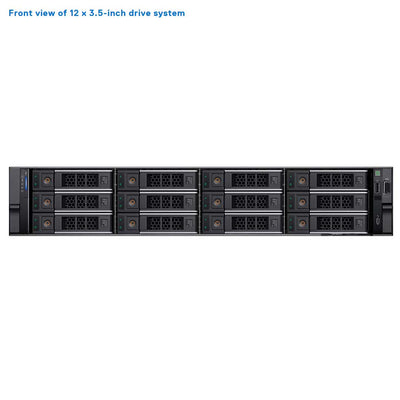

| Drive Bays | Front bays: • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB | |
| Power Supplies | • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant | |
| Cooling Options | • Air cooling • Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. | |
| Fans | • High performance Silver (HPR) fans/ High performance Gold (VHP) fans • Up to 6 hot plug fans | |
| Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85 inches) without bezel | |
| Form Factor | 2U rack server | |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module | |
| Bezel | Optional LCD bezel or security bezel | |
| OpenManage Software | • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin | |
| Mobility | OpenManage Mobile | |
| OpenManage Integrations | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager | |
| Security | • AMD Secure Memory Encryption (SME) • AMD Secure Encrypted Virtualization (SEV) • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
| Embedded NIC | 2 x 1GbE LOM card (optional) | |
| Network Options | 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. | |
| GPU Options | Up to 2 x 300 W DW or 6 x 75 W SW | |

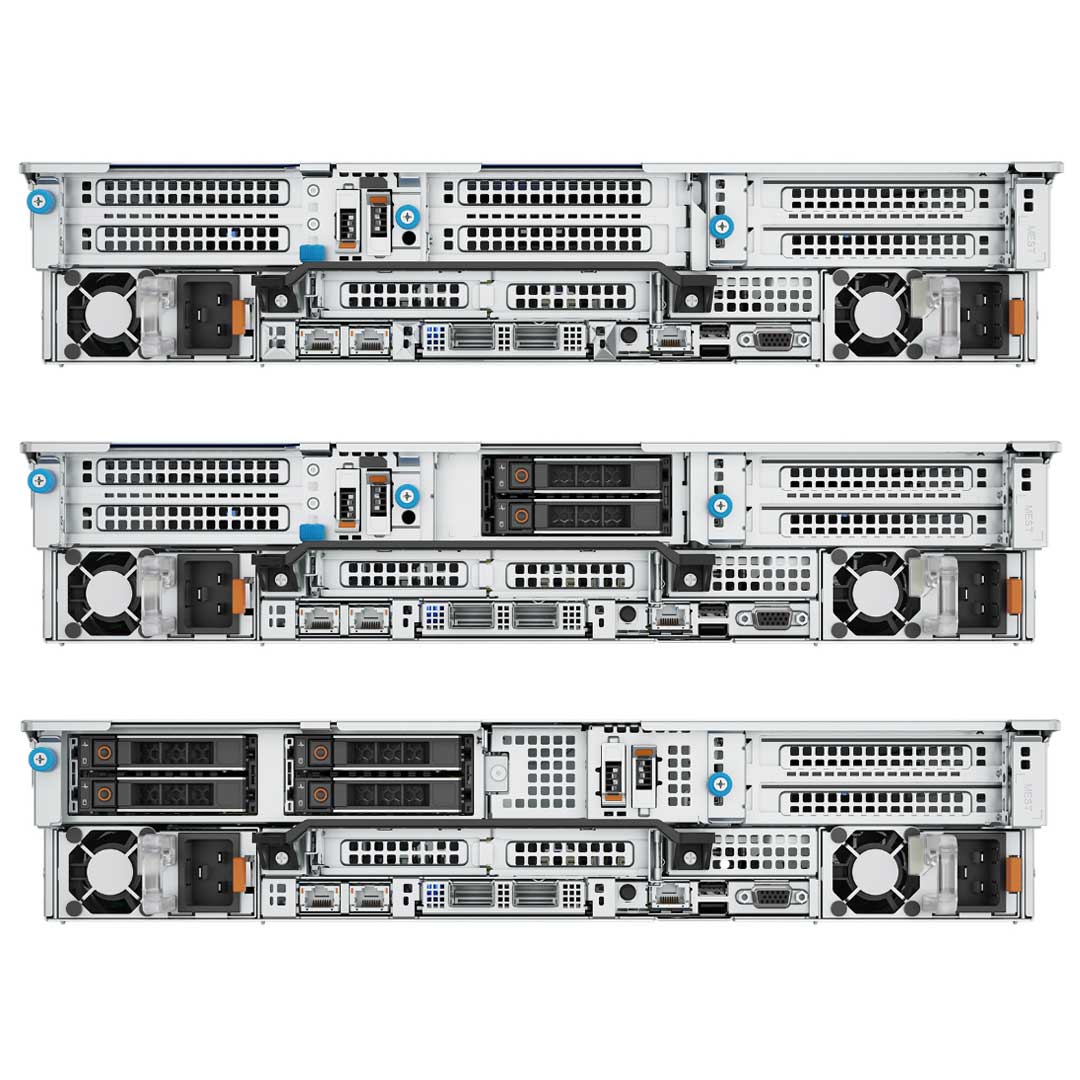

| Ports | Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA | Rear Ports • 1 x Dedicated iDRAC ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration) |
| Internal Ports • 1 x USB 3.0 (optional) | ||
| PCIe | Up to eight PCIe slots: • Slot 1: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height Full length • Slot 3: 1 x16 Gen4 Low profile, Half length • Slot 4: 1 x8 Gen4 Full height, Half length • Slot 5: 1 x8 Gen4 Full height, Half length or 1 x16 Gen4 Full height , Full length • Slot 6: 1 x16 Gen4 Low profile, Half length • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length | |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi | |
Compare 16G Servers
| Rack Server | R760 | R660 | R7625 | R6625 | R7615 | R6615 |
|---|---|---|---|---|---|---|
| Key attributes | Provides performance and versatility for demanding applications | Provides performance and versatility for demanding applications | Breakthrough performance | Breakthrough performance | Powerful performance and scalability | Peak performance and excellent TCO |
| Target workloads | Mixed Workload Standardization Database and Analytics Virtual Desktop Infrastructure | High Density Virtualization, Dense Database Analytics, Mixed Workload Standardization | High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization | High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization | Software-Defined Storage (SDS), Virtualization, Data Analytics | Virtualization, Hyper-Converged Infrastructure (HCI), Network Functions Virtualization (NFV) |
| Type of processor | 2 x 4th Generation Intel® Xeon® Scalable processors; up to 56 cores per processor | 2 x AMD EPYC™ 4th Generation 9004 Series Processor, up to 96 cores per processor | 1 x AMD EPYC™ 4th Generation 9004 series processor; up to 96 cores | |||
| Memory (DDR5 DIMM slots & max) | 32 (8 TB) | 24 (1.5 TB*) | 12 (768 GB*) | |||
| Disk drives up to: | 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5” (rear) | 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear) | 8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear) | 4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear) | 8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear) | 4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear) |
| NVMe drives up to: | 24 | 10 | 24 | 10 | 24 | 10 |
| Gen5 PCIe slots up to: | 4 | 2 | 4 | 2 | 4 | 2 |
| Gen4 PCIe slots up to: | 8 | 3 | 8 | 3 | 4 | 3 |
| Accelerator support up to: | 2 x 350 W DW or 6 x 75 W SW | 2** x 75 W SW | 2 x 300 W DW or 6 x 75 W SW | 3 x 75 W SW | 3 x 300 W DW or 6 x 75 W SW | 3 x 75 W SW |
| Rack height (U) | 2 | 1 | 2 | 1 | 2 | 1 |
| Integrated security | TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Chassis Intrusion Alert, Secure Boot being standard security, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), Data at Rest Encryption (SEDs with local or external key mgmt) Secured Component Verification (Hardware integrity check) and System Erase on all racks. | TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), AMD Secure Memory Encryption (SME) and AMD Secure Encrypted Virtualization (SEV) | ||||
| * Future releases will include additional system capacity for DDR5 memory in R7625, R6625, R7615 and R6615. ** Future releases will include additional GPU slots in R660. | ||||||
Compare Servers
| Features | PowerEdge R7625 | PowerEdge R7525 | ||
|---|---|---|---|---|
| Processors | Two AMD® EPYC™ 4th Generation 9004 series processors | Two AMD® EPYC™ Generation 2 or Generation 3 processors | ||
| CPU interconnect | Inter-chip global memory interconnect (xGMI) 32GT/sec | Inter-chip global memory interconnect (xGMI) 16GT/sec | ||
| Memory | 24 x DDR5 RDIMM (6 TB), bandwidth up to 4800 MT/S | 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S | ||
| Storage Controllers | ● PERC 11: HBA355i, H355, H755, H755N
● PERC 12: H965i ● Software RAID: S160 ● BOSS-N1/td> | ● Adapters: HBA355E, H840
● PERC: H345, H745, H755, H755N ● Software RAID: S150 | ||
| Drive Bays | Front bays: ● Up to 8 x 3.5-inch SAS4/SATA (HDD/SSD) max 160 TB ● Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB ● Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB ● Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB ● Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bay: ● Up to 2 x 2.5-inch SAS4/SATA/NVMe (HDD/SSD) max 30.72 TB ● Up to 4 x 2.5-inch SAS4/SATA/NVMe (HDD/SSD) max 61.44 TB | Front bays: ● 3.5 inches, 2.5 inches - 12 Gb SAS, 6 Gb SATA, NVMe HDD | ||
| Power Supplies | ● Mixed Mode (MM) AC/HVDC (Platinum) 800 W, 1400 W, 2400 W ● Mixed Mode (MM) AC/HVDC (Titanium) 1100 W, 1800 W, 2800 W ● (-48 V) 1100 W DC PSU | ● Mixed Mode (MM) AC/HVDC (Platinum) 800 W, 1400 W, 2400 W ● Titanium 1100 W Mixed Mode AC/HVDC, (-48 V) 1100 W DC PSU | ||
| Cooling Options | ● Air Cooling ● Optional Direct Liquid Cooling (DLC) | ● Air Cooling | ||
| Fans | Up to six High performance Silver / High Performance Gold hot plug fans | Up to six Standard (STD) / High performance (HPR) / Very High Performance (VHP) hot plug fans | ||
| Dimension | ● Height: 86.8 mm (3.41 inches) ● Width: 482 mm (18.97 inches) ● Depth: 772.13 mm (30.39 inches) with bezel ● Depth: 758.29 mm (29.85 inches) without bezel | ● Height: 86.8 mm (3.41 inches) ● Width: 482 mm (18.97 inches) ● Depth: 772.13 mm (30.39 inches) with bezel ● Depth: 758.29 mm (29.85 inches) without bezel | ||
| Form Factor | 2U rack server | 2U rack server | ||
| Embedded Management | ● iDRAC9 ● iDRAC Direct ● iDRAC RESTful with Redfish ● iDRAC Service Manual ● Quick Sync 2 wireless module | ● iDRAC9 ● iDRAC Direct ● iDRAC Service Module ● Quick Sync 2 wireless module | ||
| Bezel | Optional LCD bezel or security beze | Optional LCD bezel or security bezel | ||
| OpenManage Software | ● OpenManage Enterprise ● OpenManage Power Manager plugin ● OpenManage SupportAssist plugin ● OpenManage Update Manager plugin ● CloudIQ for PowerEdge plug in ● OpenManage Enterprise Integration for VMware vCenter ● OpenManage Integration for Microsoft System Center ● OpenManage Integration with Windows Admin Center | ● OpenManage Enterprise ● OpenManage Power Center | ||
| Mobility | OpenManage Mobile | OpenManage Mobile | ||
| OpenManage Integrations | ● BMC TrueSight ● Microsoft System Center ● OpenManage Integration with ServiceNow ● Red Hat Ansible Modules ● Terraform Providers ● VMware vCenter and vRealize Operations Manager | ● BMC TrueSight ● Microsoft System Center ● Red Hat Ansible Modules ● VMware vCenter | ||
| Security | ● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt) ● Secure Boot ● Secure Erase ● Secured Component Verification (Hardware integrity check) ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ ● AMD Secure Memory Encryption (SME) ● AMD Secure Encrypted Virtualization (SEV) | ● Cryptographically signed firmware ● Secure Boot ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 1.2/2.0 (optional), TCM 2.0 optional ● AMD Secure Memory Encryption (SME) ● AMD Secure Encrypted Virtualization (SEV) | ||
| Embedded NIC | 2 x 1GbE LOM card (optional) | 2 x 1GE LOM | ||
| Networking Options | 1 x OCP card 3.0 (optional) NOTE: The system allows either LOM card or an OCP card or both to be installed in the system | OCP x16 Mezz 3.0 | ||
| GPU Options | Up to two double wide 300W, or six single wide 75W accelerators | Up to three double wide 300W or six single wide 75W accelerators | ||
| Ports | Front Ports ● 1 x Dedicated iDRAC (micro-USB USB) port ● 1 x USB 2.0 ● 1 x VGA | Rear Ports ● 1 x USB 2.0 ● 1 x iDRAC ethernet port ● 1 x USB 3.0 ● 1 x Serial port (optional) ● 1 x VGA (optional for Direct Liquid Cooling configuration) | Front Ports ● 1 x Dedicated iDRAC micro-USB ● 1 x USB 2.0 | Rear Ports ● 1 x USB 2.0 ● 1 x iDRAC Direct/ethernet port ● 1 x USB 3.0 ● 1 x Serial port (optioanl) ● 1 x VGA |
| Internal Port: 1 x USB 3.0 | Internal Port: 1 x USB 3.0 | |||
| PCIe | Up to eight PCIe slots ● 4 x PCIe Gen5 slots ● 8 x PCIe Gen4 slots | 8 x PCIe Gen4 slots | ||
| Operating System and Hypervisors | ● Canonical Ubuntu Server LTS ● Microsoft Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi | ● Canonical Ubuntu Server LTS ● Citrix Hypervisor ● Windows Server LTSC with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi | ||
