SKU: JGR1Y

Dell Poweredge (G16) Riser 3B 2x8 (R3B) | JGR1Y

Name: Dell Poweredge (G16) Riser 3B 2x8 (R3B) | JGR1Y
Brand: Dell
SKU: JGR1Y
Availability: OutOfStock

| Riser Kit

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

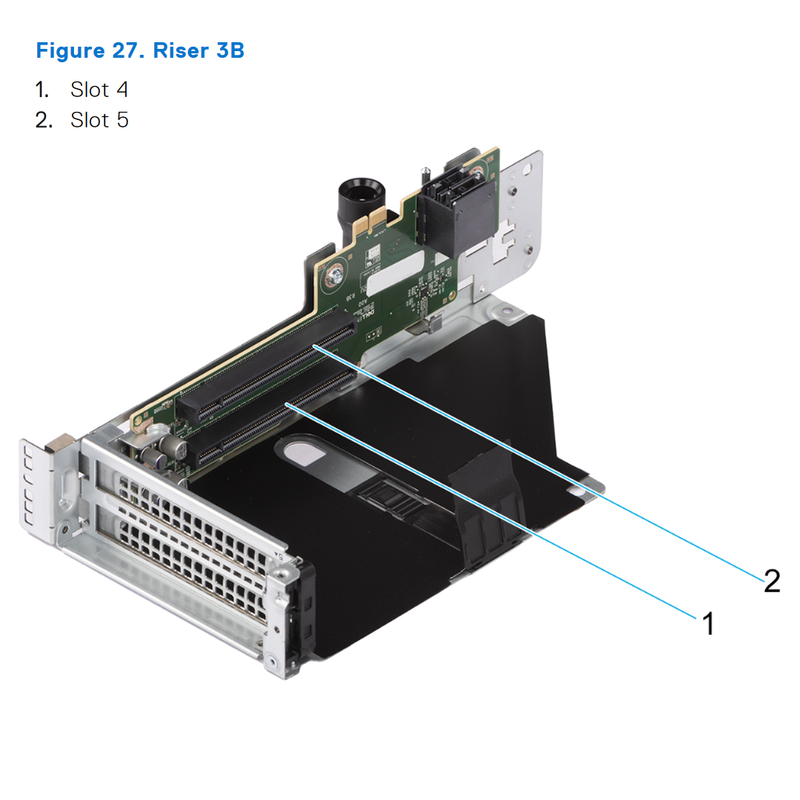

Quick Specs

Slot 4: x8
Slot 5: x8

Dell R7615 Expansion Configurations supporting 16G Riser 3B

Dell PowerEdge R7615 Riser Config 2. R1u + R2a + R3b + R4q

Configurations	Expansion card risers	PCIe Slots	Form factor	Slot's electrical bandwidth/ physical connector
Config 2. 6 x8 FH + 2 x8 LP	R1U	1	Full Height	PCIe Gen5 x8 (x16 connector)
	R1U	2	Full Height	PCIe Gen5 x8 (x16 connector)
	R2A	3	Low Profile	PCIe Gen4 x8 (x16 connector)
	R2A	6	Low Profile	PCIe Gen4 x8 (x16 connector)
	R3B	4	Full Height	PCIe Gen4 x8 (x16 connector)
	R3B	5	Full Height	PCIe Gen4 x8 (x16 connector)
	R4Q	7	Full Height	PCIe Gen5 x8 (x16 connector)
	R4Q	8	Full Height	PCIe Gen5 x8 (x16 connector)

Dell PowerEdge R7615 Riser Config 3-1. R1t + R2t + R3b + R4p (HL)

Configurations	Expansion card risers	PCIe Slots	Form factor	Slot's electrical bandwidth/ physical connector
Config3. R1t + R2t + R3b + R4p (HL)	R1T	1	Full Height	PCIe Gen5 x16 (x16 connector)
	R2T	3	Low Profile	PCIe Gen4 x16 (x16 connector)
	R2T	6	Low Profile	PCIe Gen4 x16 (x16 connector)
	R3B	4	Full Height	PCIe Gen4 x8 (x16 connector)
	R3B	5	Full Height	PCIe Gen4 x8 (x16 connector)
	R4P HL	7	Full Height	PCIe Gen4 x16 (x16 connector)

Dell PowerEdge R7615 Riser Config 3-2 R1t + R2t + R3b + R4p (FL)

Configurations	Expansion card risers	PCIe Slots	Form factor	Slot's electrical bandwidth/ physical connector
Config3-2 R1t + R2t + R3b + R4p (FL)	R1T	1	Full Height (DW)	PCIe Gen5 x16 (x16 connector)
	R2T	3	Low Profile	PCIe Gen4 x16 (x16 connector)
	R2T	6	Low Profile	PCIe Gen4 x16 (x16 connector)
	R3B	4	Full Height	PCIe Gen4 x8 (x16 connector)
	R3B	5	Full Height	PCIe Gen4 x8 (x16 connector)
	R4P FL	7	Full Height (DW)	PCIe Gen5 x16 (x16 connector)

Dell PowerEdge R7615 Riser Config 10 R1u + R3b + R4q (HL)

Configurations	Expansion card risers	PCIe Slots	Form factor	Slot's electrical bandwidth/ physical connector
Config 10 R1u + R3b + R4q (HL)	R1U	1	Full Height	PCIe Gen5 x8 (x16 connector)
	R1U	2	Full Height	PCIe Gen5 x8 (x16 connector)
	R3B	4	Full Height	PCIe Gen4 x8 (x16 connector)
	R3B	5	Full Height	PCIe Gen4 x8 (x16 connector)
	R4Q	7	Full Height	PCIe Gen5 x8 (x16 connector)
	R4Q	8	Full Height	PCIe Gen5 x8 (x16 connector)
