Home / All / Dell PowerEdge R750xa Rack Server Chassis 8x2.5"
SKU: DPE-R750XA-8X2.5

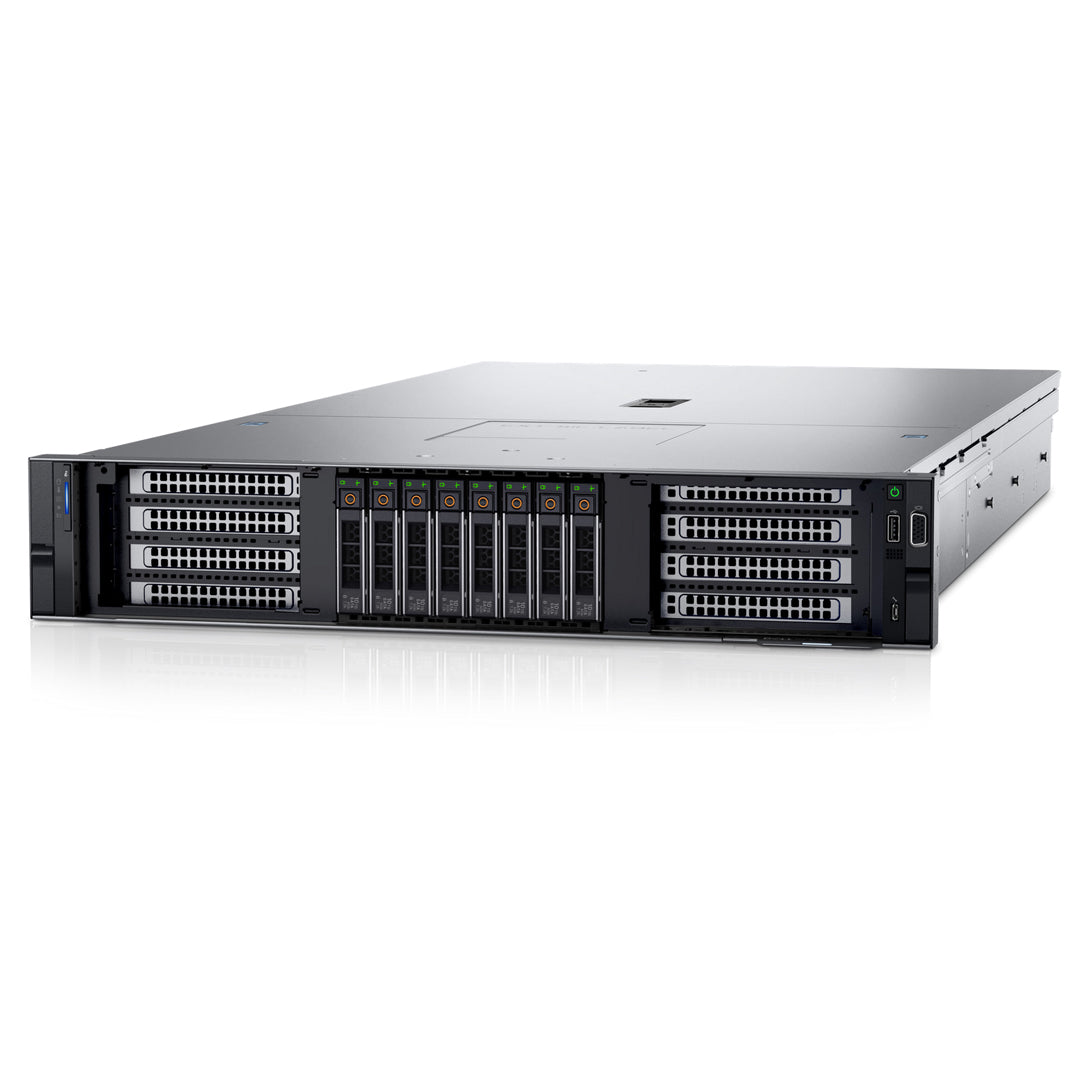

Dell PowerEdge R750xa Rack Server Chassis 8x2.5"

Dell CTO

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Base Standard Capabilities

FeatureTechnical Specification
ProcessorUp to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory
  • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s
  • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max
  • Supports registered ECC DDR4 DIMMs only
Storage controllers
  • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N
  • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB
  • External PERC (RAID): PERC H840, HBA355E
Drive baysFront bays:
  • Up to 6 x 2.5-inch NVMe (SSD) direct-attach max 92.1 TB

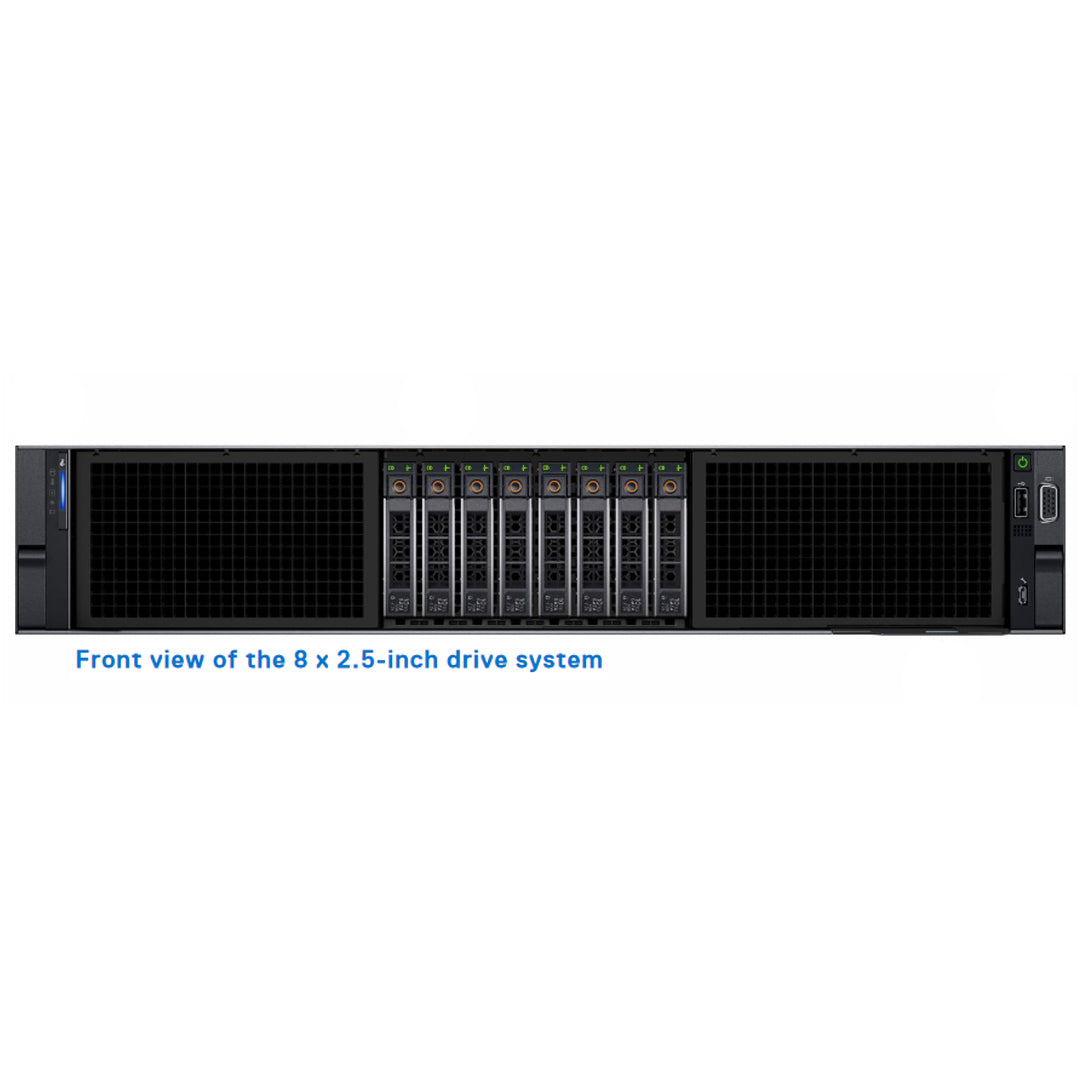

  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Power supplies
  • 1400 W Platinum AC/240 mixed mode
  • 1800 W Titanium HLAC/240 mixed mode
  • 2400 W Platinum AC/240 mixed mode
  • 2800 W Titanium HLAC/240 mixed mode
Cooling optionsAir cooling, optional processor liquid cooling
Fans
  • High performance GOLD fan
  • Up to six hot plug fans
DimensionsHeight – 86.8 mm (3.41 inches)
Width – 482 mm (18.97 inches)
Depth – 894.8 mm (35.22 inches) - without bezel
908.64 mm (35.77 inches) - with bezel
Form Factor2U rack server
Embedded mgmt
  • iDRAC9
  • iDRAC Service Module
  • iDRAC Direct
  • Quick Sync 2 wireless module
BezelOptional LCD bezel or security bezel
OpenManage™ Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
MobilityOpenManage Mobile
Integrations and ConnectionsOpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware vCenter and vRealize Operations Manager
OpenManage Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC2 x 1 GbE LOM
Network Options1 x OCP 3.0 (x8 PCIe lanes)
GPU OptionsUp to four single-width 150 W
OR four double-width 300 W in the front and two single-width 75 W at the rear
PortsFront Ports:
  • 1 x USB 2.0
  • 1 x VGA
  • 1 x Dedicated iDRAC Direct micro-USB
  • Internal Ports
  • 1 x USB 3.0
Rear Ports
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x VGA (optional for liquid cooling configuration)
  • 1 x Serial port (Optional)
  • 2 x RJ45
PCIeUp to 8 x PCIe Gen4 slots (up to 6 x16 + 2 x8)
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux
  • VMware ESXi
