Quick Specs
2U rack server
Processor | Max: 32 Cores1x AMD EPYC
Memory | Max: N/A16 ECC DDR4 RDIMM/LRDIMM 2666Mhz
Front bays: 8, 12 LFF or 24 SFF SAS/NL-SAS/SATA (HDD/SSD) NVMe
Rear bay: Up to 2x 3.5” SAS/SATA HDD
Note: The high-performance fans are required for:
12 x 3.5" drive + 2 x 3.5" rear drive, or
24 x 2.5"drive (with NVMe)
Boot Optimized Server Storage (BOSS)
Internal Dual SD module (IDSDM)
H330, H730P, H740P, H840, HBA330, 12Gbps SAS HBA
NIC/LOM2 x 1GE (default) or 2 x 10GE or 2 x 10GE SFP+
Remote Management:iDRAC9 Express (default) with Lifecycle Controller
PCIe Slots:Up to 4 PCIe 3.0 slots (3x 16 + 1x 8)
GPU: None- Dell PowerEdge R710
- Dell PowerEdge R720
- Dell PowerEdge R720XD
- Dell PowerEdge R730
- Dell PowerEdge R730XD
- Dell PowerEdge R740
- Dell PowerEdge R740XD
- Dell PowerEdge R740XD2
- Dell PowerEdge R7415
- Dell PowerEdge R7425
- Dell PowerEdge R750
- Dell PowerEdge R750XA
- Dell PowerEdge R750XS
- Dell PowerEdge R7515
- Dell PowerEdge R7525
- Dell PowerEdge R760
- Dell PowerEdge R760XA
- Dell PowerEdge R760XS
- Dell PowerEdge R760XD2
- Dell PowerEdge R7615
- Dell PowerEdge R7625
(Click to View)
Ideal for:
- Big Data Analytics
- Virtualization

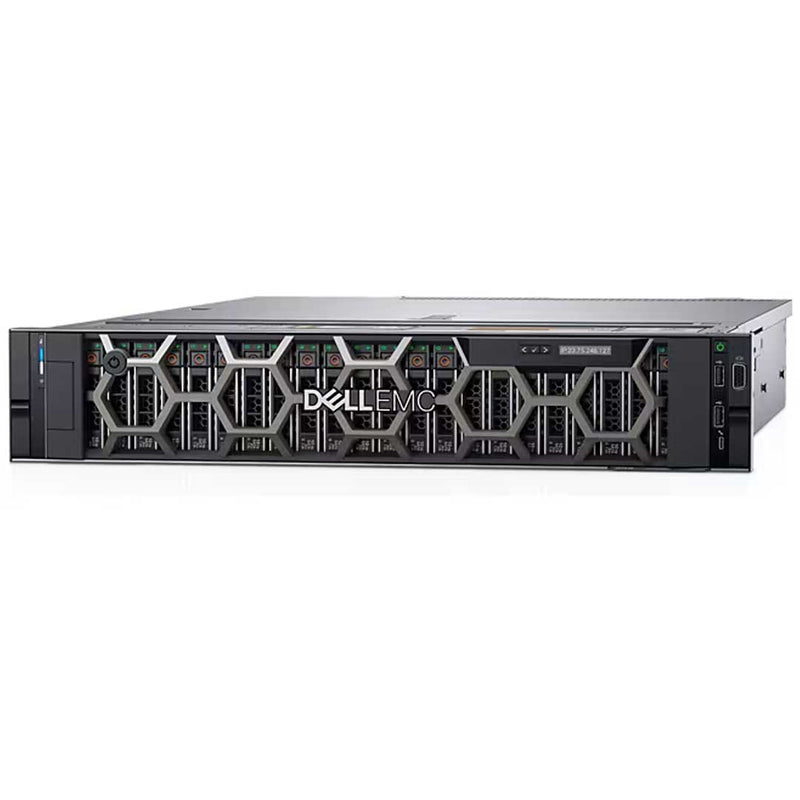

The Dell EMC PowerEdge R7415 delivers cost efficient scalability in a single socket design. Add plenty of storage and memory capacity to meet the needs of demanding workloads.
Cost efficient scale-up designThe Dell EMC PowerEdge R7415 provides a unique platform to scale workloads while managing costs. With the enterprise-class AMD EPYC™ processor, the Dell EMC PowerEdge R7415 delivers software-defined storage or business analytics in a single processor design.
- Memory and IO flexibility with up to 16 DDR4 DIMMs and 128 lanes of PCIe.
- Rich storage performance with up to 24 NVMe drives.
- Up to 2 terabytes memory capacity for in-line memory and analytics.
Rely on PowerEdge with built-in security
Every PowerEdge server is designed with a cyber-resilient architecture, integrating security deeply into the complete server life cycle. The R7415 leverages new security features built into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
- Maintain server firmware safety with digitally signed update packages.
- Prevent unauthorized or malicious changes with System Lockdown.
- Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.
Scale-up server for cost optimization
The Dell EMC PowerEdge R7415 delivers true versatility in a highly configurable, single-socket solution. It offers maximum flexibility with up to 24 NVMe drives and 8 memory channels. With 128 lanes of PCIe connectivity and up to 32 cores, the R7415 provides an optimal balance of compute to I/O – enabling low latency, high-performance compute.
The Dell EMC OpenManage systems management portfolio delivers peak efficiency for PowerEdge servers through intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R7415 is simply and easily managed, freeing up more time for your high-profile projects.
- Automate server life cycle management with scripting via the iDRAC9 Restful API with Redfish conformance.
- Simplify and centralize 1:Many management with the OpenManage Essentials or OpenManage Enterprise console.
- Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
The Dell EMC PowerEdge R7415 delivers cost-efficient scalability in a single-socket design. Add plenty of storage and memory capacity to meet the needs of demanding workloads. With the enterprise-class AMD EPYC™ processor, the R7415 delivers software-defined storage or business analytics in a single-processor design.
- Memory and I/O flexibility with up to 16 DDR4 DIMMs and 128 lanes of PCIe.
- Rich storage performance with up to 24 NVMe SSDs.
- Up to 1 terabyte memory capacity for in-line memory and analytics.

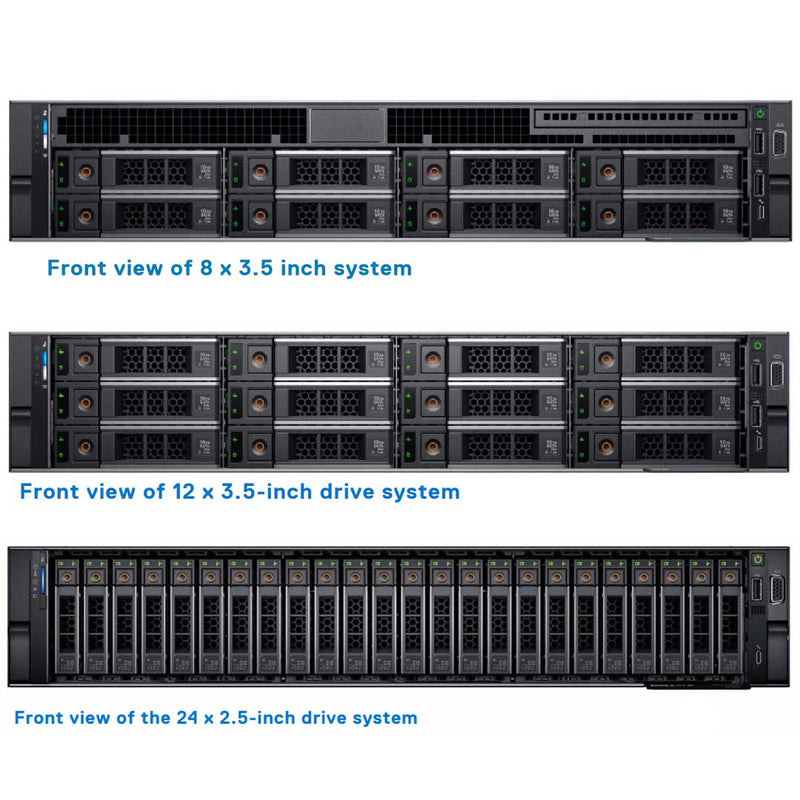

The Dell PowerEdge R7415 Rack Server has 4 Front Backplane options and 1 Rear Backplane option. Below are the configurations supported on the R7415 rack server.
Hot swap for the NVMe drives is supported for your system.
- 3.5" (x8) SAS, SATA backplane
- 3.5" (x12) SAS or SATA backplane
- 3.5" (x12) SAS or SATA backplane + 3.5" (x2) SAS or SATA backplane (rear)
- 2.5" (x8) SAS or SATA + 2.5" (x16) NVMe backplane
- 2.5" (x12) SAS or SATA + 2.5" (x12) NVMe backplane
- 2.5" (x24) SAS or SATA backplane
- 2.5" (x24) NVMe backplane
- The high performance fans are required for 12 x 3.5 inch drive + 2 x 3.5 inch rear drive, or 24 x 2.5 inch drive (with NVMe) system.
The Dell PERC (PowerEdge RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management - providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize system uptime.
| Performance Level | Controller and Description |
|---|---|
| Entry | S140 |
| Value | H330 MiniMono, H730P, MiniMono |
| Value Performance | H740P, MiniMono |
| Premium Performance | H840 |
The PowerEdge R7415 system supports PCI Express (PCIe) Gen3 expansion cards, which need to be installed on the system board using expansion card risers. This system supports low profile, full height, and 2U expansion card risers.
| Expansion card riser | PCIe slots on the riser | Processor connection | Height | Length | Slot width |
|---|---|---|---|---|---|
| Riser-1B (2U riser) | Slot 2 | Processor 1 | Full Height | Full Length | x16 |
| Slot 3 | Processor 1 | Full Height | Full Length | x16 | |
| Riser-1A (low profile riser right) | Slot 2 | Processor 1 | Low Profile | Half Length | x16 |
| Riser-3A (low profile riser left) | Slot 3 | Processor 1 | Low Profile | Half Length | x16 |
| NOTE: The expansion-card slots are not hot-swappable. | |||||
Riser 1A
Riser 1B
Riser 3A
Two redundant power supply units (PSU) or single cabled PSU
| PSU | Class | Voltage |
|---|---|---|
| 495 W AC | Platinum | 100–240 V AC, autoranging |
| 750 W AC | Platinum | 100–240 V AC, autoranging |
| 750 W AC | Titanium | 200–240 V AC, autoranging |
| 1100 W DC | Platinum | 100–240 V AC, autoranging |
| 1100 W HVDC | Platinum | 100–240 V AC, autoranging |
| 1100 W AC | Platinum | 100–240 V AC, autoranging |
| 1600 W AC | Platinum | 100–240 V AC, autoranging |
- Depth: 717.59 mm (28.25")
- Width: 482 mm (18.97")
- Height: 86.8 mm (3.41")
- Weight:
- 8x 3.5" 24.4 kg (53.79 lb)
- 12x 3.5" 26.61 kg (58.66 lb)
- 12x 3.5" + 2x 3.5" (rear) 28.21 kg (62.19 lb)
- 24x 2.5" 23.22 kg (51.19 lb)
