Quick Specs
Form Factor:
1U rack server
Processor | Max: 128 Cores2x 4th Gen AMD 9004 Series
Memory | Max: 6TB24 ECC DDR5 RDIMM 4800Mhz
Storage | Max: 153.6TB4x LFF SAS/SATA (HDD/SSD) | Max: 80TB,
8x SFF NVMe SSD | Max: 122.88TB,
10x SFF SAS/SATA/NVMe (HDD/SSD) | Max: 153.6TB,
14x EDSFF E3.S Gen 5 NVMe (SSD) | Max: 89.6TB
16x EDSFF E3.S Gen 5 NVMe (SSD) | Max: 102.4TB
2x SFF SAS/SATA (HDD/SSD) NVMe | Max: 30.72TB
2x EDSFF E3.S Gen5 NVMe (SSD) | Max: 12.8TB
S160(SW RAID)
H965i, H755, H755N, H355, HBA355i, HBA355e, HBA465e, H965e
BOSS-N1 (hot Swap)
Internal USB
1 x OCP card 3.0 (supported by x8 PCIe lanes)
2x 1Gb with BCM5720 LAN controller
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
iDRAC9 with Lifecycle Controller
PCIe Slots:2x or 3x PCIe 4.0 & 5.0
GPU:Up to 3 x 75 W SW
Ideal for:
- High-Performance Computing (HPC)
- Virtual Desktop Interface (VDI)
- Virtualization

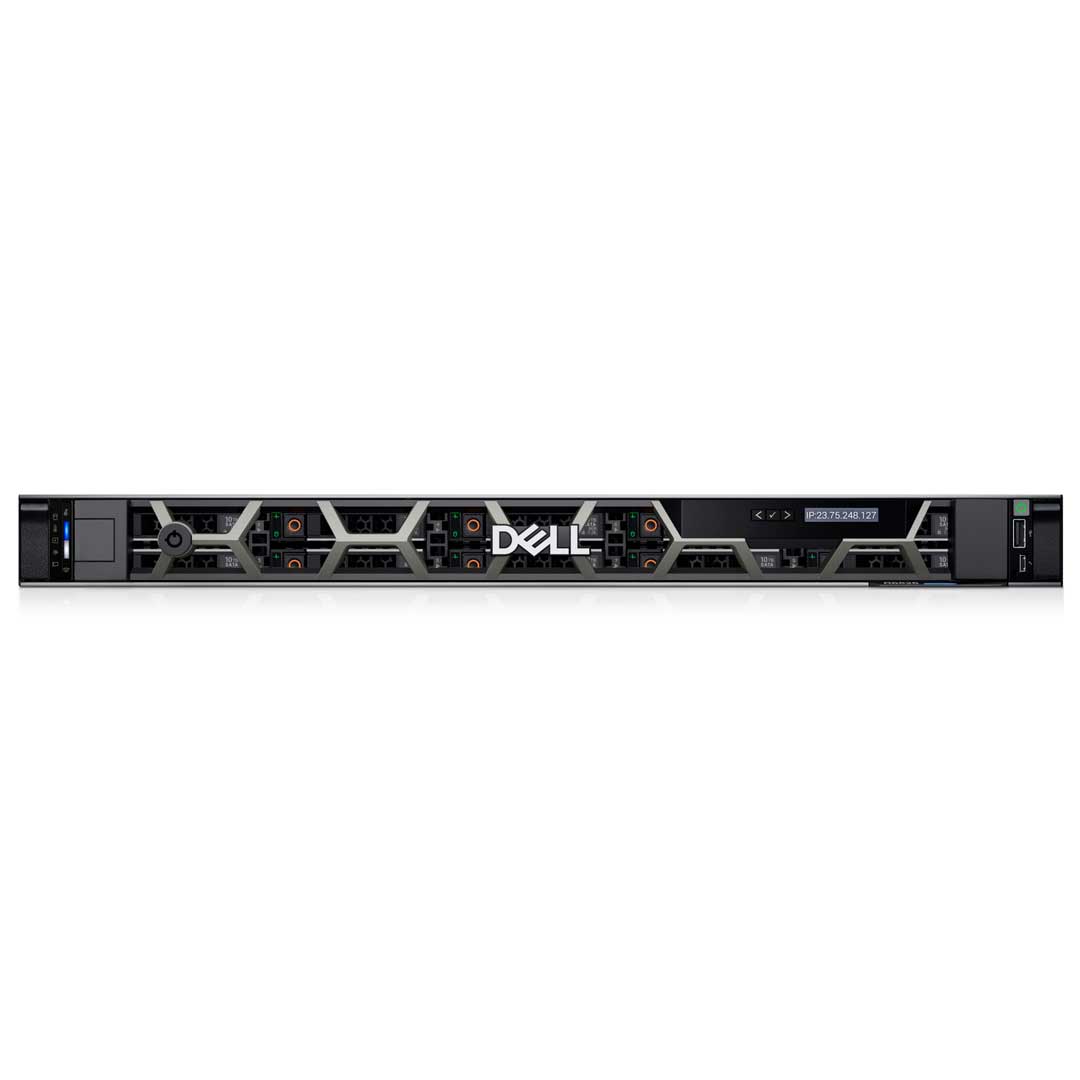

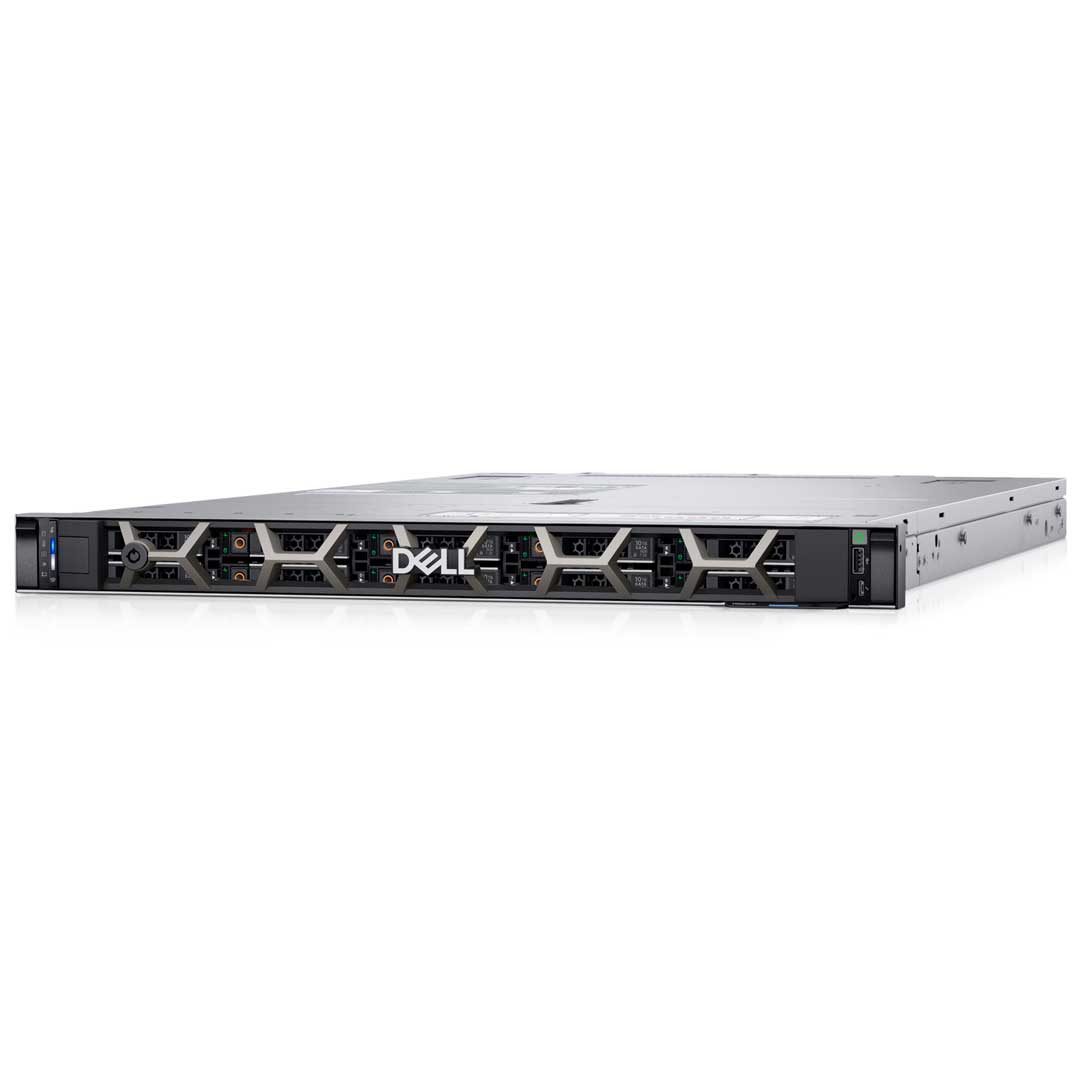

The new Dell PowerEdge R6625 is a 1U, dual-socket rack server. Designed to be the backbone of your data center, this powerful server provides ample performance and flexible, low-latency storage options in a dense air or Direct Liquid Cooling (DLC) configuration.
Extreme performance in a platform that grows with your business
- Using AMD EPYC 4th generation processor to deliver up to 50% more core count per single socket platform in an innovative air or liquid-cooled chassis.
- Enables DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 for faster access and transport of data optimizing application output.
- Optional DLC is available to more efficiently cool high-performance processors
Stay ahead of the curve
Delivering breakthrough innovation using the latest performance, density and optional acceleration for traditional and emerging workloads including high-performance compute (HPC), virtual desktop integration (VDI) and virtualization.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Experience more virtual machine density to support the most demanding applications
- Deliver more virtual machines per physical host using increased core count and higher memory footprint than previous generations.
- Improve responsiveness or reduce app load time for power users with up to 3 x single-wide full-length GPUs.
Expect increased expandability by storing more data in one server, saving space in your data center
- Scale your storage using up to 60% more E3.S NVMe drives and reduce your carbon footprint.
- Deliver more memory density with DDR5 (up to 6 TB of RAM) providing greater memory capacity.
- Support lower latency higher performance NVMe SSD in a hardware RAID solution helps maximize compute performance.
Drive Bay Options

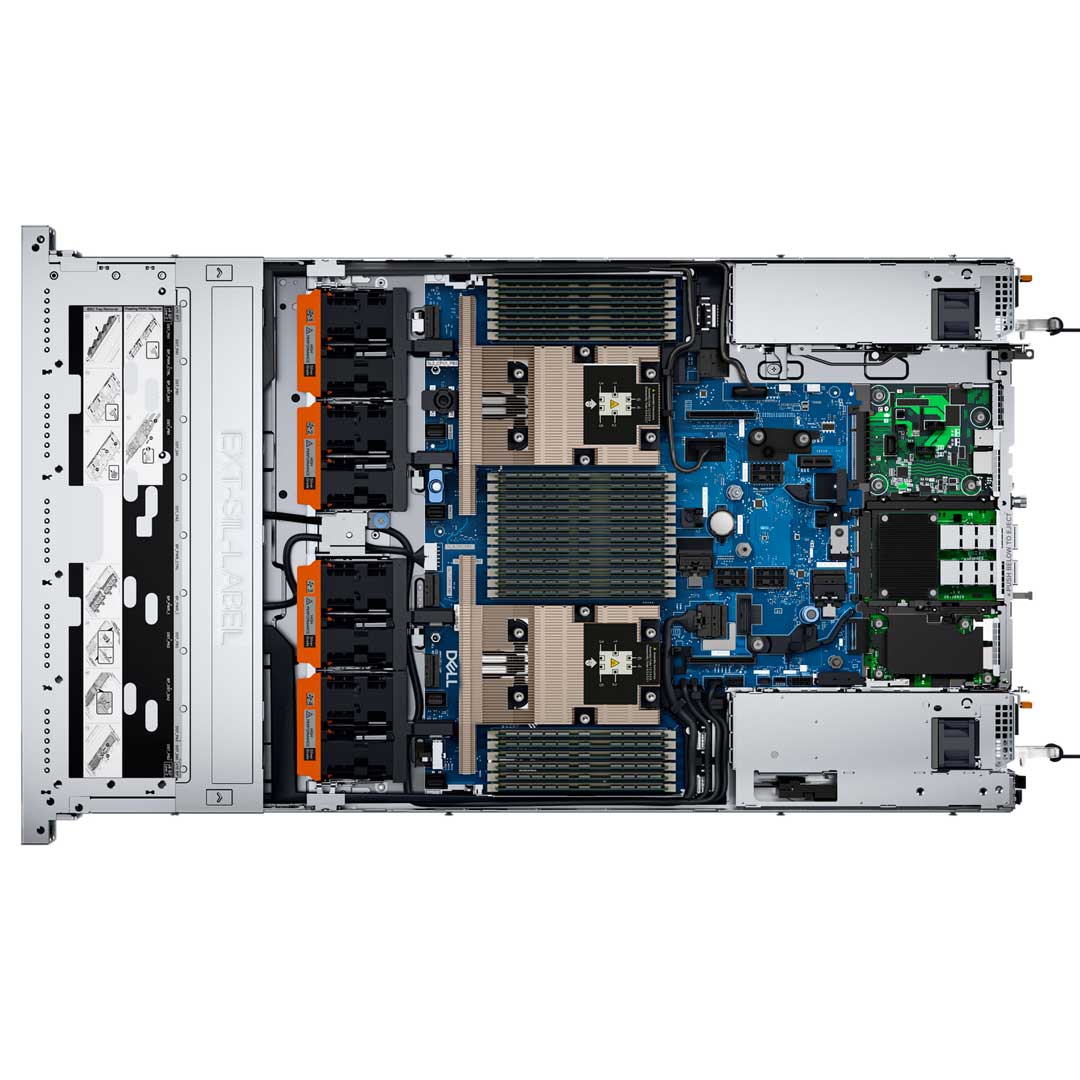

The R6625 has 2 Processors and 24 DIMMs of DDR5 Memory. Supports up to 3 PCIe slots with 1 LOM and 1 OCP slot. This system can be either Air-cooled or Direct Liquid Cooled depending on the configuration or the CPUs TDP. The Gen 16 Rack Server by dell can handle up to 3 Single Width 75W GPUs.

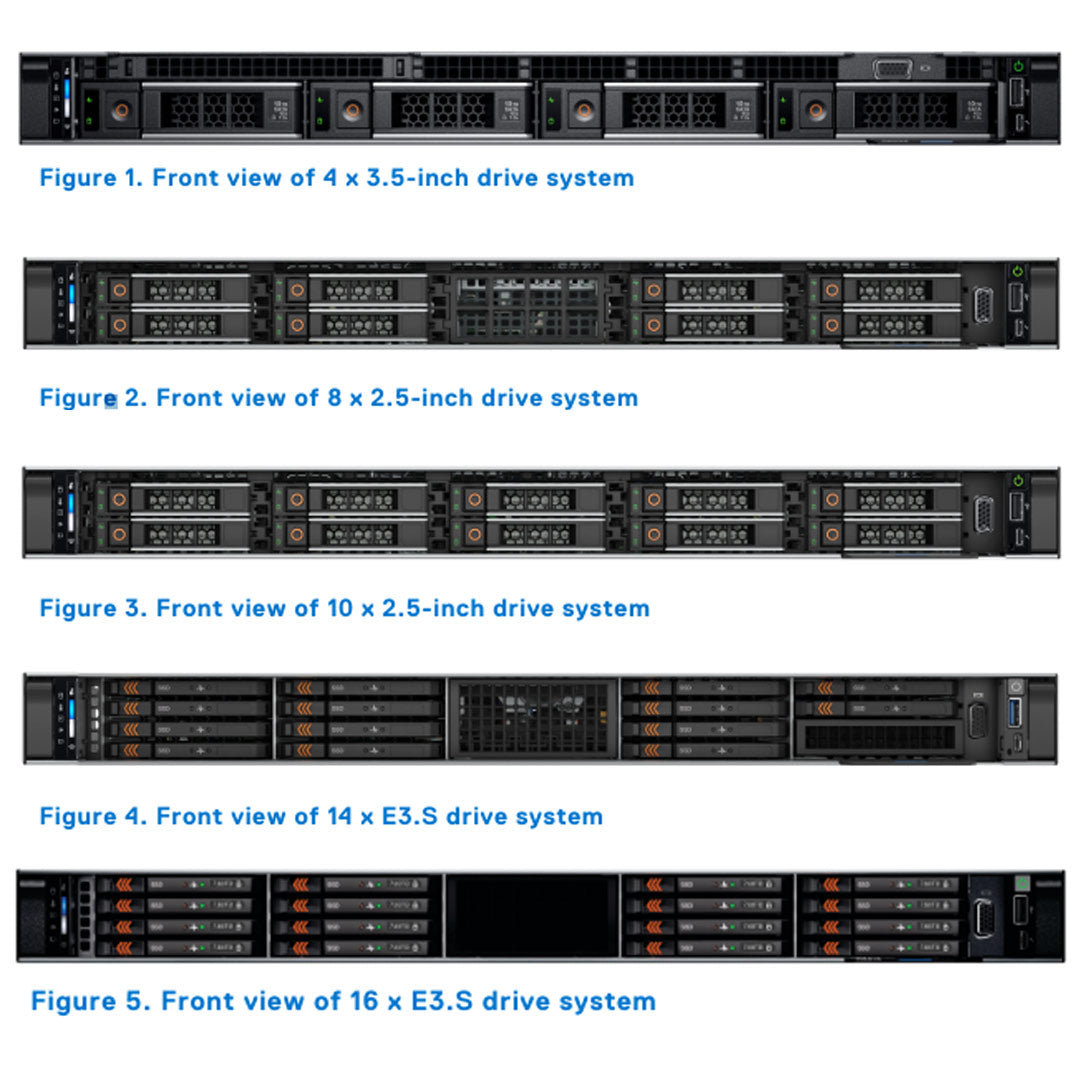

Chassis Options
Front bays:

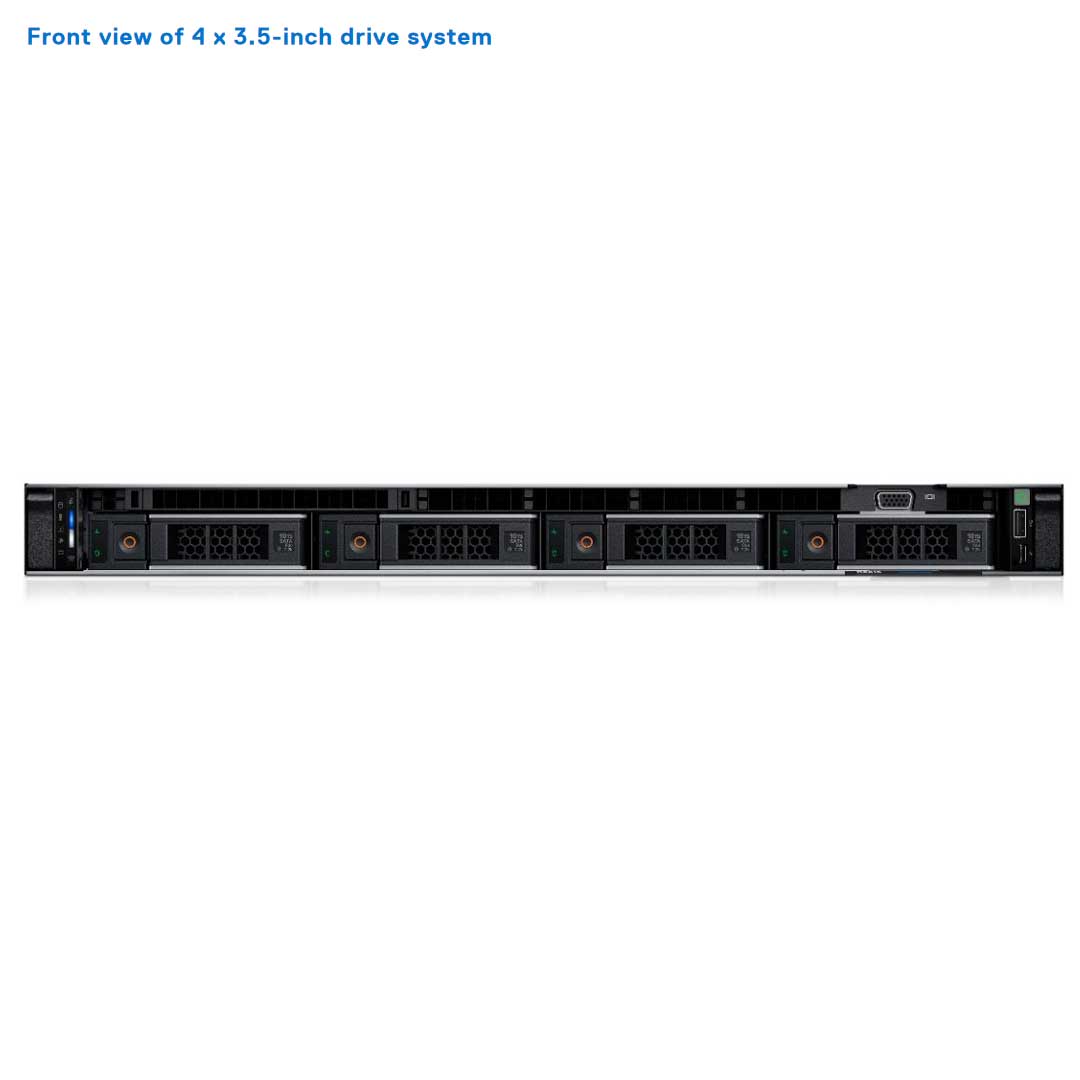

- Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB

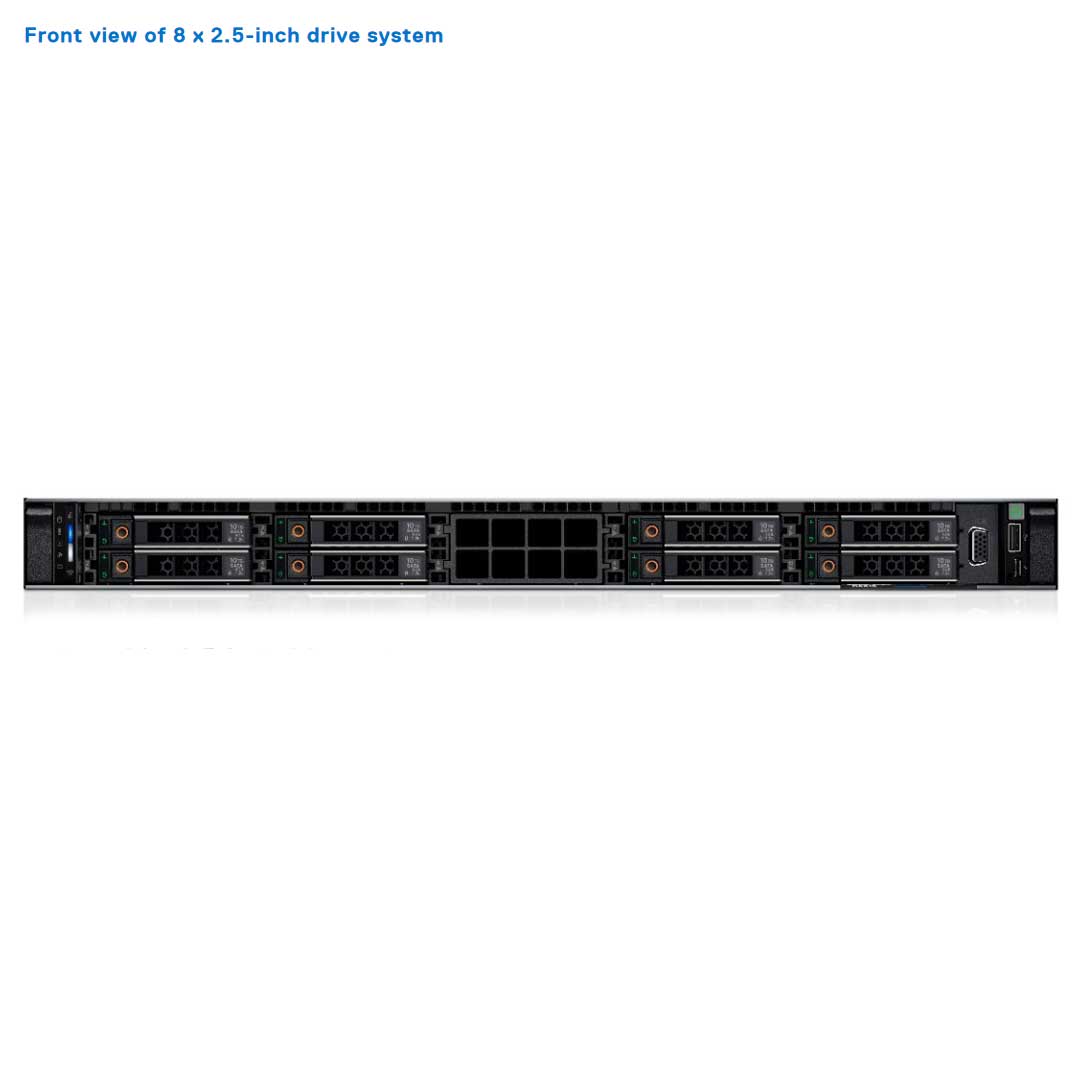

- Up to 8 x 2.5-inch NVMe max 122.88 TB

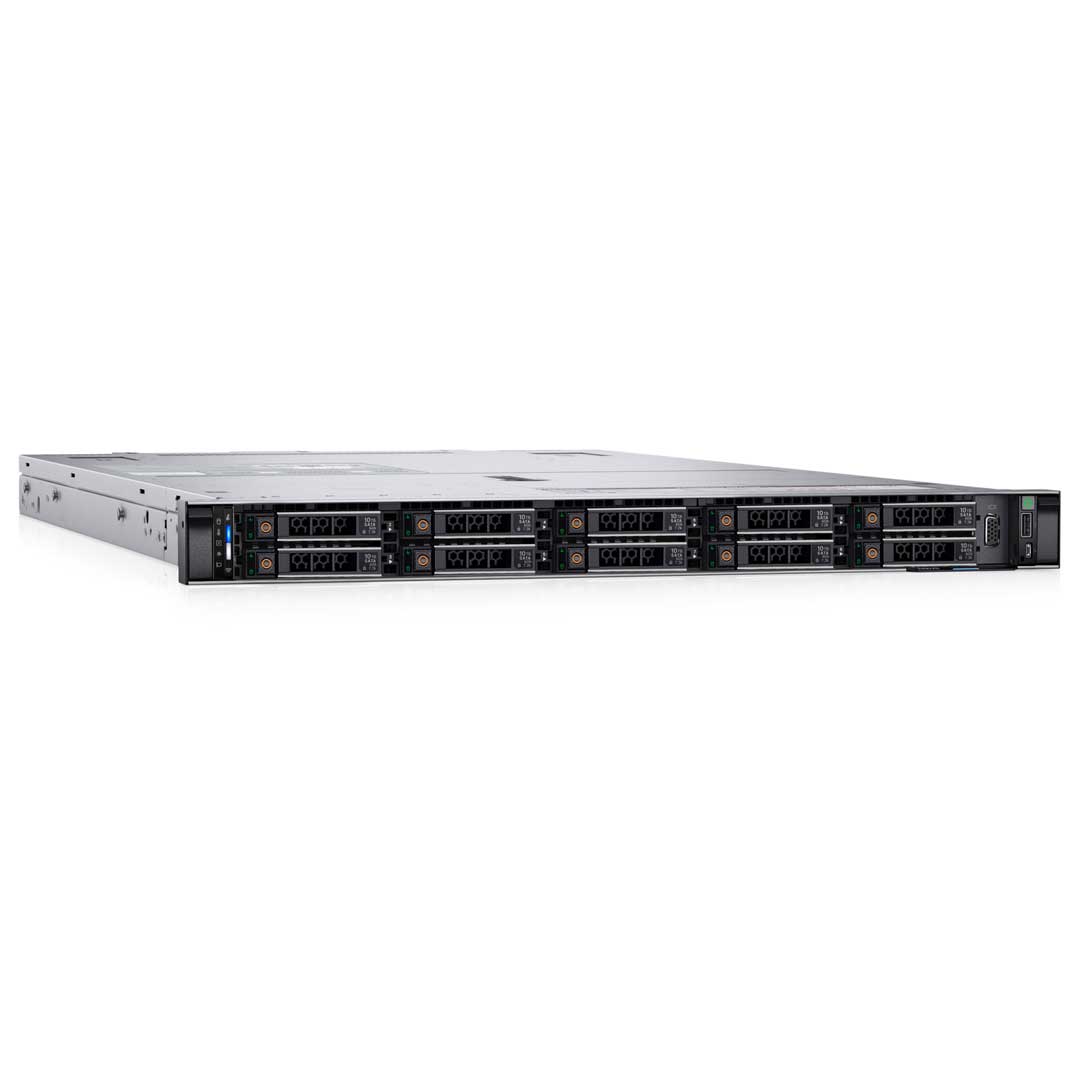

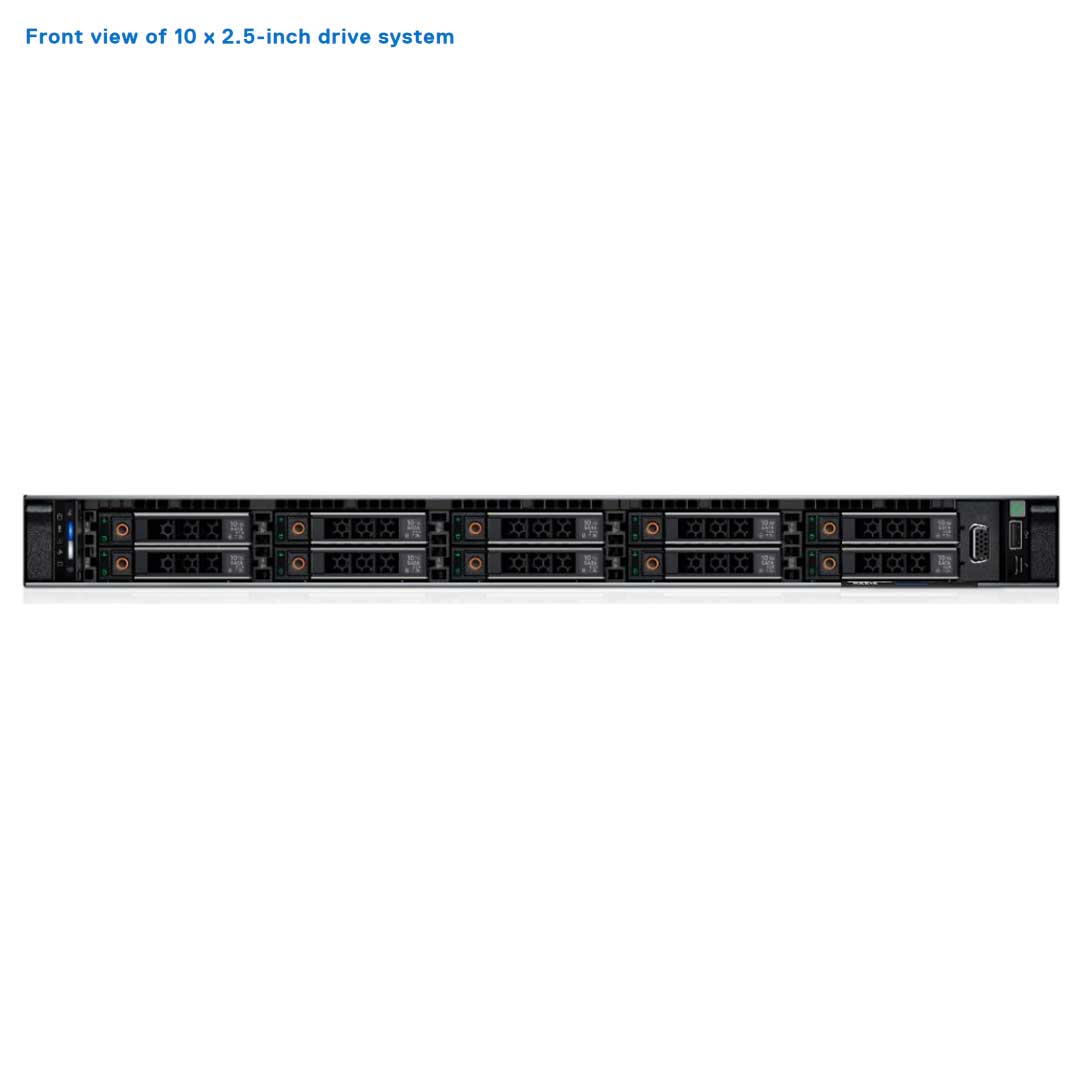

- Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB (Universal)

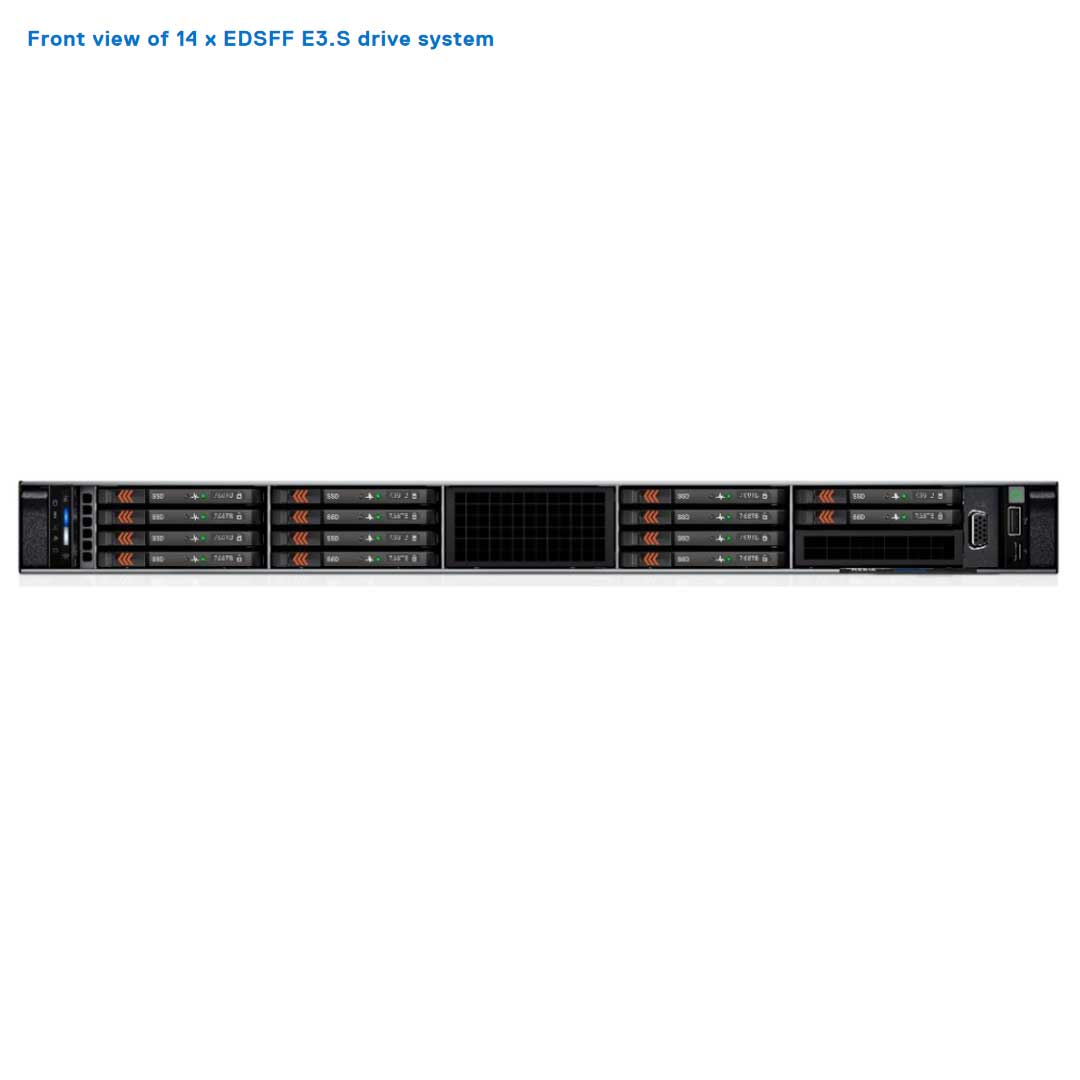

- Up to 14 x E3.S (NVMe Gen5 ) max 89.6 TB

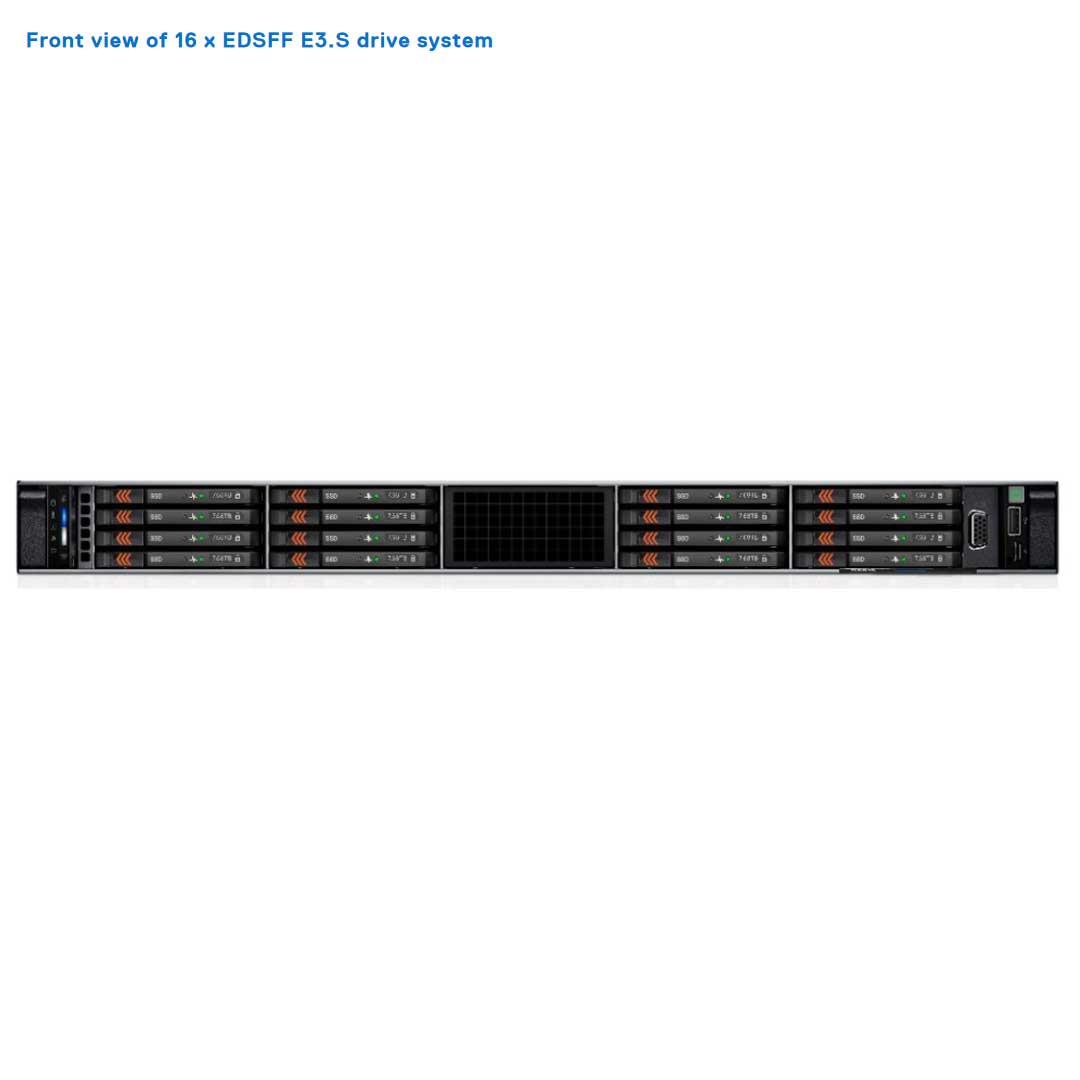

- Up to 16 x E3.S (NVMe Gen5 ) max 102.4 TB
Rear bays:
Only the 4 LFF and the 10 Universal Chassis support rear drive cages.
- Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB
- Up to 2 x E3.s (NVMe Gen5) max 12.8 TB
Processors and Heatsinks
Processor
Two AMD EPYC 4th Generation 9004 series processors with up to 128 cores. For CPU power > 240 W, DIMM Blank is required to be installed in all empty DIMM slots.
Heatsink & Fans
Up to four sets (dual fan module) Standard (STD) / High Performance Gold (HPR Gold) hot plug fans. For cooling purposes, OCP Shroud is required to be installed with No Riser Configuration (RC0) when OCP card is present. For air cooling with 2 x 2.5-inch rear-drive configuration, it is required to install Rear Drive Shroud in the system.
Memory
Up to 24 RDIMMs with up to 6 TB of memory and speeds up to 4800 MT/s. 256 GB RDIMM is not supported in 4 x 3.5-inch chassis configuration. Mixing of DIMMs is not supported.
| DIMM type | Rank | Capacity | Operating Speed |
|---|---|---|---|
| 1 DIMM per channel (DPC) | |||
| DDR5 RDIMM | 1 R | 16 GB | 4800 MT/s |
| 2 R | 32 GB, 64 GB | 4800 MT/s | |
| 4 R | 128 GB | 4800 MT/s | |
| 8 R | 256 GB | 4800 MT/s |
Expansion Slots
3x PCI Express® (PCIe) 4.0 / 5.0 enabled expansion slots support 2 x 75 W (SW) GPUs and the configurations below. If the rear drive cages are installed it will take up most of the PCIe slots.
| Config # | RSR Configuration | # of CPUs / # of PCIe Slots |
PERC type supported | Rear Storage Possible |
|---|---|---|---|---|
| 0 | NO RSR | 2 / 0 | Front PERC | No |
| 1 | R2A + R3A | 2 / 3 | Front PERC | No |
| 2 | R2P + R3P | 2 / 3 | Front PERC | No |
| 3 | R1P + R4P | 2 / 2 | Front PERC | No |
| 4 | R2Q | 2 / 2 | Front PERC | No |
| 5 | R3P | 2 / 1 | Front PERC | Yes |
| 6 | R2S+R3S | 2 / 2 | Front PERC | Yes |
| 7 | R2A | 1 / 1 | Front PERC | No |
| 8 | R2A+ R4-E3 Paddle card | 2 / 2 | Front PERC | No |
Networking Adapters (LOM + OCP 3.0)
Expanding the Network on the R6625 Dell Rack Server can be done in 3 different ways. The PCIe slots, the onBoard LOM, or the OCP 3.0 slot.
The R6625 is limited to only 3 PCIe slots. These slots will go fast. That is why the system has two other options for installing a Network Adapter. The LOM slot can support up to 2 Ports at 1GB of speed (LOM board, 2 x1Gb with BCM5720 LAN controller). Lastly, the OCP slot which supported 4 Ports up to 25Gb/s.
NOTE: Both the LOM card and OCP can be installed at the same time.| Feature | OCP 3.0 |
|---|---|
| Form factor | SFF |
| PCIe Gen | Gen4 |
| Max PCIe width | x8 |
| Max no.of ports | 2 |
| Port type | BT/SFP+/SFP28 |
| Max port speed | 25 GbE |
| NC-SI | Yes |
| WoL | Yes |
| Power consumption | 35 W |
Storage Controllers
New to 16G
New to 16G is the Harpoon-based Premium Performance tier offering. This high-end offering drives IOPs performance and enhanced SSD performance.
fPERC Solution
8 SFF NVMe Chassis
BOSS-N1
Dell's RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.
8 SFF NVMe Chassis
If you choose the 8 SFF NVMe Chassis with RAID, it requires the installation of the H755N Storage Controller. This H755N supports NVMe drives.
BOSS-N1
The BOSS-N1 Hot-Swap Boot Device comes with 2x M.2 480GB NVMe SSD drives. The BOSS card has a dedicated slot on the motherboard and when installed will handle the booting of the OS system. If not installed you must fill the spot with the BOSS blank.
| Performance Level | Controller and Description |
|---|---|
| Entry | S160 (SATA, NVMe), SW RAID SATA, NVMe |
| Value | H355, HBA355 (internal/External), HBA465 (external) |
| Premium Performance | H755, H755N, H965 (internal/external) |
Power & Dimensions
Power
| PSU | Class |
|---|---|
| 800 W Mixed Mode | Platinum |
| 1100 W Mixed Mode | Titanium 100-240 V AC |
| 1100 W DC | N/A -48-(-60V) DC |
| 1400 W Mixed Mode | Platinum |
| 1400 W Mixed Mode | Titanium |
| 1800 W Mixed Mode | Titanium |
Dimensions:
- Width: 42.8mm (1.685")
- Height: 482.0mm (18.97")
- Length w/ Bezel: 822.89mm (32.4")
- Length w/o Bezel: 809.05mm (31.85")
Weight
With drives 20.4 kg (44.97lbs)
Without drives and PSU installed 15.8 kg (34.83lbs)
