Quick Specs
1U rack server
Processor | Max: 32 Cores2x 4th Gen Intel Xeon Scalable
Memory | Max: 1TB16 ECC DDR5 RDIMM 4800Mhz

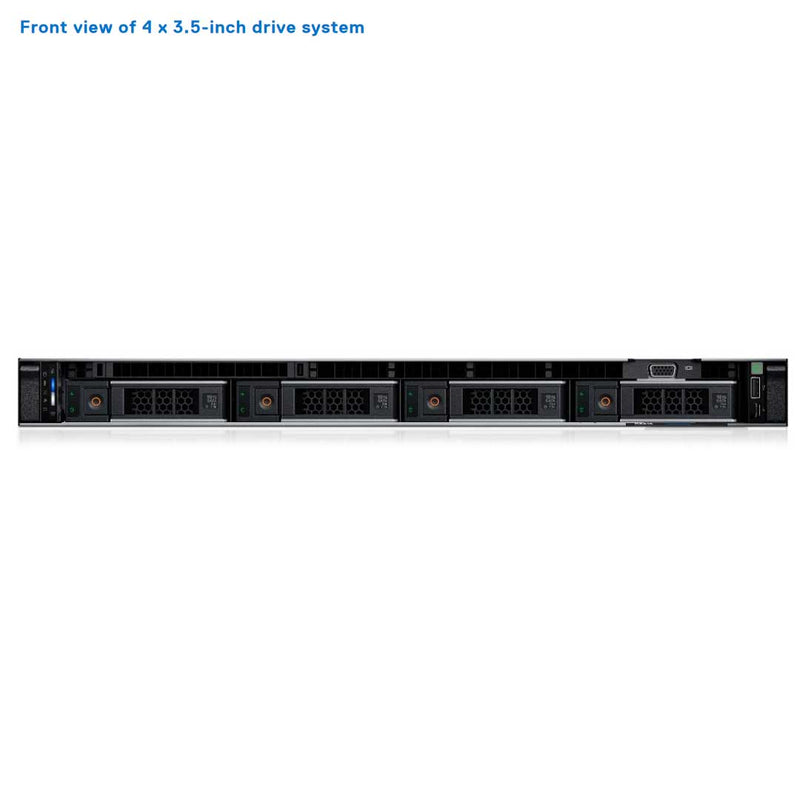

Storage | Max: 153.6TB4 LFF, 8 or 10 SFF SAS4/SATA (HDD/SSD) NVMe
Rear Drives | Max: 15.2TB2 SFF SAS/SATA (HDD/SSD) NVMe
Storage Controller:S160, H965i, H755, H755N, H355, HBA355i, HBA355e
Boot Options:BOSS-N1 (Cold Swap), USB
Networking Options (NOC):1 x OCP card 3.0 + 2 x 1 GbE LOM card
Remote Management:iDRAC9 with Lifecycle Controller
PCIe Slots:1 Socket - 1 x16 Gen4 + 1 x8 Gen5
2 Socket - 1 x16 Gen4 + 2 x8 Gen4 or 1 x16 Gen5 + 1 x8 Gen5
None
Ideal for:
- Cloud Servers
- Database
- High-Performance Computing (HPC)
- Virtualization
Buy the performance and density you need

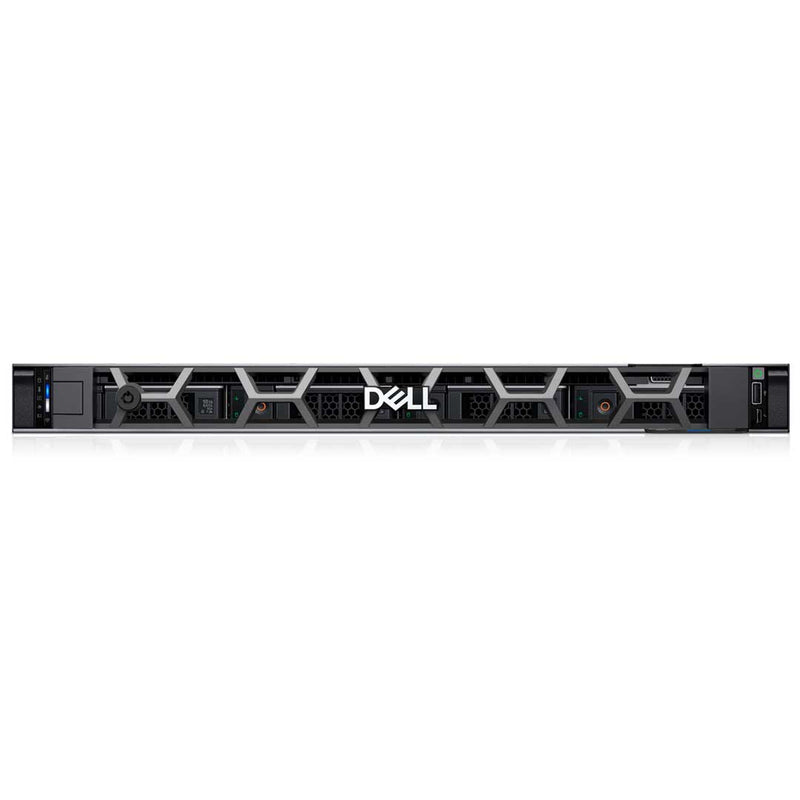

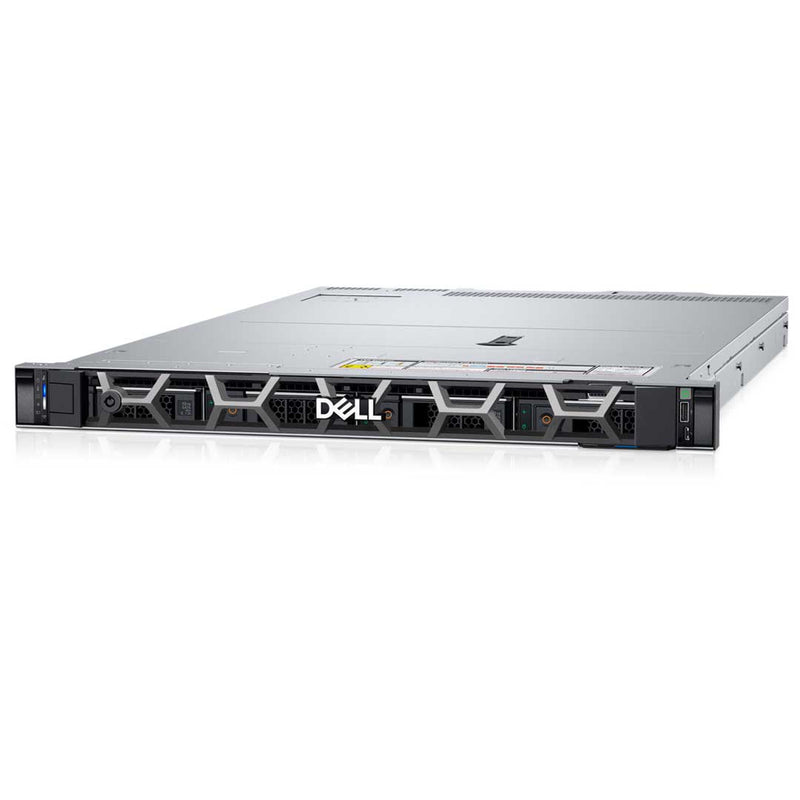

The new Dell PowerEdge R660xs is a 1U, two-socket rack server. Buy the best fit in dense performance with this purpose-built 1U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtualization, scale out-database and high performance compute. All delivered in a thoughtfully crafted platform that will provide dense compute that fits in your current infrastructure.
The Dell PowerEdge R660xs offers compelling performance in a purpose-built system with the latest PCIe Gen 5 bandwidth and storage to support:
- Add up to two 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
- Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 4800 MT/sec
- Improve data throughput and reduce latency with support up to 5 I/O devices (up to 3 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot)
- Storage options include up to 4x 3.5” HDDs/SSDs; or up to 10x 2.5” HDDs/SSDs/NVMe
- Thoughtfully designed to fit in your current air-cooled infrastructure
- Alleviate the worry about expensive liquid cooling retrofitting to your data center
- Sychronize your workload needs with a tailored performance configuration that is air-cooled
- Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations
