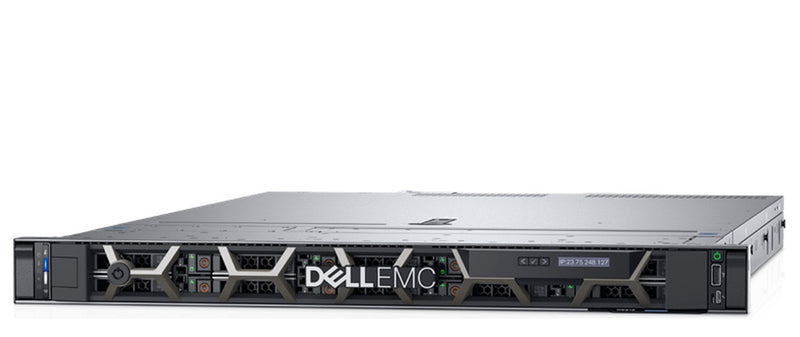

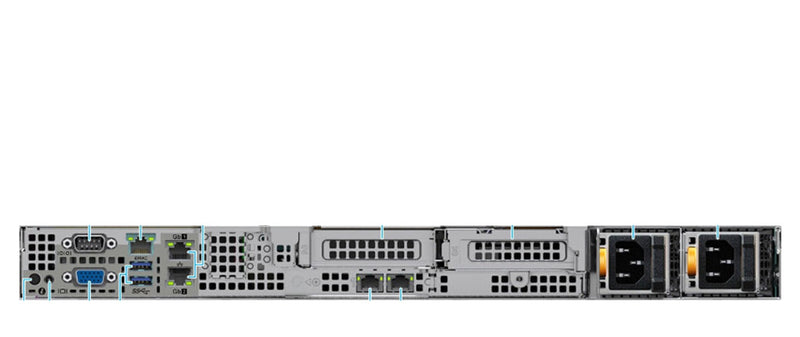

Dell PowerEdge R6515

The Dell PowerEdge R6515 is a 1U single-socket rack server running one 2nd or 3rd Generation AMD EPYC processor with up to 64 cores. It offers 16 DDR4 DIMM slots (up to 1TB RDIMM or 2TB LRDIMM at up to 3200 MT/s), up to 10x 2.5" SAS/SATA/NVMe or 4x 3.5" drives, up to two PCIe slots including Gen4, and up to two single-wide GPUs. Managed by iDRAC9, it delivers dense single-socket compute for virtualization and software-defined workloads. Fully configurable.

Looking to compare generations? See its Gen 16 successor, the Dell PowerEdge R6615, or compare Gen 15 models: Dell PowerEdge R6525 and Dell PowerEdge R7515.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: 1x AMD EPYC 7002 or 7003 (up to 64 cores)
  • Memory: 16x DDR4 DIMM slots, up to 1TB RDIMM or 2TB LRDIMM
  • Memory Speed: Up to 3200 MT/s
  • Storage: Up to 10x 2.5" SAS/SATA/NVMe, 8x 2.5" or 4x 3.5"
  • Expansion: Up to 2x PCIe slots (1x Gen4 x16, 1x Gen3 x16)
  • GPU Support: Up to 2x single-wide (e.g. NVIDIA T4)
  • Networking: 2x 1GbE, plus optional LOM riser: 2x 1GbE, 2x 10GbE BASE-T/SFP+ or 2x 25GbE
  • Management: iDRAC9
  • Cooling: Air, six standard or high-performance fans
  • Power: 550W or 700W Platinum PSUs

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R6515 →

Customize & Get Pricing

Configure your Dell PowerEdge R6515 with the exact specs you need

Configure This Server

Dell PowerEdge R6515 vs R6415: Specs & Key Differences

Feature PowerEdge R6515 PowerEdge R6415
Processors 1x 2nd or 3rd Gen AMD EPYC (up to 64 cores) 1x AMD EPYC (Naples, SP3)
Memory 16x DDR4 DIMM slots, up to 2TB (LRDIMM)
Up to 3200 MT/s		 16x DDR4 RDIMM or LRDIMM slots
Storage Up to 10x 2.5" SAS/SATA/NVMe or 4x 3.5" 3.5"/2.5" SAS/SATA, up to 10x PCIe SSD
Storage Controllers HBA330, H330, H730P, H740P, H840
Software RAID S150		 HBA330, H330, H730P, H740P
Software RAID S140
PCIe Up to 2 (1x Gen4 x16, 1x Gen3 x16) Up to 2 (PCIe 3.0 x16)
GPU Support Up to 2x single-wide Not supported
Networking 2x 1GbE + optional LOM riser up to 2x 25GbE LOM riser: 2x 1Gb, 2x 10Gb BASE-T or SFP+
Power 550W or 700W Platinum 450W Gold cabled or 550W Platinum
Management iDRAC9 iDRAC with vFlash
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

One 2nd or 3rd Generation AMD EPYC processor with up to 64 cores, in a single-socket 1U chassis.

It has 16 DDR4 DIMM slots for up to 1TB with RDIMMs or 2TB with LRDIMMs, at bandwidth up to 3200 MT/s.

Front options include up to 4x 3.5-inch hot-plug SAS/SATA drives, up to 10x 2.5-inch SAS/SATA/NVMe drives, or 8x 2.5-inch SAS/SATA drives, with optional 2x M.2 BOSS boot. Front NVMe drives use PCIe Gen3. Please specify your capacity needs when you submit your quote configuration.

Yes. Dell lists up to two single-wide GPUs such as the NVIDIA T4, using its two low-profile PCIe slots (one Gen4 x16 and one Gen3 x16), with high-performance fans required.

The R6515 moves from first-generation EPYC (Naples) to 2nd/3rd Gen EPYC with up to 64 cores, adds a PCIe Gen4 slot, supports 3200 MT/s memory and up to two single-wide GPUs, and offers 25GbE networking options. The R6415 has no GPU support.
