Specs
CTO Item
This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.
Looking to Customize?
Customize every aspec of your server with Express Computer Systems.
Our sales experts are here to help.
Start Customizing Today!
Base Standard Capabilities
| Feature | PowerEdge R630 Technical Specification | |
|---|---|---|
| Form factor | 2U rack server | |
| Dimensions and weight | 24 x 1.8" and 10 x 2.5" drive configuration:

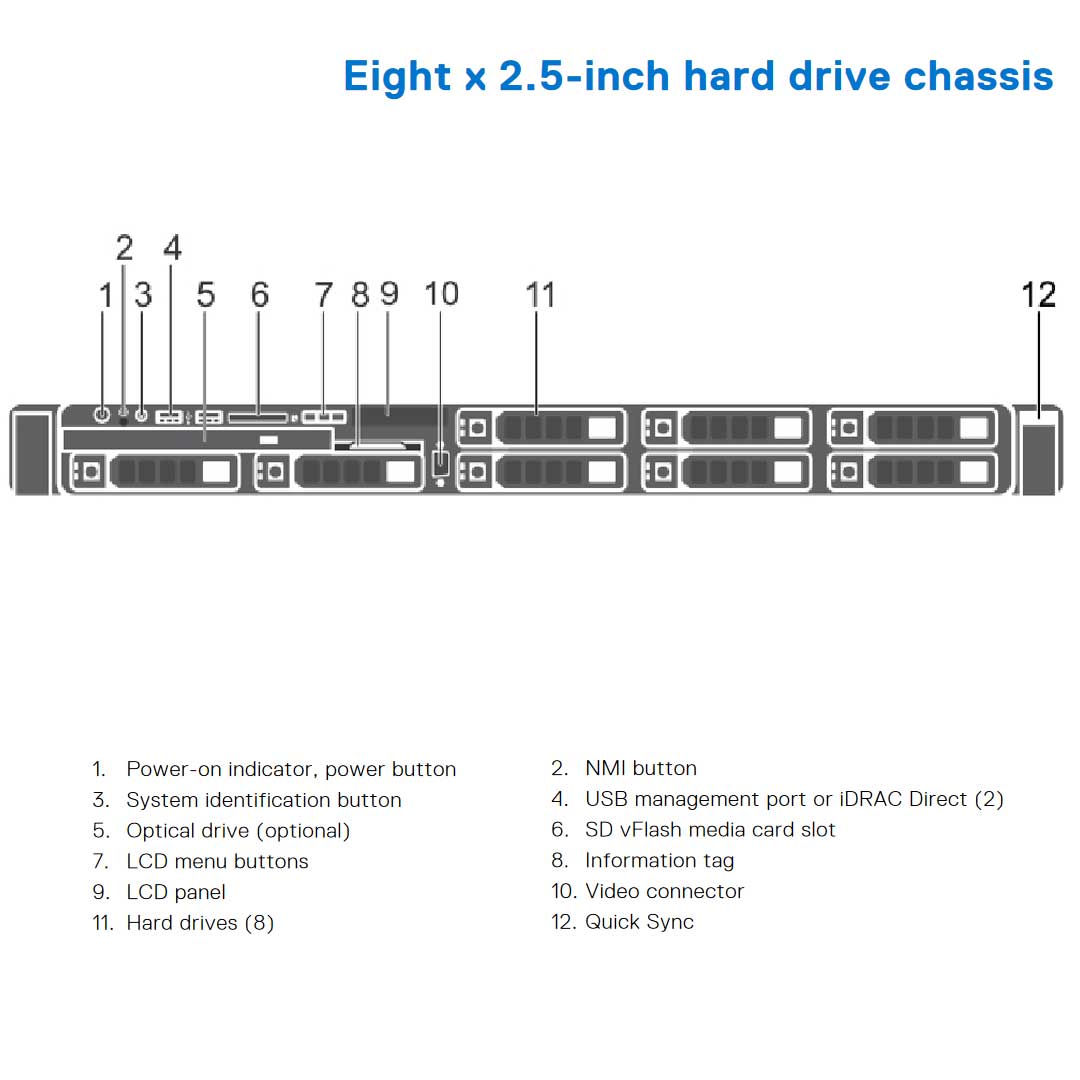

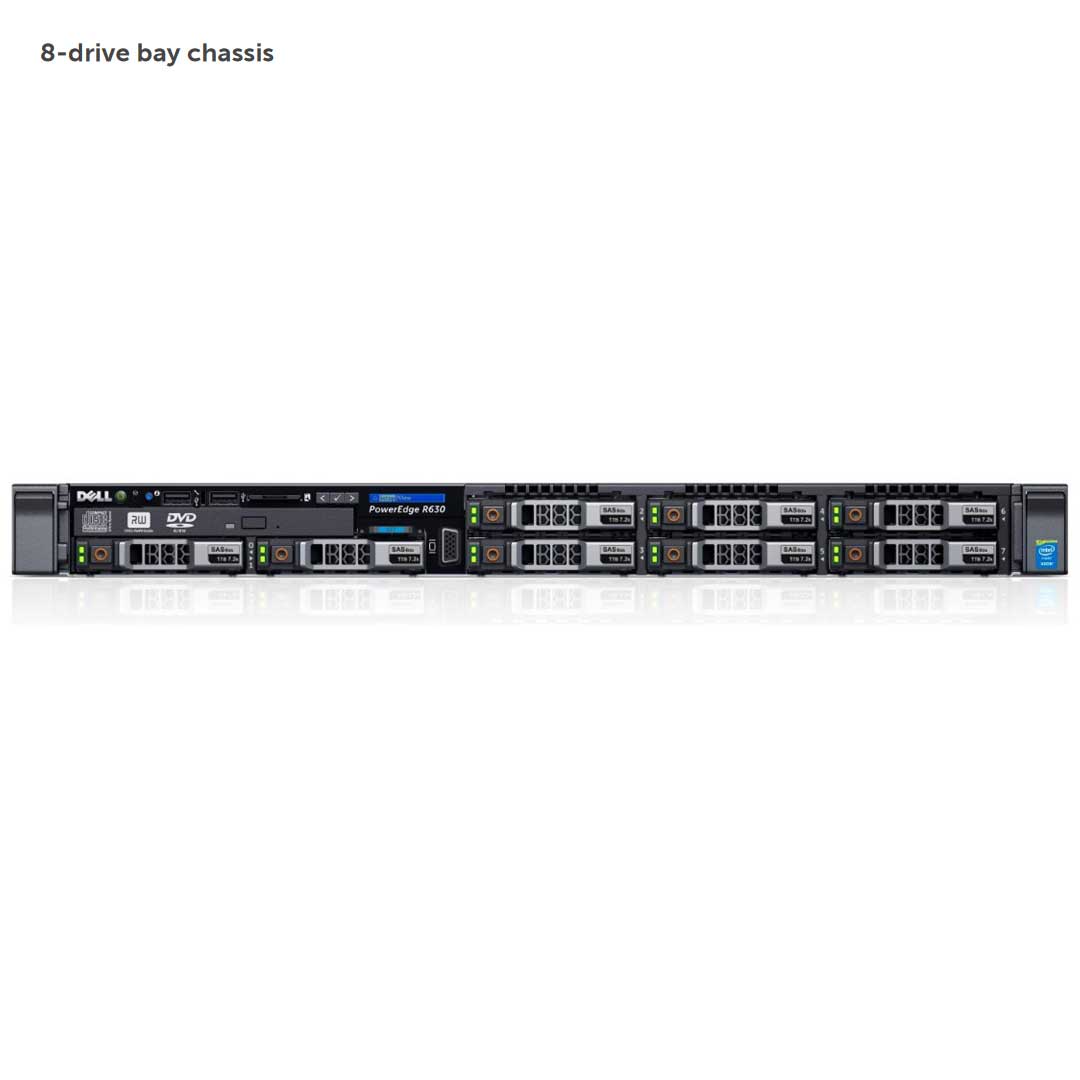

| 8 x 2.5" drive configuration:
|
| Processor | Intel® Xeon® processor E5-2600 v4 product family | |
| Processor sockets | 2 | |
| Cache | 2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22 | |
| Chipset | Intel C610 series chipset | |
| Memory | Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s | |
| I/O slots | Up to 3 x PCIe 3.0 slots plus dedicated PERC slot | |
| RAID controllers | Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA | |
| Drive bays | Internal hard drive bay and hot-plug backplane:
| |
| Maximum internal storage | HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe
| |
| Embedded NIC | 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb | |
| Power supplies | Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W | |
| Availability | ECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single device data correction (SDDC), spare rank, support for high availability clustering and virtualization, proactive systems management alerts | |
| Management | Systems management
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade), iDRAC Quick Sync | Dell OpenManage Connections:
|
| Optional supported hypervisors | Citrix® XenServer, VMware vSphere® ESXi® | |
| Operating system | Microsoft Windows Server® 2008/2012 SP2, x86/x64 (x64 includes Hyper-V®) Microsoft Windows Server 2008/2012 R2, x64 (includes Hyper-V) Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux | |
| Rack support | ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. | |
Spec Sheet 4
| Feature | PowerEdge R620 | PowerEdge R630 |
|---|---|---|
| Chassis | 1U rack | 1U rack |
| Processors | Intel Xeon processor E5-2600 and E5-2600 v2 product family |
Intel Xeon processor E5-2600 v3 product family |
| Internal interconnect | Intel QuickPath Interconnect | Intel QuickPath Interconnect |
| Memory | 24 x DDR3 RDIMM, UDIMM, and LRDIMM Up to 1.5TB |
24 x DDR4 RDIMM and LRDIMM Up to 768GB |
| Disk drives | 2.5” 6Gb/s SAS, 3Gb/s SATA | 2.5”, 1.8” 12Gb/s SAS, 6Gb/s SATA |
| RAID controller | PERC S110, H310, H710, H710P, H810 (external) | PERC S130, H330, H730, H730P, H810/H830 (external) |
| Express Flash PCIe SSDs | Up to 2 | Up to 4 |
| PCI slots | 3 PCIe 3.0 | 3 PCIe 3.0 (option to eliminate Riser 1) |
| Embedded NICs | Select Network Adapter: 4 x 1GbE, 2 x 10GbE |
Select Network Adapter: 4 x 1GbE, 2 x 10GbE, 4 x 10GbE |
| Power supplies | Hot-plug, redundant power supply units: 495W AC, 750W AC, 750W AC mixed mode, 1100W AC, 1100W DC |
Hot-plug, redundant power supply units: 495W AC, 750W AC, 750W AC mixed mode2 , 1100W AC, 1100W DC |
| USB | USB 2.0 | USB 3.0 (back and internal ports only) |
| Dell OpenManage Systems Management | OpenManage Essentials OMSA Agent OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections iDRAC7 Express with Lifecycle Controller (standard option) |
OpenManage Essentials Dell Management Console OMSA Agent OpenManage Power Center (requires iDRAC8 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections iDRAC8 Express with Lifecycle Controller (standard option) |
| Support for internal GPU | Yes (available through CFI or field upgrade only) | Not supported |
| Power efficiency | Titanium, Platinum+, Platinum | Titanium, Platinum+, Platinum |
| Availability | Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supply units Internal dual SD module support |
Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supply units Internal dual SD module support (next generation) |
