2U rack server
Processor | Max: 32 Cores1x AMD EPYC 9005 Series
Memory | Max: 1.5TB24 DDR5 RDIMM slots, up to 5200 MT/s
Supports registered ECC DDR5 DIMMs only
12 x 3.5" SAS/SATA
16 x 2.5" SAS/SATA
PERC H365i, H965i
Boot Options:BOSS-N1 DC-MHS (rear)
Networking Options (NOC):Up to 2x OCP 3.0
1GbE dedicated BMC port
iDRAC10
PCIe Slots:Up to 4x G5 x16 (FH/HL)
(Click to View)
- Storage-Dense Applications
- Database
- Virtualization

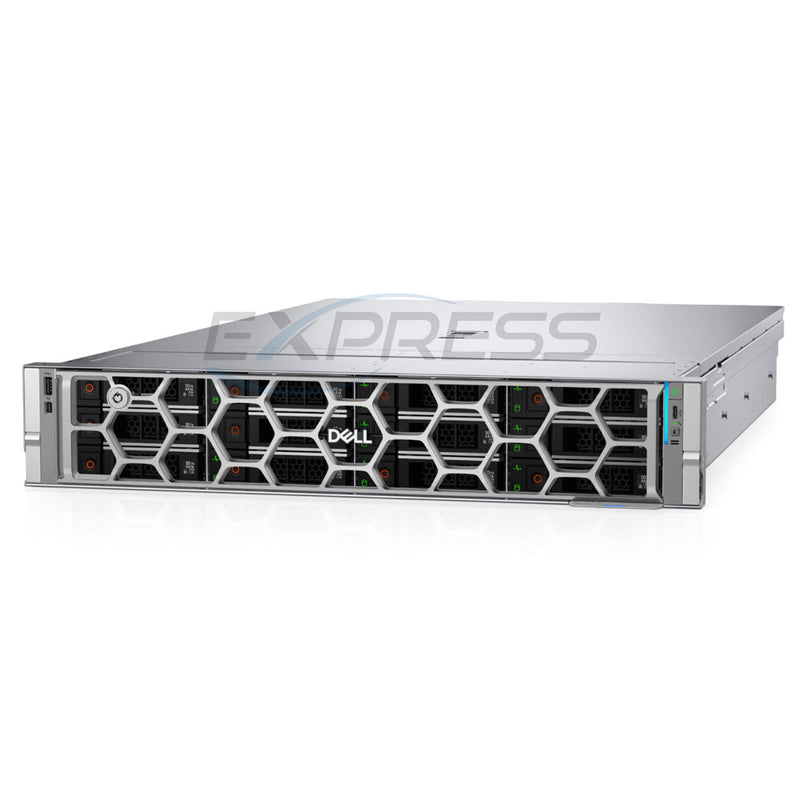

The Dell PowerEdge R5715 is a 2U, single-socket rack server built on a 5th Generation AMD EPYC 9005 Series processor with up to 32 Zen 5 cores. With 24 DDR5 RDIMM slots, up to 12 x 3.5" or 16 x 2.5" SAS/SATA front drives, up to four PCIe Gen5 x16 full-height slots and dual OCP 3.0 networking, it delivers affordable, storage-dense capacity for everyday data center workloads.
12 x 3.5" SAS/SATA
16 x 2.5" SAS/SATAⓘ Drives No rear drives and no NVMe front drives. Max weight: 26.85 kg (59.19 lb) with 12 x 3.5", 26.81 kg (59.10 lb) with 16 x 2.5".
One 5th Generation AMD EPYC 9005 Series processor with up to 32 cores.
- AMD EPYC 9015 | 8 Cores | 125 W (155 W max cTDP)
- AMD EPYC 9135 | 16 Cores | 200 W (240 W max cTDP)
- AMD EPYC 9255 | 24 Cores | 200 W (240 W max cTDP)
- AMD EPYC 9335 | 32 Cores | 210 W (240 W max cTDP)
- The system supports only one processor.
ⓘ PDF View AMD 9005 Series PDF here
2U-Ext HSK
HPR Silver Fan
HPR Gold Fan| Configuration | 16 x 2.5" | 12 x 3.5" |
|---|---|---|
| EPYC 9015 / 9135 / 9255 / 9335 | 2U-Ext HSK (5XD0R), HPR Silver fan (6R09C) | 2U-Ext HSK (5XD0R), HPR Gold fan (7F0CF) |
ⓘ Fans The PowerEdge R5715 is air cooled with up to six hot-plug HPR Silver or HPR Gold fans. HPR Gold fans are required for 12 x 3.5" configurations (regular air shroud, 35°C).
| DIMM type | Rank | Capacity | Supported speeds | Maximum system capacity |
|---|---|---|---|---|
| RDIMM | 2R | 16 GB | 5200, 4400, 4000 MT/s | 384 GB |
| 32 GB | 768 GB | |||
| 64 GB | 1.5 TB |
ⓘ Memory 24 DDR5 DIMM slots (not hot pluggable). RDIMM only; the processor may run DIMMs below their rated speed.
Front H965i
Front H365i| Backplane | Base controller | Upgrade |
|---|---|---|
| 16 x 2.5" SAS/SATA | H365i front PERC | H965i front PERC (adds one PERC signal cable) |
| 12 x 3.5" SAS/SATA | PERC H365i adapter | H965i adapter |
BOSS-N1 DC-MHS
BOSS-N1 DC-MHS Carrierⓘ BOSS BOSS-N1 DC-MHS mounts at the rear of the R5715 (slot 6, PCIe Gen3 x4) and supports up to two M.2 NVMe SSDs in hot-plug carriers.
ⓘ OCP Up to two OCP 3.0 NICs (slots 10 and 4, PCIe Gen5 x16) from 1GbE to 200GbE, plus a 1GbE dedicated BMC port on the DC-SCM.
Riser (R1e)
Riser (R2n)
Riser (R3e)
Riser (R4b)
Riser (R5b)| Config No. | Riser configuration | PCIe slots | Form factor | Bandwidth |
|---|---|---|---|---|
| RC 2: | R3e + R4b + R5b | 4 (OCP), 7, 9 + 2nd OCP | FH | PCIe Gen5 x16 |
| RC 3: | R1e + R2n + R3e + R4b + R5b | 2, 3, 4 (OCP), 7, 9 + 2nd OCP | FH | PCIe Gen5 x16 |
- iDRAC10 with 1GbE dedicated BMC Ethernet port (DC-SCM)
- iDRAC Direct via front USB Type-C
- Optional LCP KVM (USB 2.0 + Mini DisplayPort)
- TPM 2.0, Secure Boot, Silicon Root of Trust
- System Lockdown, Secure Erase
- Chassis Intrusion Detection
| Form factor | Output | Power cord |
|---|---|---|
| Redundant 60 mm | 800 W Platinum mixed mode | C13 |
| 800 W Titanium mixed mode | C13 | |
| 1100 W Platinum mixed mode | C13 | |
| 1100 W Titanium mixed mode | C13 |
ⓘ PSU Two redundant AC or DC PSUs with Fault Tolerant Redundancy (FTR).
- Width: 482.0mm (18.97")
- Depth: 771.62mm (30.38") ear to PSU handle
- Height: 86.8mm (3.41")
- 12 x 3.5" drives (max) 26.85 kg (59.19 lbs)
- 16 x 2.5" drives (max) 26.81 kg (59.10 lbs)
