Dell PowerEdge R470

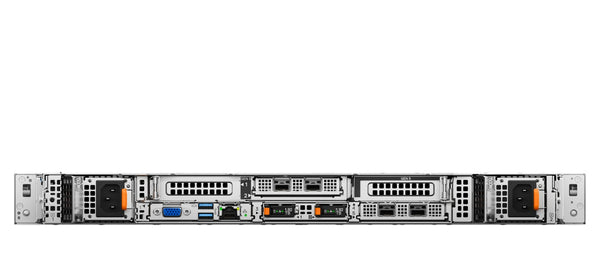

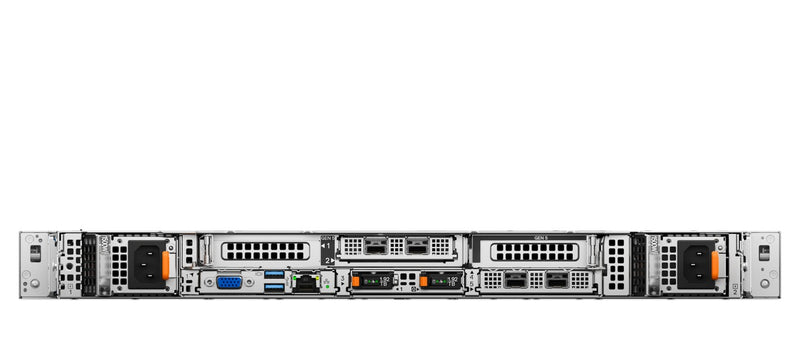

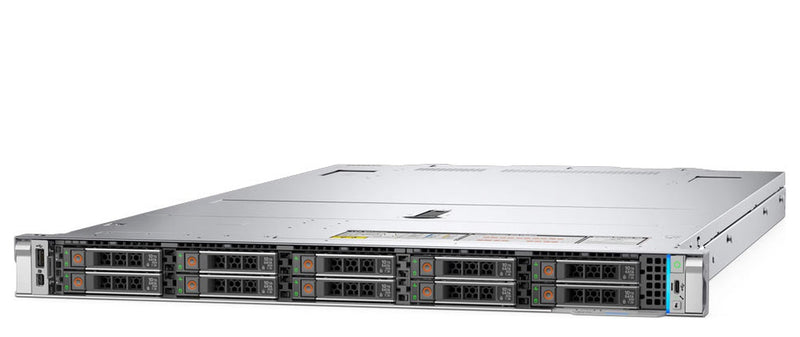

The Dell PowerEdge R470 is a 1U single-socket rack server built on one Intel Xeon 6 processor, with up to 144 E-cores or up to 86 P-cores. It offers 16 DDR5 DIMM slots (up to 4TB, speeds up to 6400 MT/s), up to four PCIe Gen5 slots, up to two OCP 3.0 NICs, support for up to four 75W single-width GPUs and up to 16x EDSFF E3.S Gen5 NVMe drives. Available with rear I/O or front I/O, it is built for cloud-scale web and app microservices, data services, virtualization and scale-out databases. Fully configurable.

Looking to compare generations? See the Gen 16 Dell PowerEdge R660, or compare Gen 17 models: Dell PowerEdge R670 and Dell PowerEdge R570.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: 1x Intel Xeon 6
  • Memory: 16x DDR5 DIMM slots, up to 4TB
  • Memory Speed: Up to 6400 MT/s
  • Storage: Up to 16x E3.S, 10x 2.5" or 4x 3.5"
  • Expansion: Up to 4x PCIe Gen5 slots
  • GPU Support: Up to 4x 75W single-width
  • Networking: Up to 2x OCP 3.0
  • Management: iDRAC10
  • Cooling: Air, N+1 hot-swap fans
  • Power: Redundant PSUs, 800W to 1500W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R470 →

Customize & Get Pricing

Configure your Dell PowerEdge R470 with the exact specs you need

Configure This Server

Dell PowerEdge R470 vs R660xs: Specs & Key Differences

Feature PowerEdge R470 PowerEdge R660xs
Processors 1x Intel Xeon 6 (up to 144 E-cores or 86 P-cores) Up to 2x 4th/5th Gen Intel Xeon Scalable (up to 32 cores)
Memory 16x DDR5 DIMM slots, up to 4TB
Up to 6400 MT/s		 16x DDR5 DIMM slots, up to 1.5TB
Up to 5200 MT/s
PCIe Up to 4x PCIe Gen5 slots Up to 3x PCIe Gen4 or 2x Gen5 slots
GPU Support Up to 4x 75W SW No GPU support
Storage Up to 16x E3.S, 10x 2.5" or 4x 3.5"
Rear 2x E3.S		 Up to 10x 2.5" or 4x 3.5"
Rear 2x 2.5"
Networking Up to 2x OCP 3.0 2x 1GbE LOM + 1x OCP 3.0
Management iDRAC10 iDRAC9
Cooling Air Air
Power 800W to 1500W 600W to 1800W
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

The R470 is a single-socket server that takes one Intel Xeon 6 processor: either an E-core model with up to 144 cores, or a P-core model with up to 86 cores (R1S option, max TDP up to 350W). P-core R1S processors provide more PCIe lanes, up to 136 PCIe Gen5 lanes per CPU.

It has 16 DDR5 RDIMM slots (8 channels) running at up to 6400 MT/s at one DIMM per channel and 5200 MT/s at two. Maximum capacity is 1TB with an Intel Xeon 6 E-core processor or 4TB with a P-core R1S processor. Only registered ECC DDR5 DIMMs are supported.

Yes. It supports up to four 75W single-width GPUs, which the R660xs it replaces did not offer. The R470 is air cooled with up to four dual hot-swap fan modules and N+1 fan redundancy.

Front options include 8 or 16 EDSFF E3.S Gen5 NVMe, 8x 2.5-inch SATA/NVMe, 10x 2.5-inch SATA/NVMe (with 4 universal bays) or 4x 3.5-inch SATA, which is paired with 2 rear E3.S NVMe drives. Boot is handled by BOSS-N1 with mirrored M.2 NVMe SSDs. Please specify your capacity needs when you submit your quote configuration.

Dell positions the R470 against the R660xs. It moves from up to two 4th/5th Gen Xeon Scalable CPUs (up to 32 cores) to one Xeon 6 CPU with up to 144 cores, raises memory speed from 5200 to 6400 MT/s and capacity from 1.5TB to 4TB, adds GPU support and E3.S NVMe storage, and upgrades management from iDRAC9 to iDRAC10.
