Quick Specs
1U rack server
Processor | Max: 2-4 Cores1 x Intel Processor
Memory | Max: 32GB4x DDR3 UDIMM 1600Mhz
Storage | Max: 6TB Cabled 2x LFF SAS/NL-SAS/SATA (HDD/SSD)
Mixing Drives is not supported
None
PCIe Slots:1x PCIe2.0 x16
GPU:None
Management:iDRAC6 optional
The Dell PowerEdge R210 II is an enterprise-ready, ultra-compact 1-socket rack server made for single-tier architectures.
Enjoy ultimate flexibility with the compact PowerEdge R210 II. Deployable in almost any environment, R210 II has the power you need to run your business and the scalability to help it grow. Share, manage and protect your data, all with one system.
Even better for business
Tailored to meet the needs of growing businesses and remote offices by offering enterprise-level performance, the compact PowerEdge R210 II rack server has what your business needs to increase productivity and provide better protection for important business data. The PowerEdge R210 II offers key data security and flexibility features. Whether it is running business applications that facilitate data sharing and protection or providing the management and scalability needed to support your business growth, the PowerEdge R210 II is an ideal choice for businesses and remote offices seeking exceptional performance.
Business value
The Dell PowerEdge R210 II has a choice of options that deliver value, including the required processor performance for business applications as well as impressive scalability to meet your business needs. The PowerEdge R210 II offers:
- Technology that delivers value with performance along with essential features to operate your small businesses efficiently.
- A range of technology options customizable to suit your business needs.
- A full selection of Intel processors to meet your performance needs. Choose from Intel Xeon processor E3-1200 product family, Intel Xeon processor E3-1200 V2 product family, Intel Pentium G600 and G800 series, or Intel Celeron G400 and G500 series.
Flexible, secure technology
Securing your most valuable asset, your data, is important. That is why the PowerEdge R210 II has built-in redundant hard drives, encryption, security and other data protection options to help keep your data as safe as possible. Coupled with the latest version of Windows Small Business Server 2011 (SBS 2011), the PowerEdge R210 II delivers an integrated solution that can further protect your data by providing automatic backup and restore functionality as well as offering email, remote access and collaboration to help take your business to the next level. The R210 II also includes lower wattage power supplies and features a built-in user interface for ease of deployment. With the PowerEdge R210 II you can:
- Protect data with hardware- and software-enabled encryption.
- Secure business information with a RAID configuration to make copies of data automatically.
- Provide email, collaboration, remote access and automatic backup and data restore functionality with Windows Small Business Server 2011.
- Make server deployment easy with the optional embedded management and deployment controller
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | PowerEdge R210 II Technical Specification | |
|---|---|---|
| Form factor | 1U rack | |
| Processors | Intel® Xeon® processor E3-1200 product family Intel Xeon processor E3-1200 V2 product family Dual-core Intel Pentium® G600 and G800 series Dual-core Intel Celeron® G400 and G500 series | |
| Processor sockets | 1 | |
| Frontside bus or HyperTransport | DMI II (Direct Media Interface) | |
| Cache | 8MB | |
| Chipset | Intel C202 | |
| Memory1 | Up to 32GB (4 DIMMs): 1GB/2GB/4GB/8GB DDR3 up to 1600MT/s | |
| I/O Slots | One PCIe x16 G2 slot | |
| RAID controller | Internal controllers: PERC H200 (6Gb/s) PERC S100 (software based) PERC S300 (software based) External HBAs (non-RAID): PERC H800 (6Gb/s) with 512MB of battery-backed cache; 512MB, 1GB non-volatile battery-backed cache External HBAs (non-RAID): 6Gbps SAS HBA | |
| Drive bays | Cabled options available: Up to two 3.5” SAS, SATA or SSD drives | |
| Maximum internal storage1 | Up to 6TB | |
| Hard drives | Cabled hard drive options: 2.5” SATA SSD, SAS (10K) 3.5” SAS (15K), nearline SAS (7.2K), SATA (7.2K, 5.4K) | |
| Communications | Broadcom NetXtreme 5709 Dual Port Gigabit Ethernet NIC, Copper, with TOE PCIe x4 Broadcom NetXtreme 5709 Dual Port Gigabit Ethernet NIC, Copper, TOE/iSCSI PCIe x4 Broadcom NetXtreme II 5709 Quad Port Gigabit Ethernet NIC, Copper, with TOE/iSCSI PCIe x4 Intel Gigabit ET Dual Port Adapter, Gigabit Ethernet NIC, PCIe x4 Intel Gigabit ET Quad Port Adapter, Gigabit Ethernet NIC, PCIe x4 | |
| Power supply | Single cabled power supply, 250W (80+ SILVER) | |
| Availability | Quad-pack LED diagnostics, ECC Memory, add-in RAID, TPM/TCM | |
| Video | Matrox® G200eW with 8MB memory | |
| Remote management | iDRAC6 optional | |
| Systems management | Dell™ OpenManage™ BMC, IPMI 2.0 compliant Unified Server Configurator Lifecycle Controller enabled through optional iDRAC6 Express, iDRAC6 Enterprise, and vFlash media | |

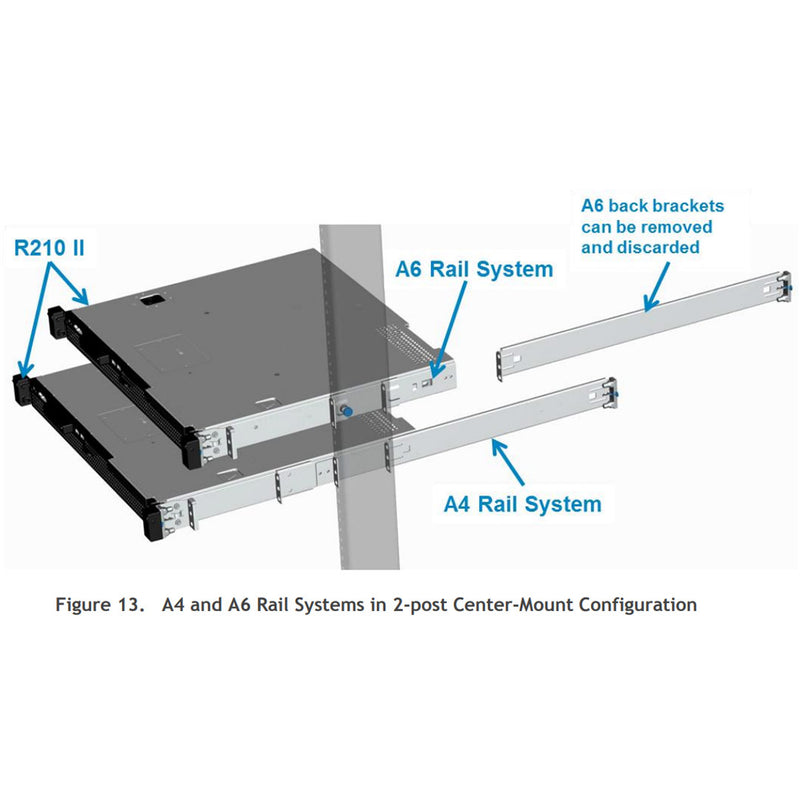

| Rack support | ReadyRails™ static rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks | |
| Operating systems | Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 Essentials Microsoft Windows® Small Business Server 2011 Microsoft Windows Server 2008 R2 Foundation SP12 Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V®) Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V) Microsoft Windows HPC Server 2008 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux® | Virtualization options: VMware® vSphere® ESXi™ Citrix® XenServer® Red Hat Enterprise Virtualization® For more information on the specific versions and additions, visit Dell.com/OSsupport. |
| Featured database application | Microsoft SQL Server® solutions (see Dell.com/SQL) | |
Spec Sheet 4
| Feature | R210 | R210II | R310 |
|---|---|---|---|
| Processor | Intel® Xeon® processor 3400 series Intel Celeron® G1101 Intel Pentium® G6950 Intel Core™ i3 processor 500 series |
Intel Xeon processor
E3-1200 product family Intel Xeon processor E3-1200 V2 product family Intel Pentium G600 and G800 series Intel Celeron G400 and G500 series |
Intel Xeon processors 3400
series Intel Celeron G1101 Intel Pentium G6950 Intel Core i3 processor 500 series |
| Front Side Bus | Direct Media Interface (DMI) 2.5Gb/s |
Direct Media Interface II (DMI) 5.0Gb/s |
Direct Media Interface (DMI) 2.5Gb/s |
| Sockets | 1 | 1 | 1 |
| Cores | 2 or 4 | 2 or 4 | 2 or 4 |
| L2/L3 Cache | Up to 8MB | Up to 8MB | Up to 8MB |
| Chipset | Intel 3420 | Intel C202 | Intel 3420 |
| DIMMs | 4 DDR3 1066/1333MT/s | 4 DDR3 up to 1600MT/s | 6 DDR3 1066/1333MT/s |
| Min/Max RAM | 1GB/32GB | 1GB/32GB | 1GB/32GB |
| Hard Drive Bays | 2 x 3.5” or 2 x 2.5” |
2 x 3.5” or 4 x 2.5” |
4 x 3.5” or 4 x 2.5” Optional hot-plug |
| Hard Drive Types | SATA SSD, SAS, nearline SAS, SATA | SATA SSD, SAS, nearline SAS, SATA | SATA SSD, SAS, nearline SAS, SATA |
| External Drive Bay | 1 for slim optical disk drive (ODD) | 1 for slim optical disk drive (ODD) | 1 for slim optical disk drive (ODD) |
| Embedded Hard Drive Controller | Chipset-based SATA | Chipset-based SATA, PERC S100 (embedded SW RAID) | Intel 3420, PERC S100 (embedded SW RAID) |
| Optional Storage Controller | Non-RAID: SAS 5/E LSI 2032 (for tape backup unit only) RAID: SAS 6/iR PERC 6/E PERC S100 (software RAID) PERC S300 (software RAID) PERC H200 PERC H800 |
Non-RAID:
6Gb/s SAS HBA RAID: PERC S100 (software RAID) PERC S300 (software RAID) PERC H200 PERC H800 |
Non-RAID:
SAS 5/E LSI 2032 (for tape backup unit only) 6Gb/s SAS HBA RAID: SAS 6/iR PERC 6/E SAS 5/E PERC S300 (software RAID) PERC H200 PERC H700 PERC H800 |
| Availability | ECC memory, quad-pack LED diagnostic, add-in RAID, TPM/CTPM | ECC memory, quad-pack LED diagnostic, add-in RAID, TPM/CTPM | ECC memory, hot-plug hard drives, redundant power supplies, quad-pack LED diagnostic or LCD (with hotplug hard drive chassis), TPM |
| Server Mgt. | BMC, IPMI 2.0 compliant,
full Dell OpenManage™
suite Optional: iDRAC6 Express, iDRAC6 Enterprise, vFlash media |
BMC, IPMI 2.0 compliant,
full Dell OpenManage suite Optional: iDRAC6 Express, iDRAC6 Enterprise, vFlash media |
BMC, IPMI 2.0 compliant,
full Dell OpenManage suite Optional: iDRAC6 Express, iDRAC6 Enterprise, vFlash media |
| I/O Slots | 1 x PCIe x16 | 1 x PCIe x16 | 1 x PCIe x16 (x8 routing) 1 x PCIe x8 (x8 routing) 1 x PCIe x8 (x4 routing) |
| NIC/LOM | 2 x GbE LOM | 2 x GbE LOM | 2 x GbE LOM |
| USB | 2 front, 2 back, 2 internal | 2 front, 2 back, 2 internal | 2 front, 2 back, 2 internal |
| Power Supplies | Non-redundant, 250W (80+ Bronze) autoranging (100V~240V) | Non-redundant, 250W (80+ Bronze) auto-ranging (100V~240V) | Non-redundant, 350W
(80+ Bronze) Optional redundant, 400W (80+ Silver) auto-ranging (100V~240V) |
| Fans | Non-redundant, non-hotpluggable | Non-redundant, non-hotpluggable | Non-redundant, non-hotpluggable |
| Form Factor | 1U Rack | 1U Rack | 1U Rack |
