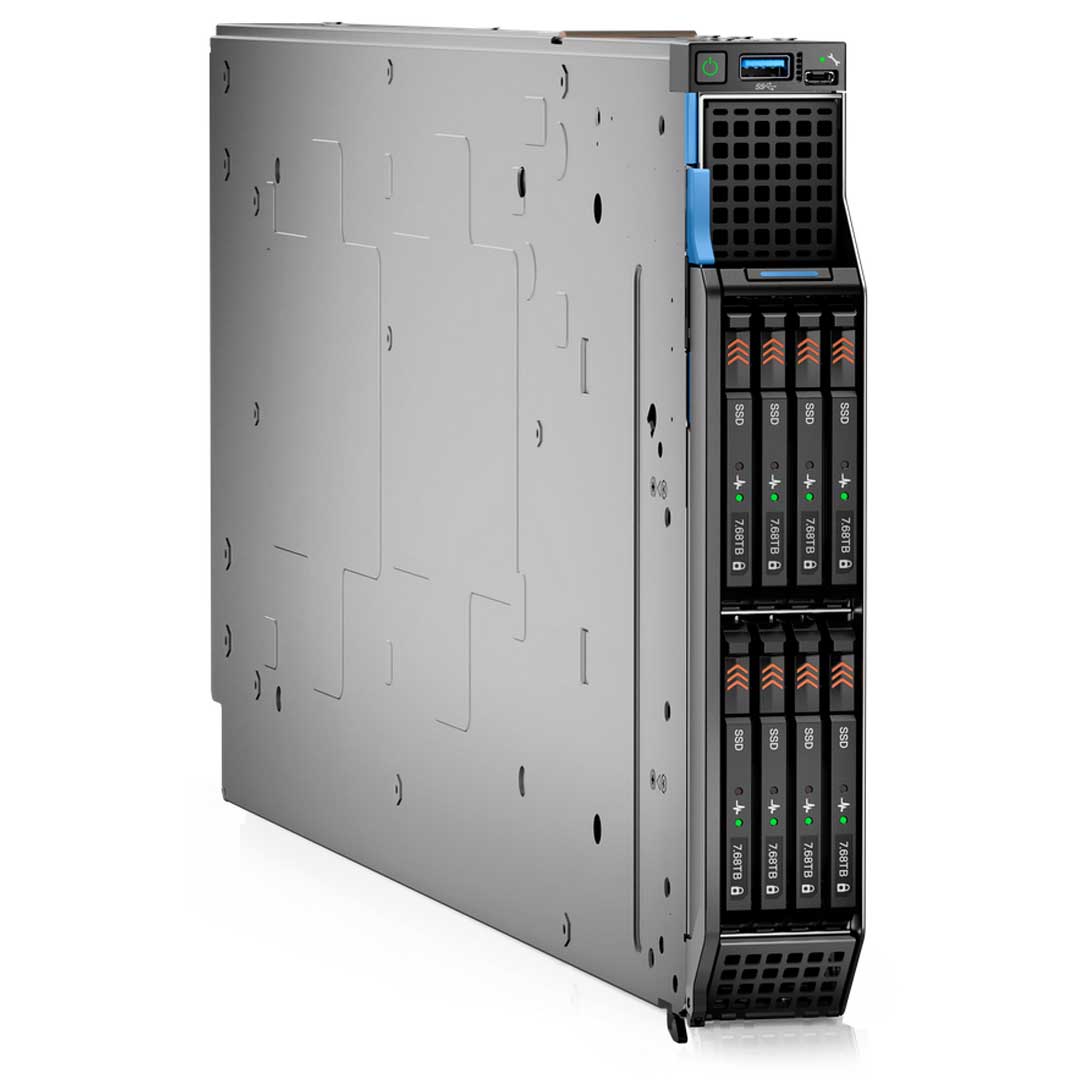

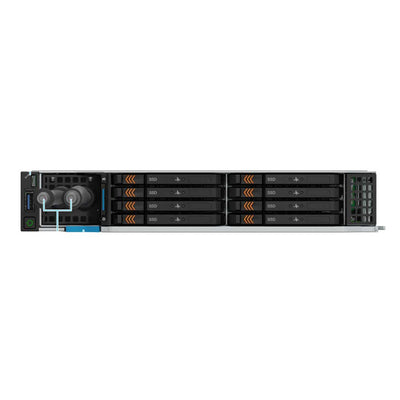

    Dell PowerEdge MX760c 8 EDSFF E3.S Compute Sled Chassis


    Price: Request a Quote

    Brand:
    MPN:
    DPE-MX760c-8-EDSFF-Chassis
    Type:
    Chassis
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    Dell PowerEdge MX760c 8 EDSFF E3.S Compute Sled Chassis

    Quick Specs

    Form Factor:

    Single Width Compute Sled

    Processor | Max: 56 Cores

    2 x 4th Generation Intel Xeon Scalable

    Memory | Max: 8TB

    32 DDR5 RDIMM 4800Mhz

    Storage | Max: 92TB

    8 E3.S EDSFF Gen 5 NVMe Max: 61TB
    6 SFF SAS/SATA/NVMe Max: 92TB
    6 SFF SAS/SATA Max: 46.08TB
    4 SFF SAS/SATA Max: 61TB

    Storage Controller:

    S160 (SW RAID SATA/NVMe)
    PERC H755 MX, H965i MX, HBA350i MX

    Fabrics:

    Supports a 100 Gb NIC per port for Mezz A/B

    Boot Options:

    BOSS-N1 (480GB or 960GB)
    USB

    Remote Management:

    iDRAC9 with Lifecycle Controller

    Ideal for:

    • Artificial Intelligence (AI)
    • Big Data Analytics
    • Virtualization
    MX7000 Supported Sled Options

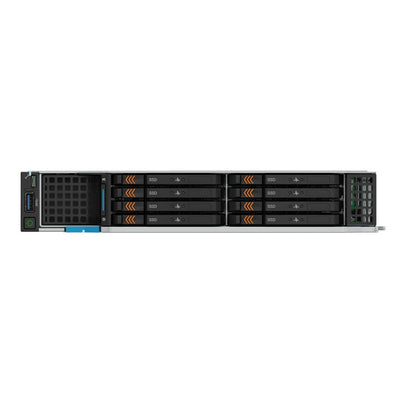

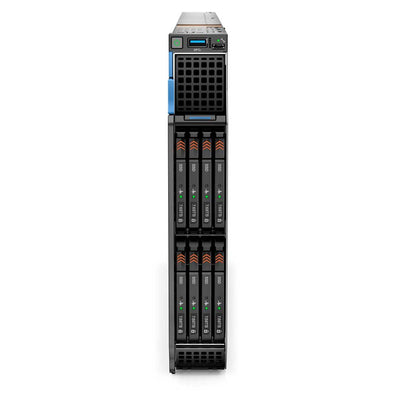

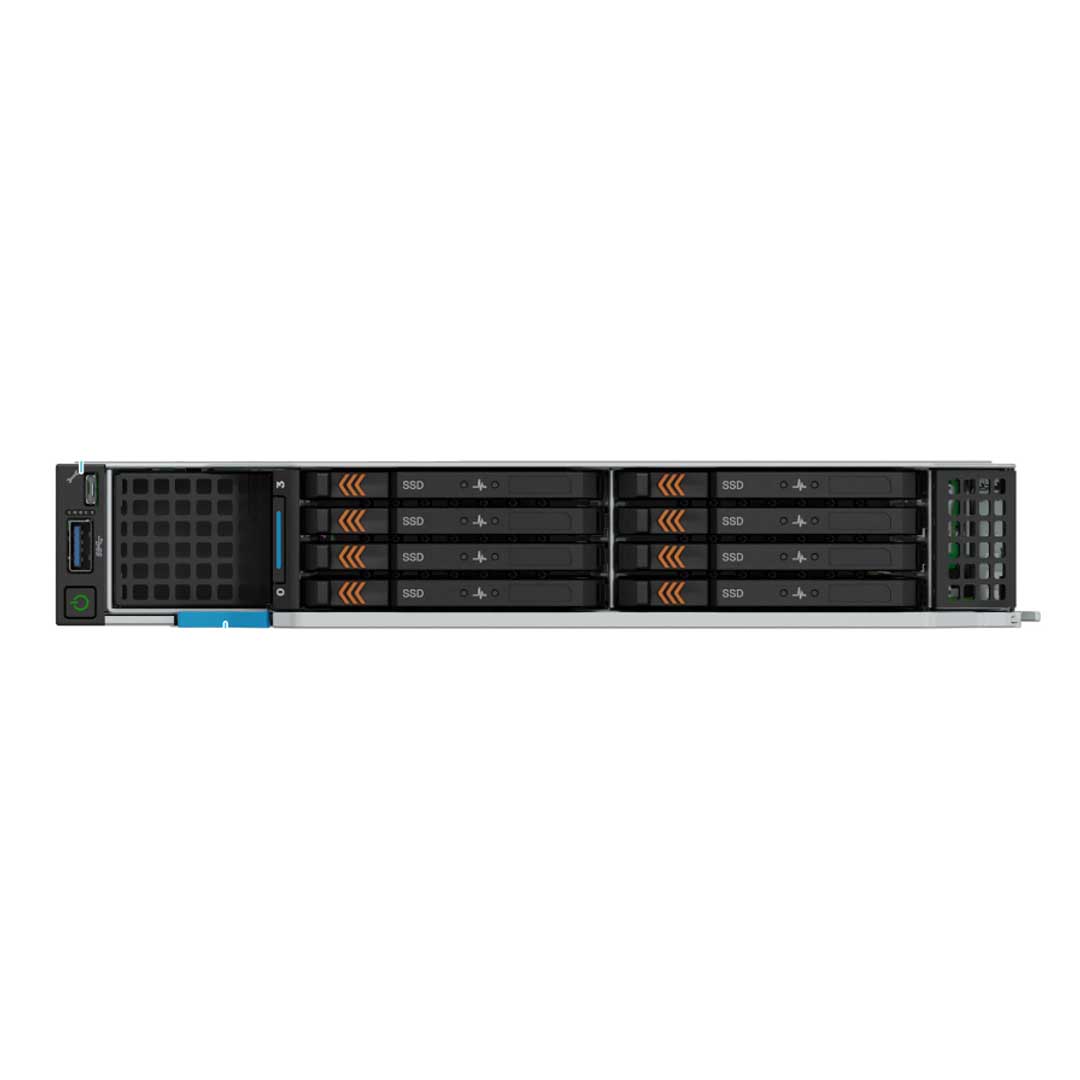

    This is the MX760c Compute Sled Image

    Each Node is a separate CTO you must configure.

    High performing system:
    • Add up to two 4th generation Intel® Xeon® Scalable processors with up to 56 cores per socket for faster performance
    • Support for higher-speed and dense memory capacity, optimized for 2 DIMMs/channel and up to 32 DDR5 DIMMs 4800 MT/s

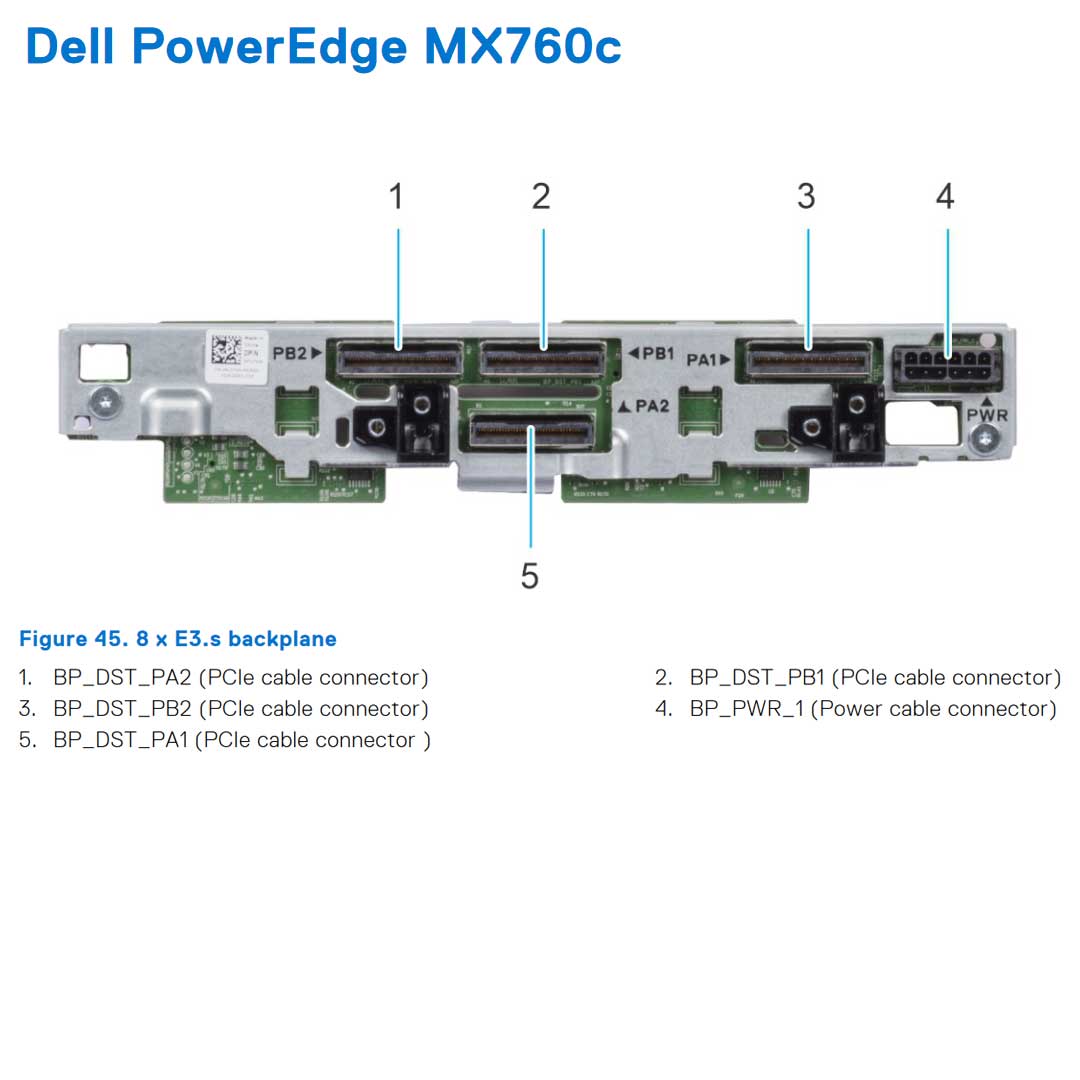

    • Storage options include increased storage density with E3.S EDSFF NVME devices/PCIe Gen5, and up to 64 E3.S devices per chassis
    • Introduction of the 100G switch with simplified common management.
    A breeze to cool

    Thoughtfully designed to fit in your current air-cooled infrastructure

    • Alleviate the worry about expensive liquid cooling retrofitting to your data center
    • Synchronize your workload needs with a tailored performance configuration that is an air-cooled system
    • Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements

    Increase efficiency and accelerate operations with an autonomous infrastructure

    The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

    Cyber Resilient Architecture for Zero Trust IT environment & operations

    Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

    Mezzanine & PERCs

    The MX760c is different from the MX740c and the MX750c. This server does not have a JUMBO PERC. Even though a few of the PERCs seem JUMBO. They do not support the Fab C slot as well as the PERC slot. You will need to install both cards if you want access to the Expansion Storage Array MX5016s.

    Image of the Mini-Mezzanine for Fab C
    Mini-Mezzanine

    The Mini-Mezzanine is installed in the rear of the system near the Fab A and B Mezzanine Cards. This Mini Mezzanine gets connected to the Fab C in the MX7000 Enclosure. Only certain cards are supported here.

    Image of the Storage Controller
    PERC

    These PERCs are only supporting the Storage in this blade server. The large MX PERC do not support the MX5016s like the HBA330 and HBA350i controllers do. You are also able to install any perc with the mezzanine card for fab c.

    BOOT Options

    The MX760c has the option to install the OS with the BOSS Module or internal USB. If you're trying to boot the Hypervisor you can use the Internal USB.

    Image of the Internal USB
    Internal USB

    The Internal USB is the only other way to handle Booting. This USB can handle both the main OS and the OS on the hypervisor. For iDRAC Support use one front USB 2.0 management port.

    Image of the BOSS
    BOSS

    This Boot Optimized Sub System is ideal for loading the OS onto any server. It saves a drive from being allocated for this job and does not take up any PCIe slots. This system does not support any IDSDM.

    Looking to Customize?

    Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

    Start Customizing Today!
