Specs
Quick Specs

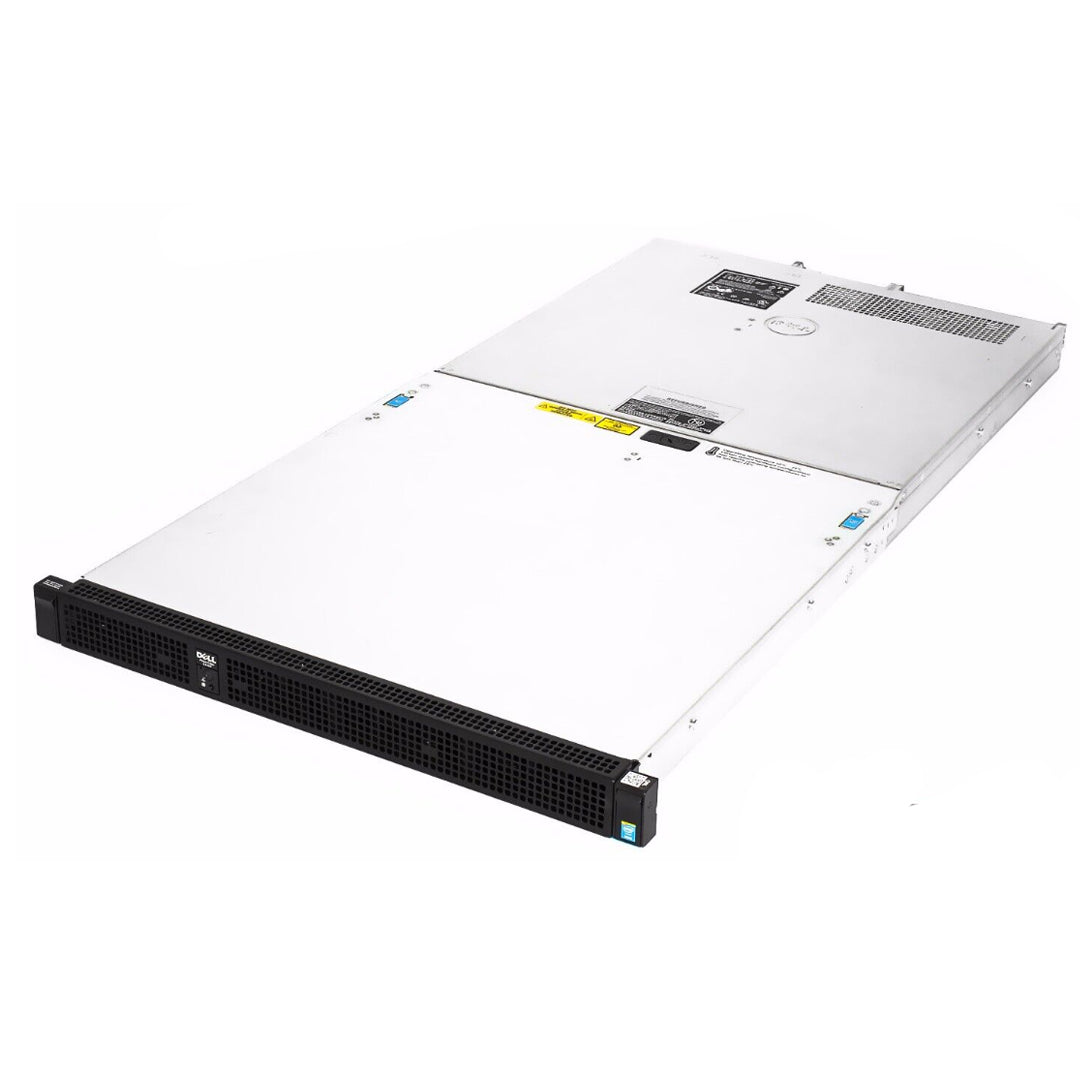

1U rack server
Processor | Max: N/A2 x Intel Xeon E5-2600v4
Memory | Max:16 DDR4 RDIMM or LRDIMM 2400Mhz
Storage | Max: N/A2 SFF 1.8" or 4x SFF (HDD/SSD)
Rear Storage:None
PCIe Slots:2 PCIe 3.0
GPU:Up to four 300W SMX2 or PCIe
The PowerEdge C4130 provides supercomputing agility and performance in an ultra-dense platform purpose-built for high performance computing (HPC) and virtual desktop infrastructure (VDI) workloads. Speed through complex research, simulation and visualization problems in medicine, finance, energy exploration and related fields without compromising on versatility or data center space.

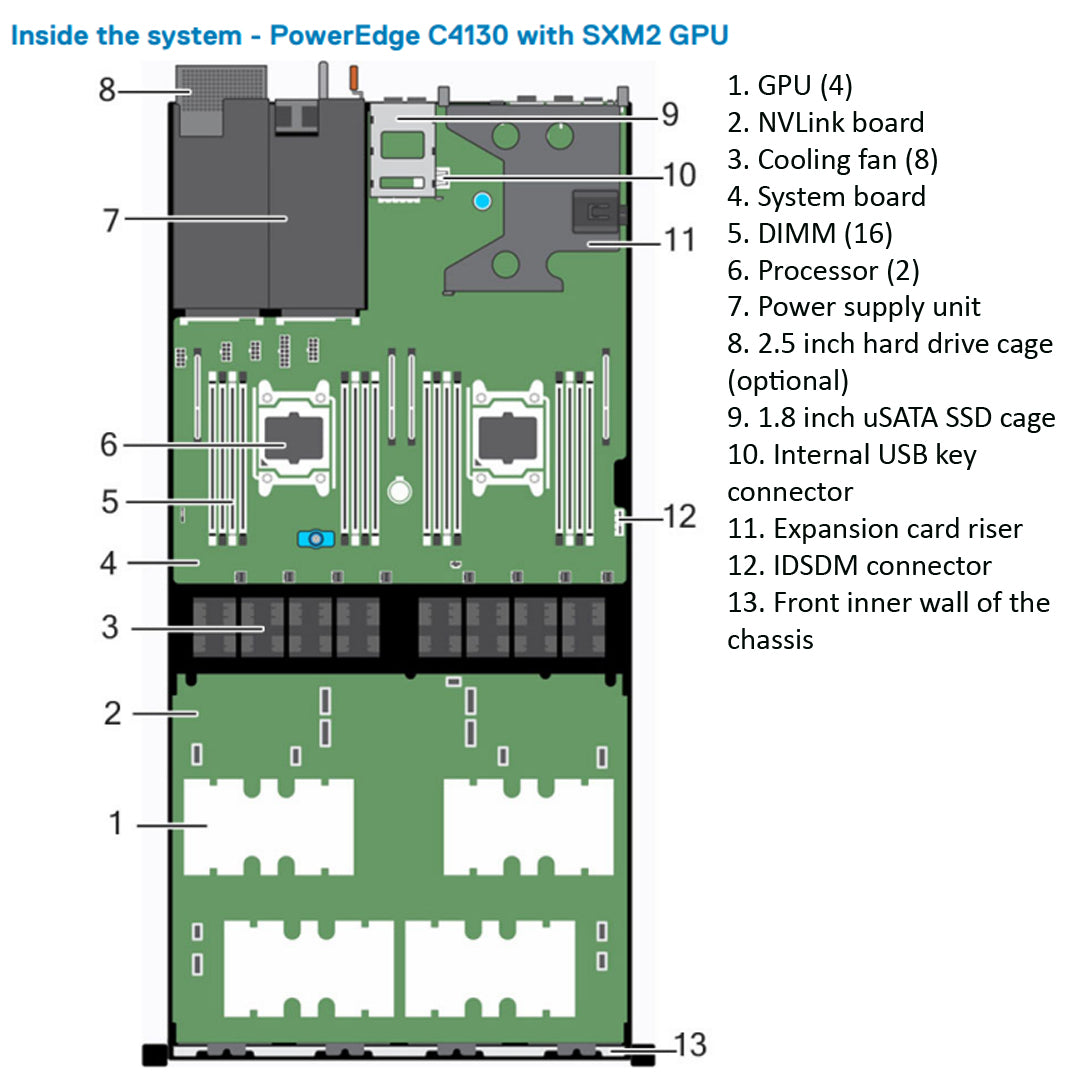

The C4130 Rack server supports two different types of GPUs on a 2 socket Intel E5-2600v4 system. The systems with NVLink board configuration do not support the optional 2.5 inch hard drive cage. While the PCIe GPU system supports either options. Both the PSUs work simultaneously, and your system does not support the PSU redundancy feature.
-All GPU cards must be of the same type and model. Mixing GPUs is not supported.
-Incorrect removal and installation of the GPUs will cause operational issues to your system.
Get results faster with greater precision by combining up to two Intel Xeon E5-2600 v4 processors and up to four 300W dual-width PCIe accelerators in each C4130 server. Support for NVIDIA Tesla GPUs and Intel Xeon Phi coprocessors along with up to 1TB of DDR4 memory gives you ultimate control in matching your server architecture to your specific performance requirements.
Discover greater versatility
Enable extreme I/O flexibility for workload optimization with up to two PCIe 3.0 expansion slots and an optional 96-lane PCIe 3.0 switch that allows accelerators to be pooled across processors. Support for InfiniBand EDR and NVIDIA GPUDIRECT lets you tailor data throughput and reduce latency, while support for InfiniBand EDR protects your IT investment and reduces TCO.
Maximize operational efficiency
Optimize data center energy use with granular control of power and cooling using intuitive management tools that improve IT productivity and drastically reduce time spent on deployment and support tasks. Fault-tolerant cooling and redundant power supply options further increase server uptime and reduce costly interruptions for mission critical applications.
Purpose-built acceleration solution
The PowerEdge C4130 is an incredibly dense rack server designed to accelerate a range of demanding workloads including high-performance computing (HPC).
With up to four 300W double-width GPU accelerators or co-processors in just 1U of space — and with five unique configurations tailored to your needs — the C4130 delivers outstanding performance, flexibility and efficiency while reducing your space, cost and management requirements.
Meet your precise compute needs
Match your unique workload requirements with a balanced architecture offering a flexible combination of accelerator, processor, memory and I/O options.
- Scalable performance with the latest Intel Xeon processor E5-2600 v4 product family (up to two processors), and up to 1TB of DDR4 memory
- I/O flexibility with two rear PCIe 3.0 slots and support for InfiniBand FDR
- Multiple configuration options including support for up to four GPUs or co-processors, even with a single CPU
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical specification | |
|---|---|---|
| Form factor | 1U rack server | |
| Dimensions and weight | H: 4.31 cm (1.7 in), W: 43.4 cm (17.09 in), D: 88.58 cm (34.87 in); max weight: 20.2 kg (44.53 lb) | |
| Processor | Intel® Xeon® processor E5-2600 v4 product family Processor sockets: 2 Chipset: C612 series Internal interconnect: Up to 9.6GT/s | |
| Memory | DDR4 DIMMs at up to 2400MT/s; 16 DIMM slots: 4GB/8GB/16GB/32GB/64GB | |
| Supported GPUs | NVIDIA Tesla K40, K80, M60, M40, P100 16GB, P100 12GB, and M10. | |
| Network controller | 2 x 1GbE LOM | |
| Optional adapters | Emulex LPE 12000, Single Port 8Gb Fibre Channel HBA, Low Profile Emulex LPE 12002, Dual Port 8Gb Fibre Channel HBA, Low Profile Emulex LPe15000B-M8-D Single Port 8Gb Fibre Channel Adapter, Low Profile Emulex LPe15002B-M8-D Dual Port 8G Fibre Channel Adapter, Low Profile Emulex LPe16000B, Single Port 16Gb Fibre Channel HBA, Low Profile Emulex LPe16002B, Dual Port 16Gb Fibre Channel HBA, Low Profile Emulex LPe31000-M6-D Single Port 16Gb Fibre Channel HBA, Low Profile Emulex LPe31002-M6-D Dual Port 16Gb Fibre Channel HBA, Low Profile Intel Ethernet X540 DP 10GBASE-T Server Adapter, Low Profile Intel Omni-Path Host Fabric Adapter 100 Series 1 Port PCIe x16, Low Profile Intel X520 DP 10Gb DA/SFP+ Server Adapter, Low Profile Intel X550 Dual Port 10G Base-T Adapter, Low Profile Intel X710 Dual Port 10Gb Direct Attach, SFP+, Converged Network Adapter, Low Profile | Intel X710 Dual Port 10Gb, SFP+, Converged Network Adapter, Low Profile, With SR Optics Mellanox ConnectX® -3 Dual-Port VPI FDR LP Infiniband Adapter Mellanox ConnectX® -3 Single-Port VPI FDR LP Infiniband Adapter Mellanox ConnectX-3, Dual Port, VPI FDR, QSFP+ Adapter Mellanox ConnectX-3, Dual Port, VPI FDR, QSFP+ Adapter, with Optics Mellanox ConnectX-3, Single Port, VPI FDR, QSFP+ Adapter Mellanox ConnectX-3, Single Port, VPI FDR, QSFP+ Adapter, with Optics Mellanox ConnectX-4 Dual Port, EDR, VPI QSFP28 Low Profile Adapter Mellanox ConnectX-4 Single Port, EDR, VPI QSFP28 Low Profile Adapter QLogic 2560, Single Port 8Gb Optical Fibre Channel HBA, Low Profile QLogic 2562, Dual Port 8Gb Optical Fibre Channel HBA, Low Profile Qlogic 2660, Single Port 16Gb, Fibre Channel HBA, Low Profile Qlogic 2662, Dual Port 16GB Fibre Channel HBA, Low Profile |
| I/O slots | Up to 2x PCIe 3.0 low-profile adapters (back) Intel H-series (OmniPath) | Optional 96-lane PCIe 3.0 switch for certain accelerator configurations 4 x16 PCIe slots (front) for the GPU |
| Storage | Up to 2 x 1.8" SATA SSD boot drives Optional data drive tray supports up to 4 x 2.5" SAS/SATA drives Optional 12Gb/s SAS and 6Gb/s SATA (with PERC9 card) | |
| RAID controller | Optional internal controller: PERC H330, H730, H730P and H810 | |
| Power supplies | 1600W, 2000W hot-plug power supply unit (PSU) Redundant PSU (1+1) option available | |
| Systems management | Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) iDRAC Quick Sync | Dell OpenManage Integrations: •Dell OpenManage Integration Suite for Microsoft® System Center Dell OpenManage Connections: •HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management •Dell OpenManage Plug-in for Oracle® Database Manager |
| Operating systems | Microsoft Windows Server® 2012 Microsoft Windows Server 2012 R2 Novell® SUSE® Linux Enterprise Server Citrix® XenServer® | Red Hat® Enterprise Linux VMware® ESX® For information on specific operating systems and additions, visit Dell.com/OSsupport. |
