Dell PowerEdge XE9785L

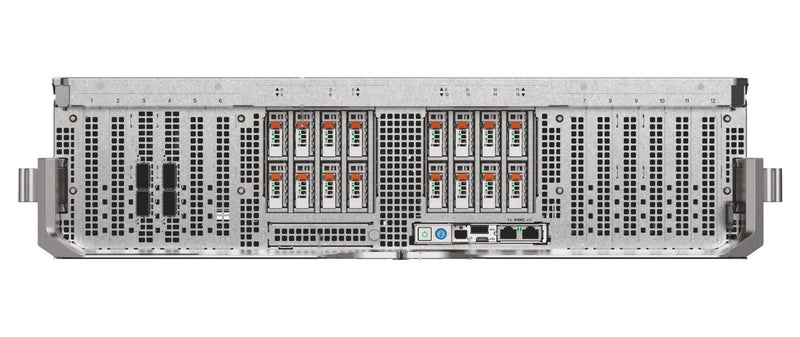

The Dell PowerEdge XE9785L is a liquid-cooled 3OU compute node for Dell's IR7000 rack, built for AI model training, fine-tuning and inference at scale. Two 5th Gen AMD EPYC 9005 processors with up to 192 cores each drive eight AMD Instinct MI355X or NVIDIA HGX B300 GPUs with 288GB each. Cold plates cool the CPUs, GPUs and NVLink switches, and power comes from the rack's 33kW power shelf. Fully configurable.

Looking to compare? See its air-cooled twin, the Dell PowerEdge XE9785, or the Gen 16 liquid-cooled Dell PowerEdge XE9680L.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 3OU liquid-cooled node for IR7000 rack
  • Processors: Up to 2x 5th Gen AMD EPYC 9005
  • Memory: 24x DDR5 RDIMM slots, up to 6TB
  • Memory Speed: Up to 6400 MT/s
  • Storage: Up to 16x E1.S or 8x U.2 NVMe
  • Expansion: Up to 12x PCIe Gen5 x16
  • GPU Support: 8x AMD Instinct MI355X or NVIDIA HGX B300
  • Networking: 8x CX8 OSFP (B300), 1x OCP 3.0
  • Management: iDRAC10
  • Cooling: Direct liquid cooling, 12 hot-swap fans
  • Power: Rack power shelf, 6x 5500W PSUs

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  XE9785L →

Customize & Get Pricing

Configure your Dell PowerEdge XE9785L with the exact specs you need

Configure This Server

Dell PowerEdge XE9785L vs XE9785: Specs & Key Differences

Feature PowerEdge XE9785L PowerEdge XE9785
Processors Up to 2x 5th Gen AMD EPYC 9005 (up to 192 cores) Up to 2x 5th Gen AMD EPYC 9005 (up to 192 cores)
Memory 24x DDR5 RDIMM slots, up to 6TB 24x DDR5 RDIMM slots, up to 6TB
Memory Speed Up to 6400 MT/s Up to 6400 MT/s
Storage Up to 16x E1.S or 8x U.2 NVMe SSDs Up to 16x E3.S or 10x U.2 Gen5 NVMe SSDs
PCIe Up to 12x PCIe Gen5 x16 (MI355X) or 4x (B300) Up to 12x PCIe Gen5 x16 (MI355X) or 4x (B300)
GPU Support 8x AMD Instinct MI355X OAM or NVIDIA HGX B300 SXM6 8x AMD Instinct MI355X OAM or NVIDIA HGX B300 SXM6
Networking 8x CX8 OSFP (B300), 1x OCP 3.0 (x16), 2x iDRAC ports 8x CX8 OSFP (B300), 1x OCP 3.0 (x8), 2x iDRAC ports
Management iDRAC10 iDRAC10
Cooling Direct liquid cooling, plus 12 fans Air
Power Rack power shelf, 6x 5500W PSUs (33kW) 12x Titanium 3200W (6+6)
Form Factor 3OU compute node, IR7000 rack 10U Rack

Frequently Asked Questions

It takes one of two eight-GPU boards: eight AMD Instinct MI355X 288GB 1400W OAM accelerators connected through AMD Infinity Fabric, or eight NVIDIA HGX B300 288GB 1100W SXM6 GPUs connected through NVLink. Every GPU is direct liquid cooled, and the B300 board adds eight embedded ConnectX-8 OSFP ports for back-end cluster networking.

Two 5th Gen AMD EPYC 9005 Series processors, with SKUs from 48 up to 192 cores, speeds up to 3.6 GHz and up to 500W TDP. Each socket has twelve DDR5 channels at one DIMM per channel, giving 24 RDIMM slots that run at up to 6400 MT/s. With 96GB or 128GB RDIMMs memory reaches 2.3TB or 3TB, and Dell lists 256GB RDIMMs for up to 6TB as a future option.

Storage is NVMe only: up to sixteen E1.S SSDs or eight 2.5-inch U.2 SSDs, with room for two more U.2 drives on CEM cards in the PCIe slots, plus an embedded BOSS with two M.2 NVMe SSDs in hardware RAID 0/1 for the OS. With MI355X GPUs there are up to twelve front PCIe Gen5 x16 FHHL slots, or four with B300, and one OCP 3.0 NIC slot with x16 lanes. Please specify your capacity needs when you submit your quote configuration.

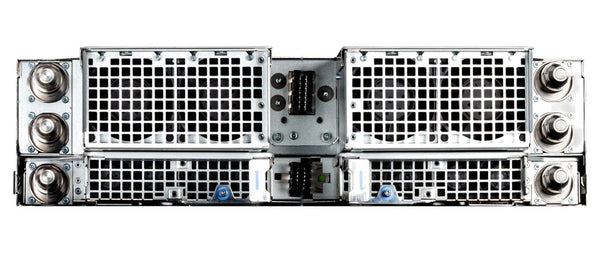

Cold plates on the CPUs, GPUs and NVLink switches connect to the rack's liquid loop through quick disconnects at the rear, and twelve hot-swap fans, four on the GPU board and eight on the CPU tray, cool the rest with N+1 redundancy. Dell supports coolant supply temperatures up to 40°C. The node has no power supplies of its own; it draws 49V DC from the IR7000 rack's 33kW power shelf, which holds six 5500W hot-swap PSUs.

Both run two 5th Gen AMD EPYC 9005 CPUs, 24 DDR5-6400 RDIMM slots, eight MI355X or HGX B300 GPUs and iDRAC10. The XE9785 is a self-contained 10U air-cooled server with twelve 3200W PSUs and up to 16 E3.S or 10 U.2 drives. The XE9785L is a 3OU liquid-cooled node that installs in Dell's IR7000 rack, takes its power from the rack's power shelf and holds up to 16 E1.S or 8 U.2 drives, for dense, rack-scale GPU deployments.
