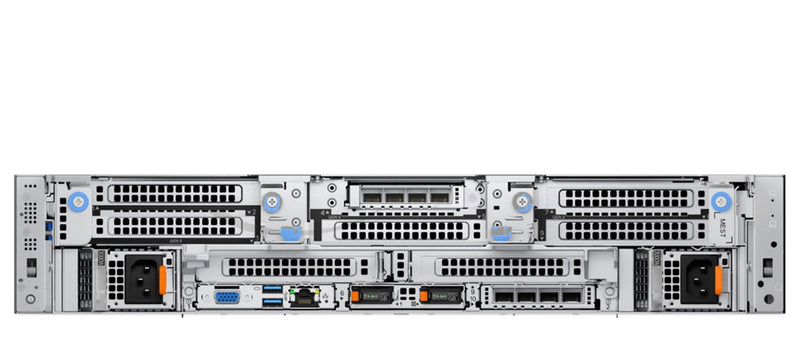

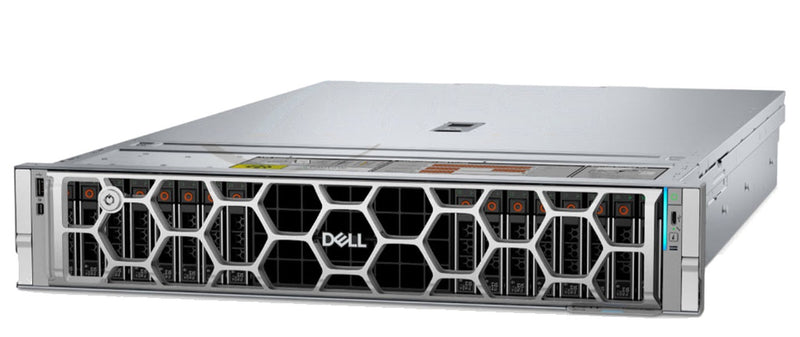

Dell PowerEdge R770AP

The Dell PowerEdge R770AP is a 2U dual-socket rack server built for maximum core density, consolidating large virtualization farms, mission-critical databases, analytics and AI-driven applications. It runs up to two Intel Xeon 6 6900-series processors with up to 128 P-cores each, with 24 DDR5 RDIMM slots for up to 3TB at up to 6400 MT/s. All-flash storage takes up to 16x 2.5" Gen5 NVMe or 32x E3.S NVMe drives on PERC H975i. Up to five PCIe Gen5 slots, dual OCP 3.0 networking, hot-swap fans, Titanium power supplies from 1500W to 3200W and iDRAC10 round it out. Fully configurable.

Looking to compare generations? See the Gen 16 Dell PowerEdge R760, or compare Gen 17 models: Dell PowerEdge R770 and Dell PowerEdge R670.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 2U Rack
  • Processors: Up to 2x Intel Xeon 6 6900-series (up to 128 P-cores)
  • Memory: 24x DDR5 RDIMM slots, up to 3TB
  • Memory Speed: Up to 6400 MT/s
  • Storage: Up to 16x 2.5" NVMe or 32x E3.S NVMe
  • Expansion: Up to 5x PCIe Gen5 slots
  • GPU Support: Not supported
  • Networking: 1GbE BMC port, up to 2x OCP 3.0
  • Management: iDRAC10
  • Cooling: Air, up to 6 hot-swap fans
  • Power: Redundant PSUs, 1500W to 3200W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R770AP →

Customize & Get Pricing

Configure your Dell PowerEdge R770AP with the exact specs you need

Configure This Server

Dell PowerEdge R770AP vs R760: Specs & Key Differences

Feature PowerEdge R770AP PowerEdge R760
Processors Up to 2x Intel Xeon 6 6900-series (up to 128 P-cores) Up to 2x 4th or 5th Gen Intel Xeon Scalable
Memory 24x DDR5 RDIMM slots, up to 3TB 32x DDR5 DIMM slots, up to 8TB
Memory Speed Up to 6400 MT/s Up to 5600 MT/s
Storage Up to 16x 2.5" NVMe or 32x E3.S NVMe Up to 24x 2.5", 12x 3.5" or E3.S
PCIe Up to 5x PCIe Gen5 Up to 8x PCIe (Gen5 support)
GPU Support Not supported Up to 2x 350W DW or 6x 75W SW
Networking 1GbE BMC port, up to 2x OCP 3.0 Optional OCP 3.0 + 1GbE LOM
Management iDRAC10 iDRAC9
Cooling Air Air or Direct Liquid Cooling
Power 1500W to 3200W Titanium Hot-swap redundant PSUs
Form Factor 2U Rack 2U Rack

Frequently Asked Questions

Up to two Intel Xeon 6 6900-series processors with P-cores, offering up to 128 cores per socket and up to 500W TDP, such as the 6952P, 6960P, 6972P, 6978P and 6980P.

Twenty-four DDR5 RDIMM slots (12 per processor) support up to 3TB at speeds up to 6400 MT/s.

It is all-flash: up to sixteen 2.5-inch Gen5 NVMe drives or up to thirty-two EDSFF E3.S Gen5 NVMe drives on a PERC H975i controller, plus BOSS-N1 M.2 boot. There are no rear drive bays. Please specify your capacity needs when you submit your quote configuration.

No. Dell's spec sheet lists no GPU options, so the R770AP is aimed at CPU-dense compute rather than acceleration.

The R770AP moves to Xeon 6 6900-series with up to 128 P-cores per socket, DDR5-6400 memory, all-NVMe Gen5 storage and iDRAC10. The Gen 16 R760 offers more DIMM slots (up to 8TB), SAS/SATA and 3.5-inch drive options, GPU support and liquid cooling.
