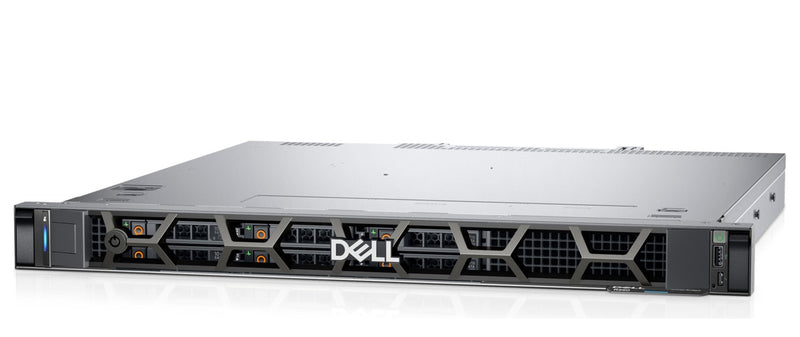

Dell PowerEdge R260

The Dell PowerEdge R260 is a short-depth 1U single-socket rack server for small businesses and near-edge sites, powered by one Intel Xeon E-2400 or Xeon 6300 series processor. It offers 4 DDR5 ECC UDIMM slots (up to 128GB at up to 4400 MT/s), up to two PCIe Gen4 slots, 2x 1GbE LOM and up to 6x 2.5" or 2x 3.5" drives, with an option for two direct-attach NVMe drives. Managed by iDRAC9, it fits deployments in warehouses, retail offices or on a simple desk or shelf. Fully configurable.

Looking to compare generations? See the Gen 17 Dell PowerEdge R470, or compare Gen 16 models: Dell PowerEdge R360 and Dell PowerEdge R660xs.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack, short depth
  • Processors: 1x Intel Xeon E-2400 or Xeon 6300
  • Memory: 4x DDR5 UDIMM slots, up to 128GB
  • Memory Speed: Up to 4400 MT/s
  • Storage: Up to 6x 2.5" or 2x 3.5"
  • Expansion: Up to 2x PCIe Gen4 slots
  • GPU Support: Not supported
  • Networking: 2x 1GbE LOM, optional NIC
  • Management: iDRAC9
  • Cooling: Air, up to 6 cabled fans
  • Power: Non-redundant PSU, 450W or 700W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R260 →

Customize & Get Pricing

Configure your Dell PowerEdge R260 with the exact specs you need

Configure This Server

Dell PowerEdge R260 vs R250: Specs & Key Differences

Feature PowerEdge R260 PowerEdge R250
Processors 1x Intel Xeon E-2400 or Xeon 6300 1x Intel Xeon E-2300 (up to 8 cores)
Memory 4x DDR5 UDIMM slots, up to 128GB
Up to 4400 MT/s		 4x DDR4 UDIMM slots
Up to 3200 MT/s
PCIe Up to 2x PCIe Gen4 slots Up to 2x PCIe Gen4 slots
GPU Support Not supported Not supported
Storage Up to 6x 2.5" or 2x 3.5"
Optional 2x 2.5" NVMe		 Up to 4x 3.5"
Networking 2x 1GbE LOM + optional NIC 2x 1GbE LOM + optional NIC
Management iDRAC9 iDRAC9
Cooling Air, up to 6 cabled fans Air, up to 4 cabled fans
Power 450W or 700W (non-redundant) 450W or 700W
Form Factor 1U Rack (short depth) 1U Rack

Frequently Asked Questions

The R260 is a single-socket server that takes one Intel Xeon E-2400 series or Intel Xeon 6300 series processor, or an entry-level Intel Pentium processor. It replaces the Xeon E-2300 series used in the previous-generation R250.

It has four DDR5 ECC UDIMM slots for up to 128GB of memory. The DIMMs operate at up to 4400 MT/s, because operating speed is limited by the processor. Registered (RDIMM) memory is not used in this platform.

Options include up to 2x 3.5-inch SAS/SATA drives, up to 6x 2.5-inch SAS/SATA drives, or 4x 2.5-inch hot-swappable SAS/SATA drives plus 2x 2.5-inch direct-attach NVMe drives. BOSS-N1 provides mirrored M.2 NVMe boot. Please specify your capacity needs when you submit your quote configuration.

No. The R260 uses a single, non-redundant power supply: a 450W Platinum cabled PSU or a 700W Titanium mixed-mode PSU. If you need hot-swap redundant power in a single-socket 1U server, consider the PowerEdge R360.

The R260 moves from the Xeon E-2300 to the Xeon E-2400 or Xeon 6300 series, from DDR4-3200 to DDR5 memory, adds optional direct-attach NVMe drives, and replaces BOSS-S1 with BOSS-N1 NVMe boot. It remains a short-depth 1U server with two PCIe Gen4 slots, 2x 1GbE LOM and iDRAC9.
