Storage Array Specs
| 380F/380 | 480F/480 | 680F/680 | 880F/880 | |
|---|---|---|---|---|
| Min/Max Drive Count | Min. 6 SSDs or 10 HDDs / Max. 500 | Min. 6 SSDs or 10 HDDs / Max. 750 | Min. 6 SSDs or 10 HDDs / Max. 1000 | Min. 6 SSDs or 10 HDDs / Max. 1500 |

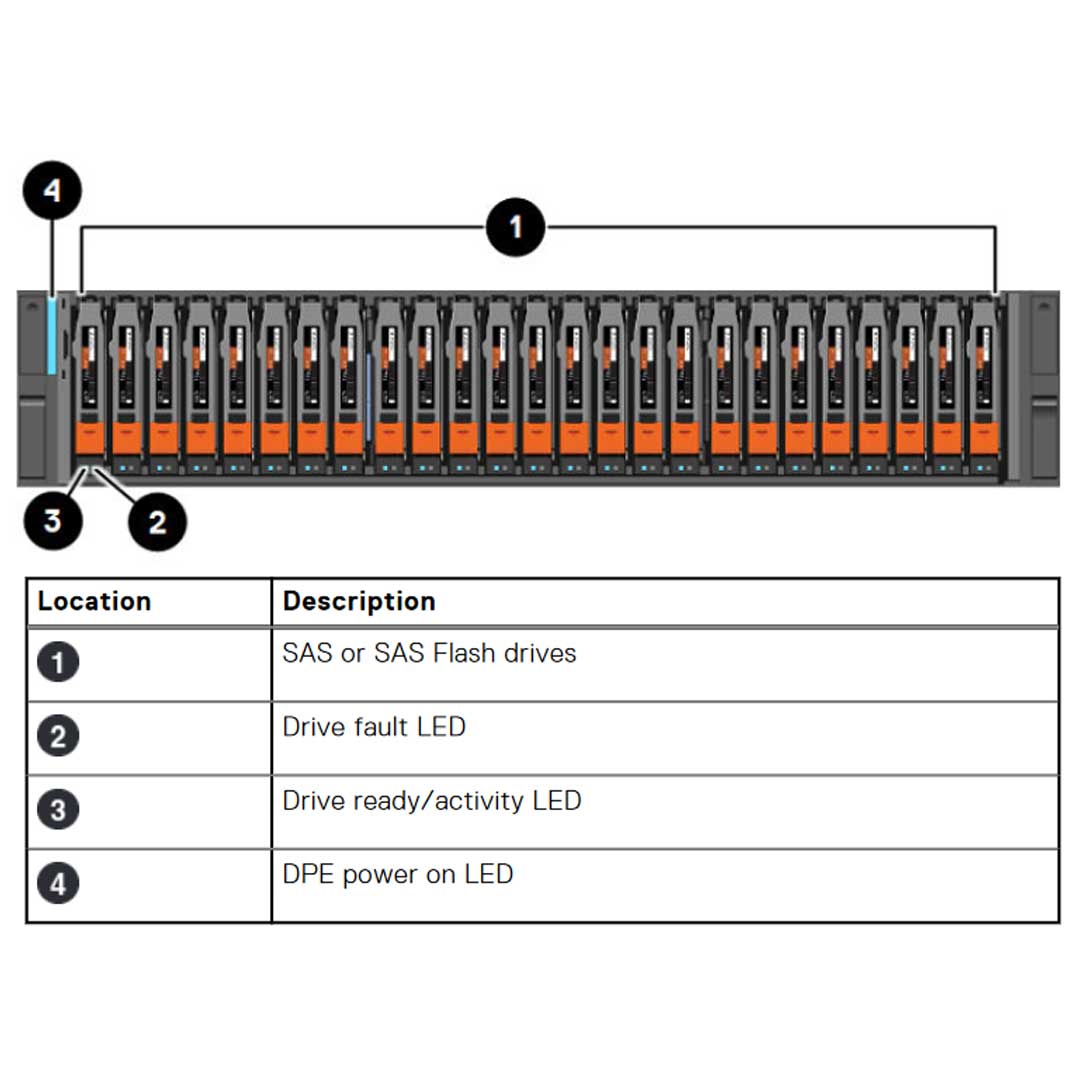

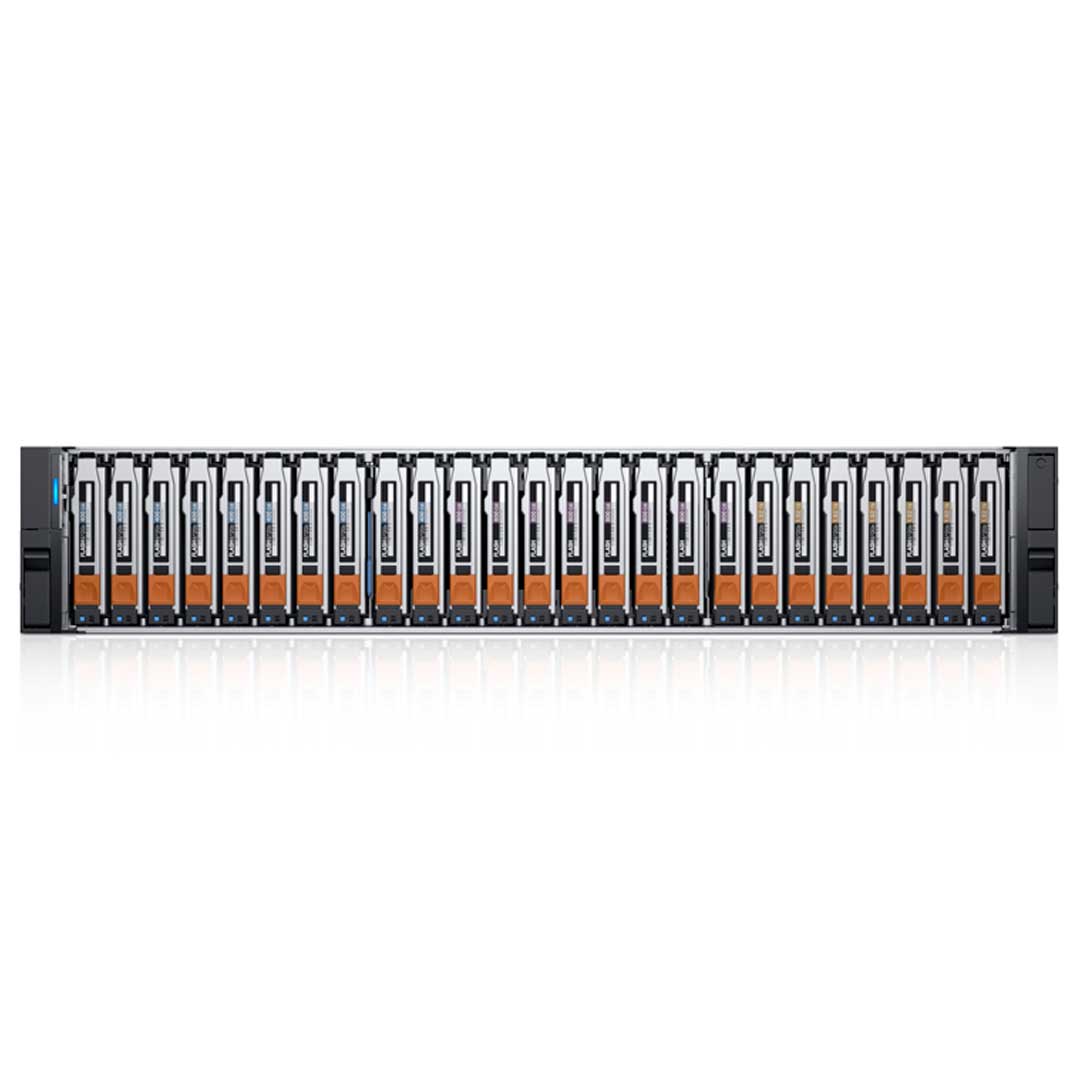

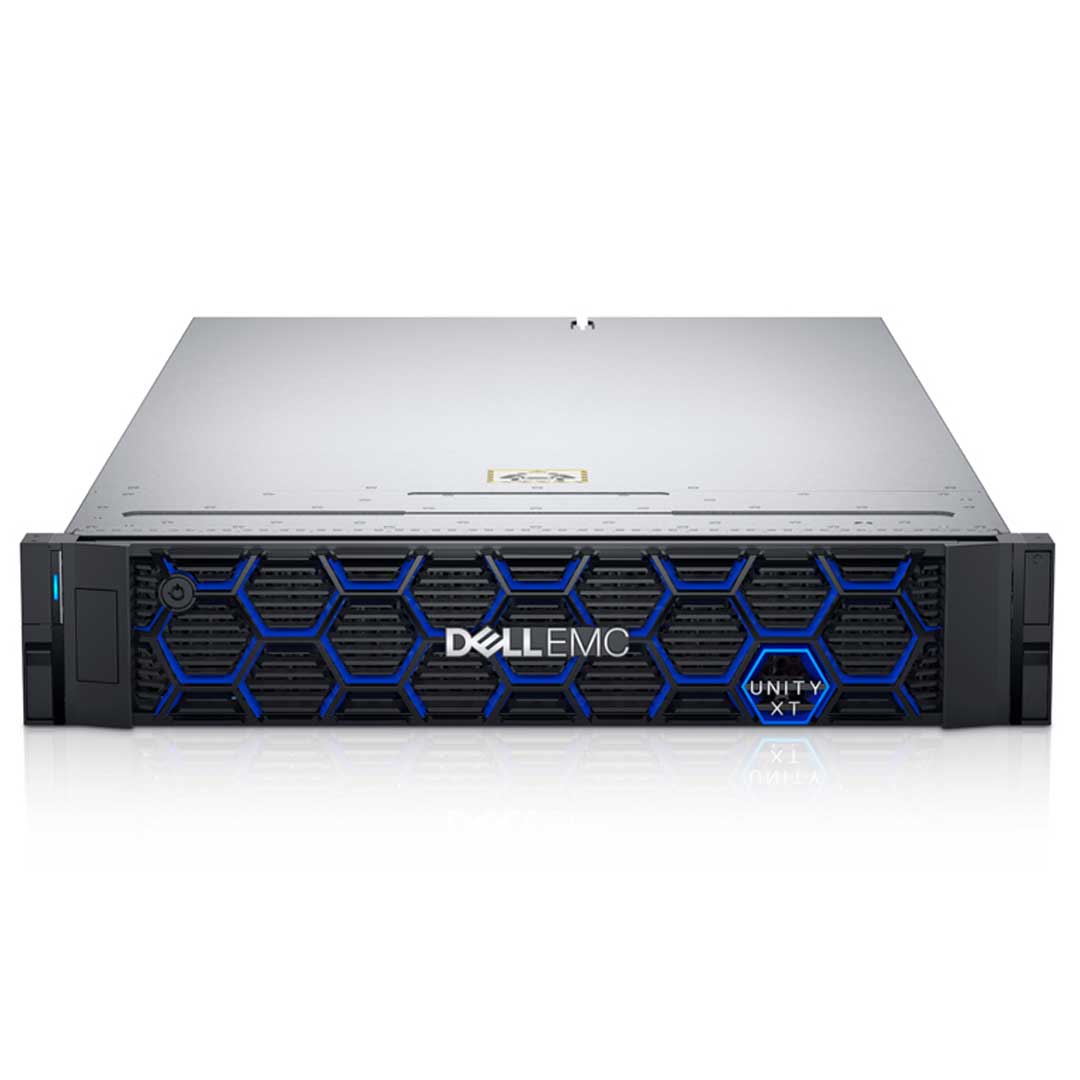

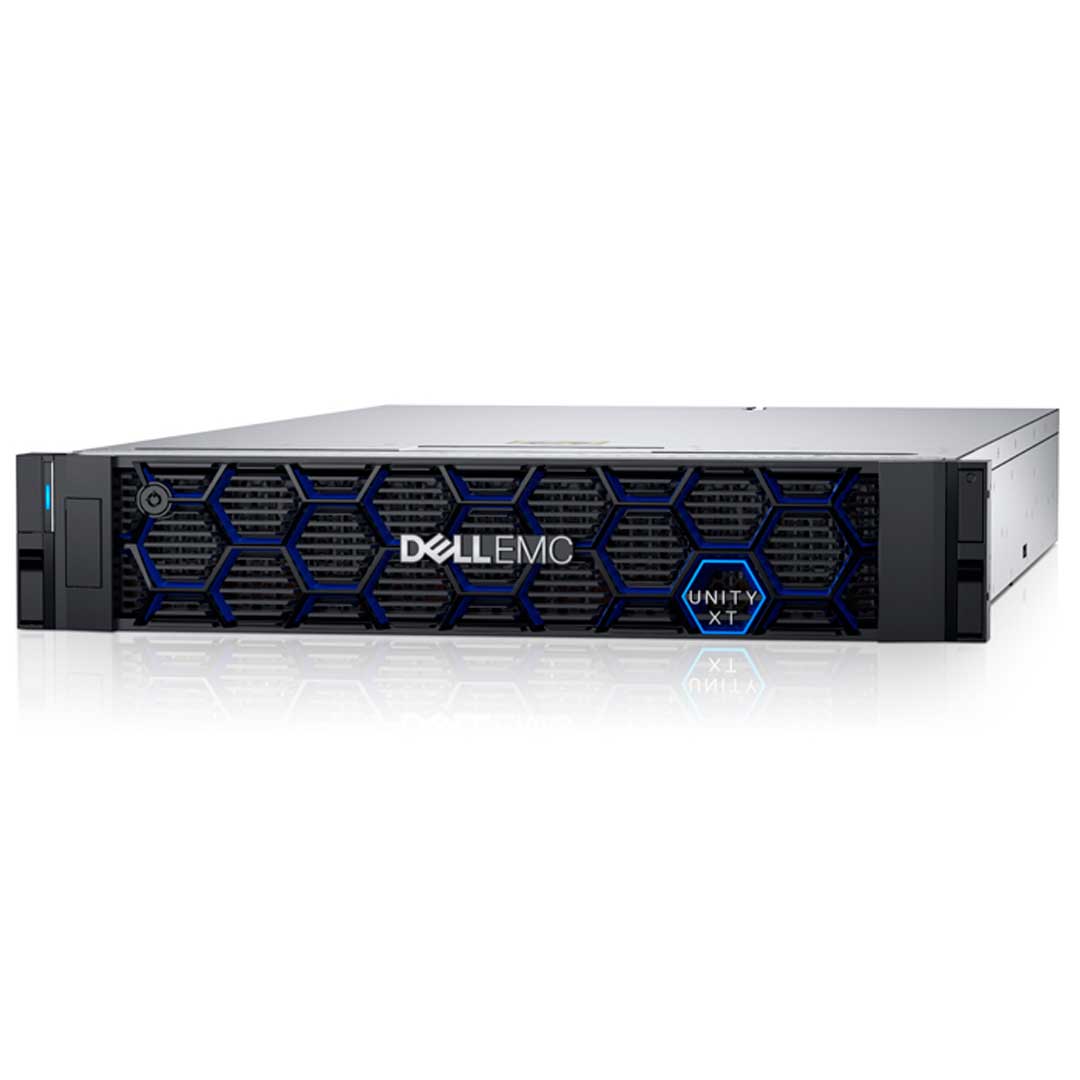

| Array Enclosure | A 2U Disk Processor Enclosure (DPE) with twenty-five 2.5” drives | |||

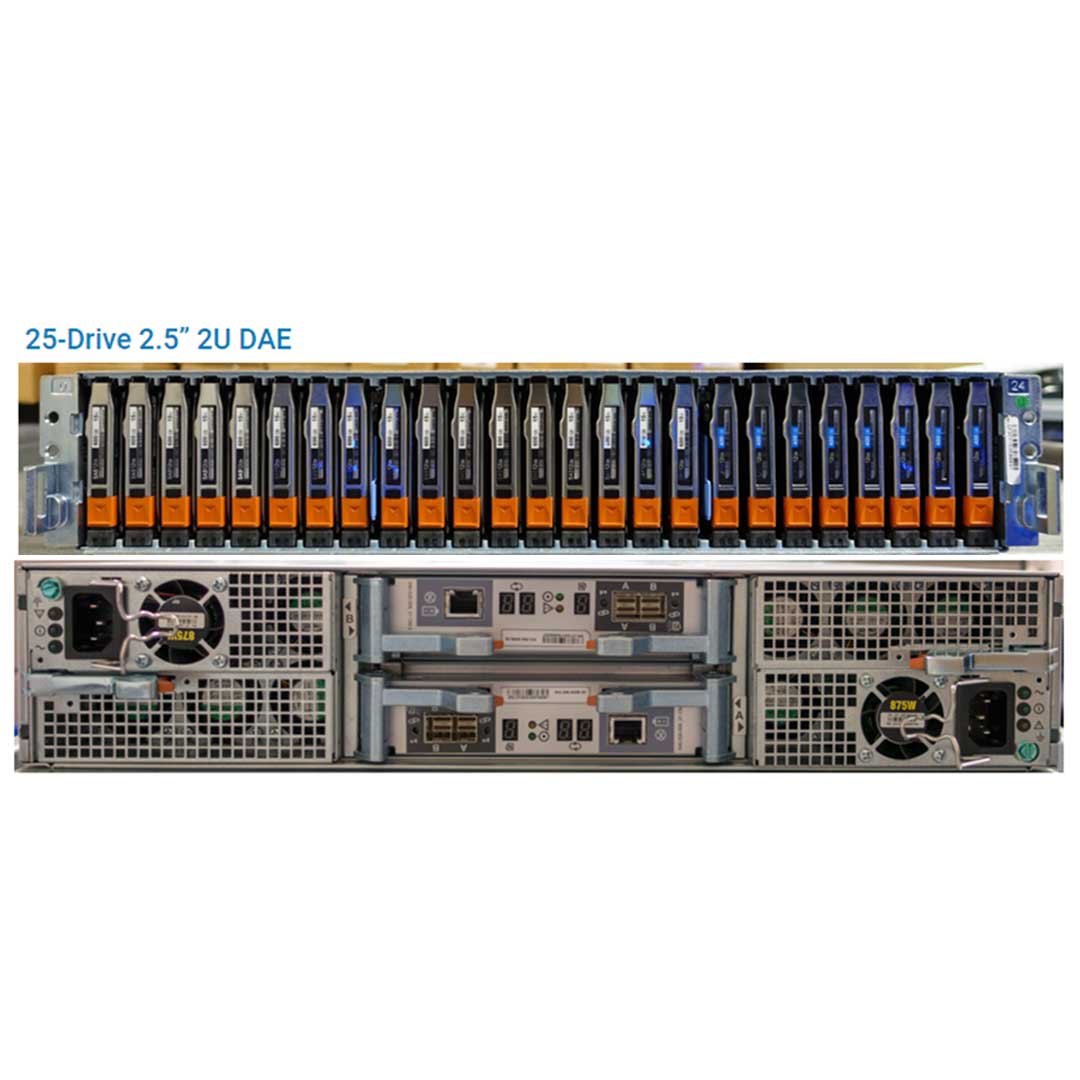

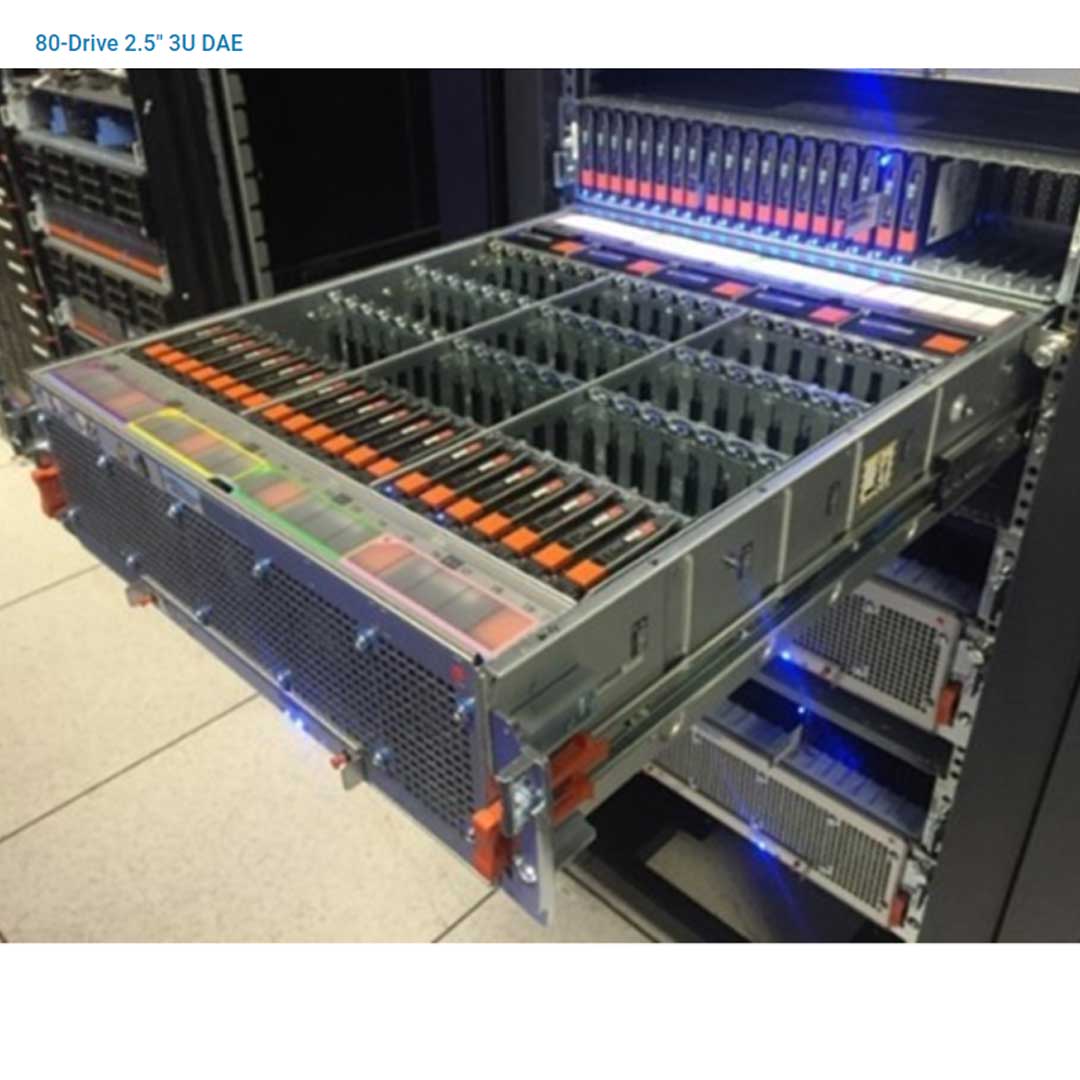

| Drive Enclosure (DAE - Disk Array Enclosure) | All-Flash (F) models support 2.5” drives in the 2U twenty-five drive tray. Hybrid models support 2.5“drives in 2U twenty-five drive and 3.5” drives in 3U fifteen drive trays. | |||
| Standby Power System | Dell Unity systems are powered by 2 power supplies (PS) per DPE/DAE. Each power supply can provide power to the entire module if the peer PS has been removed or is faulted. DPE power during a power failure is provided by a Battery Back Up (BBU) module. BBU is located within the SP enclosure and provides power to a single module (power zone) | |||
| RAID Options | 1/0, 5, 6 | |||
| CPU per Array | 2 x Intel CPUs, 12 cores per Array, 1.7GHz | 2 x dual-socket Intel CPUs, 32 cores per Array, 1.8GHz | 2 x dual-socket Intel CPUs, 48 cores per Array, 2.1GHz | 2 x dual-socket Intel CPUs 64 cores per Array, 2.1GHz |
| System Memory/Cache per Array | 128 GB | 192 GB | 384 GB | 768 GB |
| Max FAST Cache per Array* | Up to 800 GBs | Up to 1.2 TBs | Up to 3.2 TBs | Up to 6.0TBs |
| Total Cache *A | Up to 928 GBs | Up to 1.39 TBs | Up to 3.58 TBs | Up to 6.76 TBs |
| Max Mezzanine cards per Array *B | NA | 2 | 2 | 2 |

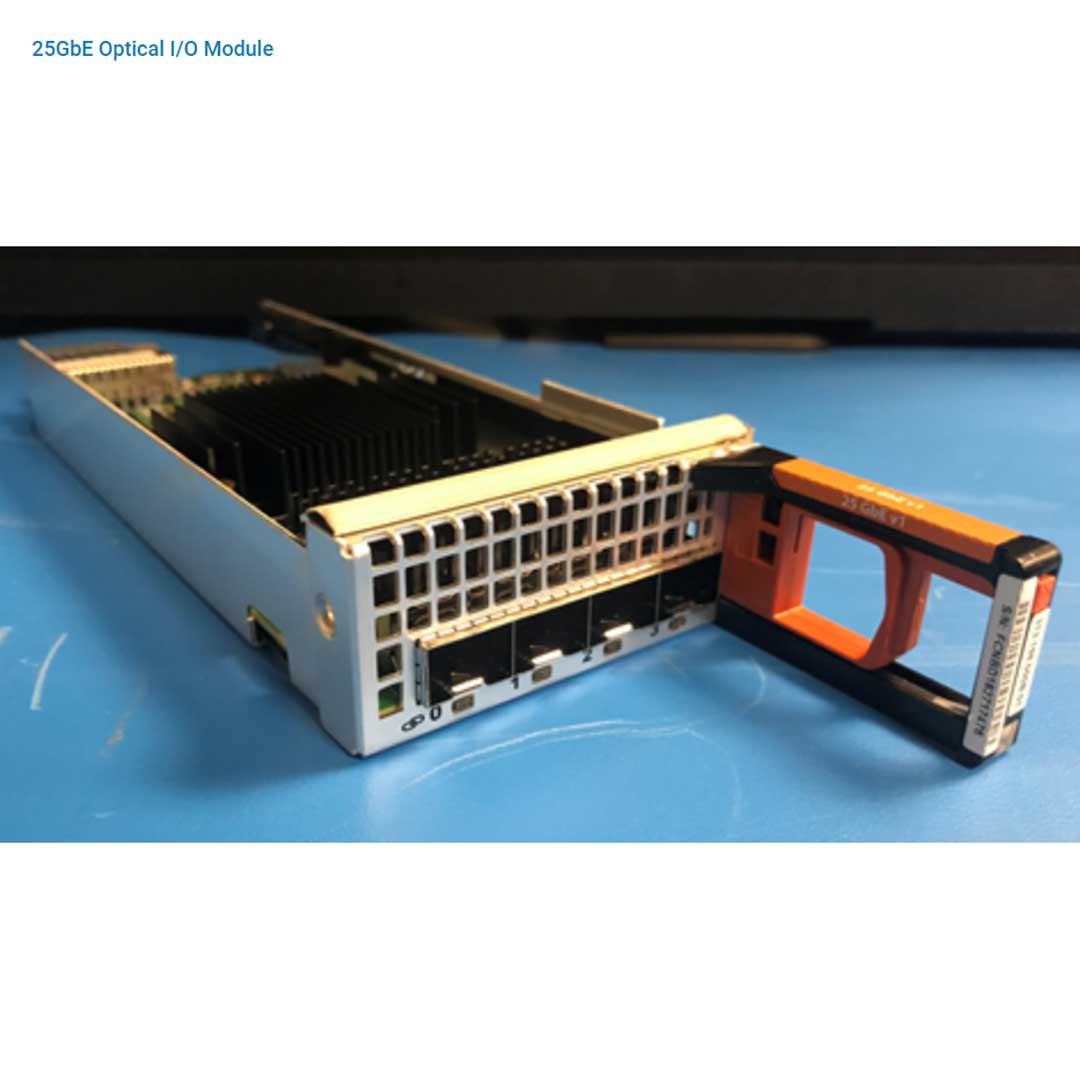

| Max IO Modules per Array *C | 4 | 4 | 4 | 4 |

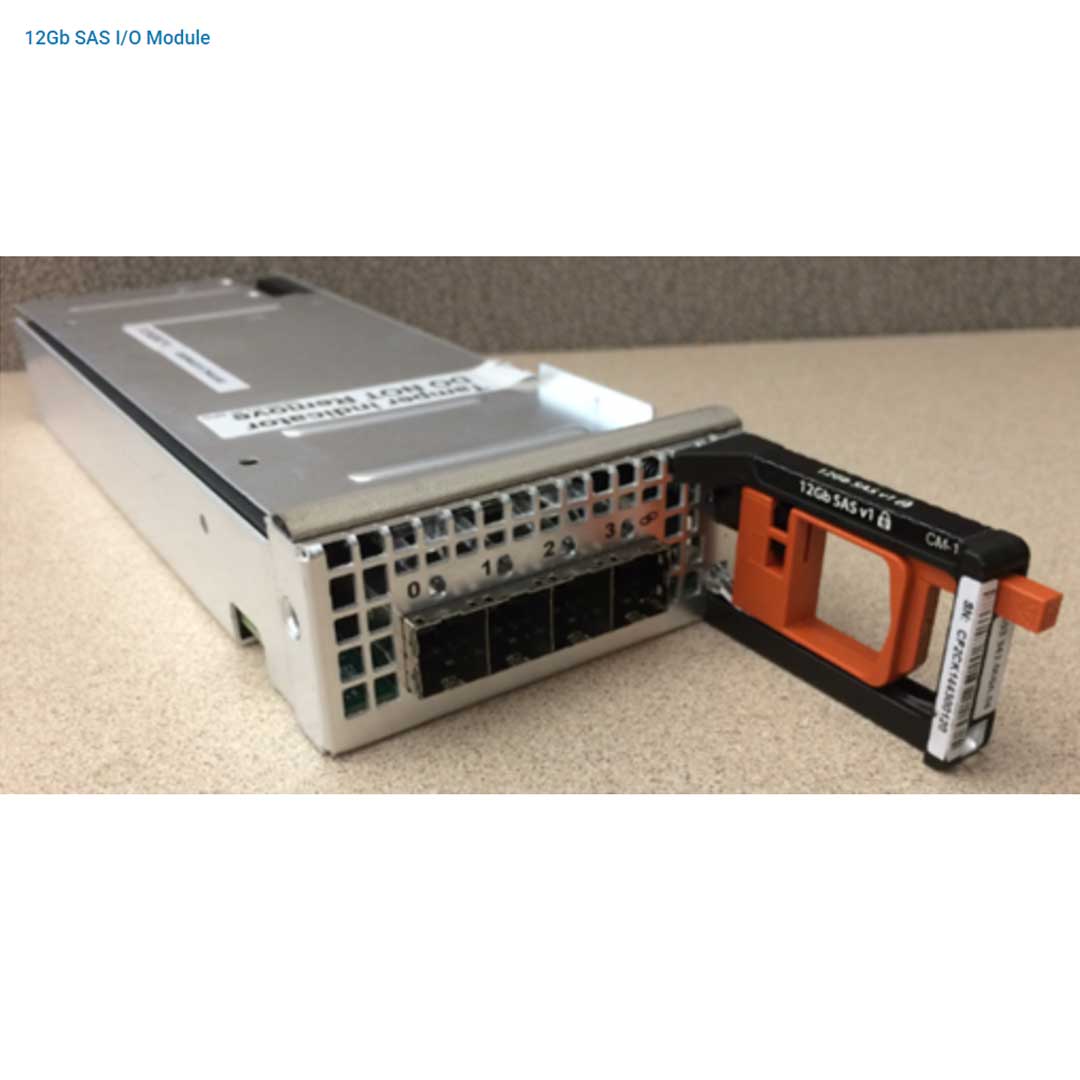

| Embedded SAS IO Ports per Array | 4 x 4 lane 12Gb/s SAS ports for BE (back end) Connection | 4 x 4 lane 12Gb/s SAS ports for BE Connection | 4 x 4 lane 12Gb/s SAS ports for BE Connection | 4 x 4 lane 12Gb/s SAS ports for BE Connection |
| Optional SAS IO ports per Array | NA | 8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection) | 8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection) | 8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection) |
| Base 12 Gb/s SAS BE Buses per Array | 2 x 4 Lane | 2 x 4 Lane | 2 x 4 Lane | 2 x 4 Lane |
| Max 12 Gb/s SAS BE Buses per Array | 2 x 4 Lane | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane |
| Max FE (front end) Total Ports per Array (all types) | 20 | 24 | 24 | 24 |
| Max Initiators per Array | 1,024 | 2,048 | 2,048 | 4,096 |

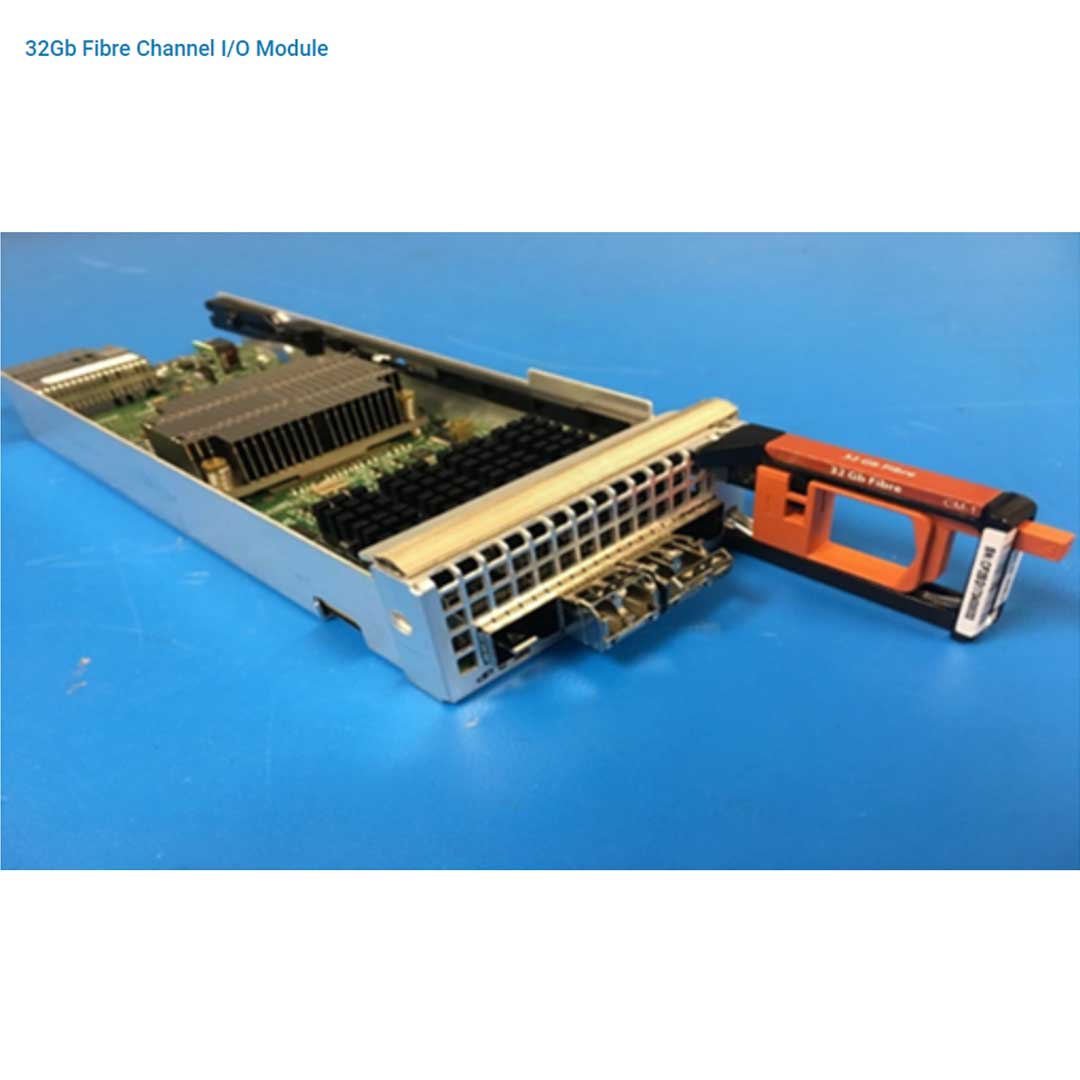

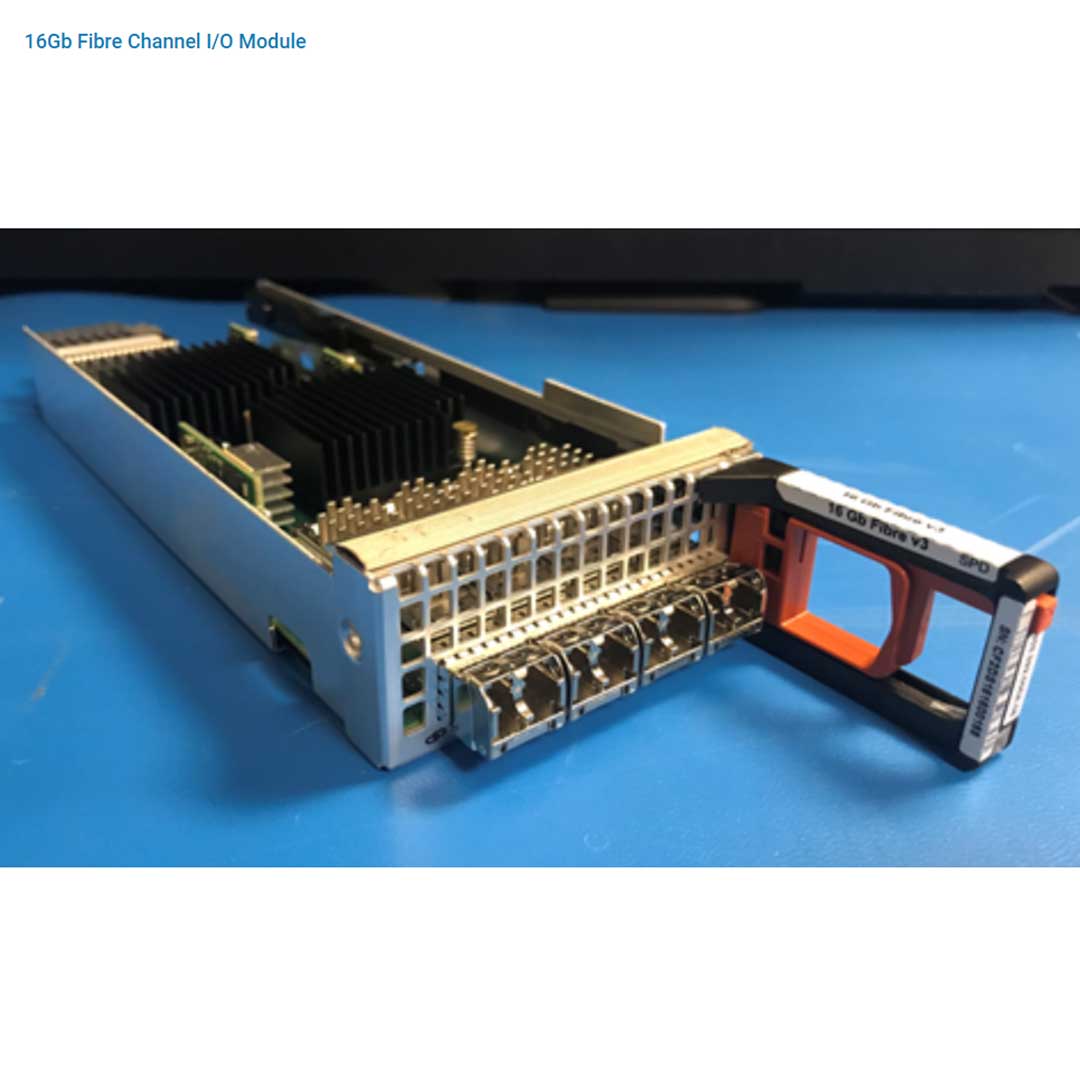

| Max FC Ports per Array | 20 | 16 | 16 | 16 |
| Embedded 10GbaseT Ports per Array | NA | NA | NA | NA/td> |
| Embedded CNA ports per Array | 4 ports: 8/16 Gb FCD, 10Gb IP/iSCSI, or 1Gb RJ45 | NA | NA | NA |
| 1 Gbase-T/iSCSI Max Total Ports per Array | 20 | 24 | 24 | 24 |
| 10/25 GbE/iSCSI Max Total Ports per Array | 20 – 10GbE 16 – 25GbE | 24 | 24 | 24 |
| Max Raw Capacity *E | 2.4 PBs | 4.0 PBs | 8.0 PBs | 16.0 PBs |
| Max SAN Hosts | 512 | 1,024 | 1,024 | 2,048 |
| Max Number of Pools | 20 | 30 | 40 | 100 |
| Max Number of LUNs per Array | 1,000 | 1,500 | 2,000 | 4,000 |
| Max LUN Size | 256 TB | 256 TB | 256 TB | 256 TB |
| Max File Systems per Array | 1000 | 1500 | 2000 | 4000 |
| Max File System Size | 256 TB | 256 TB | 256 TB | 256 TB |
| Max attached snapshots per Array (Block) | 1000 | 1500 | 2000 | 4000 |
| IOPSF (All Flash Models 380F – 880F) | up to 600K | up to 1.68M | up to 2.36M | up to 2.56M |
| OS Support | See the Dell Simple Support Matrix on dell.com | |||
|
A Specific to Hybrid Arrays. B One Mezzanine card per Storage Processor (SP), mirrored. C Two IO Modules per Storage Processor (SP), mirrored. D 16Gb available in both single mode and multimode. E Maximum raw capacity will vary based on drive sizes available at time of purchase. F 100% sequential Reads, 4K block size, thick LUNs. Based on internal testing (June 2019). Your results may vary. | ||||
