Cisco UCS B200 M5 Blade Server CTO

Cisco

| CTO Servers |

UCSB-B200-M5-CTO



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Blade Server

Select Processor

One or two 2nd Generation Intel® Xeon® scalable family CPUs. Also note that the B200 M5 Blade Server BIOS inherently enables support for Intel Advanced Encryption Standard New Instructions (AES-NI) and does not have an option to disable this feature.

Cisco Recommended

Intel® Xeon® 8000 Series Processors

Intel® Xeon® 6000 Series Processors

Intel® Xeon® 5000 Series Processors

Intel® Xeon® 4000 Series Processors

Intel® Xeon® 3000 Series Processor

Select Memory DDR4 DIMMs

Clock speed: Up to 2933 MHz
Memory is organized with six memory channels per CPU, with up to two DIMMs per channel,.

Select Memory Mode

Intel® Optane™ Persistent Memory Modes

Select mLOM Adapter (Required) (Optional)

The UCS B200 M5 must be ordered with a Cisco VIC mLOM Adapter. The adapter can operate in a single-CPU or dual-CPU configuration.

Select Rear Mezzanine Adapters (Optional)

The UCS B200 M5 has one rear mezzanine adapter connector. The UCS B200 M5 can be ordered with or without a rear mezzanine adapter.

Select Front Mezzanine (Optional)

The UCS B200 M5 can be ordered with or without the front mezzanine adapter

Select HDD Drive (Optional)

One or two drives can be selected
Drives always require one storage controller

Select SAS SSD Drive (Optional)

One or two drives can be selected
HDDs and SSDs require either of the following storage controllers in the front mezzanine slot: UCSB-MRAID12G, or UCSB-MRAID12G-HE

Select SATA SSD Drive (Optional)

One or two drives can be selected
HDDs and SSDs require either of the following storage controllers in the front mezzanine slot: UCSB-MRAID12G, or UCSB-MRAID12G-HE

Select NVMe SSD (Optional)

One or two drives can be selected
NVMe drives require the following storage controller in the front mezzanine slot: UCSB-LSTOR-PT

Select Secure Digital Cards (Optional)

Do not mix SD cards
If you select SDHC cards, you cannot select any M.2 SATA SSD drive.

Select M.2 SATA SSD Drives (Optional)

Each mini storage carrier or boot-optimized RAID controller can accommodate up to two SATA M.2 SSDs
You cannot mix M.2 SATA SSDs with SD cards.

Select Mini Storage / RAID Controller (Optional)

Mini Storage Carrier/Boot-Optimized RAID Controller

Select Trusted Platform Module (Optional)

Select USB 3.0 Drive (Optional)

Select ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

  • From Factory: Half-Width Blade Server
  • Processors | Max: 56 Cores
    2 x Intel Xeon Scalable (Gen 2)
  • Memory | Max: 9TB (w/ PMem)
    24 2933MHz DDR4 DIMMs
    Up to 12 DIMM Support for Intel Optane™ DC Persistent Memory
  • Storage | Max: 18.4TB
    2 x SAS/SATA/NVMe
  • Controllers:
    UCSB-MRAID12G,
    UCSB-MRAID12G-HE,
    UCSB-LSTOR-BK,
    UCSB-LSTOR-PT
  • Adapters: 2 x Mezzanine Slots
  • Throughput I/O: 80 Gbps
  • GPU: Up to 2
  • Boot: SD Card or M.2 SATA drives

Enclosure:

  • UCS 5108

Nodes:

  • UCS B200 M4
  • UCS B200 M5
  • UCS B200 M6

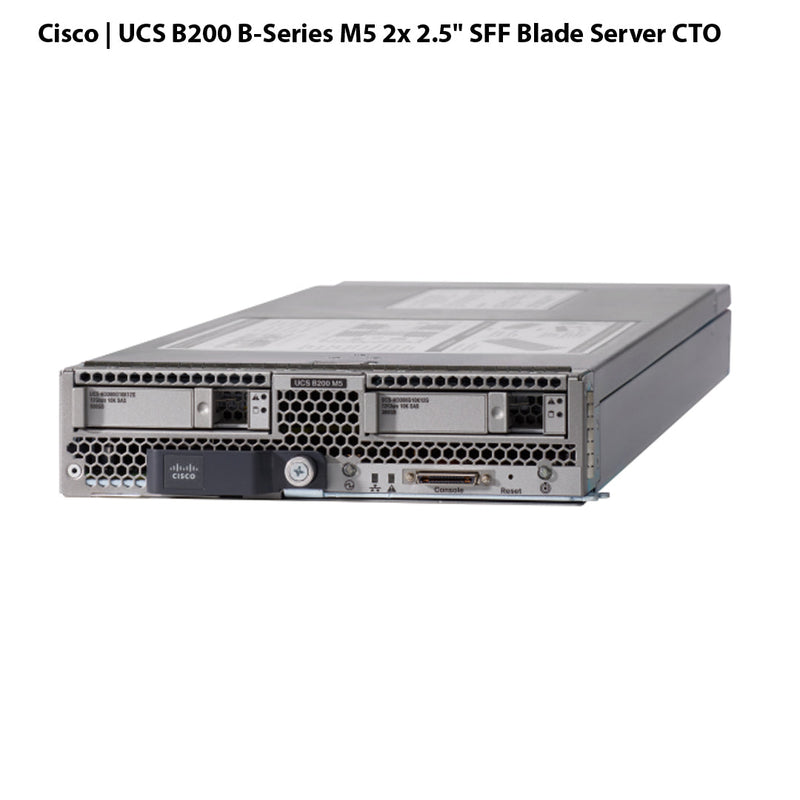

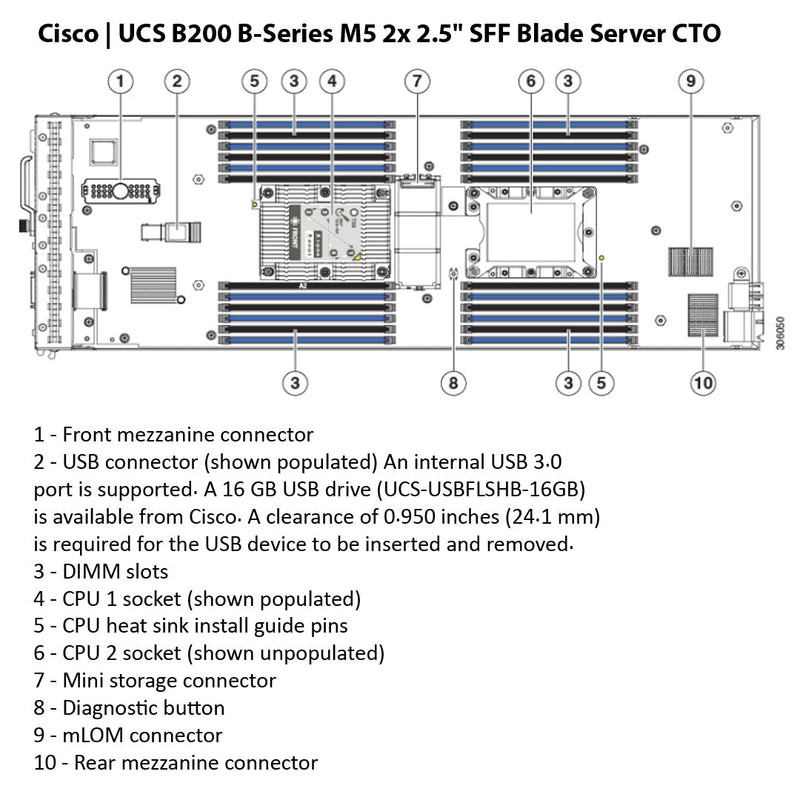

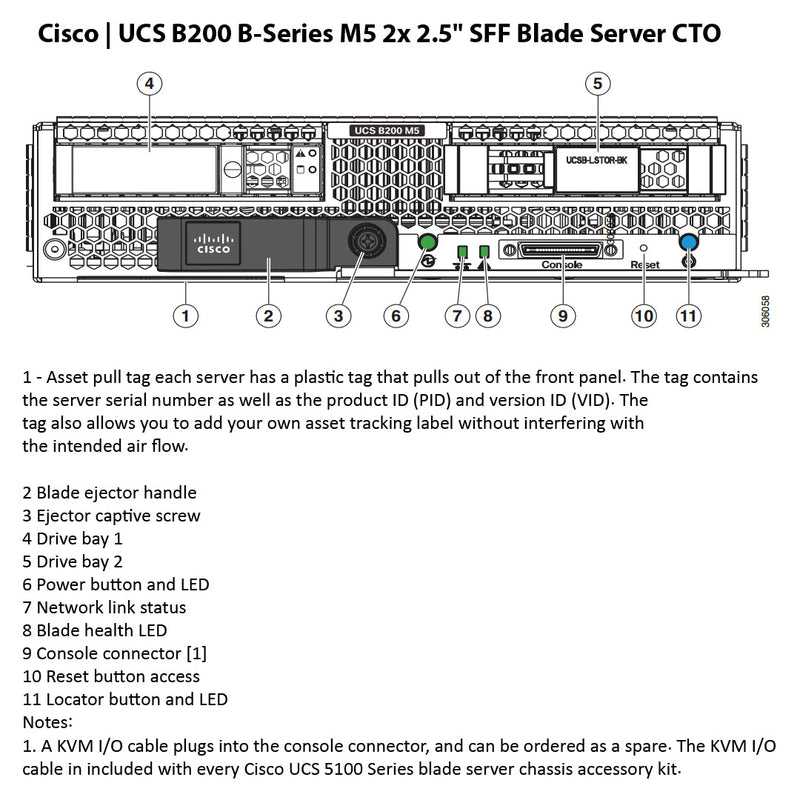

The Cisco UCS B200 M5 Blade Server is a high-performance, half-width blade server optimized for data center environments. It supports up to two Intel Xeon Scalable processors (2nd generation), offering up to 56 cores per server, delivering powerful computing capabilities for demanding workloads. The server can support up to 9 TB of DDR4 memory across 24 DIMM slots when persistent memory (Pmem) is installed, enabling high-memory configurations for resource-intensive applications. Storage options include two 2.5-inch drives, with support for SAS, SATA, SSD, and NVMe drives, offering flexibility for various data storage requirements. Integrated with Cisco UCS Manager, the B200 M5 provides seamless management and scalable infrastructure, making it an ideal solution for businesses looking to streamline operations and scale efficiently in modern data centers.

The Cisco UCS B200 M5 Blade Server is designed to meet the rigorous demands of modern data centers and enterprise applications. Its powerful processing performance and extensive memory capacity make it well-suited for a wide range of workloads, including virtualization, database management, and high-performance computing. The server offers versatile storage configurations, accommodating everything from transactional databases to large-scale data analytics. With its integration into Cisco UCS Manager, the B200 M5 streamlines system management, boosts operational efficiency, and accelerates deployment, providing organizations with a reliable solution to optimize and scale their IT infrastructure.

Cisco B200 M5 mLOM Slot mLOM Slot
  • Dedicated Slot
  • 1340/1440 adapter only
  • Up to dual 4x10 Gbps ports w/ Expander



Do not mix 1340 with 1480 or 1440 with 1380 cards.

Cisco B200 M5 Adapter Slot Adapter Slot
  • All other cards plug into the adapter slot
  • Supports Port Expander (4x10Gb)
  • Supports GPU



Prot Expander vs Adapter. They both provide 80 Gbps to the Enclosure 5108, but the Adapter configuration provides redundancy.

Cisco B200 M5 GPU G6 Card GPU G6 Adapter (Front/Rear)
  • Supports Front and Rear
  • Does not have network connectivity
  • GPU controlled by CPU 2



The GPU is required when there is high-performance computing (HPC), machine learning, and virtualization.

Cisco M5 B200 Boot Options M.2
Secure Digital High-Capacity Card(s)
  • Do not mix SD cardsr
  • The UCS-MSTOR-SD Adapter Holds 2 SD Cards
  • 2x SDHC Cards (32GB, 64GB, or 128GB)
M.2 SATA Mini Storage
  • UCS-MSTOR-M2
  • You cannot mix M.2 SATA SSD capacities
  • Mini Storage Carrier for M.2 SATA
  • Holds up to 2 M.2 SATA SSDs
  • No RAID control
M.2 SATA Boot Optimized
  • UCS-M2-HWRAID
  • You cannot mix M.2 SATA SSD capacities
  • Cisco Boot optimized M.2 RAID controller
  • Holds up to 2 M.2 SATA SSDs
  • RAID 1 and JBOD mode
  • Not supported if used as a compute node in HyperFlex configurations
