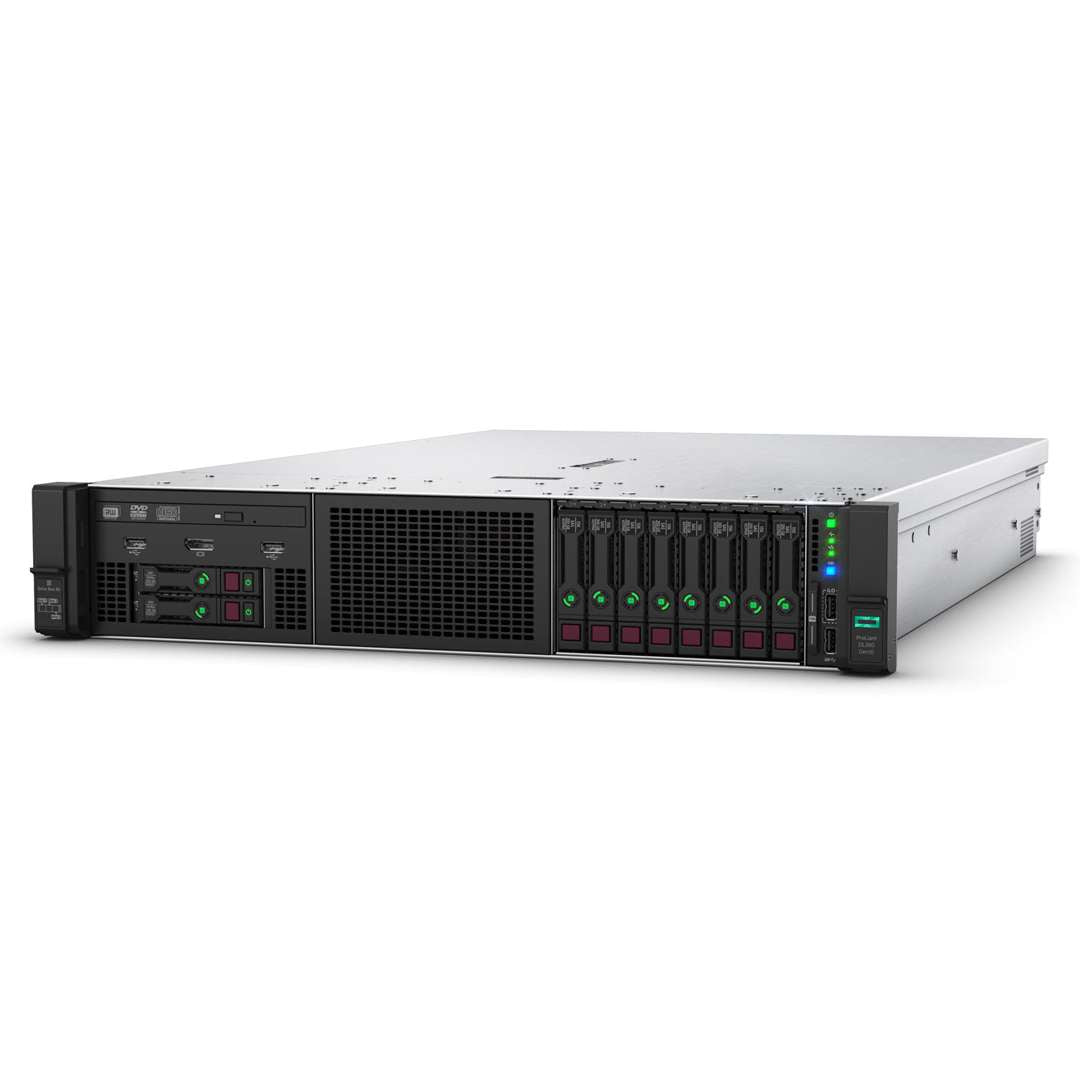

HPE ProLiant DL380 Gen10 8SFF NC Server Chassis | P19720-B21


Price: Request a Quote

Brand:
MPN:
P19720-B21
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE ProLiant DL380 Gen10 8SFF NC Server Chassis | P19720-B21

What's New for DL380 Gen10
  • Increased Single-Width GPU Density with up to 7 NVIDIA T4 in a 2U, standard length, rackmount server.
  • HPE DL38x Gen10 x16/x16/x16 Primary (P14374-B21) and Secondary (P14373-B21) Risers support up to (7) NVIDIA T4 16GB ; or up to (6) NVIDIA T4 16GB balanced across both processors with additional options for PCIe card expansion.
  • Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
  • Supporting the second generation Intel Xeon Scalable processor family with up to a 11% per-core performance gain over first generation and with memory speeds up to 2933 MT/s.
  • HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage using Intel Optane DC Persistent Memory and enables per-socket memory capacity of up to 3.0 TB.
  • iLO 5 security enhancements: Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor. HPE InfoSight provides cloud-based analytics to predict and prevent issues proactively.

The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel Xeon Processor Scalable Family with up to a 60% performance gain and 27% increase in cores, plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB.

Ideal for:

  • Cloud Servers
  • Corporate IT
  • Database
  • Point-of-Sale (POS)
  • Retail Servers
  • Virtual Desktop Interface (VDI)
  • Virtualization

It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.


Flexible Design Making Your Investment Expand As Your Business Needs Grow

The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including new Hewlett Packard Enterprise modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to three double wide GPU options.


HPE Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.


In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.


Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 40GbE) and fabric so you can adapt and grow to changing business needs.

Chassis Options

Chassis Configurations - EmeddedLOM

CTO Server [Chassis] HPE ProLiant DL380 Gen10 8LFF CTO Server HPE ProLiant DL380 Gen10 12LFF CTO Server HPE ProLiant DL380 Gen10 8SFF CTO Server HPE ProLiant DL380 Gen10 24SFF CTO Server HPE DL380 Gen10 8SFF BC CTO Server
SKU Number 868706-B21 868705-B21 868703-B21 868704-B21 P56970-B21
Processor Not included as standard
DIMM Slots 24-DIMM slots
Storage Controller Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller
PCIe Three standard in primary riser (with dual M.2 support)
Drive Cage - included 8 LFF 12 LFF 8 SFF 24 SFF 8 SFF
Network Controller HPE 1Gb Ethernet 4 - Port 331i Adapter plus optional HPE FlexibleLOM or stand up card
Fans 6-Standard 6-Performance 4-Standard 6-Performance 4-Standard
USB 1x 3.0 standard plus iLo front service port None as standard 1x 3.0 standard plus iLo front service port 1x 3.0 standard plus iLo front service port 1x 3.0 standard plus iLO front service port

Chassis Configurations - Network Choice (NC)

CTO Server [Chassis] HPE ProLiant DL380 Gen10 8LFF NC CTO Server HPE ProLiant DL380 Gen10 12LFF NC CTO Server HPE ProLiant DL380 Gen10 8SFF NC CTO Server HPE ProLiant DL380 Gen10 24SFF NC CTO Server HPE ProLiant DL380 Gen10 8SFF NC BC CTO Server
SKU Number P19717-B21 P19718-B21 P19720-B21 P19719-B21 P56969-B21
Processor Not included as standard
DIMM Slots 24-DIMM slots
Storage Controller Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller
PCIe Three standard in primary riser (with dual M.2 support)
Drive Cage - included 8 LFF 12 LFF 8 SFF 24 SFF 8 SFF
Network Controller

Choice of either HPE FlexibleLOM or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters

Note: No embedded networking, requires selection of a FlexibleLOM adapter

Fans 6-Standard 6-Performance 4-Standard 6-Performance >4-Standard
USB 1x 3.0 standard plus iLo front service port None as standard 1x 3.0 standard plus iLo front service port 1x 3.0 standard plus iLo front service port 1x 3.0 standard plus iLO front service port
EmeddedLOM Rack Servers

Servers with an embedded LAN on Motherboard (LOM) come with built-in HPE 1Gb Ethernet 4-Port 331i network interfaces adapter, providing out-of-the-box networking capabilities without the need for additional NICs. Both the NC and non-NC chassis have the option of a FlexibleLOM or Stand-up cards for network capabilities.


Network Choice (NC) Rack Servers

The Network Choice configuration allows flexibility in selecting network adapters, as it doesn't come with an embedded network interface card (NIC). This enables customization based on specific networking requirements. Both the NC and non-NC chassis have the option of a FlexibleLOM or Stand-up cards for network capabilities.


Basic Carrier (BC) Rack Server

The BC configuration is designed to support drives that are housed in basic carriers, as opposed to smart carriers. This means the server is compatible with drives installed in these simpler carriers, which may lack some of the advanced features found in smart carriers.

In BC-configured servers, certain storage controllers, such as the Tri-Mode MegaRAID Controllers, are only supported when using drives in basic carriers. Configurations must not mix BC and SC drives.


Basic Carrier (BC) Drives

Provides basic storage functionality without advanced monitoring or user feedback features, ideal for cost-effective setups with simple storage needs.


Smart Carrier (SC) Drives

Offers advanced monitoring, LED indicators, and data protection features, making it better suited for enterprise environments that require proactive management and high availability.

Configuration Breakdown
HPE DL380 Gen 10 8 LFF Chassis

DL380 G10 8x 3.5" Chassis

Front Upgrades:
  • 2 SFF SAS/SATA (867805-B21)
  • 2 SFF NVMe (873781-B21)
  • Optical Disk Drive (ODD)
Mid Upgrades:
  • N/A
Rear Upgrades:
  • 2SFF SAS/SATA (826688-B21)
  • 3LFF SAS/SATA (826685-B21)
  • Both can be installed at once
HPE DL380 Gen 10 12 LFF Chassis

DL380 G10 12x 3.5" Chassis

Front Upgrades:
  • N/A
Mid Upgrades:
  • 4x LFF Midplane SAS/SATA (826686-B21)
Rear Upgrades:
  • 2SFF SAS/SATA (826688-B21)
  • 2SFF Premium HDD SAS/SATA Kit (826687-B21)
  • 3LFF SAS/SATA (826685-B21)
  • Both LFF and SFF can be installed at once

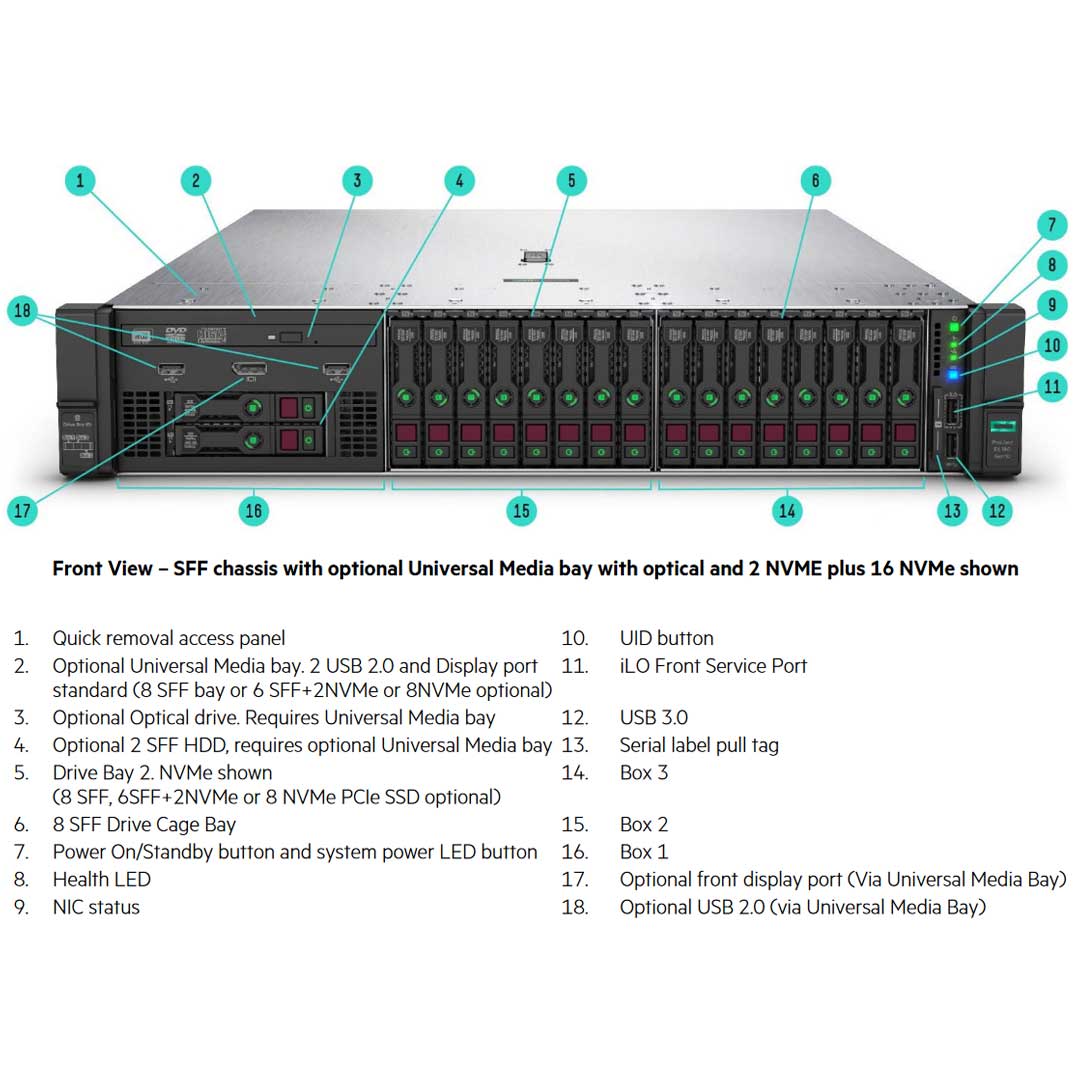

HPE DL380 Gen 10 8 SFF Chassis

DL380 G10 8x 2.5" Chassis

Box 1:
  • Universal Media Bay (826708-B21)
  • 2SFF Premium Front SAS/SATA (826687-B21)
  • 2SFF Premium Front NVMe (826687-B21)
  • 2x NVMe (878189-B21)
  • 4x NVMe (878186-B21)
Box 2:
  • 8x SAS/SATA (826691-B21)
  • 8x NVMe Drives (826689-B21)
  • 6x SAS/SATA + 2x NVMe (826690-B21)
Box 3:
  • 8x SAS/SATA (826691-B21)
  • 8x NVMe Drives (826689-B21)
  • 6x SAS/SATA + 2x NVMe (826690-B21)

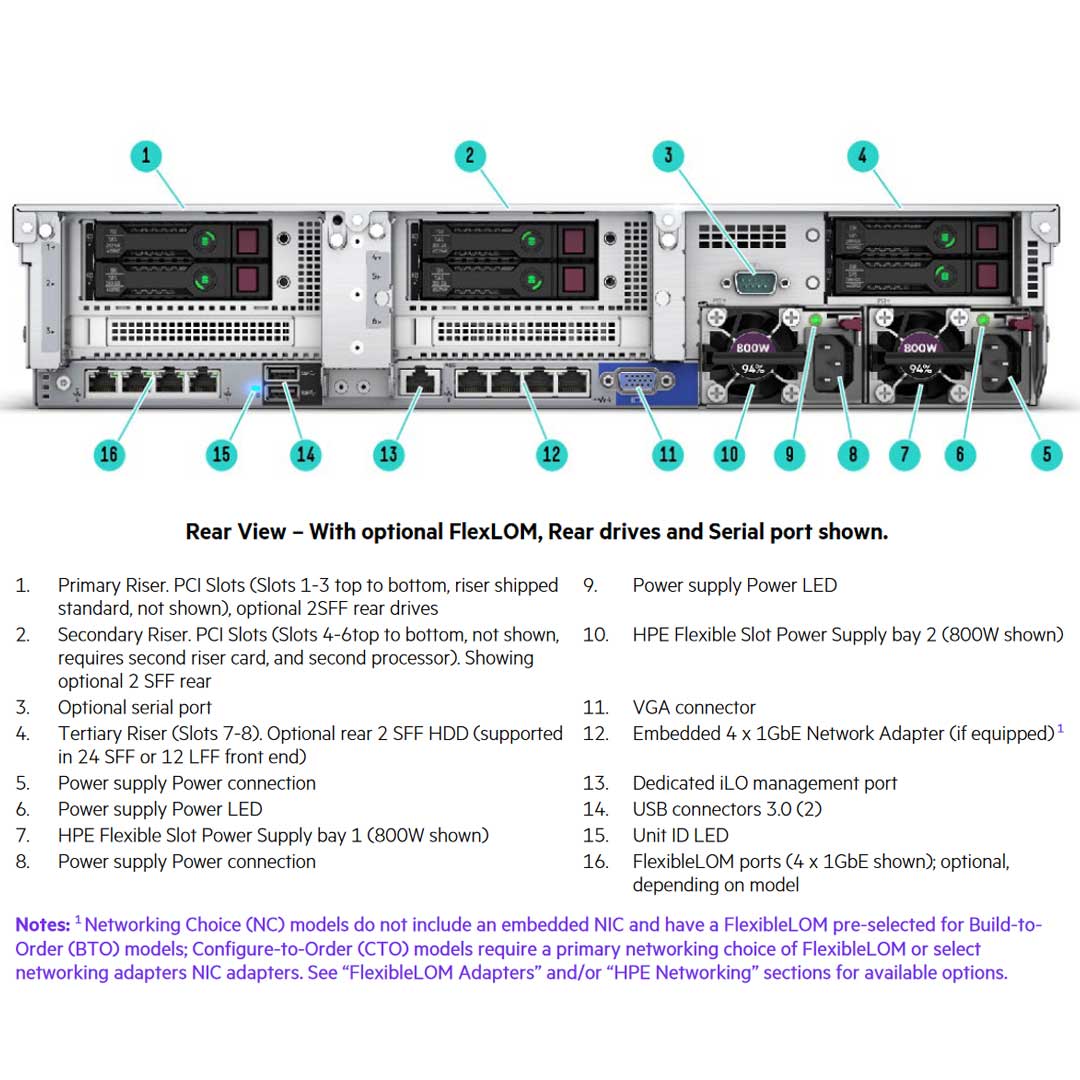

Rear Upgrades:
  • 2SFF Premium SAS/SATA (826687-B21)
  • Can support up to 6 Rear Drives
  • Max of 20 NVMe drives
HPE DL380 Gen 10 24 SFF Chassis

DL380 G10 24x 2.5" Chassis

Box 1:
  • 8x SFF (826691-B21)
  • 6x SAS/SATA + 2x NVMe (826690-B21)
  • 2x NVMe (878189-B21)
  • 4x NVMe (878186-B21)
  • 8x NVMe (826689-B21)
Box 2:
  • 8x SFF (826691-B21)
  • 6x SAS/SATA + 2x NVMe (826690-B21)
  • 8x NVMe Drives (826689-B21)
Box 3:
  • 8x SFF (826691-B21)
  • 6x SAS/SATA + 2x NVMe (826690-B21)
  • 8x NVMe Drives (826689-B21)
Rear Upgrades:
  • 2SFF SAS/SATA 1x16 Riser (826688-B21)
  • Can support up to 6 Rear Drives
  • Max of 20 NVMe drives

HPE DL380 Gen10 Maximum Internal Storage

  • Hot Plug SFF SAS HDD 0 TB 24+6 x 2.4 TB* (with optional rear SFF drive cage)
  • Hot Plug SFF SATA HDD 0 TB 24+6 x 2 TB (with optional SFF drive cage)
  • Hot Plug LFF SAS HDD 68 TB 12+4+3 x 16 TB + 2 x 3.84 TB (with optional mid-tray and rear LFF drive cage, plus 2 SFF SSD rear)
  • Hot Plug LFF SATA HDD 68 TB 12+4+3 x 16 TB + 2 x 3.84 TB (with optional mid-tray and rear LFF drive cage, plus 2 SFF SSD rear)
  • Hot Plug SFF SAS SSD 459 TB 24+6 x 15.3 TB (with optional rear SFF drive cage)
  • Hot Plug SFF SATA SSD 4 TB 24+6 x 7.68 TB (with optional rear SFF drive cage)
  • Hot Plug LFF SATA SSD 16 TB 12+4+3 x 1.92 TB + 2 x 3.84 TB (with optional mid-tray and rear LFF drive cage, plus 2 SFF SSD rear)
  • Hot Plug LFF SAS SSD 16 TB 12+4+3 x 1.92 TB + 2 x 3.84 TB (with optional mid-tray and rear LFF drive cage, plus 2 SFF SSD rear)
  • Hot Plug SFF NVMe PCIe SSD 2 TB 20 x 15.36 TB NVMe

Chassis Storage Upgrades - Click to Open

CTO Server 8 SFF 24 SFF 8 LFF 12 LFF
Included Drive Cage 8 SFF SAS/SATA 3X 8 SFF SAS/SATA 8 LFF + UMB 12 LFF Chassis
Universal Media Bay 1 Optional Not available 1 Included Not available
ODD 1 Optional with UMB Not available 1 Optional Not available
8 SFF Drive Cage Up to 2 Optional Not available Not available Not available
8 NVMe/SAS Bay Up to 3 Optional Not available Not available Not available
8 NVMe Cage Up to 3 Optional Not available Not available Not available
2 SFF SAS/SATA (Front) 1 Optional with UMB Not available 1 Optional Not available
2 SFF SAS/SATA (Rear) 1 Optional 1 Optional 1 Optional 1 Optional
2 NVMe (FRONT) 1 Optional with UMB Not available 1 Optional Not available
4 LFF Mid-plane Not available Not available 1 Optional 1 Optional
3 LFF Rear Not available Not available 1 Optional 1 Optional

Looking to Customize?

Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

Start Customizing Today!

Product Specs

Base Standard Capabilities

Technical specificationsHPE ProLiant DL380 Gen10 server
Processor nameIntel
Processor familyIntel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel® Xeon® Scalable 4100/4200 series Intel® Xeon® Scalable 3100/3200 series
Processor core available4 to 28 core, depending on model
Processor cache8.25 - 38.50 MB L3, depending on processor model
Processor speed3.9 GHz, maximum depending on processor
Expansion slots8, for detailed descriptions reference the QuickSpecs
Maximum memory3.0 TB with 128 GB DDR4, depending on processor model
6.0 TB with HPE 512GB 2666 Persistent Memory Kit, depending on processor model
Memory, standard1.54 TB (24 X 64 GB) RDIMM
3.0 TB (24 X 128 GB) LRDIMM
6.0 TB (12 X 512 GB) Persistent Memory
Memory slots24 DIMM slots
Memory typeHPE DDR4 Smart Memory with optional Intel® Optane™ persistent memory 100 series for HPE, depending on processor model selected. Intel Optane Persistent Memory for HPE only supported on select 2nd Generation Intel Scalable Series Processors, to include: 82xx, 62xxR, 62xx, 52xxR, 52xx series processors, and the 4215R and 4215 processors.
System fan featuresHot-plug redundant fans, standard
Network controllerHPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model
Storage controller1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model
Product Dimensions (imperial)17.54 x 28.75 x 3.44 in
Weight32.6 lb
Infrastructure managementHPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional requires licenses)
Drive supported8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD
2 M.2 SATA SSD standard on primary riser, depending on configuration
6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional
20 SFF NVMe optional
NVMe support via Express Bay will limit maximum drive capacity
