HPE ProLiant ML30 Gen9 Hot Plug 8 SFF Tower Server Chassis | 823403-B21


Price: Request a Quote

Brand:
MPN:
823403-B21
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE ProLiant ML30 Gen9 Hot Plug 8 SFF Tower Server Chassis | 823403-B21

The refurbished HPE ProLiant ML30 Gen9 server is an affordable single-socket tower server that features value performance, expansion, and growth that is ideal for small businesses and remote branch offices.

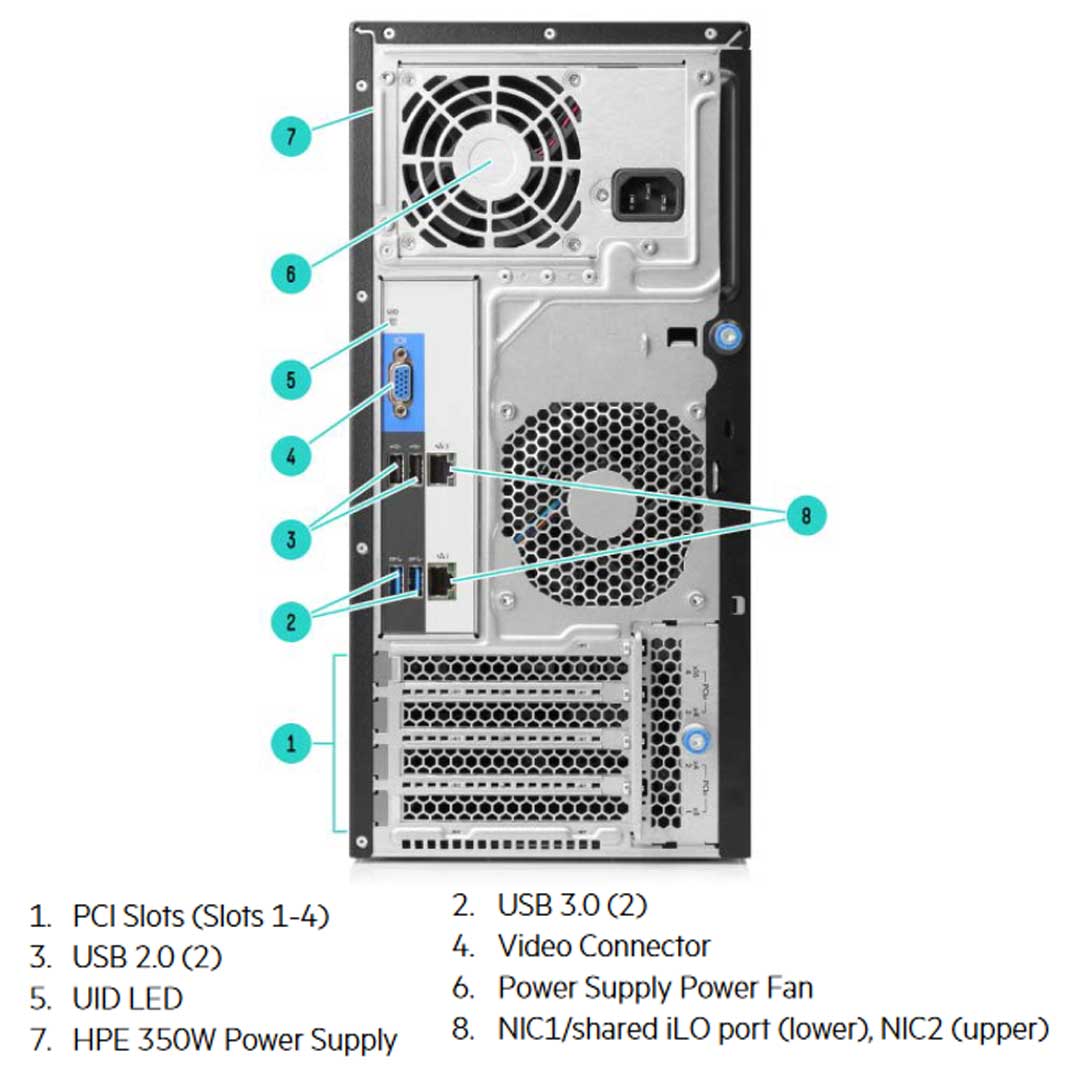

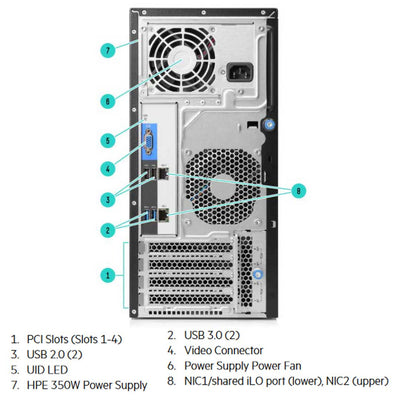

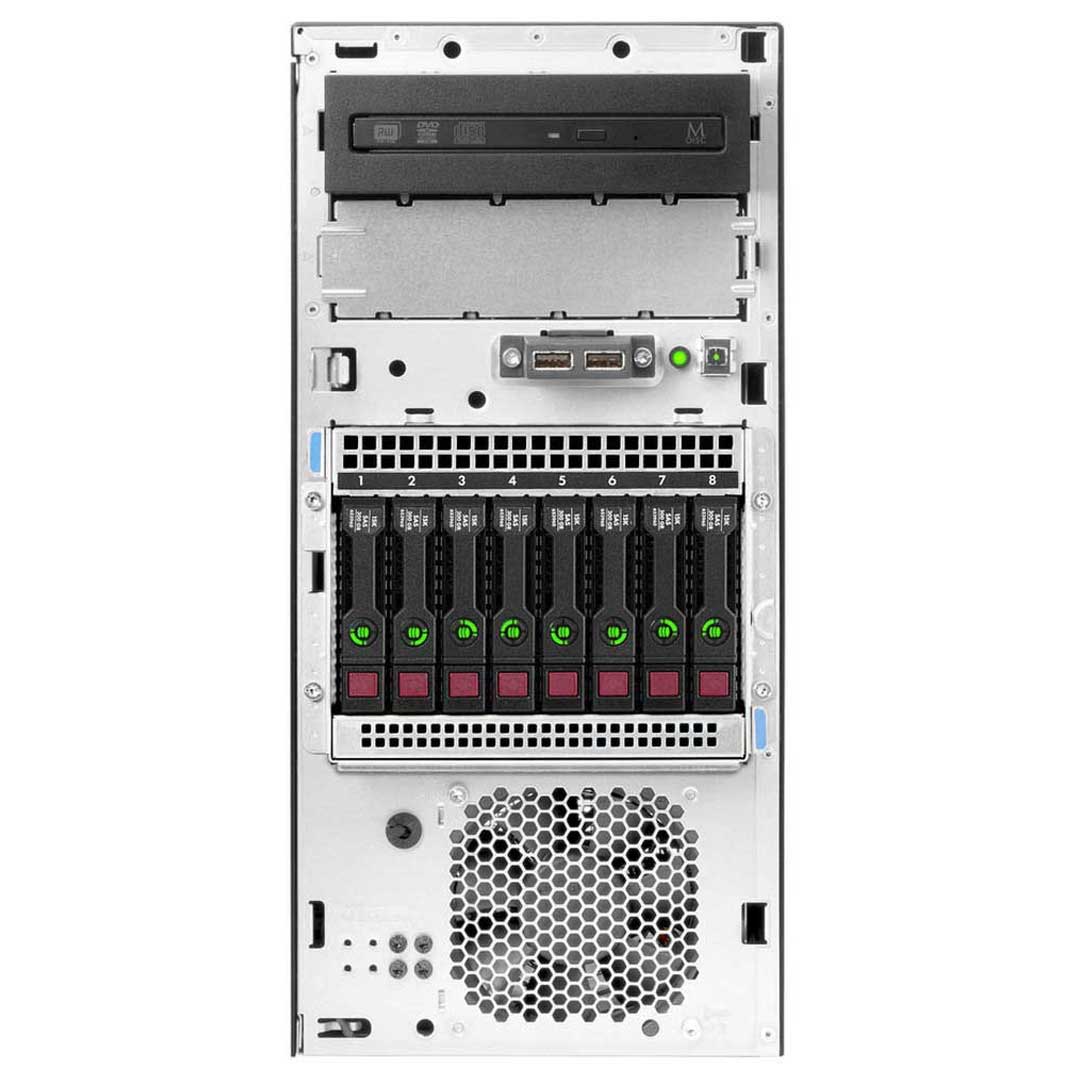

The ML30 Gen 9 HPE Tower Server has a few Drive Options in this 1 Socket configurations. Depending on the Storage controller installed, you can have either 4 SATA/SAS LFF Drives or 8 SATA/SAS HDD/SSD SFF Drives. This Server has 4 PCIe slot in the back of the tower. Please take note as to what card you're installing into what spot. Slot 4 is a x16PCI-e while slot 3/2 are x4PCI-e and slot 1 is a x8PCI-e. All of this is powered by either a Non-Hot Swap 350W (E-star 1.0/2.0) PSU or a redundant configuration with 1 or 2 Hot Swap 460W PSU CS Gold with hot swap PSU backplane. When the Redundant PSU backplane is installed 1 media tray slots can't be installed.

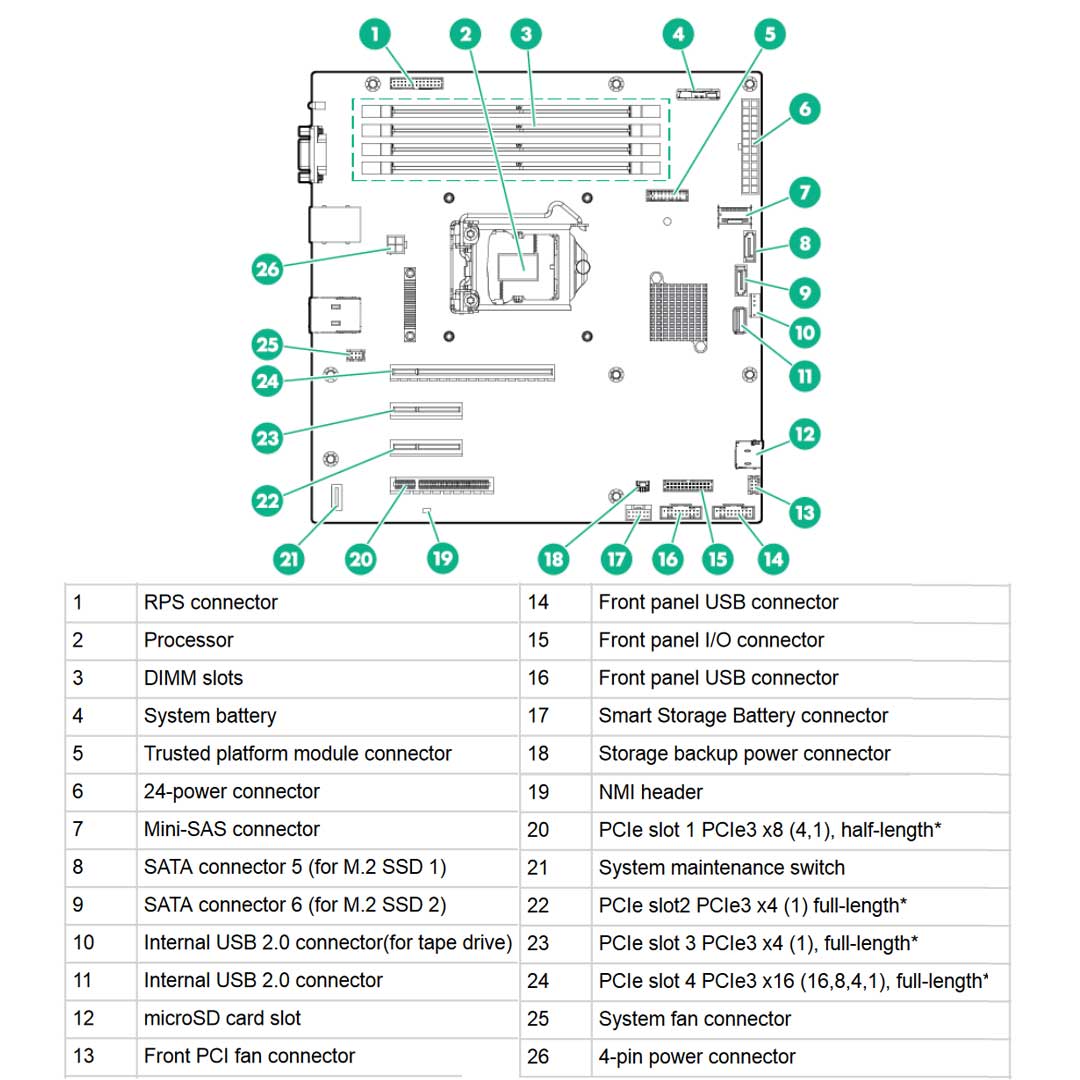

This Chassi comes with System board (873607-001)

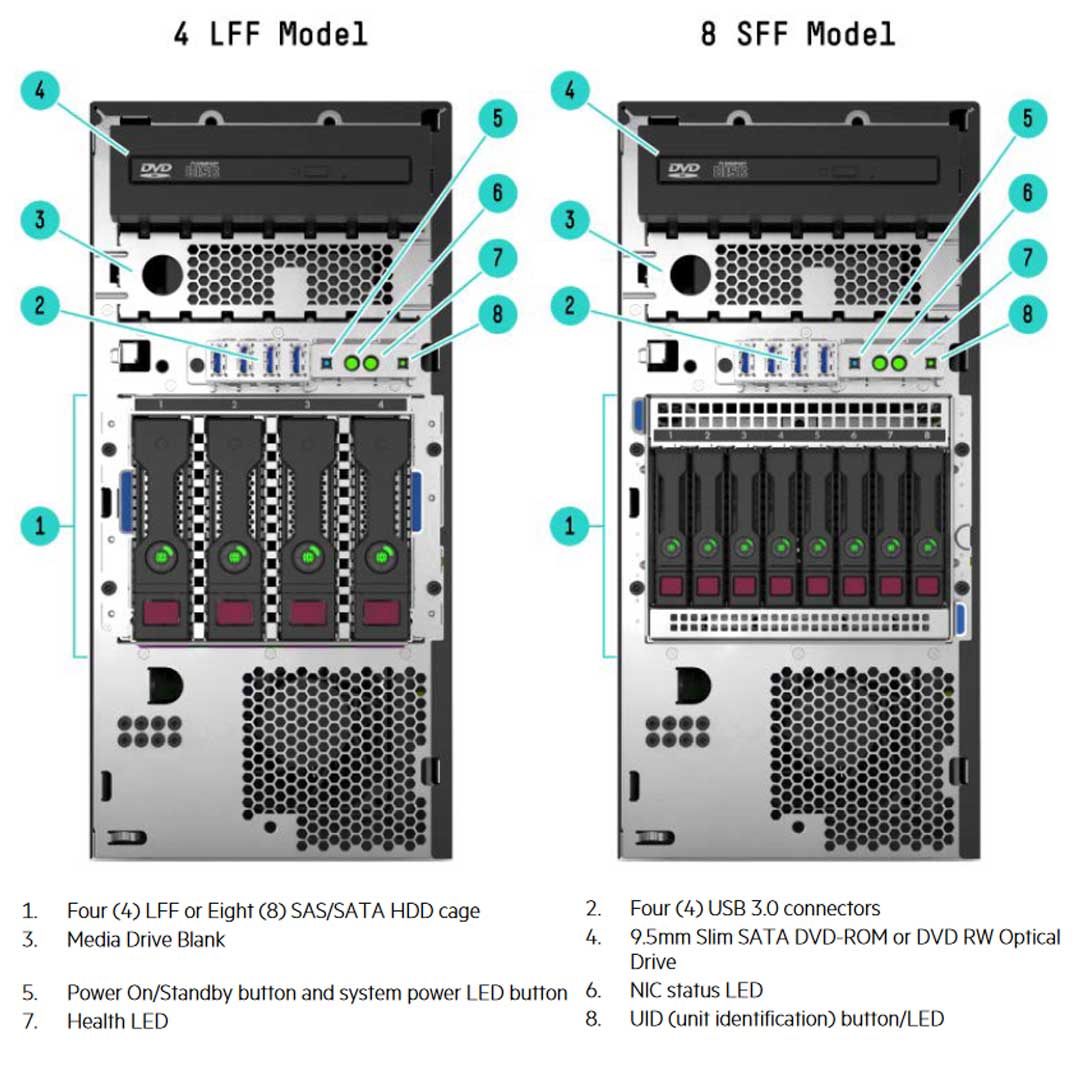

ML30 4U Chassis Configurations:
  • 4 Non Hot-Plug Drive Cage - 811591-001
  • 4 Hot-Plug Drives Cage / Backplane - 825099-001 / 792351-001
  • 8 Hot-Plug Drives Cage / Backplane - 686753-002 / 792352-001
Max Internal Storage:
  • Non Hot Plug LFF SATA | 4 x 4TB = 16TB
  • Hot Plug LFF SAS | 4 x 12TB = 48TB
  • Hot Plug LFF SATA | 4 x 12TB = 48TB
  • Hot Plug LFF SATA SSD | 4 x 1.92GB = 7.68TB
  • Hot Plug SFF SAS | 8 x 2.4TB = 19.2TB
  • Hot Plug SFF SATA | 8 x 2TB = 16TB
  • Hot Plug SFF SATA SSD | 8 x 3.84TB = 30.72TB
Storage Controllers:
NOTE: Max=1 if selected with another x8 device.
  • (Standard) HPE Dynamic Smart Array B140i with 4 SATA ports support
  • H240 host bus adapter (HBA) PCI-e 3.0x8 2 Internal ports 12Gb SAS 6Gb SATA - 779134-001
  • H241 host bus adapter (HBA) PCI-e 3.0x8 2 Internal ports 12Gb SAS 6Gb SATA- 750054-001
  • Smart Array P440 4GB FBWC Internal PCI-e 3.0x8 12Gb SAS 6Gb SATA controller - 749797-001
  • Smart Array P441 4GB FBWC External 2 mini-SAS ports PCI-e 3.0x8 12Gb SAS 6Gb SATA controller - 749798-001
  • Smart Storage Battery for FBWC support - 871264-001
  • Smart Storage Battery holder - 825640-001
Network Controllers:
NOTE: Max=1 if selected with another x8 device.
  • 1 Gigabit Ethernet adapters
    • HPE Ethernet 1Gb 4-port 331T Adapter - 647594-B21 - 649871-001
    • HPE Ethernet 1Gb 4-port 366T Adapter - 811546-B21 - 816551-001
    • HPE Ethernet 1Gb 2-port 332T Adapter BCM5720 - 615732-B21 - 616012-001
    • HPE Ethernet 1Gb 2-port 361T Adapter - 652497-B21 - 656241-001
  • 10 Gigabit Ethernet adapters
    • HPE Ethernet 10Gb 2-port 530SFP+ Adapter - 652503-B21 - 656244-001
    • HPE Ethernet 10Gb 2-port 530T Adapter - 656596-B21 - 657128-001
    • HPE Ethernet 10Gb 2-port 560SFP+ Adapter - 665249-B21 - 669279-001
    • HPE Ethernet 10Gb 2-port 561T Adapter - 716591-B21 - 717708-001
Power Supply:
  • (Standard) HPE 350W ATX-Gen9 Power Supply FIO Kit
    • 350W E1.0 - 821243-001
    • 350W E2.0 - 821244-001
  • HPE 460W Redundant Power Supply and parts:
    • Redundant 460W CS Gold hot-plug power supply - 511777-001
    • Redundant power supply cage - 686665-001
    • Redundant power supply backplane - 686744-001

The HPE Tower server ML30 is a high-performance server that comes equipped with one CPU and four DIMMs, providing ample processing power and memory to handle a range of workloads. This server also features support for two form factor drives, allowing you to choose between either four LFF HDDs or eight SFF SSD/HDDs. This flexibility makes it easy to customize the server to meet your specific storage needs. Additionally, the HPE Tower server ML30 features a compact tower design, making it easy to deploy and manage in a variety of environments. Whether you're running a small business or a larger enterprise, the HPE Tower server ML30 is a versatile and reliable choice for all of your computing needs.
