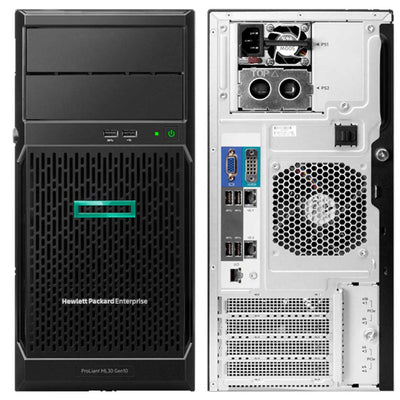

HPE ProLiant ML30 Gen9 Tower Server 4 LFF Chassis | 823402-B21

HPE ProLiant ML30 Gen9 Tower Server 4 LFF Chassis | 823402-B21

Price: Request a Quote

Brand:

HPE

MPN:

823402-B21

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE ProLiant ML30 Gen9 Tower Server 4 LFF Chassis | 823402-B21

What's New for ML30 Gen9

(1) Intel E3-1200 v5 or v6
(4) DDR4 UDIMM Slots
Broadcom 5720 Dual-port 1GbE
4 PCIe 3.0 slots
iLO Management (standard),
Intelligent Provisioning (standard)
1 non hot plug, non-redundant

The HPE Tower server ML30 is a high-performance server that comes equipped with one CPU and four DIMMs, providing ample processing power and memory to handle a range of workloads. This server also features support for two form factor drives, allowing you to choose between either four LFF HDDs or eight SFF SSD/HDDs.

This flexibility makes it easy to customize the server to meet your specific storage needs. Additionally, the HPE Tower server ML30 features a compact tower design, making it easy to deploy and manage in a variety of environments. Whether you're running a small business or a larger enterprise, the HPE Tower server ML30 is a versatile and reliable choice for all of your computing needs.

Other Versions:

Ideal for:

Corporate IT
Database

CTO Configuration Support

Need help with the configuration? Contact us today!

Chassis Options

[Chassis]
	HPE ProLiant ML30 Gen9 Non-hot Plug 4LFF Configure-to-order Server	HPE ProLiant ML30 Gen9 Hot Plug 4LFF Configure-to-order Server	HPE ProLiant ML30 Gen9 Hot Plug 8SFF Configure-to-order Server
SKU Number	823401-B21	823402-B21	823403-B21
Processor	1
DIMM Slots	4 DIMM slots for UDIMM DDR4 Memory
Storage Controller	HPE Dynamic Smart Array B140i with 4 SATA ports support	HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA
PCIe	4 PCIe 3.0 slots
Drive Cage	4LFF Non Hot Plug	4LFF Hot Plug	8SFF Hot Plug
Network Controller	Broadcom 5720 Dual-port 1GbE
Fans	1 non hot plug, non-redundant
Management	iLO Management (standard), Intelligent Provisioning (standard)
USB	4 front, 4 rear, 2 internal

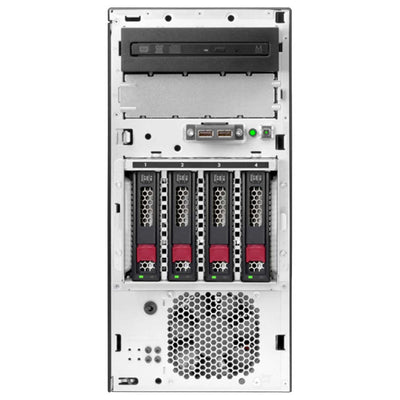

4 Non Hot-Plug Drive Cage

Controller

HPE Dynamic Smart Array B140i with 4 SATA ports support

Max Capacity

SATA | 4 x 4TB = 16TB

4 Hot-Plug Drives Cage / Backplane

Controller

HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA

Max Capacity

SAS | 4 x 12TB = 48TB

SATA | 4 x 12TB = 48TB

SATA | 4 x 1.92GB = 7.68TB

8 Hot-Plug Drives Cage / Backplane

Controller

HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA

Max Capacity

SAS | 8 x 2.4TB = 19.2TB

SATA | 8 x 2TB = 16TB

SATA | 8 x 3.84TB = 30.72TB

Looking to Customize?

Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

Start Customizing Today!

HPE ProLiant ML30 Gen9 Tower Server 4 LFF Chassis | 823402-B21 Spec Sheet

Manuals

Base Standard Capabilities

Product features

Feature

Description

Processor (One of the following depending on model)

Model	CPU Frequency	Cores	L3 Cache	Power	DDR4 Hz
G4560	3.5 GHz	2	3MB	54 W	2400
G4600	3.6 GHz	2	3MB	51 W	2400
i3-7100	3.9 GHz	2	3MB	51 W	2400
i3-7300	4.0 GHz	2	3MB	51 W	2400
E3-1220v6	3.0 GHz	4	8MB	72 W	2400
E3-1230v6	3.5 GHz	4	8MB	72 W	2400
E3-1240v6	3.7 GHz	4	8MB	72 W	2400
E3-1270v6	3.8 GHz	4	8MB	72 W	2400
E3-1280v6	3.9 GHz	4	8MB	72 W	2400

Cache memory (One of the following depending on model)

8MB (1 x 8MB) level 3 cache (For quad-core intel xeon processors)
3MB (1 x 3MB) level 3 cache (For dual-core intel pentium core i3 processors)

Chipset

Intel C236 chipset

On system management chipset

HPE iLO (Firmware HPE iLO4 2.0) 4GB NAND

Memory protection

ECC

Memory

Type	DDR4 unbuffered (UDIMM)
DIMM Slots available	4 (4 DIMM slots per processor; 2 channels per processor, 2 DIMMs per channel)
Maximum capacity (UDIMM)	64GB (4 x 16GB UDIMM 2133 MHz)

Network controller

HPE Ethernet 1Gb 2-port NC332i adapter

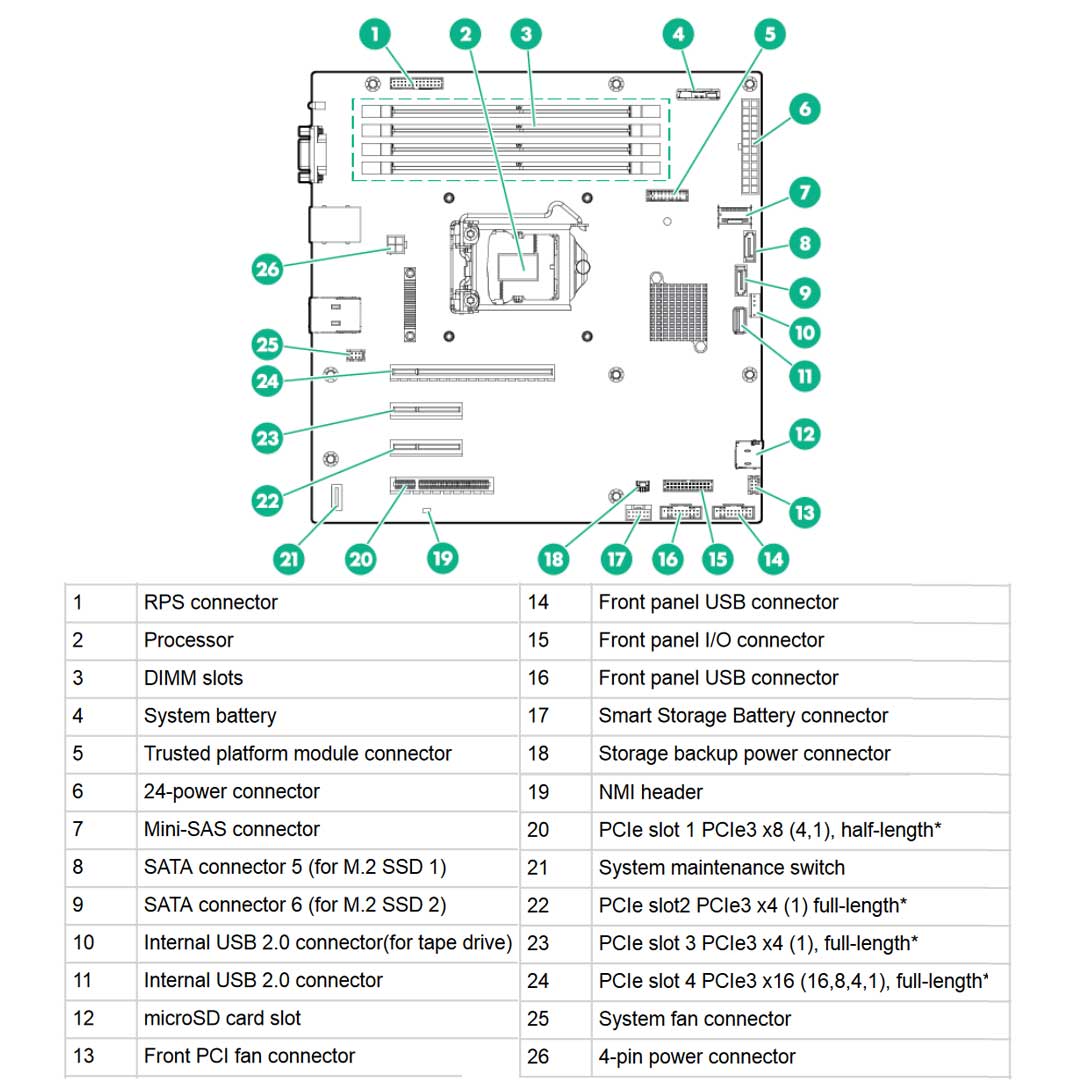

Expansion slots

Expansion Slots Number	Technology	Bus Width	Connector Width	Form Factor
4	PCIe 3.0	x16	x16	Full length/full height
3	PCIe 3.0	x1	x4	Full length/full height
2	PCIe 3.0	x1	x4	Full length/full height
1	PCIe 3.0	x4	x8	Half length/full height

NOTE: Bus width indicates the number of physical electrical lanes running to the connector

Storage controller (One of the following depending on model)

Base models	HPE Dynamic smart array B140i controller
Performance models	HPE Dynamic smart array B140i controller

NOTE: B140i can not mix with any standup internal controller

Internal storage devices (One of the following depending on model)

Optical drives	Optional SATA 9.5 mm DVD-ROM optical drive Optional SATA 9.5 mm DVD RW optical drive
Hard drives	None ship standard

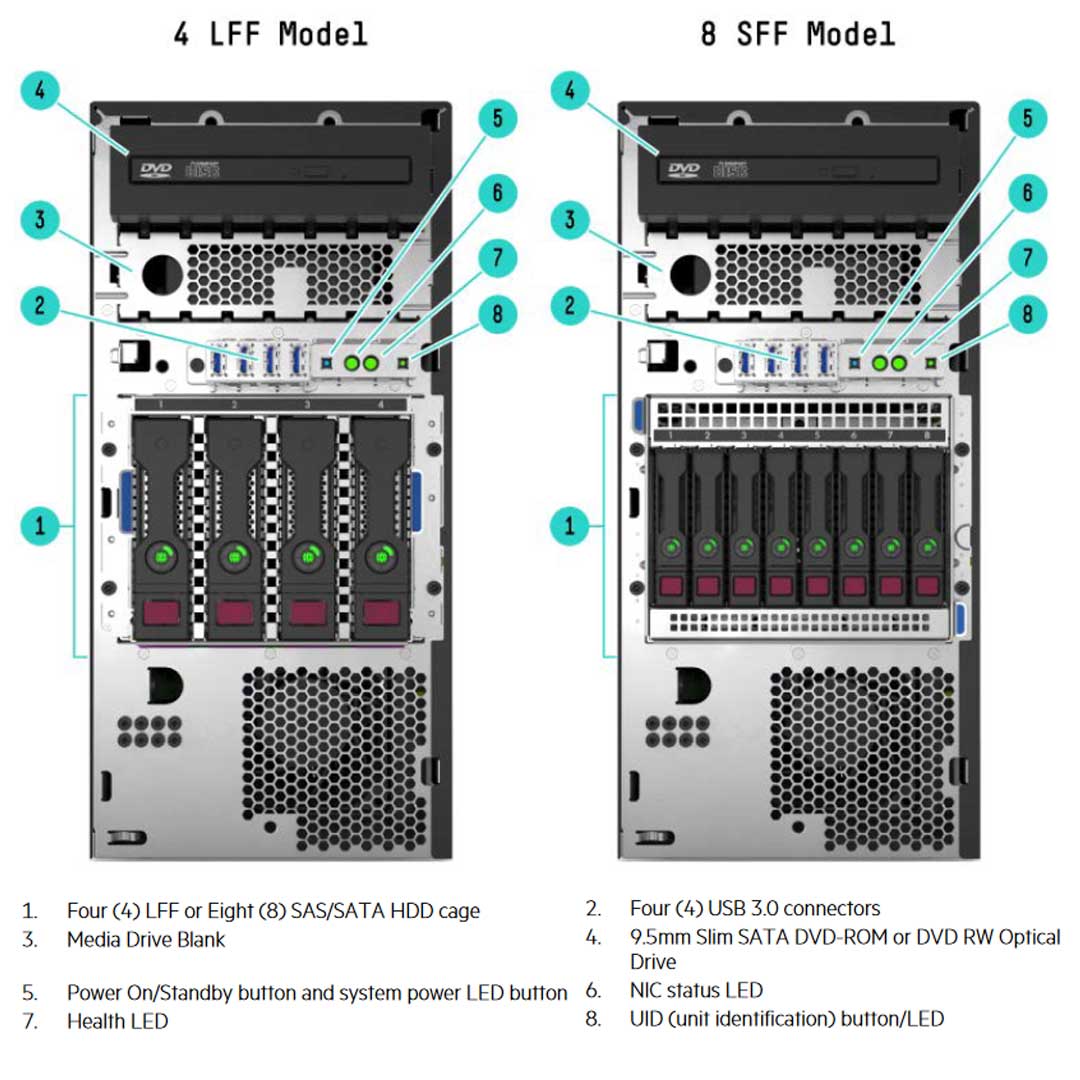

Hard drive bays	4 LFF drive bays (Non-hot-plug and hot-plug) 8 SFF hot-plug drive bays
NOTE: HPE ProLiant ML30 Series servers offer both SFF and LFF versions in CTO. All pre-configured models come populated with some hard drive blanks installed. Should the end user need additional hard drive blanks, they can order more using either Part Number (P/N) 666987-B21: HPE SFF HDD blank kit or P/N 666986- B21: HPE LFF HDD blank kit

Maximum internal storage

Drives	Capacity	Configuration
Hot plug LFF SAS	48TB	4x12TB
Hot plug SFF SAS	19.2TB	8x24TB
Hot plug LFF SATA	48TB	4x812TB
Hot plug SFF SATA	16TB	8x2TB
Non-hot plug LFF SATA	16TB	4x4TB
Hot plug SFF SATA SSD	30.72TB	8x3.84GB
Hot plug LFF SATA SSD	7.68TB	4x1.92GB

System fans

Non-redundant		Redundant
1P model system fan	One (1) Non-redundant system fan	NA
1P model PCIe fan	One (1) Non-redundant PCIe fan	NA

Power supply

HPE 350 W ATX-Gen9 power supply FIO kit
HPE 460 W redundant power supply
HPE Entry-Level power supplies provide lower-cost options for users trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs

System fans

Model	Non-redundant	Redundant
1P model system fan	One (1) non-redundant system fan	NA
1P model PCIe fan	One (1) non-redundant PCIe fan	NA

Upgradeability

Upgradeable to 4 cores (Total 2 or 4 cores)
Up to 4 DIMM slots available for higher memory capacity
Up to 8 SFF hard drive bays; or 4 LFF hard drive bays
All PCIe 3.0 I/O slots for additional communications and storage expansion
Redundant power supply
Optical drive bay (Up to 2.)

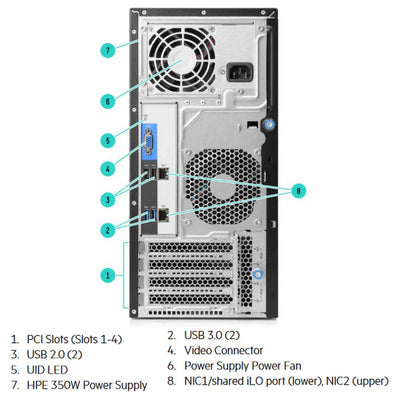

Interfaces

Video	1 (Rear)
USB 3.0	6 (4 front, 2 rear)
USB 2.0	4 (2 rear, 1 internal standard USB, 1 internal USB header)
Micro SD slot	1 Internal NOTE: The Micro-SD slot is not a hot-pluggable device. End users should not attempt to plug a Micro-SD card into the Micro-SD slot while the server is powered.
Network RJ-45 (Ethernet)	2 (1 shared for HPE integrated lights-out)

Industry standard compliance

ACPI 2.0b compliant
PCIe 3.0 compliant
PXE support
WOL support
Microsoft logo certifications
USB 2.0 /3.0 support

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 b/p)
1920 x 1200 (16 b/p)

HPE iLO 4 on system management memory

16MB flash
256MB DDR 3 with ECC (112MB after ECC and video)

HPE NVIDIA Quadro M2000 GPU Module

Security

Power-ON password
Setup password
Power switch security
Administrator's password
TPM 1.2
TPM 2.0
UEFI

Form factor

Micro ATX Tower (4U) chassis with feet/bezel:

36.82 x 17.5 x 47.52 cm (14.5 x 6.89 x 18.71 in)

8 SFF drive bay cage:

11.74 x 14.57 x 12.15 cm (4.6 x 5.74 x 4.79 in)

4 LFF drive bay cage:

11.72 x 14.57 x 17.54 cm (4.6 x 5.74 x 6.90 in)

HPE Server UEFI / legacy ROM

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure boot
OS specific functionality
Support for > 2.2TB (Using GPT) boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using RESTful API for iLO 4
PXE boot support for IPv6 networks
Boot support for option cards that only support a UEFI option ROM
Network stack configurations

Embedded management

HPE IntegratedLights-Out(HPE iLO)
UEFI
RESTful API
Intelligent provisioning
Embedded remote support

Server utilities

Smart update
HPE Systems Insight Manager(HPE SIM)
Scripting ToolKit and Windows PowerShell
RESTful interface tool
HPE iLO mobile application
HPE Insight online

Storage software

Data protection and recovery software
Data archive and migration software
Storage Resource Management Software (SRM)
Data replication software
Storage device management software
HPE StoreVirtual VSA

top

More Specs

Software overview

Feature	Description
Operating systems and virtualization software support	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ClearOS

top

Physical specifications

Specification	Description
Dimensions (H x W x D):	36.82 x 17.5 x 47.52 cm (14.50 x 6.89 x 18.7 in)
Weight	Maximum: 15.4 kg (30.8 Ib) Minimum: 13.56 kg (27.1 lb)

top

Electrical specifications

Specification	Description
Rated line voltage	100 - 120 V ac
Rated input current	2.5 - 6 A
Rated input frequency	47 - 63 Hz
Rated input power	412 W - 526 W at 115 V ac 412 W - 523 W at 230 V ac
BTU rating	460 W - 1773 BTU/hr (At 120 V ac), 1715 (At 240 V ac)
Rated steady-state power	350 W (At 115 V ac) 350 W (At 230 V ac)
Peak power	350 W (At 115 V ac) 350 W (At 230 V ac)

top

Environmental specifications

Specification	Description
Operating temperature	10°C to 35°C (50°F to 95°F)
Non-operating temperature	-30°C to 60°C (-22°F to 140°F)
Operating relative humidity	10% to 90% non-condensing
Non-operating relative humidity	5% to 95% non-condensing
Operating altitude	3048 m (10,000 ft)
Non-operating altitude	9144 m (30,000 ft)
Acoustic noise	Idle	Operating
	LWAd 4.2 Bels (1P LFF base) 3.7 Bels (1P LFF performance) LpAm 27 dBA (1P LFF base) 23 dBA (1P LFF performance)	LWAd 4.2 Bels (1P LFF base) 3.8 Bels (1P LFF performance) LpAm 27 dBA (1P LFF base) 23 dBA (1P LFF performance)
	NOTE: Configurations tested for 1P LFF base models include one (1) 1TB LFF SATA Midline (MDL) HDD and Windows 2012 Enterprise 64-bit Configurations tested for 1P LFF performance models include one (1) 1TB LFF SATA MDL HDD and Windows 2012 Enterprise 64-bit The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels Levels presented do not account for non-Hewlett Packard Enterprise installed hardware

top

Safety certifications

Specification	Description
Emissions Classificatio (EMC)
FCC rating	Class B
Normative standards	CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003;CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (Type) testing, evaluation or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

top

Category: 4-dimms, 4-pcie-slots, ddr4, drive-count-4, gen9, hp, hpe, hpe_components, interface-type-sas, interface-type-sata, lff, memory-64gb, pcie-3, processor-count-1, server-ff-tower

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Online Now

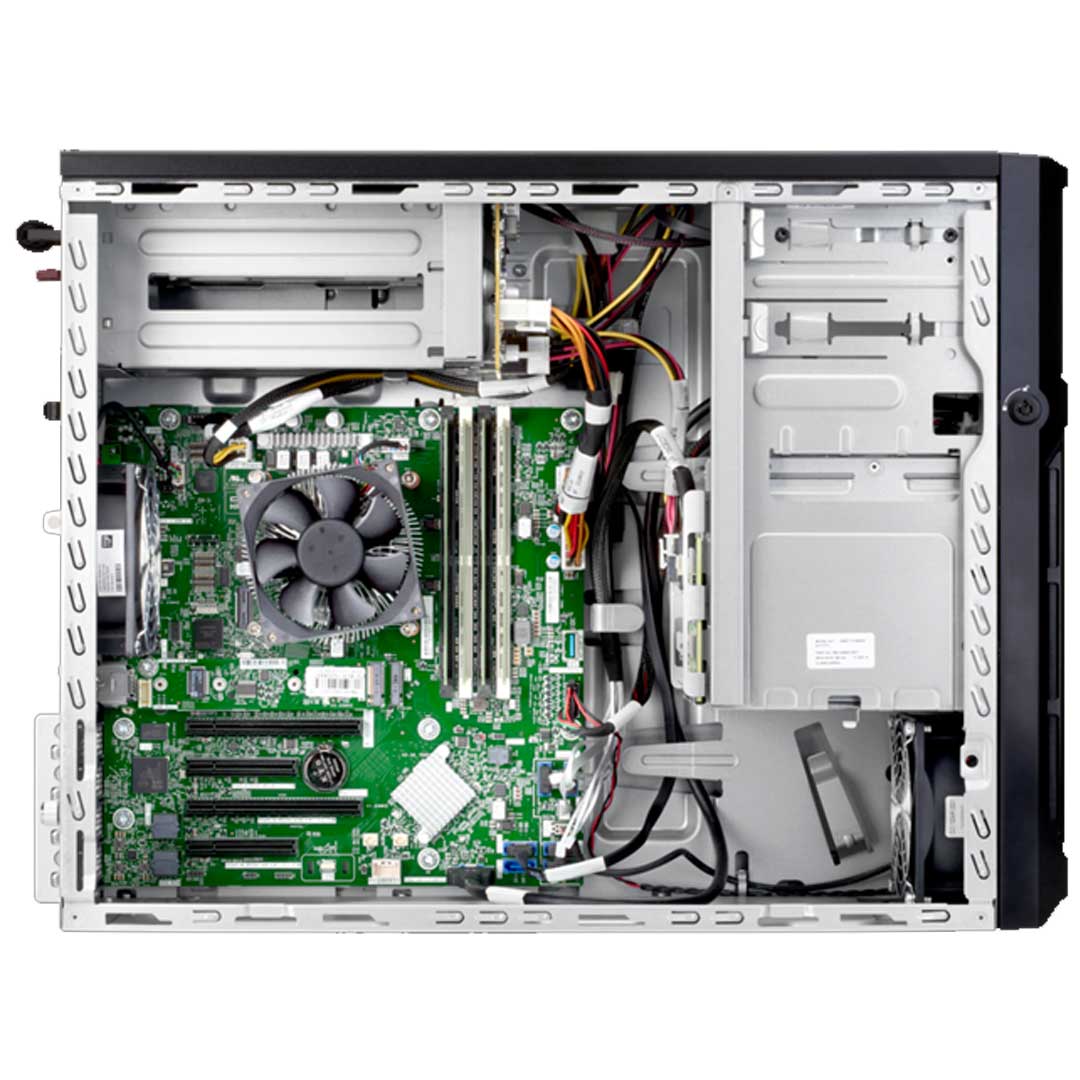

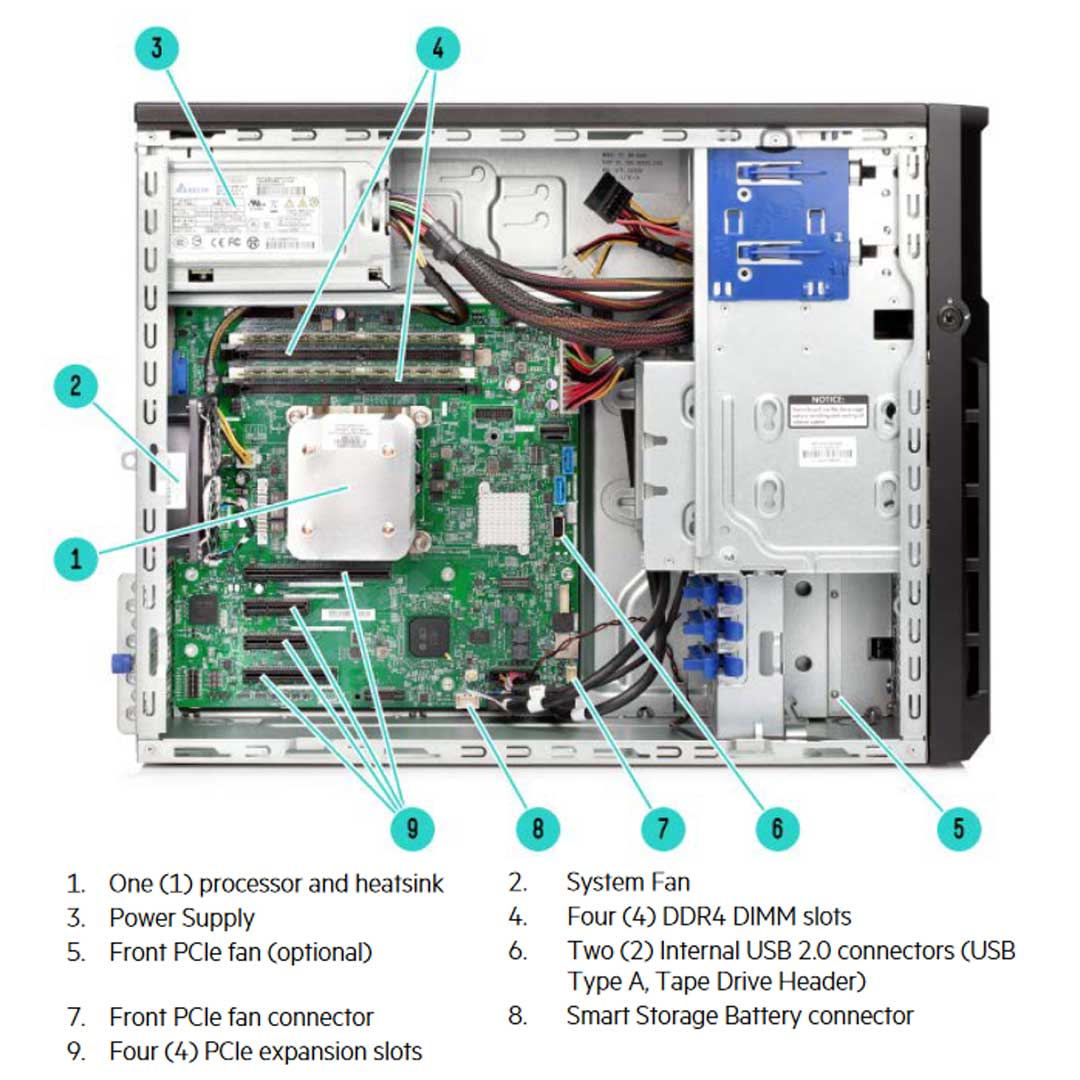

HPE ProLiant ML30 Gen9 Tower Server 4 LFF Chassis | 823402-B21

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
