| CTO Server [Chassis] | HPE ProLiant DL120 Gen9 8SFF Configure-to-order Server |
HPE ProLiant DL120 Gen9 4LFF Configure-to-order Server |
HPE ProLiant DL120 Gen9 Non-hot Plug 4LFF Configure-to- order Server |
|---|---|---|---|
| SKU Number | 777426-B21 | 777427-B21 | 777428-B21 |
| Processor | 1 | 1 | 1 |
| DIMM Slots | 8 DIMM slots for RDIMM, LRDIMM DDR4 Memory | ||
| Storage Controller | HPE Dynamic Smart Array B140i | ||
| PCIe | 1 PCIe LP standard/up to 3 PCIe slots (optional) | ||
| Drive Cage - included | 8SFF Hot Plug | 4LFF Hot Plug | 4LFF Non Hot Plug |
| Network Controller | HPE Embedded Dual Port 361i Adapter Network Interface | ||
| Fans | 3 hot swap fans, non-redundant | ||
| USB | 1 front, 1 internal, 2 rear | ||
| Ears | HPE Thumbscrew Ears | ||

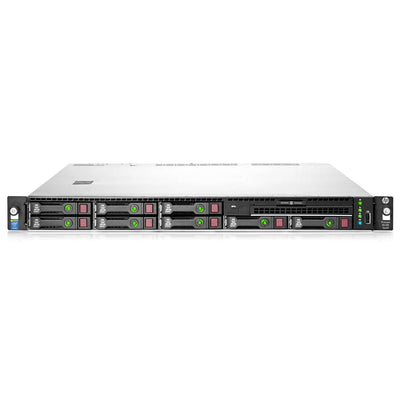

Powered by the Intel Xeon E5-2600 v3 series processor, the refurbished HP ProLiant DL120 Gen9 packs an enterprise-class design in a dense 1U/1-socket form factor. The server offers a superior combination of performance, redundancy, and expandability compared with traditional 1P servers, making it ideal for the growing needs of virtualization and general-purpose workloads.
The HPE ProLiant DL120 Gen9 Server supports (1) Intel Xeon E5-2600 v3/v4 or E5-1600 v3/v4 processor offering improved performance and efficiency in a dense 1U chassis.
HPE DDR4 SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 256 GB max capacity with speeds up to 2400 MHz.
HPE SmartDrives continue to deliver optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
Supports up to (4) LFF and (8) SFF 12 Gb/s HDD/SSD options with maximum capacity of up to 40 TB.
Up to (3) PCIe 3.0 riser slots to support more IO with networking cards offering increased IO bandwidth and seamless expandability.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
| Technical specifications | HPE ProLiant DL120 Gen9 Server |
|---|---|
| Compute | One Intel Xeon E5-2600 v3/v4 or E5-1600 v3/v4 Series, 4/6/8/10/12/14/16/18/20/22 cores PCIe 3.0, up to three available slots |
| Memory | HPE SmartMemory (8) DDR4; up to 2400 MHz (256 GB max.) |
| Storage | HPE Dynamic Smart Array B140i, optional HPE Smart Array Controllers, and HPE Smart HBAs via PCIe stand-up cards |
| HPE SmartDrives | 8 SFF/4 LFF max. HDD/SSD, M.2 enabled |
| Networking | 2 x 1GbE embedded Ethernet Adapter with optional FlexibleLOM slot on riser |
| VGA/serial/USB ports/SD | One rear VGA, three USB 3.0, one USB 2.0, one microSD, Dual microSD optional |
| System ROM | UEFI and Legacy BIOS |
| Converged management | HPE OneView with HPE iLO Advanced |
| Support management | HPE Insight Online with enhanced mobile application |
| Embedded management | HPE iLO 4, Intelligent Provisioning, System Update Manager (SUM), RESTful Interface Tool, Scripting Tools for Microsoft® Windows Server® PowerShell |
| Power and cooling | Up to 92% efficient (Gold). 550 W multi-output, 900 W RPS |
| Industry compliance | ASHRAE A3 |
| Form factor/chassis depth | Rack (1U) 23.9" (SFF), 23.9" (LFF) |
| Serviceability–Easy Install rails | Standard |
