- HPE Smart Memory 2400 MHz memory (up to 64GB)
- Intel Xeon E5-2600v4 processor support (up to 120 W)
- New 900 W/240 V power supply
- HPE Trusted Platform Module (TPM) 2.0
- New HDD offerings
- Supports (4) LFF or (8) SFF

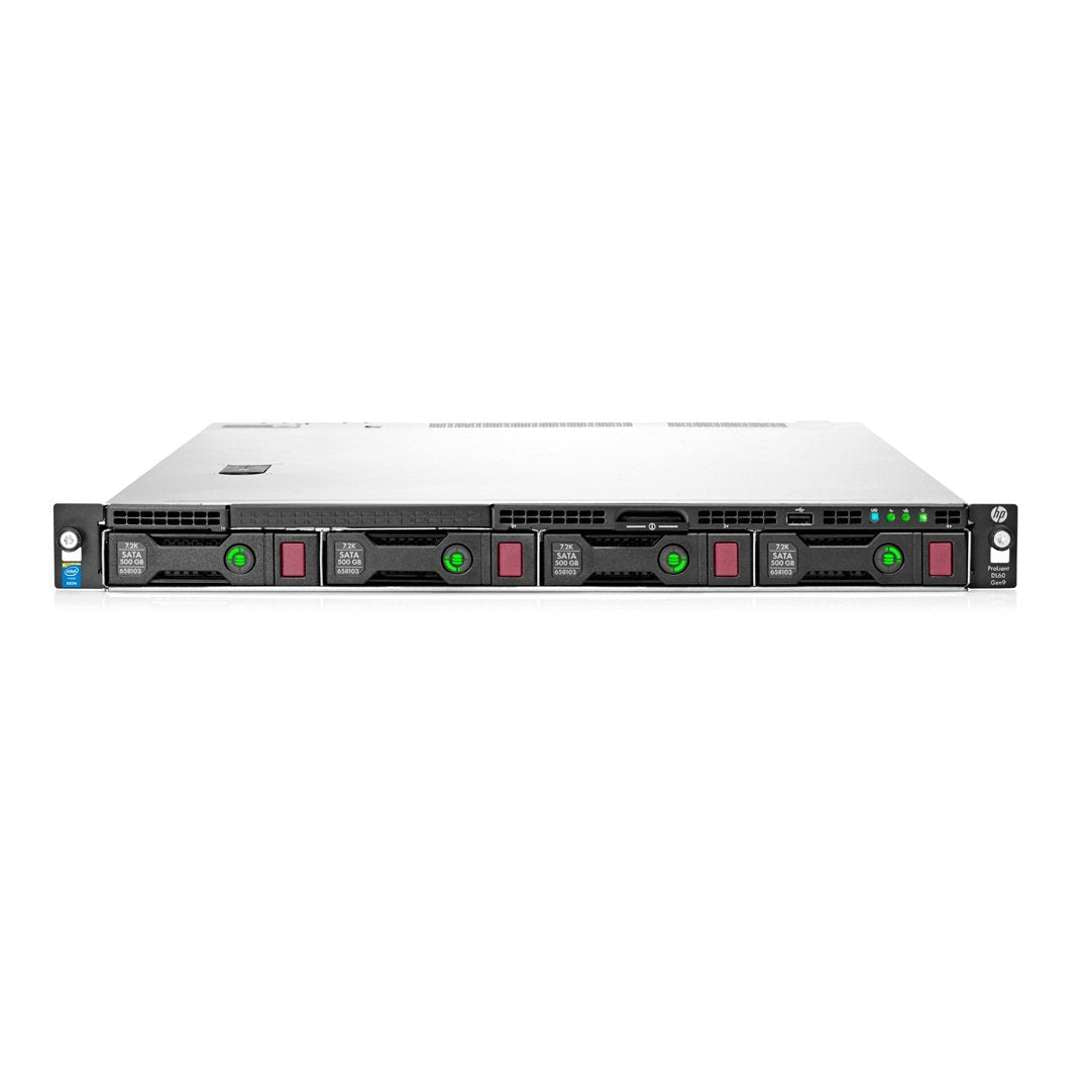

The compact refurbished HP ProLiant DL160 Gen9 Server provides right-sized performance and storage density, making it well-suited for a small to midsize business or service provider. You get exceptional reliability, manageability, and efficiency in a 2P rack design that fits your available space and won’t strain your budget.
The HPE ProLiant DL160 Gen9 Server offers (16) DIMM slots of HPE DDR4 SmartMemory, with built-in intelligence to reduce downtime and up to 14% better throughput performance.
Embedded management to deploy, monitor and support your server remotely, out of band with HPE iLO makes it easier to manage complex IT environments thereby minimizing the IT resource requirements.
Supports up to (2) Intel Xeon E5-2600 v3/v4 processors offering improved performance and efficiency.
HPE SmartDrives continue to deliver optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
Embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data. Choice of HPE Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HPE Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.
| CTO Server [Chassis] | HP ProLiant DL160 Gen9 Hot Plug 8SFF Configure-to-order Server |
HP ProLiant DL160 Gen9 Hot Plug 4LFF Configure-to-order Server |
HP ProLiant DL160 Gen9 Nonhot Plug 4LFF Configure-to-order Server |
|---|---|---|---|
| SKU Number | 754520-B21 | 754521-B21 | 754522-B21 |
| Processor | 2 (optional) x HPE Smart Socket Guide | ||
| DIMM Slots | 16 DIMM slots for RDIMM, LRDIMM DDR4 Memory | ||
| Storage Controller | HPE Dynamic Smart Array B140i | ||
| PCIe | Optional (None ship standard) | ||
| Drive Cage - included | 8SFF Hot Plug | 4LFF Hot Plug | 4LFF Non Hot Plug |
| Network Controller | HPE Embedded Dual Port 361i Adapter Network Interface | ||
| Fans | 3 hot swap fans, non-redundant | ||
| USB | 1 front, 1 internal, 2 rear | ||
| Ears | HPE Thumbscrew Ears | ||
