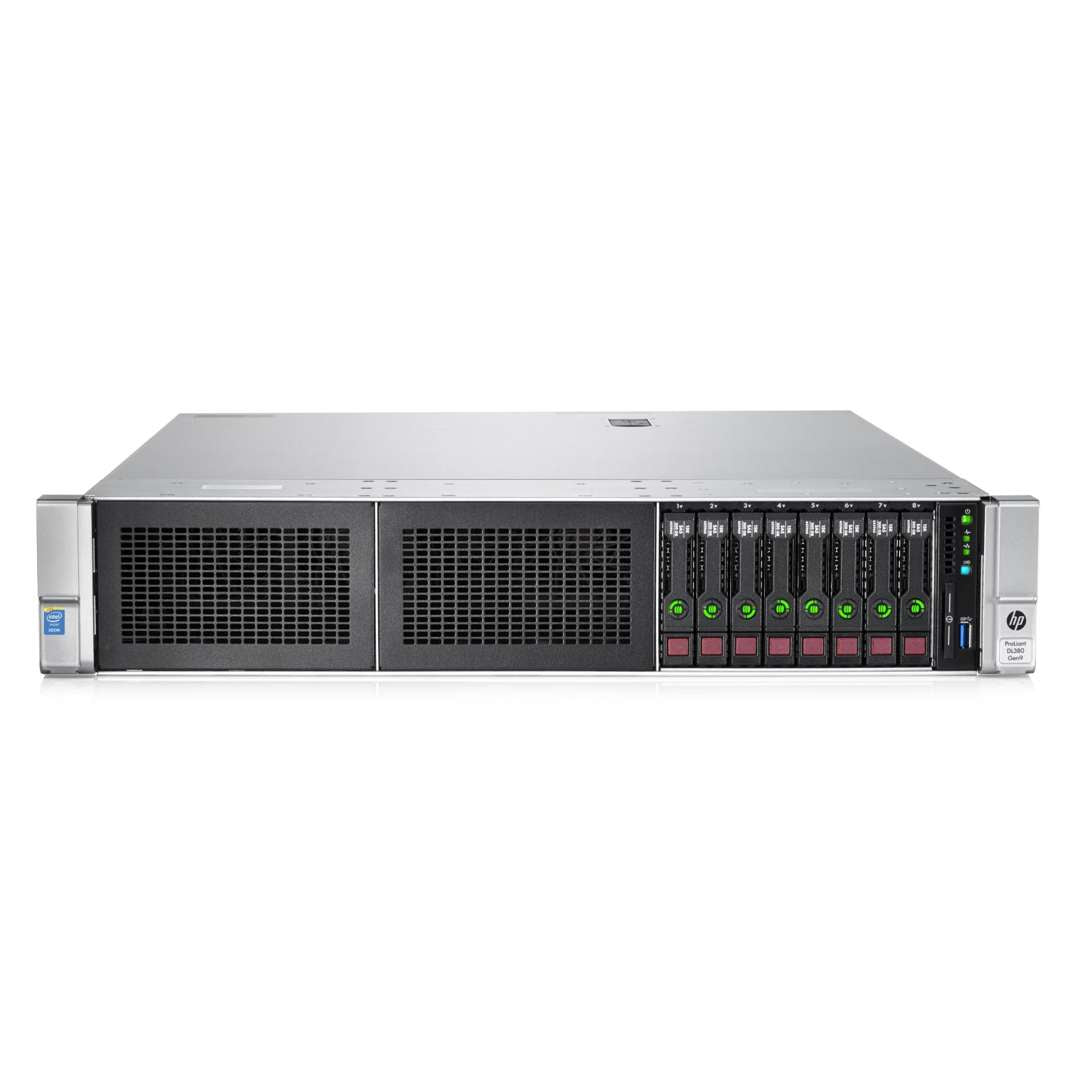

719064-B21 - HPE ProLiant DL380 Gen9 8 Server Chassis

Hpe Proliant Dl380 Gen9 8Sff Server Chassis | 719064-B21

SKU: 719064-B21

Hpe Proliant Dl380 Gen9 8Sff Server Chassis | 719064-B21

Name: Hpe Proliant Dl380 Gen9 8Sff Server Chassis | 719064-B21
Brand: HPE
SKU: 719064-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

What's New for DL380 Gen9

New Capacity Drives
New GPU options
Enhanced NIC offering
Support for Microsoft Windows Server 2016
Clear OS support

Deploy the data center standard. Designed to reduce costs and complexity, leveraging Intel’s latest E5-2600 v4 processors with 21% performance gain, plus the latest HPE 2400 MHZ DDR4 SmartMemory supporting 3.0 TB and up to 23% performance increase.

Supporting 12 Gb/s SAS, 40 Gb NIC with broad range compute options. HPE Persistent Memory, the world’s first NVDIMM optimized on ProLiant, offering unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission critical applications, and can be deployed with confidence.

Other Versions:

(Click to View)

Ideal for:

Cloud Servers
Corporate IT
Database
Point-of-Sale (POS)
Retail Servers
Virtual Desktop Interface (VDI)
Virtualization

The HP ProLiant DL380 Gen9 Server model is the data center standard for general-purpose computing—offering the best performance and expandability in the HP 2P rack portfolio. It also features a “future proof” design that keeps up with your business as needs change.

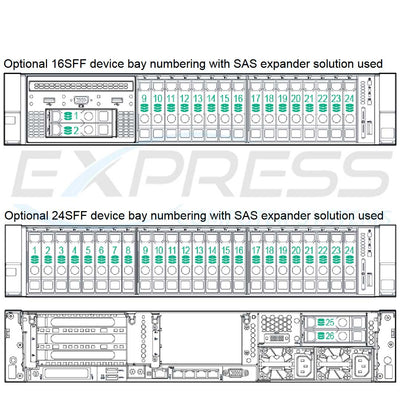

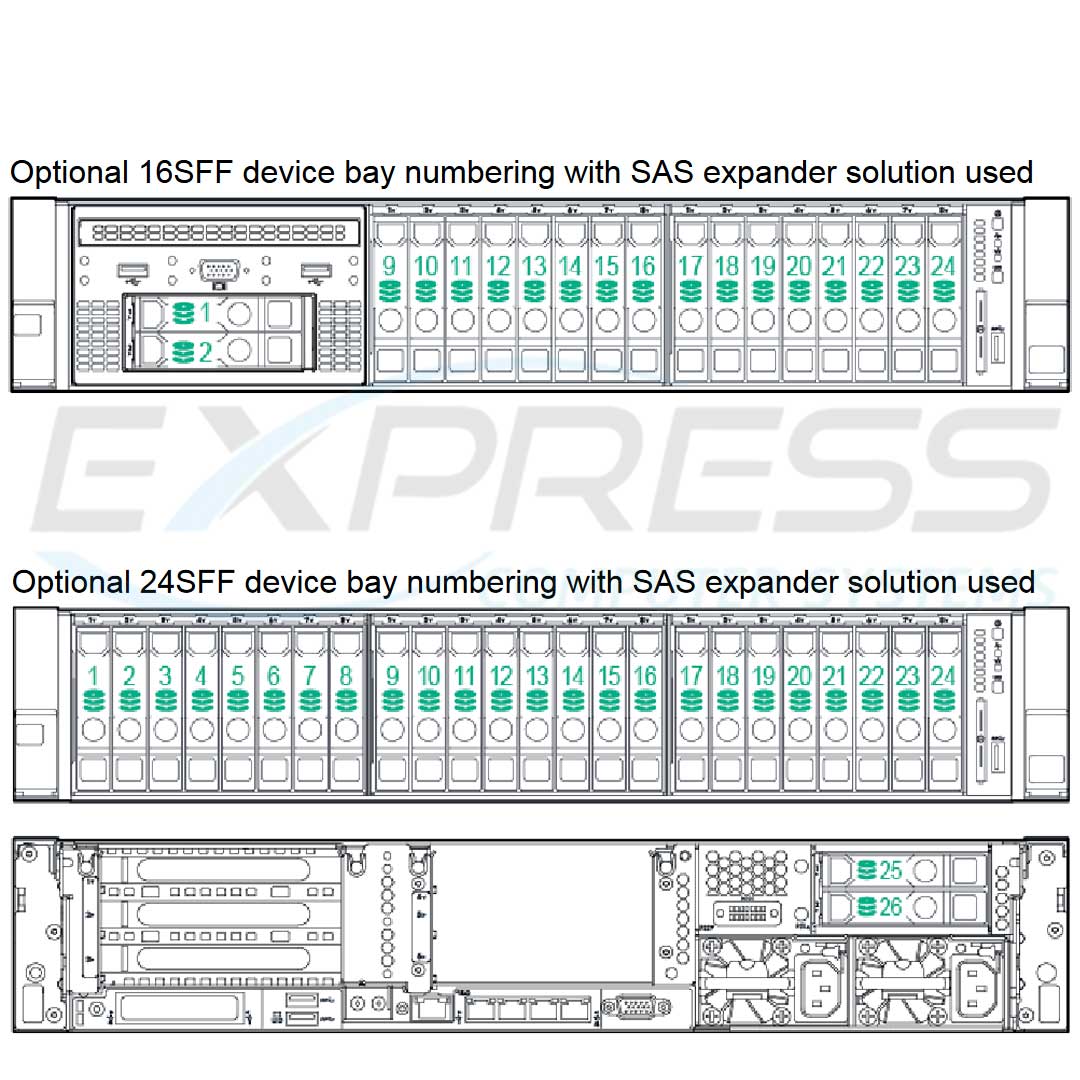

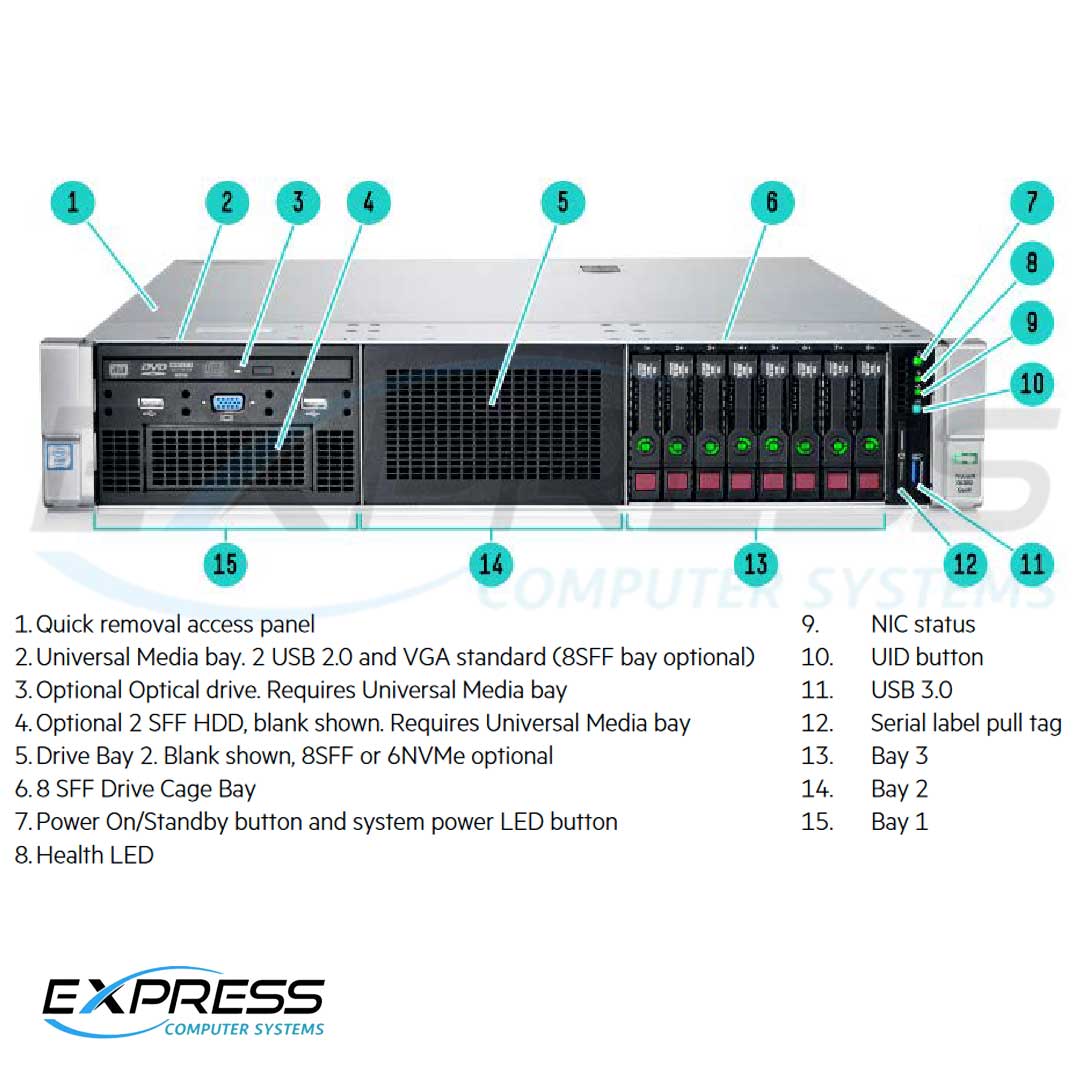

The HPE ProLiant DL380 Gen9 Server has a flexible redesigned chassis, including new HPE Universal Media Bay configuration options with 8 to 24 SFF and 4 or 12 LFF drive options along with NVMe options and additional rear drive support for expandability and investment protection.

Flexible Design Makes Your Investment "Future Proof" so it Can Grow as Your Business Needs Expand

HPE Persistent Memory, the first Non-volatile DIMM (NVDIMM) optimized on HPE ProLiant, offering unprecedented levels of performance and data resiliency for databases and analytic workloads.

You have a choice of embedded 4x1GbE, HPE FlexibleLOM or PCIe standup 1GbE to 40GbE Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.

In conjunction with the embedded SATA HPE Dynamic Smart Array B140i Controller for boot, data and media needs, the redesigned HPE Flexible Smart Array and HPE Smart SAS HBA Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment.

HPE DL380 Gen 9 Chassis Options

Before we go any further. This HPE DL380 Gen9 Rack Server has many storage options. It has 5 different chassis to choose from and a few options for expanding those further.

Chassis Comparison

CTO Server [Chassis]	HPE ProLiant DL380 Gen9 8SFF Configure-to- order Server	HPE ProLiant DL380 Gen9 NVMe 6 Solid State Drive Express Bay Configure-to-order Server	HPE ProLiant DL380 Gen9 24SFF Configure-to-order Server	HPE ProLiant DL380 Gen9 4LFF Configure-to-order Server	HPE ProLiant DL380 Gen9 12LFF Configure-to-order Server
SKU Number	719064-B21	810393-B21	767032-B21	767033-B21	719061-B21
Processor	2 (optional) x HPE Smart Socket Guide
DIMM Slots	24 DIMM slots for RDIMM, LRDIMM DDR4 Memory
Storage Controller	HPE Dynamic Smart Array B140i, plus optional HPE Flexible Smart Array or Smart HBA controller

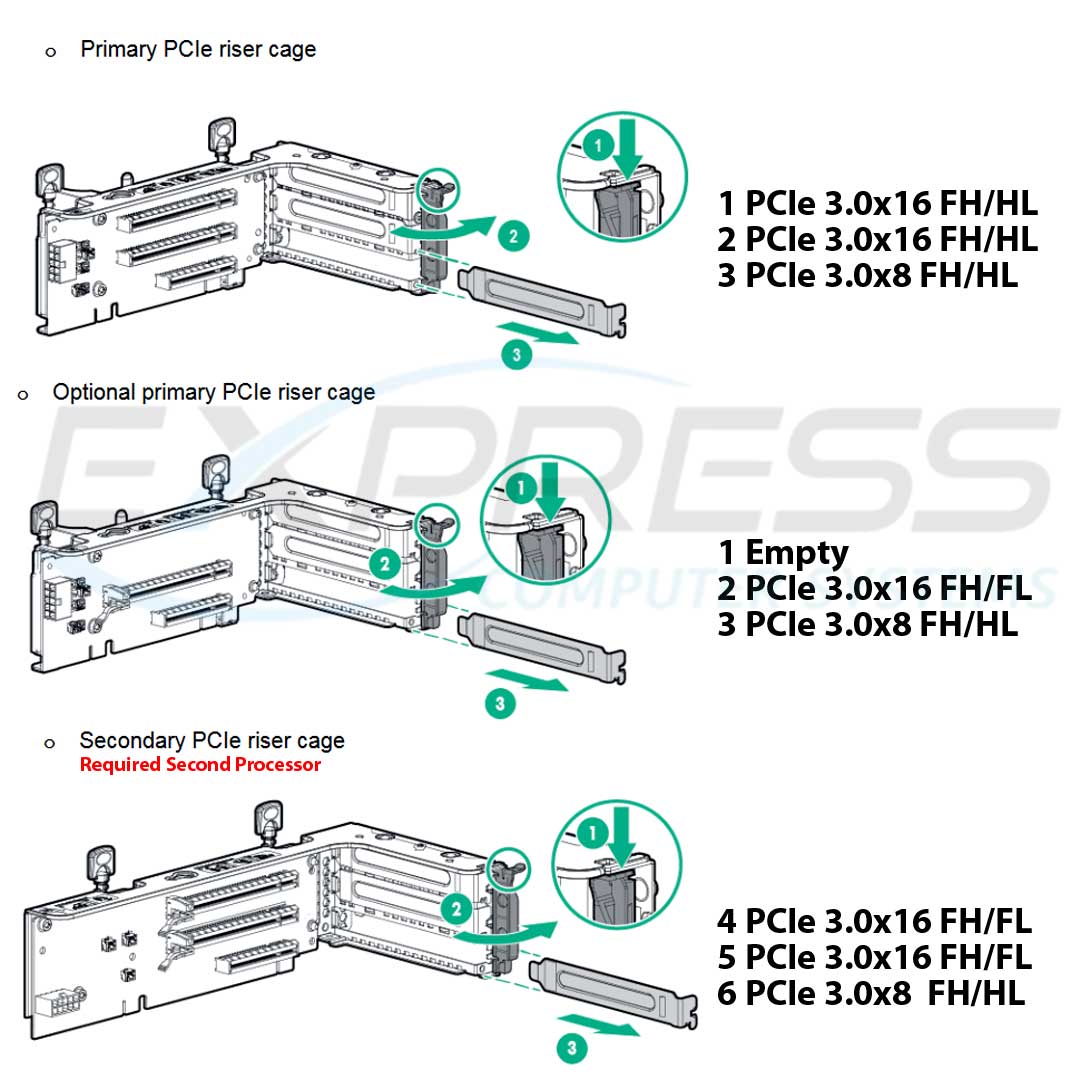

PCIe	3 PCIe slots (+3 PCI slots available with upgrade option, second processor required)

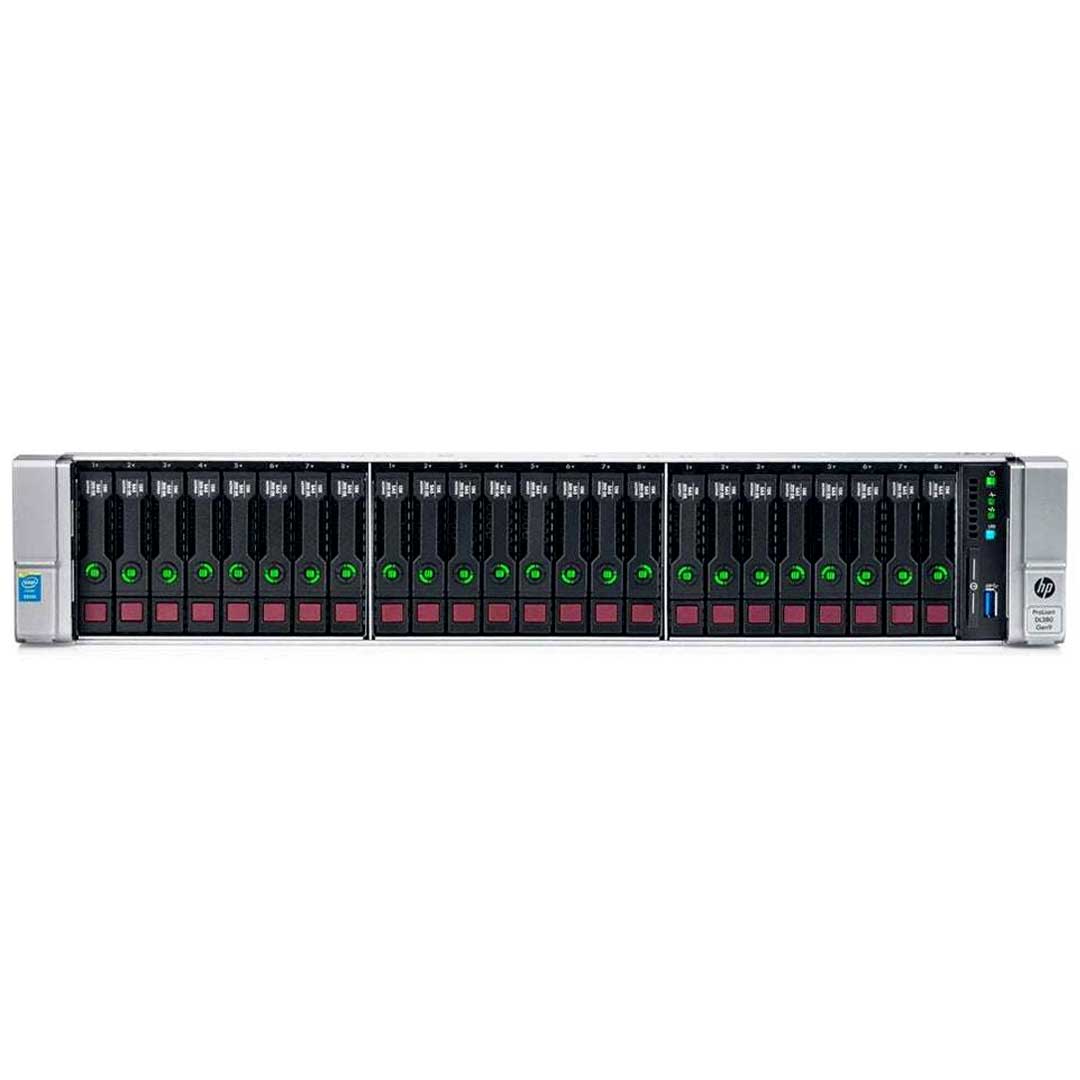

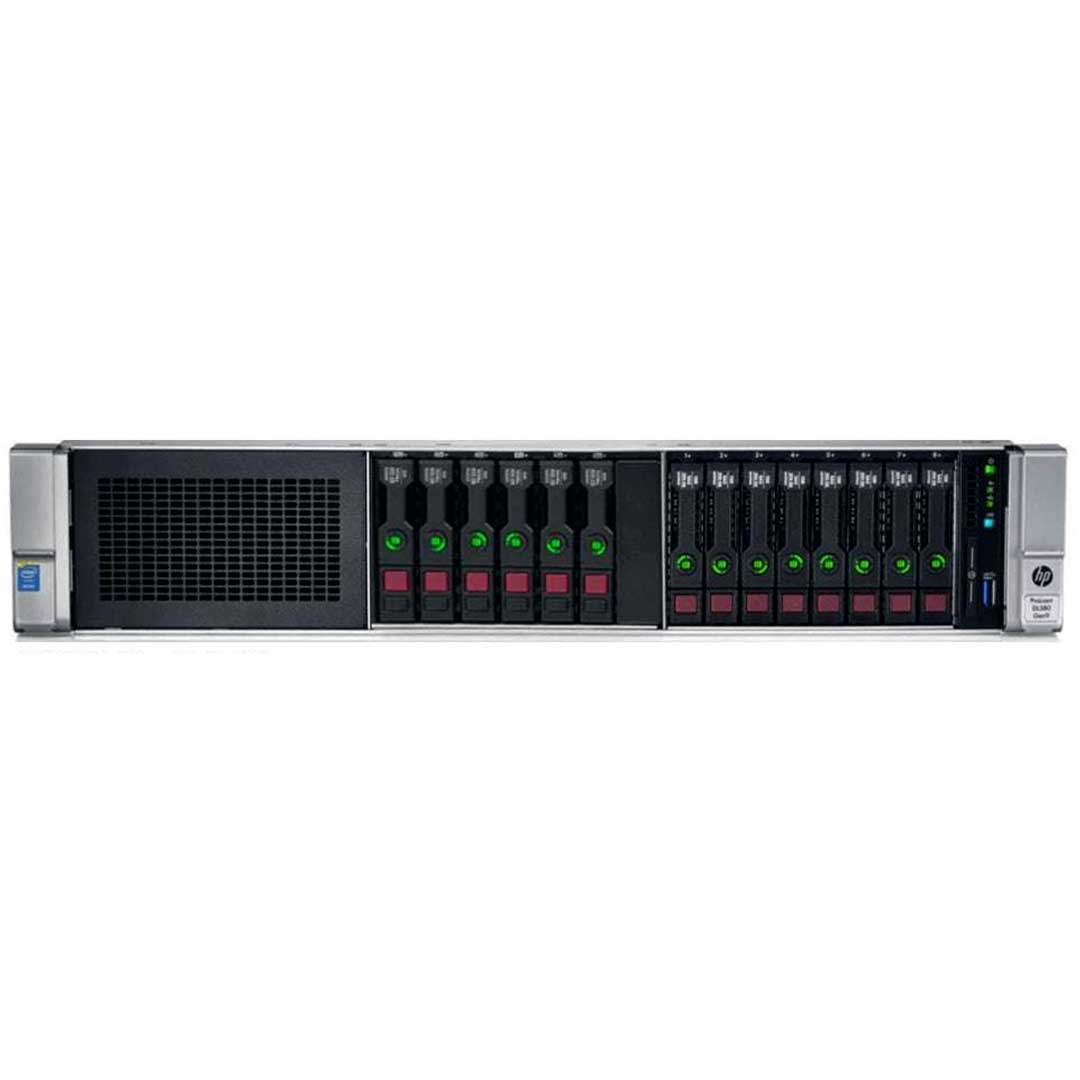

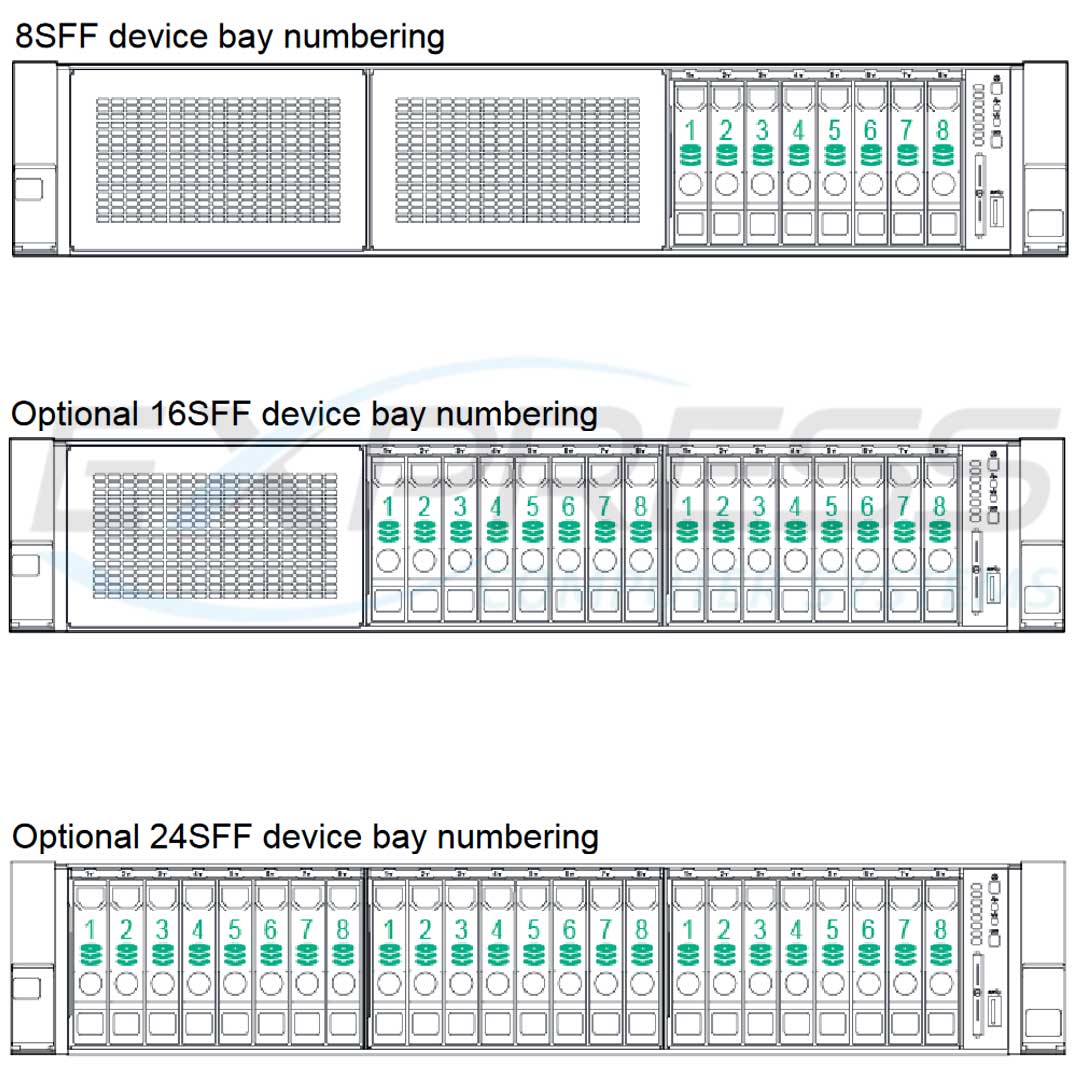

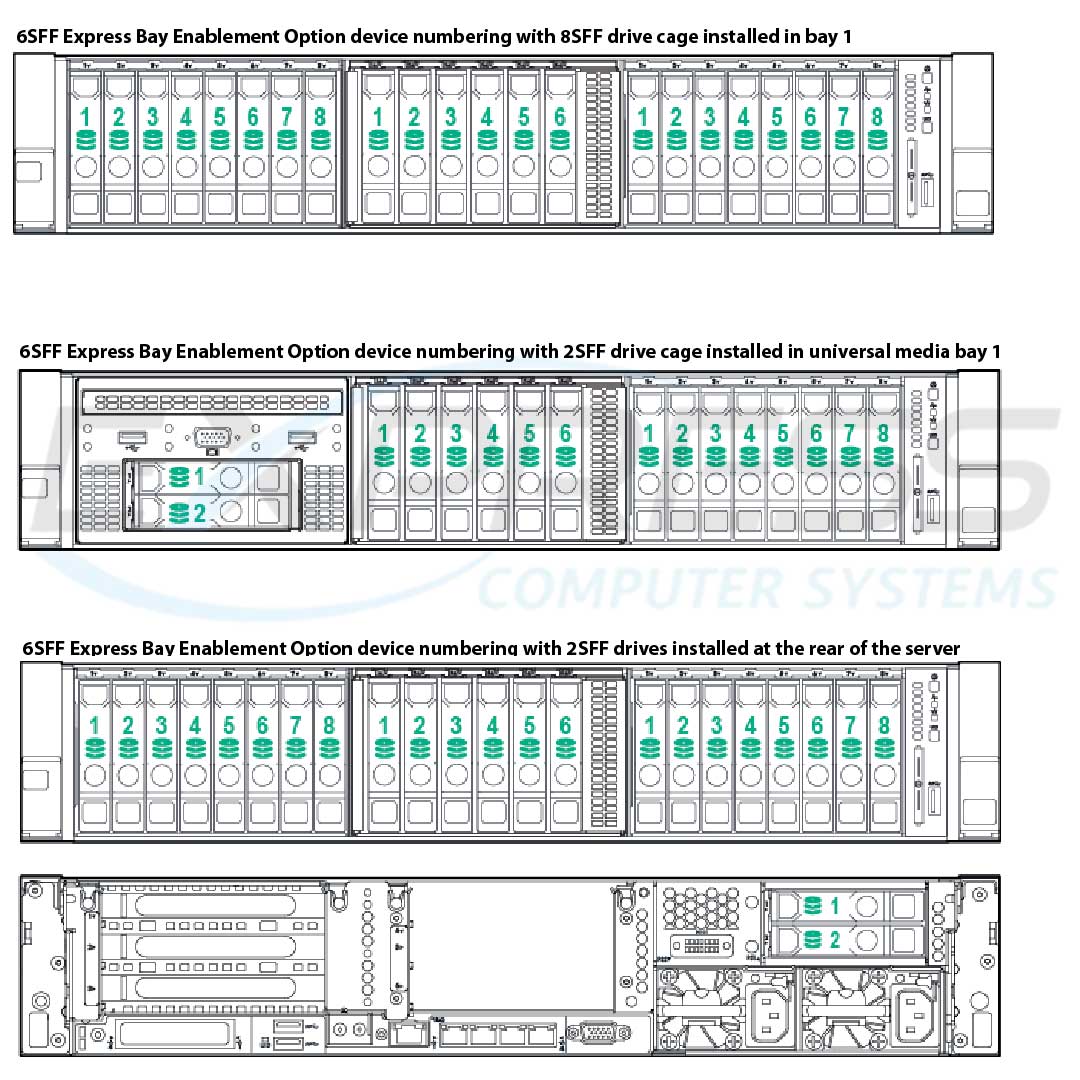

Drive Cage - included	8SFF Hot Plug (+8SFF and Universal Media Bay Optional)	8SFF +6NVMe Hot Plug (+8SFF or Universal Media Bay Optional)	24SFF Hot Plug	4LFF Hot Plug	12LFF Hot Plug
Network Controller	HPE Embedded 1Gb Ethernet 4-port 331i Adapter, plus optional HPE FlexibleLOM or stand up card	HPE Embedded 1Gb Ethernet 4- port 331i Adapter	HPE Embedded 1Gb Ethernet 4-port 331i Adapter, plus optional HPE FlexibleLOM or stand up card
Fans	4 hot plug fans, redundant	6 hot plug high performance fans, redundant		4 hot plug fans, redundant	6 hot plug high performance fans, redundant
USB	1 front, 2 internal, 2 rear	1 front, 1 internal, 2 rear	1 front, 2 internal, 2 rear	No front USB support
Ears	HPE Quick Release Ears

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Technical specifications	HP ProLiant DL380 Gen9 Server
Compute	Up to two Intel® Xeon® E5-2600 v3 series, 4/6/8/10/12/14/16/18 cores; PCIe 3.0, up to six available slot(s)
Memory	HP SmartMemory (24) DDR4, up to 2,133 MHz (768 GB max)
Storage	Standard HP Dynamic Smart Array B140i, choice of HP Flexible Smart Array or HP Smart SAS HBA controllers
Flash-backed write cache (FBWC)	2 GB DDR3-1,866 MHz, 72-bit wide bus at 14.9 GB/s on P440ar
Battery	HP DL/ML/SL 96 W Smart Storage Battery
HP SmartDrives	24 + 2 SFF/12 + 3 LFF max, HDD/SS

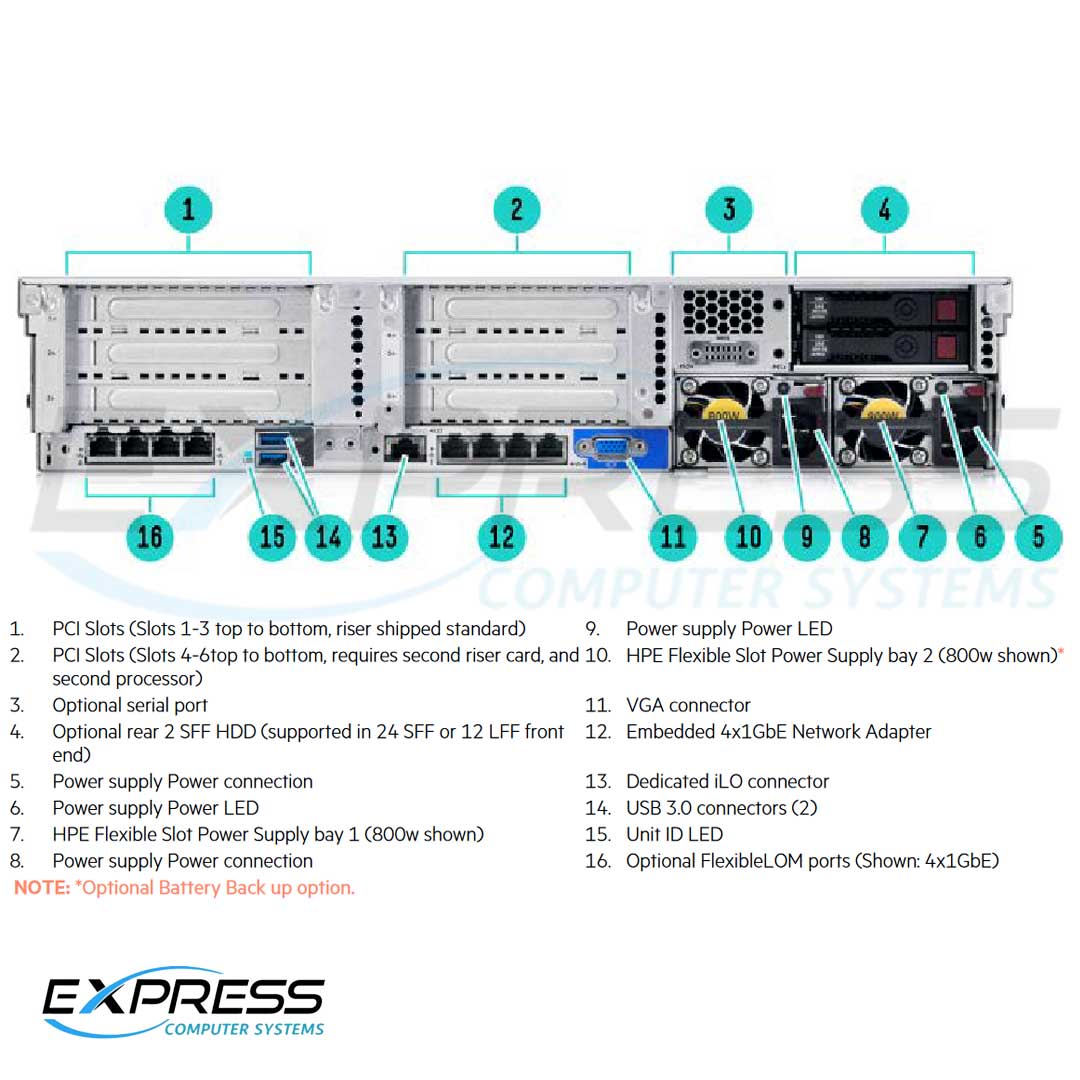

Networking	4 x 1GbE Embedded + choice of FlexibleLOM + Standup
VGA/serial/USB ports/SD	Front VGA opt, rear VGA, and serial standard, 6 USB 3.0, microSD
GPU Support	Single-/double-wide and active/passive up to 10.5" (3)
On Premise management	HP OneView 5 and HP iLO Advance
On Cloud management	HP Insight Online with enhanced mobile app
On System management	Changes in HP iLO, HP Smart Update Manager (HP SUM), Intelligent Provisioning and scripting tools; plus the new UEFI and HP RESTful Interface Tool
Power and cooling	94 percent efficient with Flexible Slot FF Hot plug fans with full N + 1 redundancy, optional high performance fans
Industry compliance	ASHRAE A3 and A4, lower idle power, and ENERGY STAR
Power discovery services	Supported
Location discovery services	Optional
Form factor/chassis depth	Rack (2U), 26.75" (SFF), 28.75" (LFF)
Serviceability — Easy install rails	Standard
