-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Adapter Specs
- Controller Chipset: LSI SAS9212‑4i
- Host Interface: PCI Express ×8 (2.0 compatible)
- Data Transfer Rate: Up to 6 Gb/s per port
- Ports: 4 internal SAS/SATA ports
- Supported Drives: SAS and SATA HDDs/SSDs
- RAID Support: Hardware RAID levels (0, 1, 1E, 10) supported
- Form Factor: Low-profile card with full‑height bracket included
Part Number:
- 694504-001

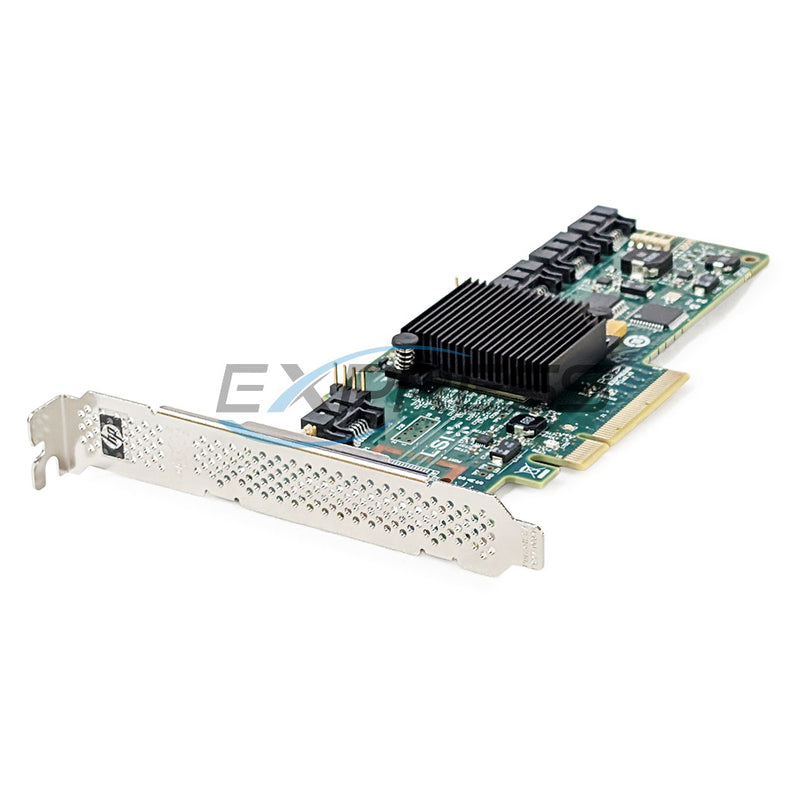

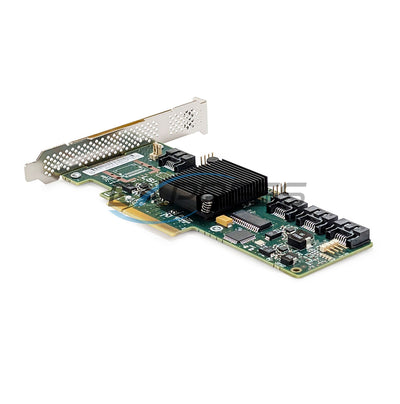

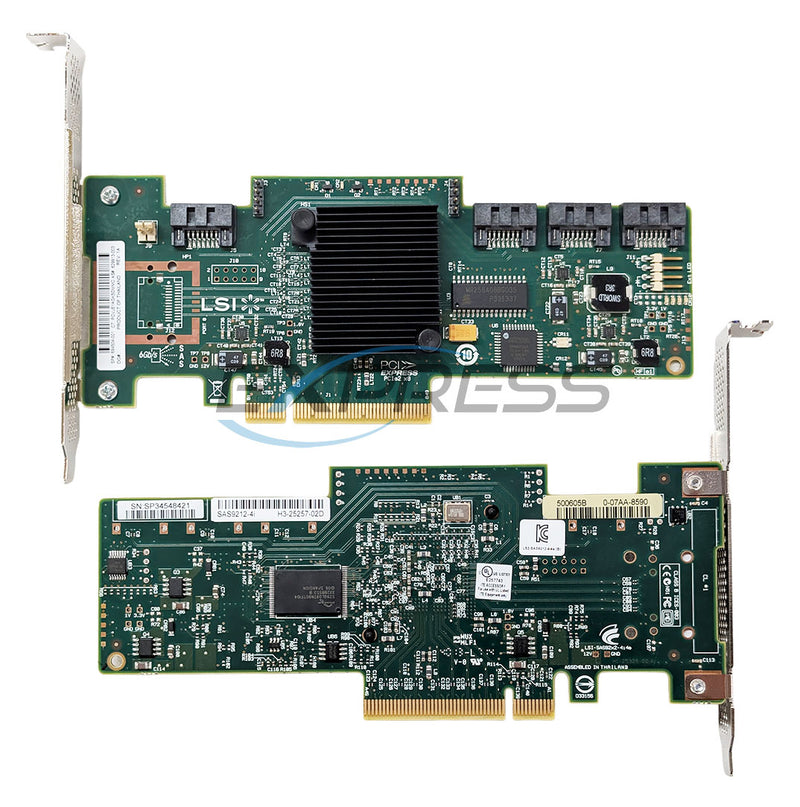

The HPE LSI 9212‑4i is a robust internal RAID controller based on the reliable LSI SAS9212 chipset. With four internal SAS/SATA ports that support transfer speeds up to 6 Gb/s, the card provides versatile storage connectivity for enterprise-grade servers and workstations. It offers hardware RAID support for levels 0, 1, 1E, and 10, making it suitable for performance-driven and redundancy-focused storage configurations.
Designed for broad compatibility, the adaptor fits easily into servers thanks to its PCIe ×8 interface and includes both low-profile and full-height brackets. Whether deployed in HP ProLiant systems or custom builds, it allows connection to multiple SAS or SATA drives in a compact internal setup. Ideal for boot, backup, or cascading data arrays, this controller offers a reliable, scalable solution for medium-density storage environments.
