Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Adapter Specs
- Port Type: Dual Internal
- Data Transfer Speed: 10GbE
- Protocol: Ethernet
- Type: 560FLB FlexibleLOM

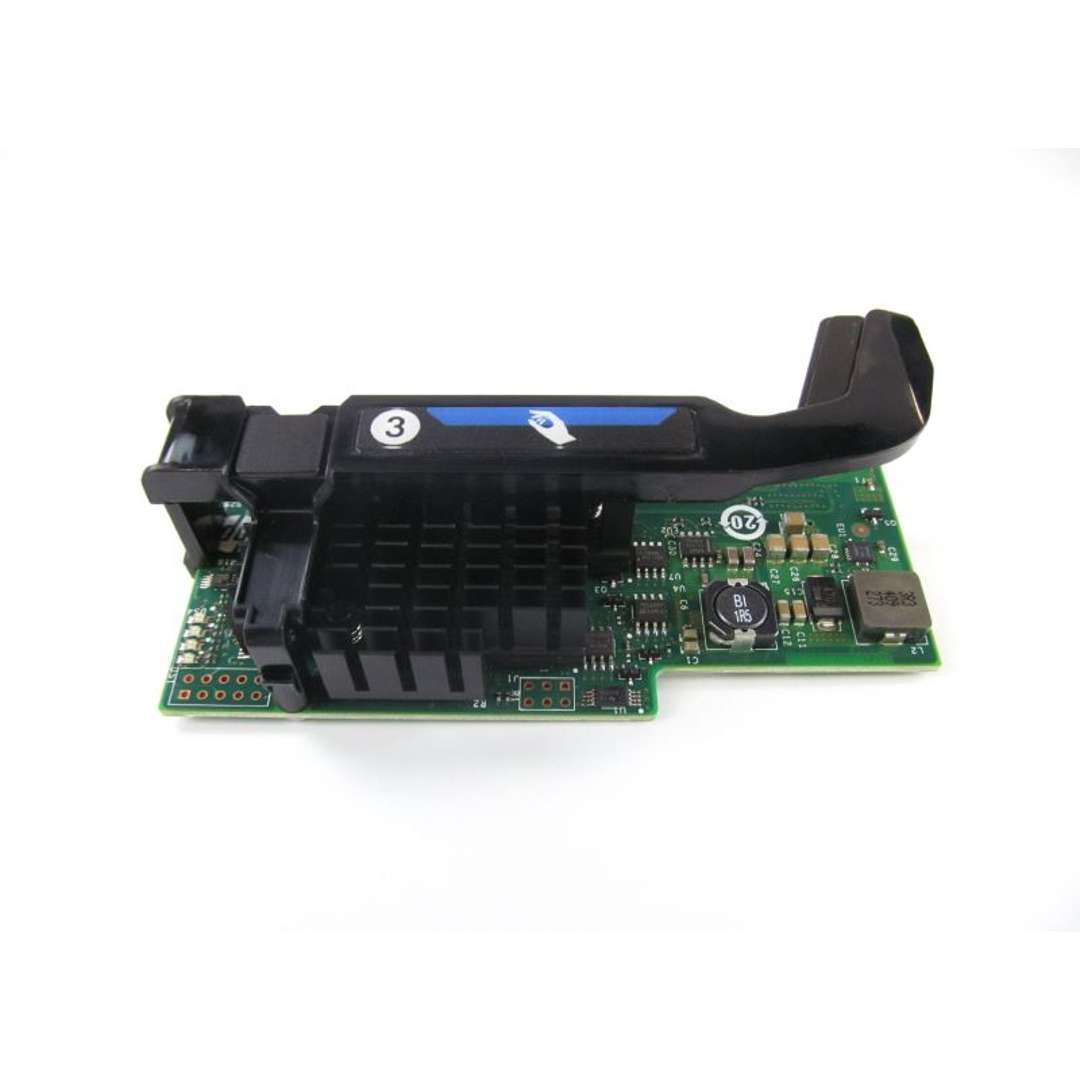

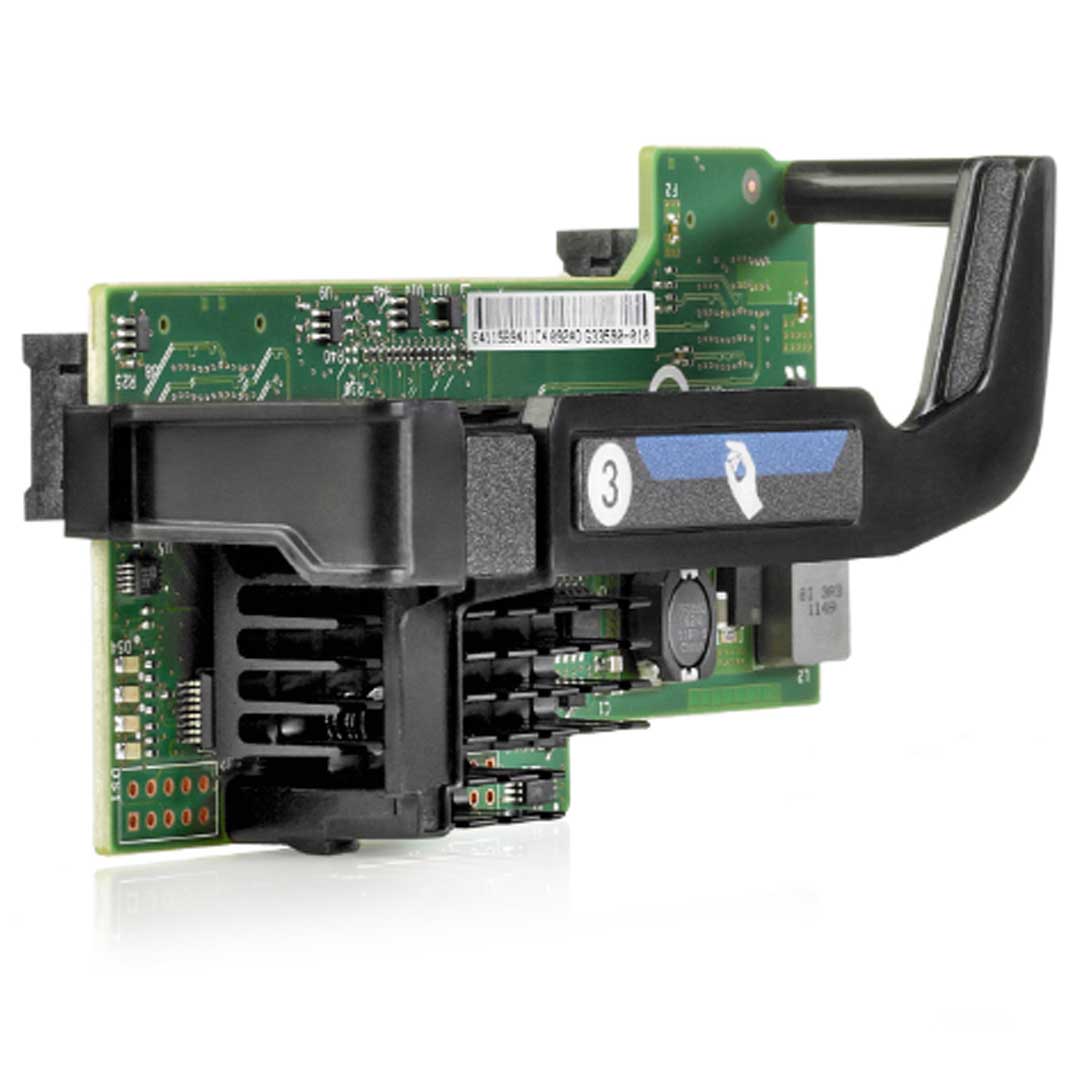

The HPE Ethernet 10Gb 2-port 560FLB Adapter features the next generation of 10Gb Ethernet offering based on Intel 82599 chipset on a FlexibleLOM form factor, further reducing power requirements for 2 ports of 10Gb Ethernet. It is designed for use with HPE BladeSystem c-Class Gen8 servers.
It provides full duplex high performance Ethernet connectivity. The HPE 560FLB FlexibleLOM network adapter helps to extend the benefits of virtualization beyond the server and into the rest of the infrastructure.
The HPE 560FLB supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Wake-on-LAN, Receive Side Scaling (RSS), jumbo frames, EEE 1588, PXE boot and virtualization features such as VMware NetQueue, Microsoft VMQ and Intels VMDq.
At a Glance Features
- Dual-port 10GbE FlexibleLOM network adapter that provides the flexibility to choose the type of LOM to meet growing infrastructure needs
- Industry-leading throughput and latency performance
- Up to 40 Gb/s bi-directional near line rate throughput
- Hardware and software acceleration and offloads for stateless TCP/IP
- Supports Wake-on-LAN (at 1 Gb)
- NOTE: Wake-on-LAN is supported only on Port1 from system power state S5.
- Improved small packet performance
- Interrupt Coalescing
- Support for Preboot eXecution Environment (PXE)
- Integrated PHY and MAC
- Data Rate Two ports, each at 20 Gb/s bi-directional; 40 Gb/s aggregate bi-directional theoretical bandwidth.
- Bus type PCI Express 2.0 (Gen 2) x8
This adapter delivers 20 Gb/s bi-directional Ethernet transfer rate per port (40 Gb/s per adapter), providing the network performance needed to improve response times and alleviate bottlenecks.
TCP/UDP/IP
For overall improved system response, this adapter supports standard TCP/IP offloading techniques including TCP/IP, UDP checksum offload (TCO) moves the TCP and IP checksum offloading from the CPU to the network adapter. Large send offload (LSO) or TCP segmentation offload (TSO) allows the TCP segmentation to be handled by the adapter rather than the CPU.
NOTE:
- This adapter on each server blade connects to a 10 Gb interconnect in bays 1-2 (HPE BladeSystem c7000 Enclosure) or bay 1 (HPE BladeSystem c3000 Enclosure).
- his adapter requires a minimum of 2 GB of server memory.
- This adapter supports linking at 1000 Mb/s or 10000 Mb/s when not connected to a Flex-10 device.
- This adapter will only support 1000 Mb/s when connected to a 1 Gb Ethernet interconnect.
- HPE BL460c
- HPE BL660c
- HPE ws460c
