Quick Specs

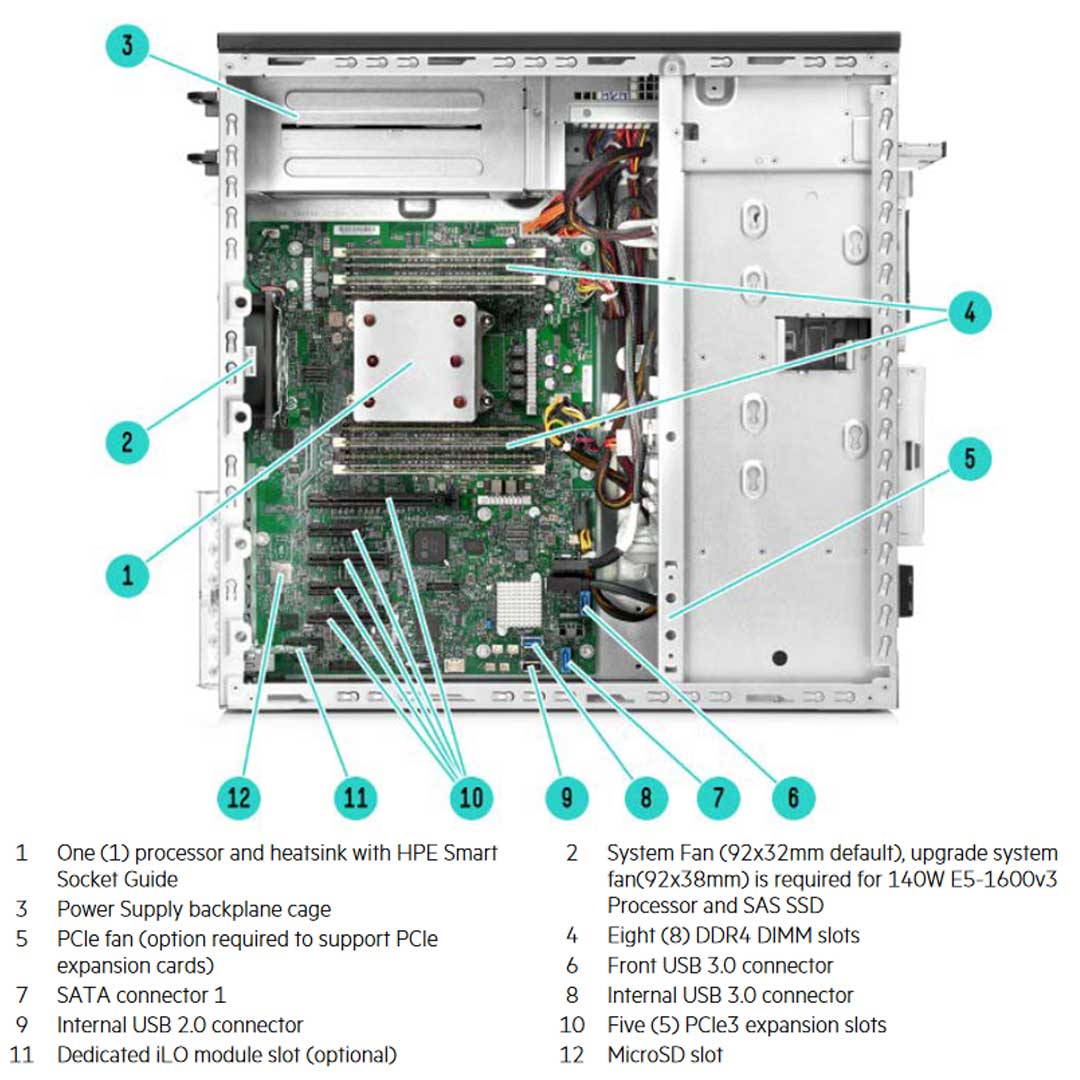

What's New for ML110 Gen9
- (1) Intel Xeon E5-2600v4
- (8) 2133 MT/s HPE DDR4 RDIMM | Max 256GB
- (5) PCIe3 expansion slots
- (16) SFF Drives
- Default HPE Dynamic Smart Array B140i
- Broadcom 5717 Dual-port 1GbE
- HPE iLO (Firmware HPE iLO4 2.0 or later) with NAND
- GPU Supported

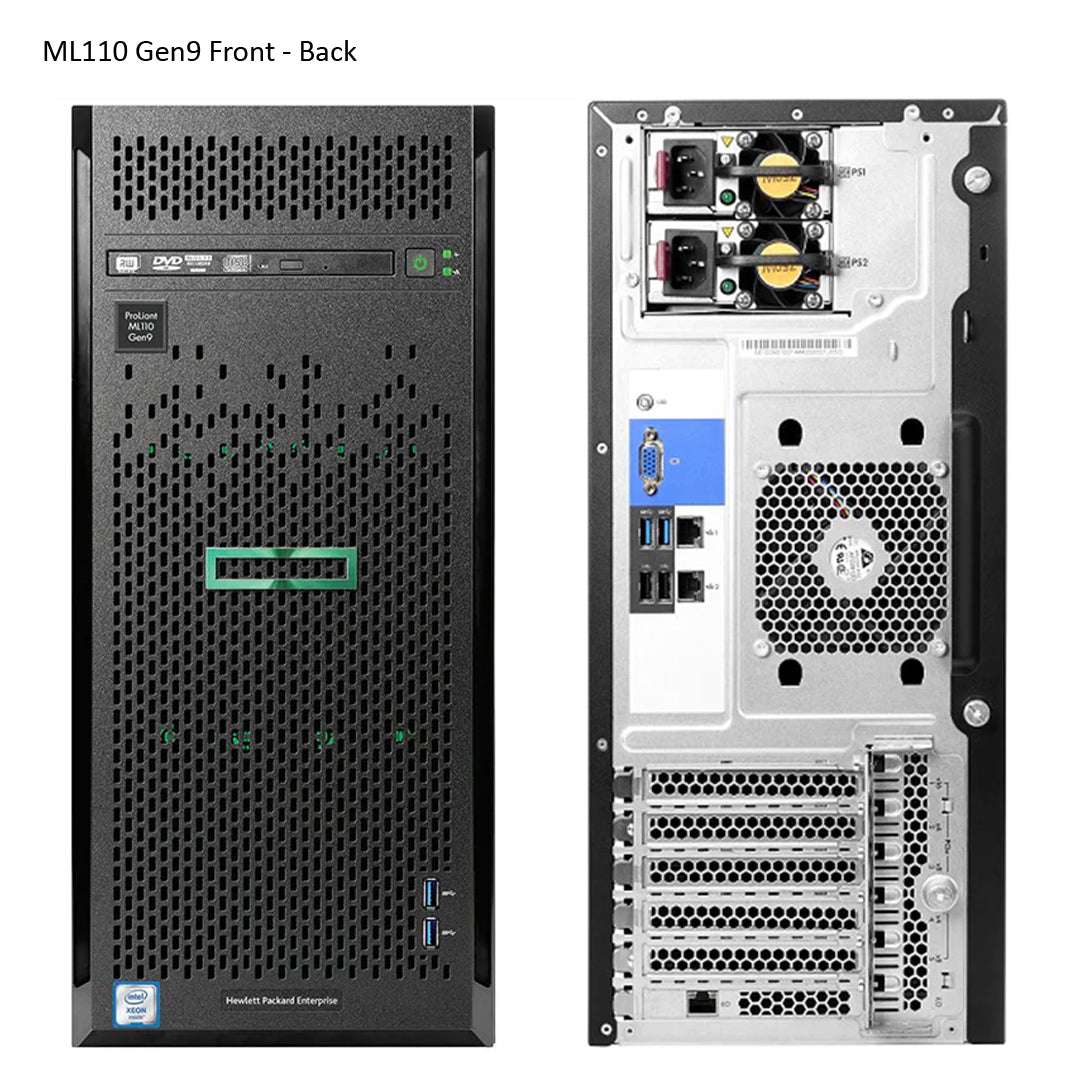

The refurbished HPE ProLiant ML110 Gen10 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the Intel Xeon Scalable processor, HPE DDR4 SmartMemory with a maximum capacity of 192 GB, five PCIe slots, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 4.5U of rack space.

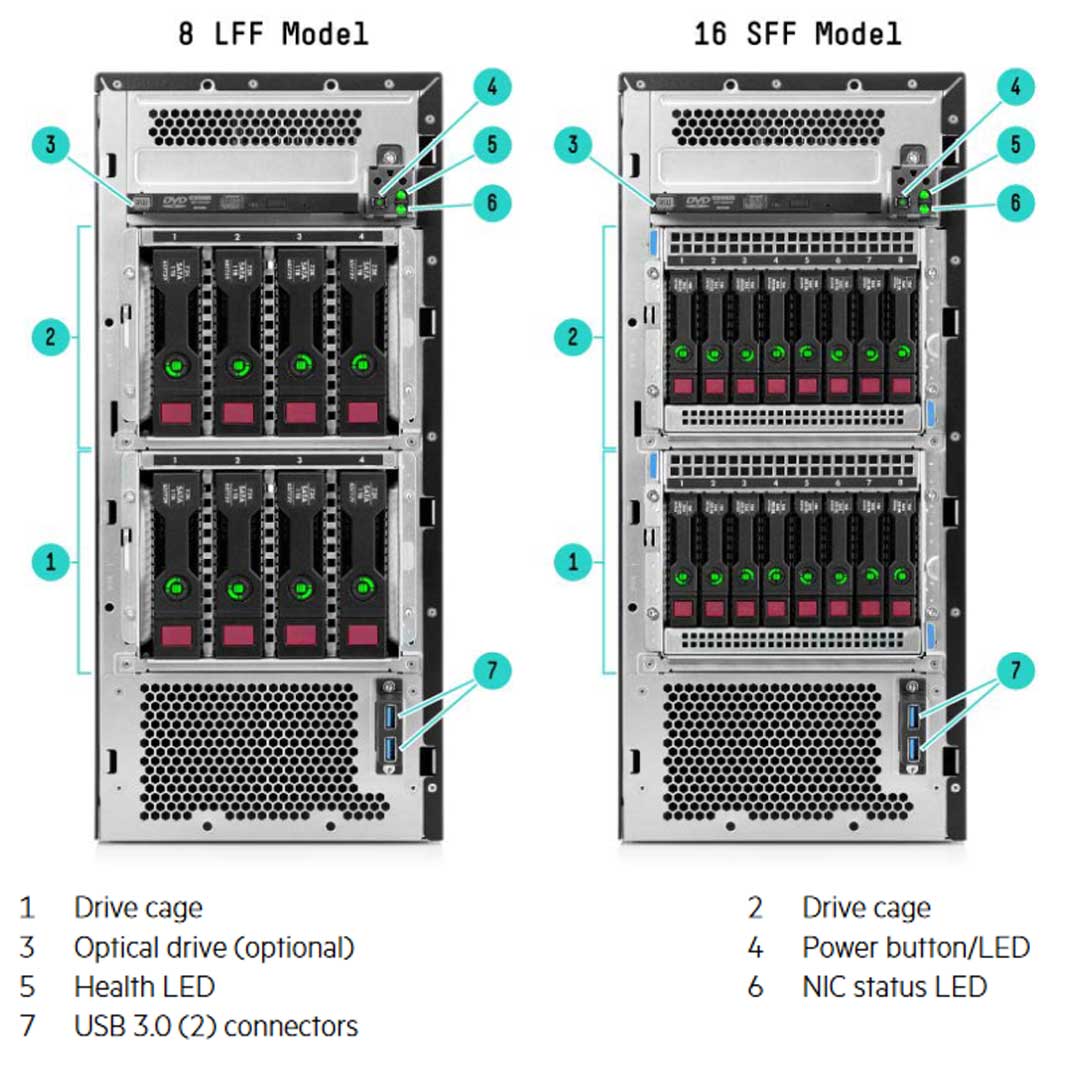

Chassis Options
The ML110 Gen HPE Tower Server has 3 Different Chassis options.

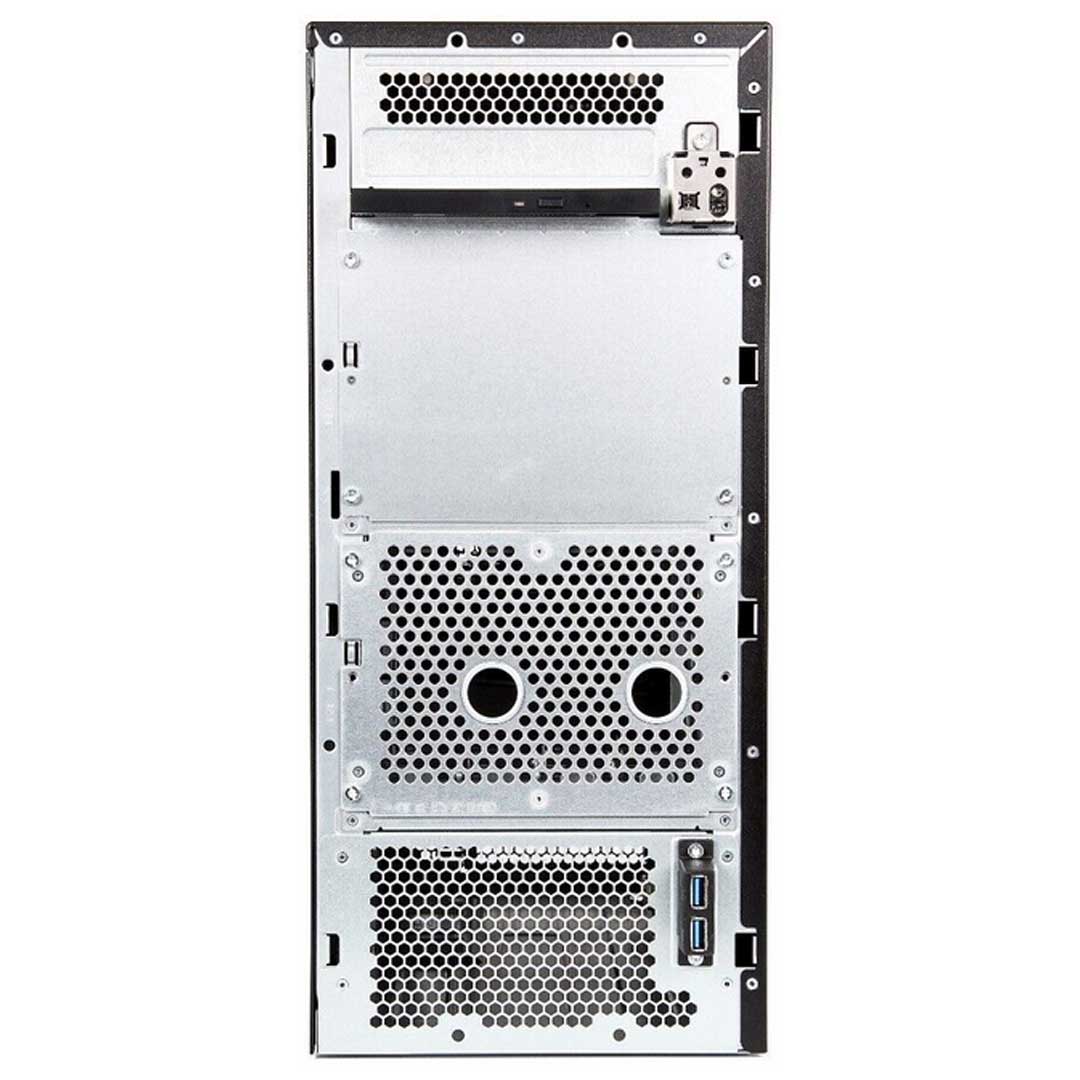

ML110 Gen9 4 NHP LFF
ML110 Gen9 4LFF
ML110 Gen9 8SFF
| [Chassis] | HP ProLiant ML110 Gen9 Non-hot Plug 4LFF Configure-to-order Server | HP ProLiant ML110 Gen9 Hot Plug 4LFF Configure-to-order Server | HP ProLiant ML110 Gen9 Hot Plug 8SFF Configure-to-order Server |
|---|---|---|---|
| SKU Number | 776933-B21 | 776934-B21 | 776935-B21 |
| Processor | 1 | 1 | 1 |
| DIMM Slots | 8 DIMM slots for RDIMM, LRDIMM DDR4 Memory | ||
| Storage Controller | HPE Dynamic Smart Array B140i | ||
| PCIe | 5 PCIe 3.0 Slots | ||
| Drive Cage | 4LFF Non Hot Plug | 4LFF Hot Plug | 8SFF Hot Plug |
| Network Controller | Broadcom 5717 Dual-port 1GbE | ||
| Fans | 1 non hot plug, non-redundant | ||
| Management | iLO Management (standard), Intelligent Provisioning (standard), HPE OneView (standard) | ||
| USB | 2 front, 2 internal, 4 rear | ||
Maximum Internal Storage
- Non Hot Plug LFF SATA 16TB 4x4TB
- Hot Plug LFF SAS 96TB 8x12TB
- Hot Plug LFF SATA 96TB 8x12TB
- Hot Plug LFF SATA SSD 15.36TB 8x1.92TB
- Hot Plug SFF SAS 32TB 16x2TB
- Hot Plug SFF SATA 32TB 16x2TB
- Hot Plug SFF SAS SSD 6.4TB 16x400GB
- Hot Plug SFF SATA SSD 30.72TB 16x1.92TB
Drive Upgrades
- No Non-Hot Plug Drive Upgrades
- HP ML110 Gen9 4LFF Hot Plug Drive Cage Kit 784584-B21
- HP ML110 Gen9 8SFF Hot Plug Drive Cage Kit 784586-B21
Mixing drive cages is not supported.
GPU
Are you going to install GPU Accelerators at all?
Well this ML110 HPE Tower Server supports up to 1 of these three models on PCI-e Slot 1. The following models are allowed in this server.
- HPE NVIDIA Quadro M2000 SW 4GB Graphics Accelerator - P8Y48A - 855180-001
- HPE NVIDIA Quadro K2200 SW 4GB Graphics Accelerator - J0G89A - 765148-002
- HPE NVIDIA Quadro K4200 Graphics Accelerator - J0G90A - 783875-001
- Needs HP ML110 Gen9 GPU Supporting Holder Kit (791711-001)
Lets Talk Cooling!
PCI Fan and Baffle Kit (784580-B21)
To ensure proper cooling for your GPU or PCI cards, you'll need the HP ML110 Gen9 PCI Fan and Baffle Kit (784580-B21). This kit includes the PCI Fan Module (791710-001) and the PCI Air Baffle (791709-001). Both components are necessary to maintain adequate airflow and prevent overheating when installing PCI cards, adapters, or GPUs. Proper installation of this kit ensures optimal cooling for your system's performance and reliability.
Rear Fan Kit 92x38mm (791717-001)
The system fan module (92x32 mm - 791708-001) can be upgraded to the enhanced fan module (92x38 mm - 791717-001) for improved cooling performance. This upgraded fan module is mandatory when installing a 140W processor kit or selecting SAS SSDs. In these cases, the upgraded fan module kit must be ordered to ensure proper cooling and system reliability.
Storage Controllers
Default B140i Controller
The base storage controller for the HPE ML110 Gen9 is the HPE Dynamic Smart Array B140i Controller, which supports only SATA drives. For more advanced configurations, you can install a SAS controller with Flash Backed Write Cache (FBWC), enabling support for 2 or 4 12Gb SAS Ports. Note that specific controllers must be selected based on the drive cage configuration, and appropriate cable kits are required for compatibility.
Additionally, for full FBWC support, the Smart Storage Battery (727258-B21) and its holder (786710-B21) must be installed, as these items are not included by default in CTO configurations featuring SAS controllers. Ensure these components are properly selected and installed to maintain optimal performance and functionality.
SAS Controller
When the backplane is connected to a storage controller, each drive box has its own numbering, starting at 1 for each box. However, when the backplane is connected to a SAS expander, all drive boxes are treated as a single unified box 1, resulting in continuous drive bay numbering across all the drive boxes. This distinction affects how drives are organized and recognized within the system.
16 Drive Support
When configuring 16 SFF drives, you must select the HP Smart Array P840/4GB FBWC 12Gb 2-Port Internal SAS Controller (726897-B21) and install two HP ML110 Gen9 Mini SAS P440/P840 Cable Kits (789651-B21). Each cable kit is required to ensure proper connectivity and full support for all 16 drives, enabling optimal performance and functionality for your storage setup.
8 Drive Support
When configuring 4+4 LFF or 8 SFF drives with the HP H240 12Gb 2-Port Smart Host Bus Adapter (726907-B21, 779134-001), it is necessary to install two HP ML110 Gen9 Mini SAS H240 Cable Kits (789648-B21, 791719-001). Each cable kit supports up to 4 drives, ensuring proper connectivity and functionality for the configuration. This setup is essential for achieving optimal performance and compatibility.
Lets talk power!
Non-Hot Plug
The HPE 350W ATX Gen9 Power Supply Kit (776442-B21) is the standard non-hot-plug PSU installed in the HPE ML110 Gen9 Tower Server. For configurations requiring more power, such as those with GPUs or additional PCI adapters, it can be upgraded to the 550W ATX Gen9 Non-Hot-Plug PSU (776444-B21).
Hot-Plug
For hot-plug capability, the server supports one or two 750W Common Slot Gold Hot-Plug Power Supply Kits (512327-B21). Installing these requires the HPE ML110 Gen9 Redundant Power Supply Enablement Kit (784582-B21), which includes the PSU cage, backplane, and top bracket (791712-001). If only one redundant PSU is installed, the second slot must be filled with the PSU Blank (698883-001) to maintain proper airflow and system stability.
Lights Out! iLO
The onboard NIC 1/shared iLO connector is set as the default system iLO connector. To enable the dedicated iLO management module, use the iLO 4 configuration Utility accessible within the HPE UEFI System Utilities. All of the following Chassis come with
- iLO Management (standard)
- Intelligent Provisioning (standard)
- HPE OneView (standard)
Dedicated iLO Port

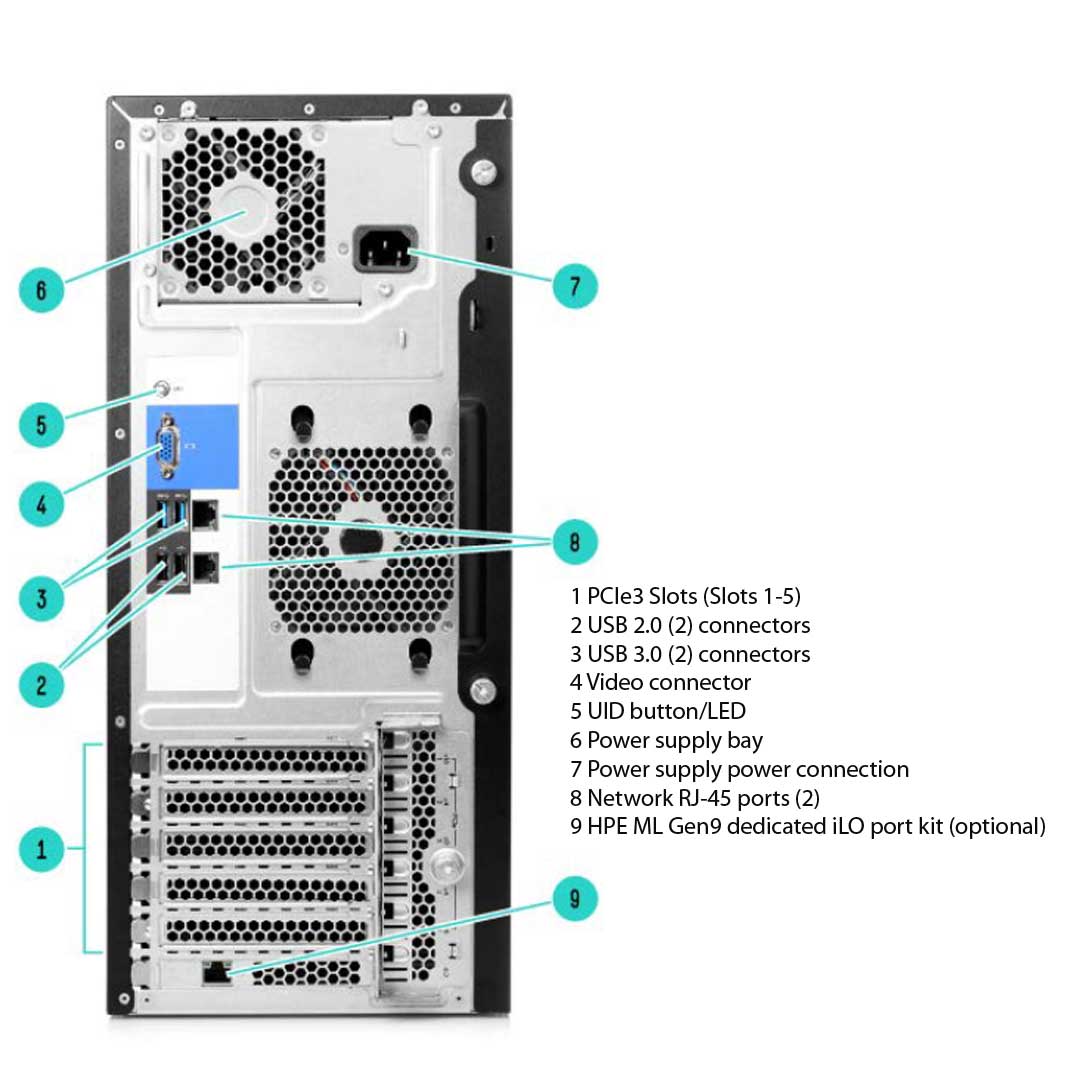

PCI-e x1 Slot 6 is dedicated only for the 1GbE HPE ML Gen9 Dedicated iLO Port Kit (792354-001).
