Current Configuration
(List below serves as quick links to each section)
Server Chassis
2nd Gen Processors
Bezel
Memory
RAID Controllers
HDD 3.5" Drives
HDD 2.5" Drives
SSD 2.5" Drives
GPU
Boot Optimized Storage Subsystem (BOSS):
Internal Dual SD Module (IDSDM)
Optical drive
Trusted Platform Module (TPM)
iDRAC9
Power Supplies
ECS Warranty
Quick Specs
Form Factor:
Tower server | 5U (Rack conversion kit)
Processor | Max: 16 Cores1x Gen 2 Intel Scalable Processors
Memory | Max: 1TB16 DDR4 RDIMM/LRDIMM 2666Mhz
Storage | Max: 128TB4x or 8x 3.5" LFF or 16x 2.5" SAS/SATA (HDD/SSD)
Boot OptionsBoot Optimized Server Storage (BOSS)
IDSDM
Internal USB
S140 (SW RAID)
PERC H330, H730P, H740P, H840, HBA330, 12Gbps SAS HBA (non-RAID)
2 x 1GbE LOM
Remote Management:iDRAC9
PCIe Slots:Up to 5 PCIe Gen3 slots
GPU:1x DW 300 W GPU supported 150 W
Other Versions
(Click to View)
Ideal for:
- Web Tech

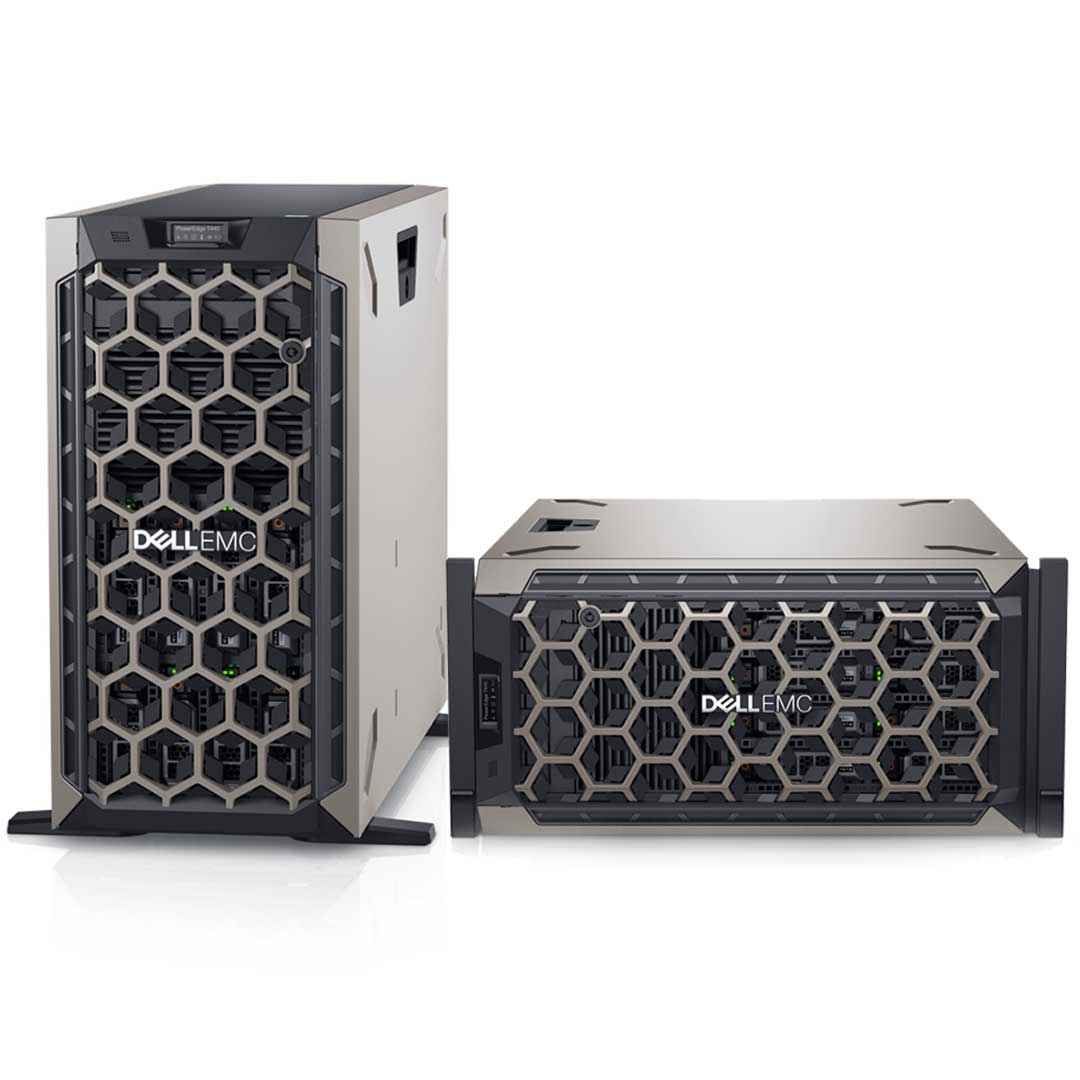

The PowerEdge T440 tower server delivers powerful 2-socket performance, expandability and quiet operation to your small-to mid-sized business (SMB) and remote office/branch office (ROBO) sites. Outstanding efficiency helps you keep operating expenses in check as your requirements evolve.
PowerEdge T440
- Grow data over time with up to 8 x 3.5” or 16 x 2.5” HDD or SSD drive options
- Seamlessly scale as your workload requirements change with 5 x PCIe Gen3 I/O slots
- Boost performance and protect data with software and hardware RAID options
Drive Configurations:
- 4x3.5" Cabled Drives
- 8x3.5" Hot Plug Drives
- 16x2.5" Hot Plug Drives
Adapt and scale with an expandable, virtualization-ready platform
The PowerEdge T440 brings you flexibility with a rack-capable tower platform, short 22-inch depth and quiet acoustics that are right for your office or data center. The T440 is an excellent fit for a wide range of office workloads, including work group collaboration and productivity applications, mail and messaging, file and print serving, and web serving. Easily adapt to your dynamic business requirements with performance, capacity and I/O options.
- Boost performance with next-generation Intel Xeon Scalable processors.
- Drive application response times faster with 33% more capacity for data-in-memory.
Intuitive systems management with intelligent automation
PowerEdge servers with embedded iDRAC with Lifecycle Controller offer agent-free management right out of the box, delivering smart automation of routine tasks. The T440 is easily managed which frees up time for work priorities.
- Simplify and automate management of your Dell EMC infrastructure with OpenManage Enterprise.
- Increase IT data protection and integrity with the embedded security features of iDRAC9.
Accelerate modern workloads with an expandable platform
Adapt to changing workloads with the versatile PowerEdge T440, an ideal entry-level server for small-to mid-sized business (SMB) and remote office/branch office (ROBO) sites. The T440 brings you flexibility with a rackable tower form factor, short 22-inch depth and quiet acoustics that are right for your office or data center. Meet your unique requirements with future-proof performance, capacity and I/O options.
Adapt and scale to dynamic business needs with greater flexibility
Designed to grow with you, the PowerEdge T440 server is built on a scalable business architecture so you can continually optimize your performance and capacity. Outstanding efficiency helps you keep operating expenses in check as your requirements evolve.
- Scale compute resources with 2nd Generation Intel Xeon Scalable processors and all-new memory architecture.
- Automatically optimize application performance with one-button tuning.
- Grow data over time with up to 8 x 3.5" or 16 x 2.5" drives.
- Boost I/O performance with 5 x PCIe Gen3 I/O slots.
Cooling & Fans
The Dell PowerEdge T440 has two Processors with 16 DIMMS. This is a bit more than double what the T340 was able to handle. The fans and heat sinks provided will provide sufficient cooling. You have the option to install a redundant external fan on rear of the chassis. If a GPU is installed, and its under 75W. The GPUs must support an active (embedded fan). Unless a High power (>75 W) GPU cards are installed then that uses the GPU AUX cable. This GPU configuration should have dual system fans without redundancy.
Memory
16 DDR4 DIMM slots, Supports RDIMMs/LRDIMMs, speeds up to 2666MT/s, 1TB* max
Supports registered ECC DDR4 DIMMs only
Can mix DIMMs with different capacities
Can mix DIMMs with different ranks.
RDIMM with LRDIMM cannot be mixed.
| DIMM type | DIMM ranking | Capacity | DIMM rated voltage, speed |
|---|---|---|---|
| RDIMM | 1R/2R | 8GB, 16GB, and 32GB | DDR4 (1.2v), 2666 |
| LRDIMM | 4R/8R | 64GB | DDR4 (1.2v), 2666 |
PCIe Configurations
| PCIe Slot | Processor Connection | Height | Length | Link Width | Slot Width |
|---|---|---|---|---|---|
| 1 (Gen3) | Platform Controller Hub | Full Height | Half Length | x4 | x4 |
| 2 (Gen3) | Processor 1 | Full Height | Half Length | x4 | x4 |
| 3 (Gen3) | Processor 2 | Full Height | Half Length | x16 | x16 |
| 4 (Gen3) | Processor 1 | Full Height | Half Length | x8 | x8 |
| 5 (Gen3) | Processor 1 | Full Height | Half Length | x8 | x8 |
Networking
The system board comes with 2 x 1GbE LOM but also supports up to 4 PCIe cards for expanding the networking capabilities.
Storage Controllers
Onboard SATA ports (S140) are not accessible if mini PERC is installed.
The new generation PERC 11 H750, H350, and HBA350i adapters cannot be mixed with the PERC H740P, H730P, H330, HBA330 adapters of the previous generations in one system.
| Performance level | Description |
|---|---|
| Entry | S140—SATA |
| Value | HBA355e, HBA350i, H350, H730P, HBA330, H330, 12 Gb/s Ext SAS HBA |
| Value performance | H750, H730P |
| Premium performance | H750, H840, H740P |
GPU Options
1x DW 300 W GPU supported 150 W
Observe the following guidelines while installing a GPU card:
- Supports only single slot GPU card
- Supports only active (embedded fan) GPU card
- GPU is supported in the rack and tower mode configuration.
- GPU can be installed only on systems that have 1100 W (recommended) or higher power supply units.
- Each GPU card supports up to 32 GB of dedicated GDDR5 memory.
- Supports one GPU on x16 slot (slot 3) with two processors installed
- Specific GPU cards need the use of the dongle power cable.
Power & Dimensions
Power Supply Units (PSU)
- 495W hot-plug; Gold efficiency
- 750W hot-plug; Gold efficiency
- 1100W hot-plug; Gold efficiency
- 450W Cabled AC PSU
Dimensions
- Length: 573.636mm (22.58 in)
- Width: 307.9mm (12.12 in)
- Height: 471.333mm (17.37 in)
- Weight:
- 4x 3.5" 23.9 Kg (52.69 lb)
- 8x 3.5" 29.5 Kg (65.03 lb)
- 16x 2.5" 27.7 Kg (61.06 lb)
