Quick Specs
1U rack server
Processor | Max: 32 Cores1 x AMD EPYC
Memory | Max: 4TB16x DDR4 RDIMM/LRDIMM 2666Mhz
Storage | Max: N/A4x 3.5" SAS/NL-SAS/SATA (HDD)
8x 2.5" SAS/NL-SAS/SATA (HDD/SSD)
10x 2.5" SAS/NL-SAS/SATA/NVMe (HDD/SSD) + 2x 2.5" NVMe
None
RAID Controller:S140, H330 Mini Mono, H730p Mini Mono, H740p Mini Mono, H840, HBA330
Boot Options:BOSS-S1, IDSDM
NIC/LOM:2 x 1GbE
Remote Management:iDRAC9 with Lifecycle Controller
PCIe Slots:2x PCIe 3.0
GPU:None
Ideal for:
- Virtualization
The PowerEdge R6415 features an efficient single-socket design for high-performance data center computing. It’s specially tuned for virtualization and scale-out software-defined storage.
Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into the complete server life cycle. The R6415 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
- Operate you workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
- Maintain server firmware safety with digitally signed firmware packages.
- Prevent unauthorized or malicious change with System Lockdown.
- Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.
The Dell EMC OpenManage systems management portfolio delivers peak efficiency for PowerEdge servers through intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the Dell EMC PowerEdge R6415 is simply and easily managed, freeing up more time for your high profile projects.
- Automate server life cycle management with scripting via the iDRAC9 Restful API with Redfish conformance.
- Simplify and centralize 1:Many management with the OpenManage Essentials or OpenManage Enterprise console.
- Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
High-density compute for scale-out workloads
Bring high-density computing to your data center with the Dell EMC PowerEdge R6415. This efficient single-socket rack server is specially tuned for virtualization and scale-out software-defined storage. Benefit from rich storage performance with up to 10 NVMe drives. With the enterprise-class AMD EPYC™ processor, the Dell EMC PowerEdge R6415 provides up to 32 cores per processor while reducing bottlenecks with up to 1 terabyte of memory and 128 PCIe lanes.
The Dell EMC PowerEdge R6415 balances resources to support demanding workloads. With the enterprise class AMD EPYC processor, the Dell EMC PowerEdge R6415 single processor server tightly matches workload needs without adding underutilized resources.
- Rich storage performance with up to 10 NVMe drives.
- Cut bottlenecks with up to 2 terabytes of memory and 128 PCIe lanes.
- Simplify and speed deployments with VMware vSAN and ScaleIO Ready Nodes.
Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The Dell EMC PowerEdge R6415 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands.
- Simplify deployment and easily scale from 3 to 1000+ nodes for software-defined storage with Dell EMC ScaleIO Ready Node
- Maximize storage performance with up to 10 NVMe SSDs
- Scale compute resources with the AMD EPYC microprocessor delivering up to 128 PCIe lanes for high bandwidth and low-latency access
The PowerEdge R6415 system supports 16 DDR4 registered DIMM (RDIMMs) slots. Supported memory bus frequencies are 2666 MT/s, 2400 MT/s, 2133 MT/s, and 1866 MT/s
| Memory module sockets | Memory capacity | Minimum RAM | Maximum RAM |
|---|---|---|---|
| Sixteen 288-pin |
|
8 GB with single processor | 1 TB with a single processor |
Virtualized operating systems are best supported by the IDSDM
The IDSDM with vFlash module has a dedicated slot at the back of the system chassis. This is a Dell EMC-proprietary PCIe x1 slot that uses a USB 3.0 interface to host. In the PowerEdge R440 systems, the IDSDM and vFlash card size changes from SD to microSD and the supported capacity for IDSDM microSD cards are 16 GB, 32 GB, or 64 GB, while for vFlash the capacity is 16 GB only. The write-protect switch is built onboard on the IDSDM module.
The Dell R6415 Rack Server has a Internal USB Slot embedded on the system board. This USB slot can be a way of installing the OS. To avoid interference with other components in the server, the maximum permissible dimensions of the USB memory key are 15.9 mm wide x 57.15 mm long x 7.9 mm high.
The Boot Optimized Storage Subsystem (BOSS) is an alternative, high speed location to install the operating system. This ensures that the drive based storage is not used by the operating system. BOSS is a simple RAID solution card designed specifically for booting the system's operating system, which supports up to two 6 Gbps M.2 SATA drives. This card has a x8 connector using PCIe gen 2.0 x2 lanes, available only in the low-profile and half-height form factor
The Dell PERC (PowerEdge RAID Controller) family of enterprise-class controllers is designed for enhanced performance,increased reliability and fault tolerance, and simplified management - providing a powerful, easy-to-manage way to create arobust infrastructure and help maximize system uptime.
| Performance Level | Controller and Description |
|---|---|
| Entry | S140 |
| Value | H330 MiniMono, H730P MiniMono |
| Value Performance | H740P MiniMono |
| Premium Performance | H840 |
| Expansion card riser | PCIe slots on the riser | Processor connection | Height | Length | Slot width |
|---|---|---|---|---|---|
| right riser | Slot 2 | Processor 1 | Low Profile | Half Length | x16 |
| left riser | Slot 3 | Processor 1 | Low Profile | Half Length | x16 |

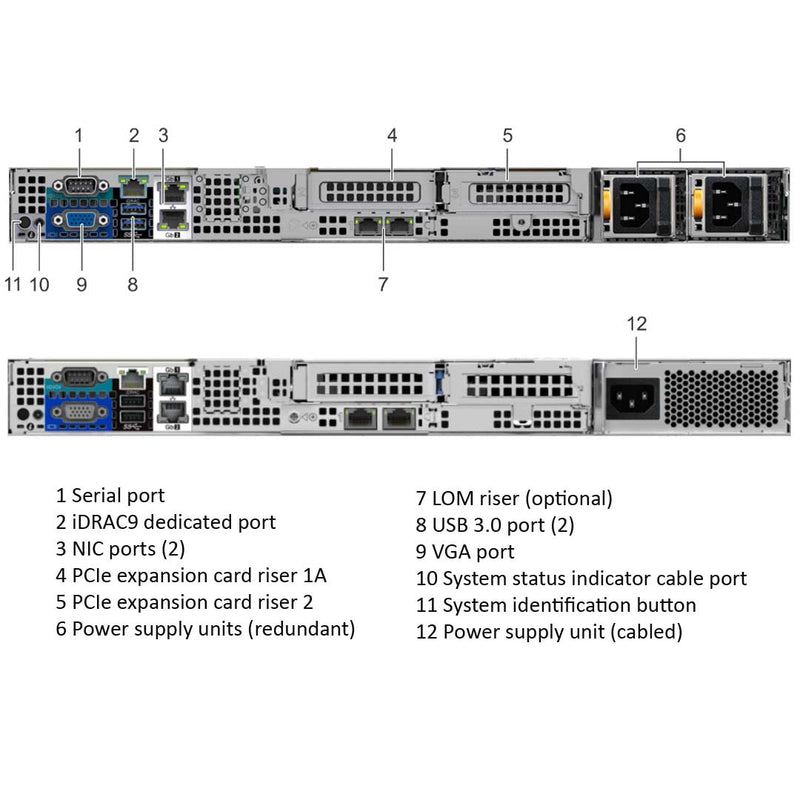

Riser 1A
Riser 2
Riser LOM
| PSU | Class | Heat dissipation (maximum) | Frequency | Voltage |
|---|---|---|---|---|
| 550 W AC | Platinum | 2107 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging |
| 450 W AC (cabled) | Bronze | 1871 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging |
- Depth: 728.43mm (28.67")
- Height: 42.8mm (3.41")
- Width: 482.0mm (18.97")
- Weight:
- 4 Bay - 16.91 kg (37.28 lb)
- 8 Bay - 14.5 kg (34.17 lb)
- 10 Bay - 16.01 kg (35.29 lb)
