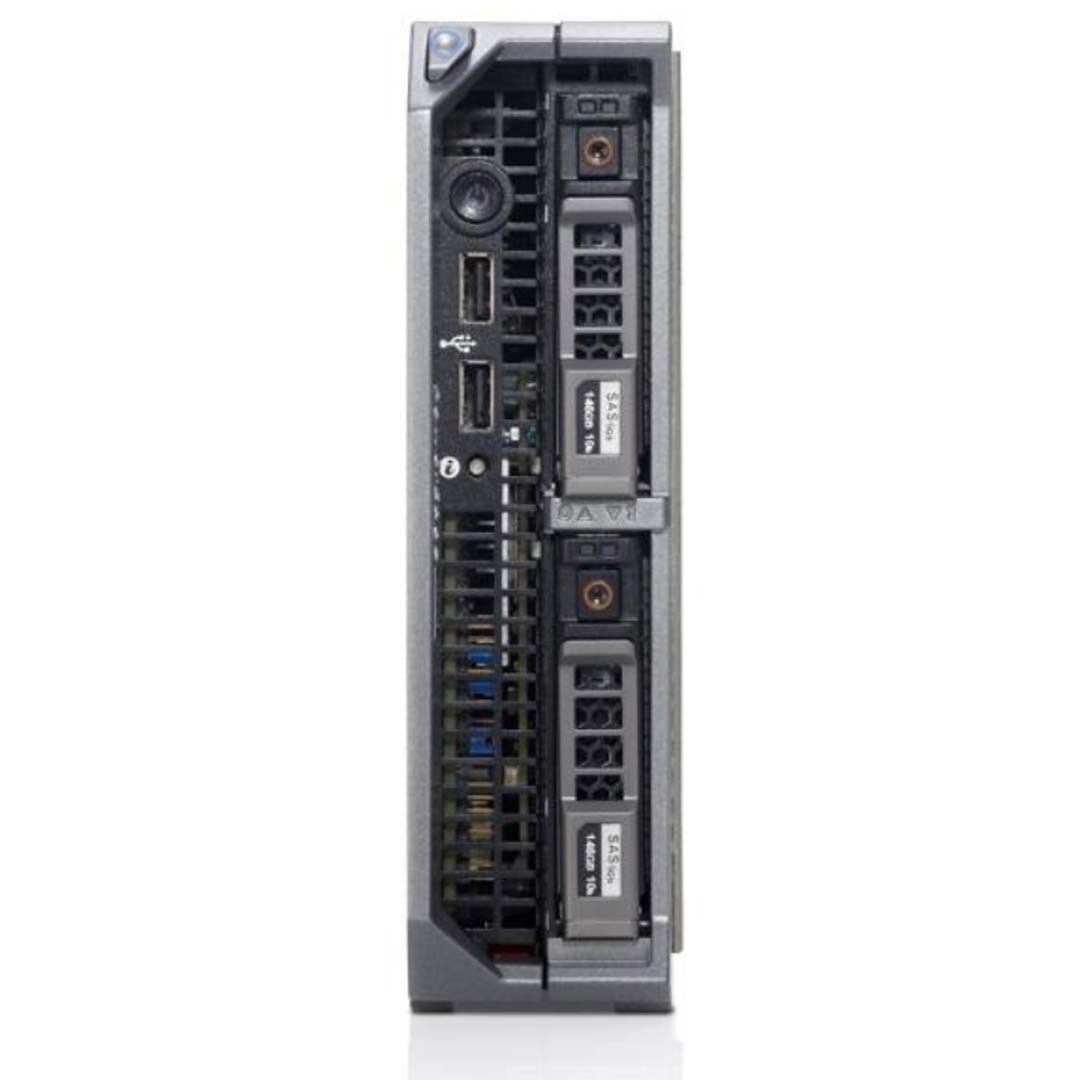

Quick Specs
Form Factor:
Half Height Blade Server
Processor | Max: 12 Cores2 x Intel Xeon E5-2600 or E5-2600v2
Memory | Max: 768GB or 1.5TB24x DDR3 RDIMM 1866Mhz or LRDIMM 1600Mhz
24 DIMMs is subject to change based on the Heat Sink installed.
IDSDM
USB
vFlash
2 SFF SAS/SATA (HDD/SSD)
Storage Controllers:S110 (SW RAID)
Mezzanine PERC H310, H710, H710p
1 LOM for Fab A and
2 Mezzanine Slots for Fab B and C
iDRAC7 with Lifecycle Controller
GPU:None
Ideal for:
- Database
- Virtualization

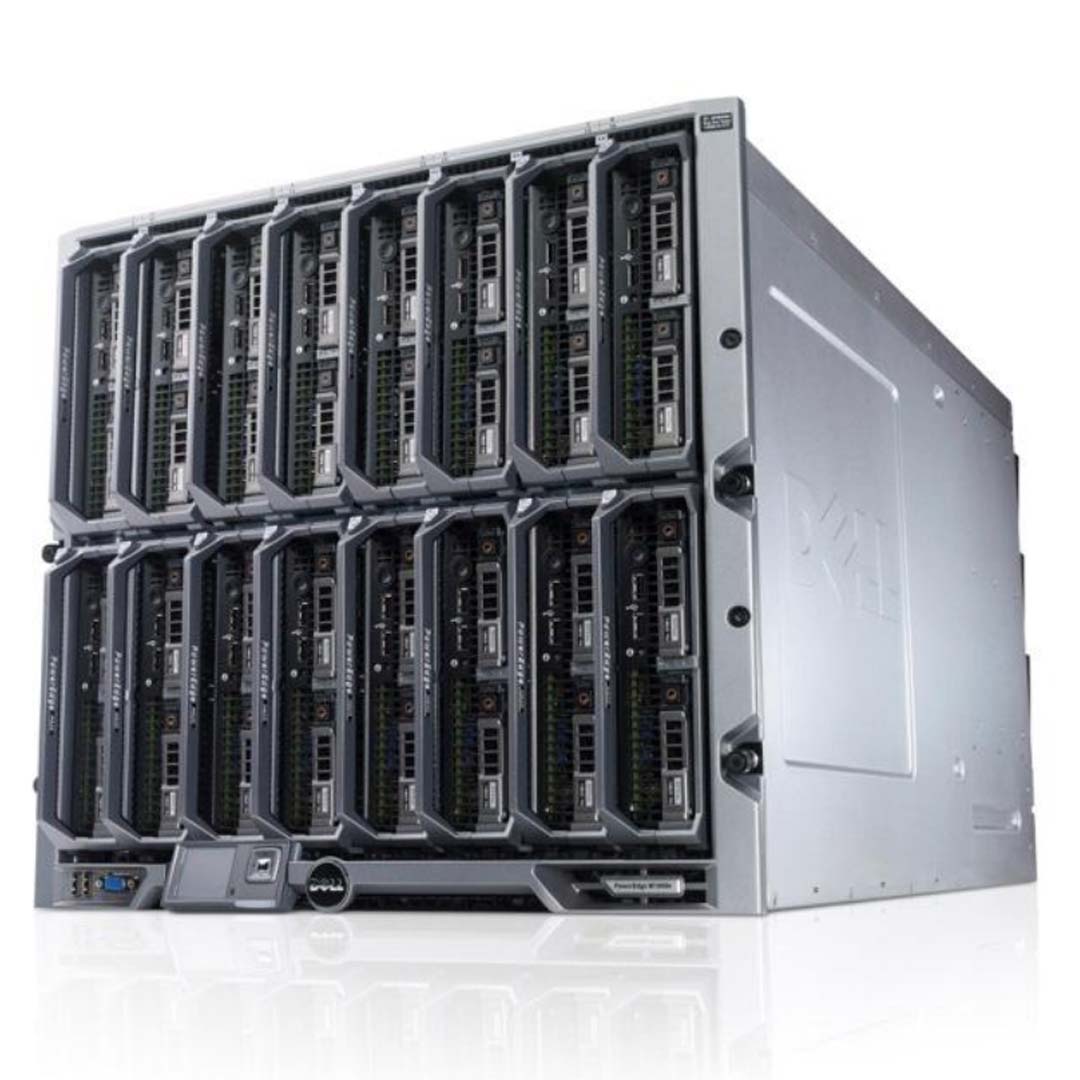

This is one of the supported Blade servers, each Modular Enclosure is a separate CTO you must configure.
Supported M1000e and VRTX Architecture
Dell M1000e Blade Architecture
- Dell PowerEdge M1000e CTO Blade Enclosure
- Dell PowerEdge M420 CTO Blade Server
- Dell PowerEdge M520 CTO Blade Server
- Dell PowerEdge M620 CTO Blade Server
- Dell PowerEdge M630 CTO Blade Server
- Dell PowerEdge M640 CTO Blade Server
- Dell PowerEdge M710 CTO Blade Server
- Dell PowerEdge M710HD CTO Blade Server
- Dell PowerEdge M820 CTO Blade Server
- Dell PowerEdge M830 CTO Blade Server

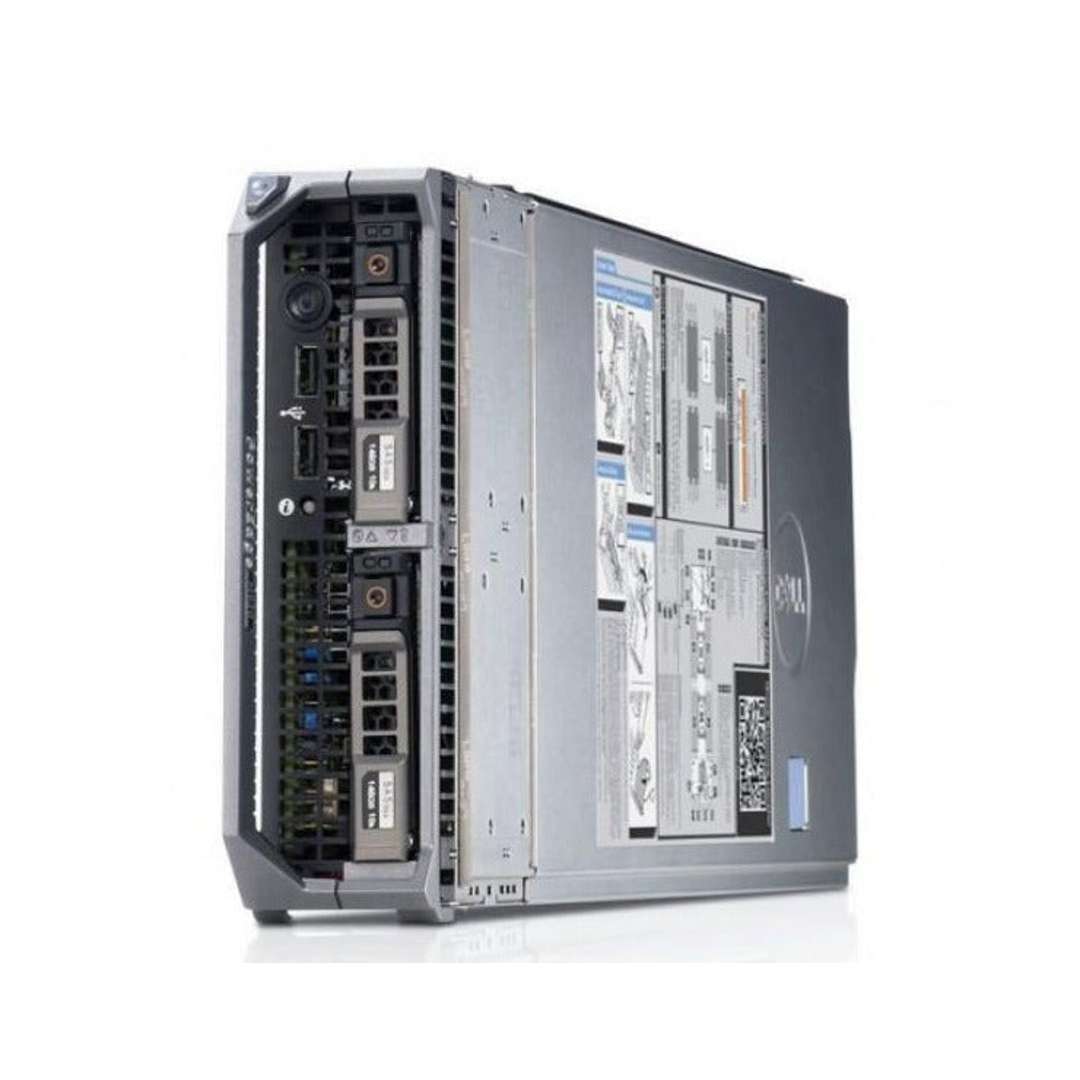

An exceptionally feature-rich, two-socket blade server, the Dell PowerEdge M620 is designed for maximum performance combined with extreme density and power efficiency.
Designed for your taxing workloads, such as email, database and virtual environments, the Dell PowerEdge M620 blade server is an ideal blend of density, performance, efficiency and scalability. The M620 delivers unprecedented memory density and superb performance with no compromise on enterprise-class features.
Improve operational efficiency
The Dell OpenManage systems management portfolio includes Integrated Dell Remote Access Controller 7 (iDRAC7) with Lifecycle Controller. This embedded feature helps IT administrators manage Dell servers in physical, virtual, local, and remote environments, operating in-band or out-of-band, with or without a systems management software agent installed.
OpenManage iDRAC with Lifecycle Controller integrates and connects to leading third-party systems management solutions (such as those from Microsoft, VMware, and BMC Software), so users can maintain a single point of control and capitalize on an existing systems management investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring and maintaining Dell PowerEdge servers.
Accomplish more
Bring impressive new capabilities to your data center with the PowerEdge M620, which offers a memory capacity of up to 768GB of RAM along with scalable I/O capabilities. Powered by Intel Xeon E5-2600 or E5-2600 v2 processors and Dell’s unique Select Network Adapter, our flexible NIC technology, the M620 provides the performance you require and allows you to allocate your network throughput to match your application needs.
Designed for your hyper-dense environments
Dell’s exclusive failsafe virtualization technology provides redundant media for hypervisor failover to keep your critical virtual environments running. Your virtualization environments demand high memory capacity in order to maximize the number of virtual machines per server, and the PowerEdge M620 was designed with this in mind. If you are running high-performance computing (HPC) application clusters, the M620 provides you with outstanding computational density and powerful processing capability in a compact form factor.
The PowerEdge M-series blade portfolio
Implement the right combination of features and performance scalability with the PowerEdge M-series blade servers, which can handle tough workloads in a data center of any size. In addition to the world-class management features provided in all PowerEdge servers, the M620 also takes advantage of the capabilities of the Dell PowerEdge M1000e’s Chassis Management Controller (CMC). The CMC allows M-series blades to be managed individually or as groups, in single or multiple chassis, and within a data center or in multiple geographically dispersed locations around the globe without requiring an agent or additional hardware. PowerEdge M-series blade servers use the redundant power, cooling, and networking infrastructure provided by the M1000e blade enclosure, which is exceptionally easy to deploy and manage, and maximizes power and cooling efficiency.

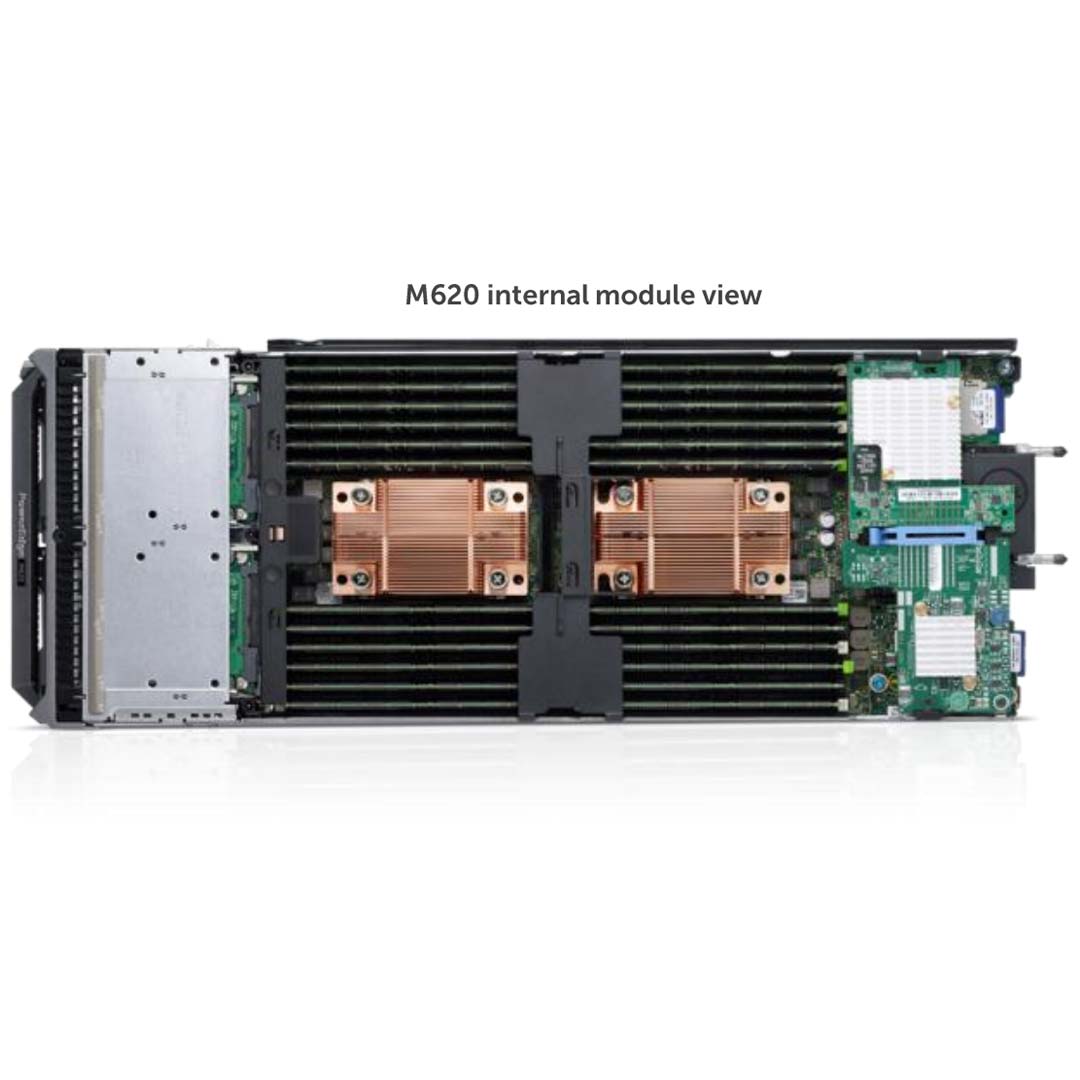

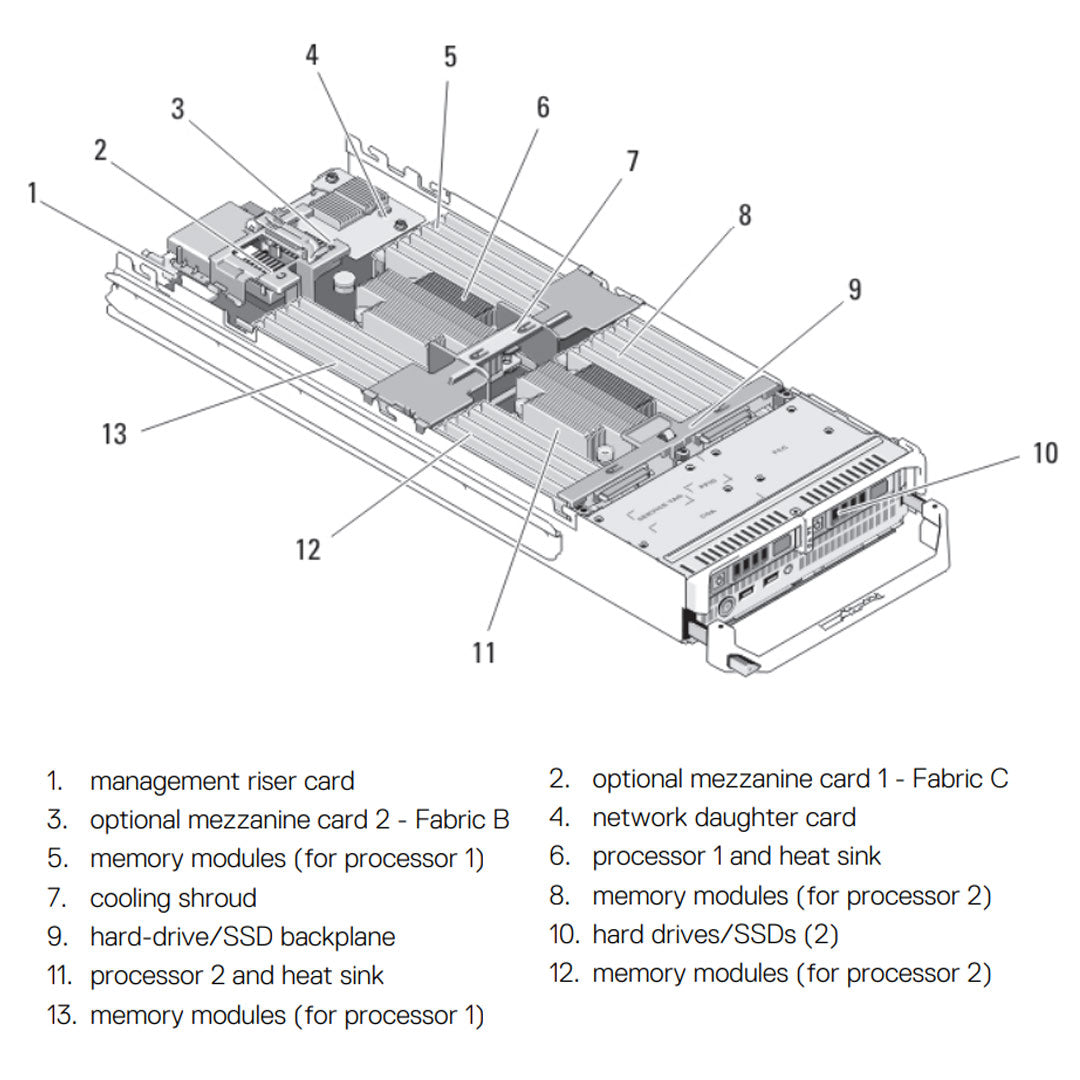

Heat Sinks & Memory
Heat Sink
The M620 is available in two module designs with different heat sinks and a maximum number of supported DIMM slots, including the following:
- 57mm heatsink: for 95W and under processors and maximum RAM expandability (up to 24 DIMMs)
- 77mm heatsink: for 115W and 130W processors and RAM expandability up to 20 DIMMs
- 97mm heatsink: for fresh air configurations supporting 95W and under processors and up to 16 DIMMs
Memory DIMMs
The amount of supported DIMMs will change based off the Processor you install. Please read the manual for all the features, rules, and limitations.
| Capacity | Rank | Speed | Type |
|---|---|---|---|
| 2GB | R1 | 1333MHz | RDIMM |
| 2GB | R1 | 1600MHz | RDIMM |
| 2GB | R1 | 1333MHz | UDIMM |
| 4GB | R1 | 1333MHz | RDIMM |
| 4GB | R2 | 1333MHz | RDIMM |
| 4GB | R2 | 1600MHz | RDIMM |
| 4GB | R2 | 1333MHz | UDIMM |
| 8GB | R2 | 1333MHz | RDIMM |
| 8GB | R2 | 1600MHz | RDIMM |
| 16GB | R2 | 1333MHz | RDIMM |
| 16GB | R2 | 1600MHz | RDIMM |
| 16GB | R4 | 1066MHz | RDIMM |
| 32GB | R4 | 1333MHz | RDIMM |
| 32GB | R4 | 1333MHz | LRDIMM |
Storage Controller
PERC S110
PERC H310
PERC H710
PERC H710P
The PERC S110 is a 3Gb/s SATA software RAID controller that is a low-cost, entry-level RAIDsolution.
PERC H310
The PERC H310 is an eight-port, internal, 6Gb/s PCIe RAID controller (mini form factor) that is alow-cost, entry-level RAID solution.
PERC H710
The PERC H710 is an eight-port, internal, 6Gb/s PCIe RAID controller (mini form factor) with 512 MBDDR3 NV cache.
PERC H710P
The PERC H710P is an eight-port, internal, 6Gb/s PCIe RAID controller (mini form factor) with 1 GBDDR3 non-volatile (NV) cache.

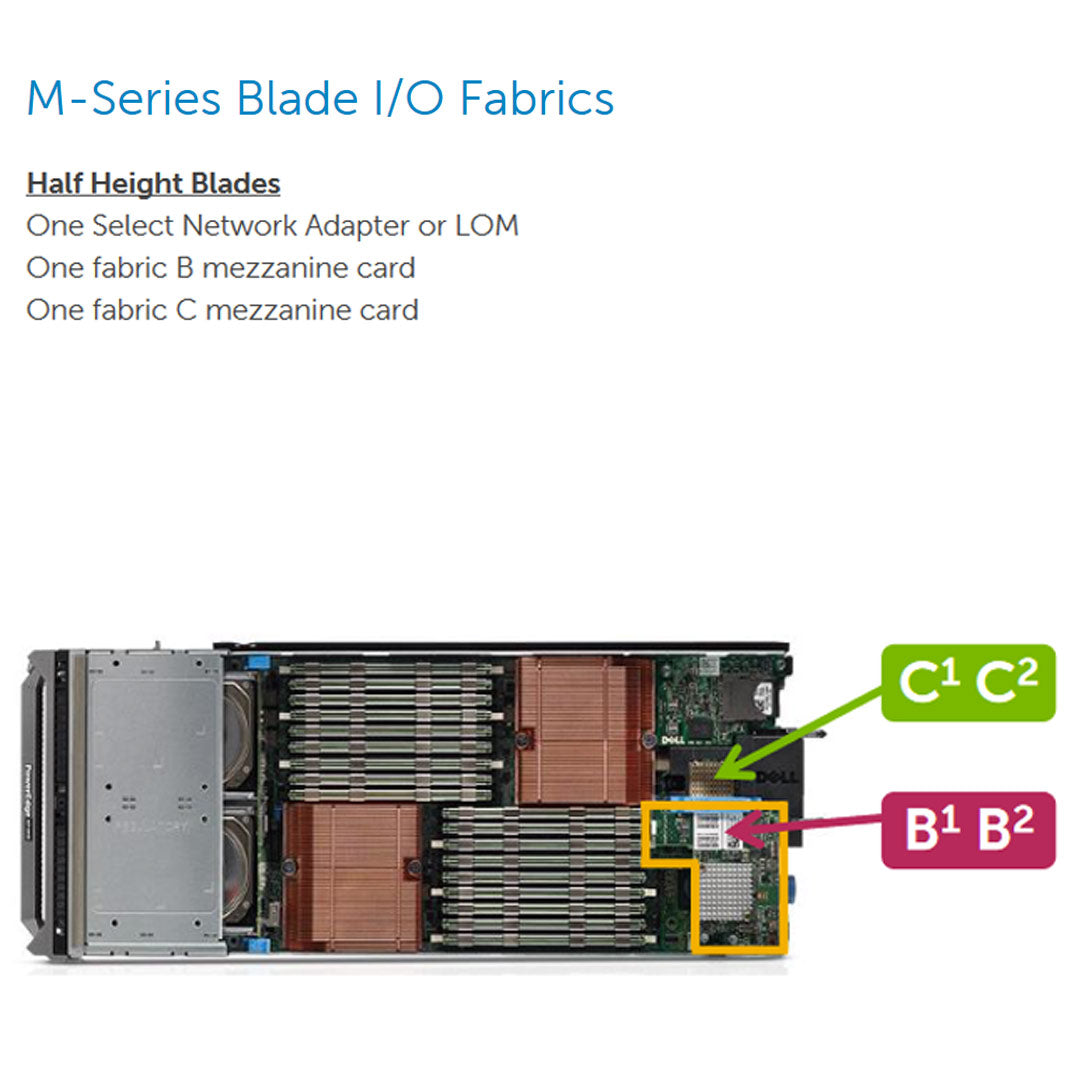

The Storage Controller is installed under the Drive Cage in the front of the blade. It has a dedicated mezzanine slot.
Networking & PCIe Mezzanine Slots
Network Daughter Card
The PowerEdge M620 supports one custom network daughter card (NDC), as part of the Select Network Adapters family, to house the complete LOM subsystem. The blade Network daughter card options supported on the M620 provide dual-port 10GbE interfaces
Dual Mezzanine PCIe 3.0 Slots
Installation of mezzanine cards requires an M1000e I/O module (IOM) of the same fabric technology to be installed in the corresponding fabric slot of the mezzanine to support data flow through that fabric or slot
Boot Options
IDSDM with Internal USB
iDRAC vFlash
The internal dual SD module enables Dell's unique Failsafe Virtualization architecture, ensuring uptime by providing failover capability for embedded hypervisors, such as VMware® ESXi™.
iDRAC vFlash
There is a slot under bNDC card for the 16GB vFlash SD Card. This vFlash helps with media management when Enabled with iDRAC7 Enterprise.
