-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
- (1) Intel Xeon E-2100/2200, 8th/9th Core i3 or Pentium G
- (4) 2666 MT/s HPE DDR4 UDIMM | Max 64GB
- (4) PCIe expansion slots
- HPE 361i 1Gb 2-Port network adapter
- HPE InfoSight
- Dedicated HPE iLO port
HPE has provided three different CTO models to choose from. Each comes with 4 PCIe 3.0 Slots, the stand Embedded S100i SW RAID with 4 SATA ports (can have support for 6 SATA drives with 2pcs drive enablement kits (812248-B21)), and an embedded HPE Ethernet 1Gb 2-Port 361i Adapter optional 1/10Gb standup card . Only the Hot-Plug Chassis can have the choice of a Smart Array along with or instead of the S100i. If you’re not sure what chassis would work best, contact us today.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
| CTO Server | HPE ProLiant ML30 Gen10 | ||
|---|---|---|---|

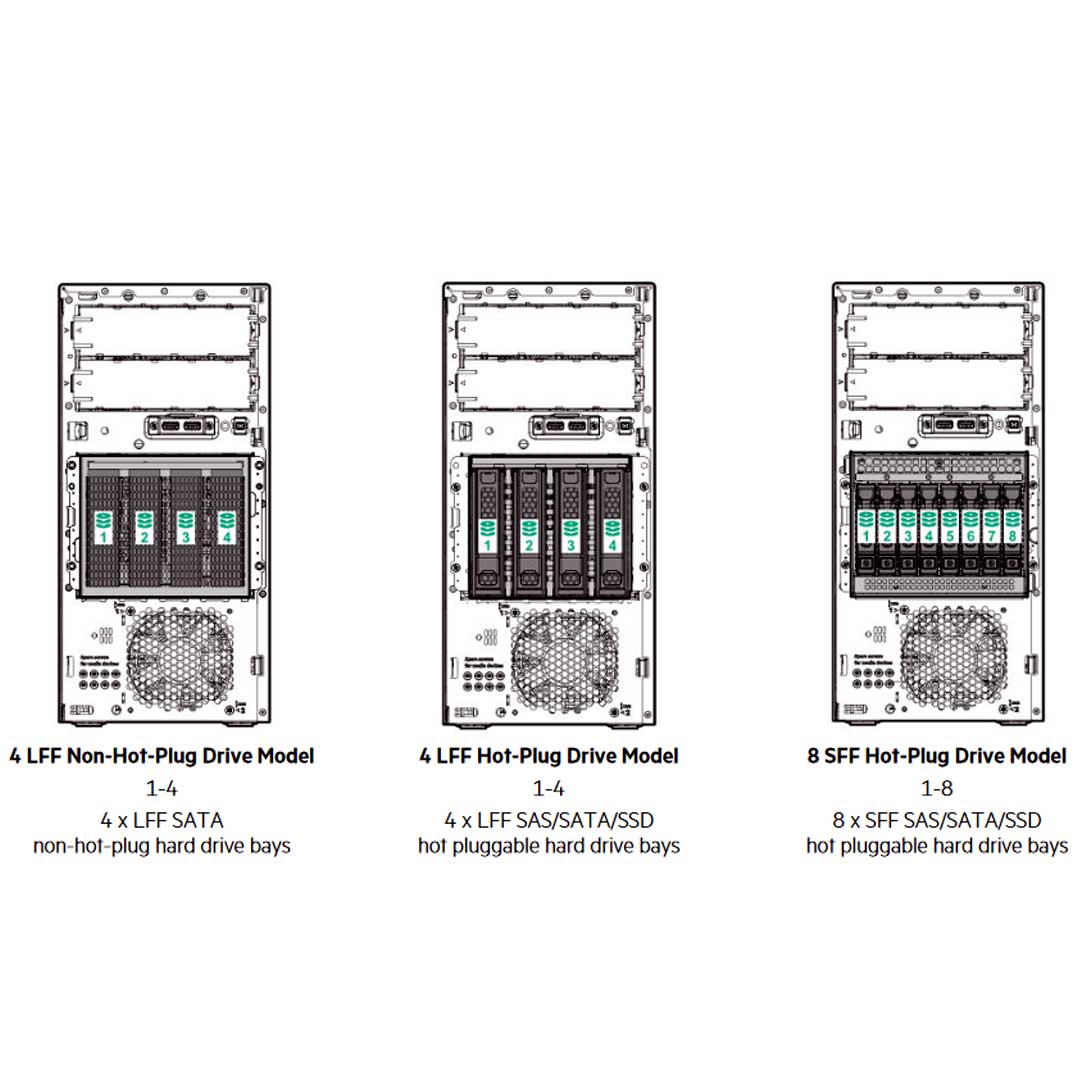

| 4 LFF Non Hot Plug CTO Server | 4 LFF Hot Plug CTO Server | 8 SFF Hot Plug CTO Server | |
| SKU Number | P06760-B21 | P06761-B21 | P06762-B21 |
| Processor Socket | 1 | ||
| Processor | Not included as standard | ||
| DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | ||
| Storage Controller | Embedded S100i SW RAID with 4 SATA ports | Embedded S100i SW RAID with 4 SATA ports, choice of HPE Smart Array controller | |
| PCIe | 4 PCIe 3.0 slots | ||

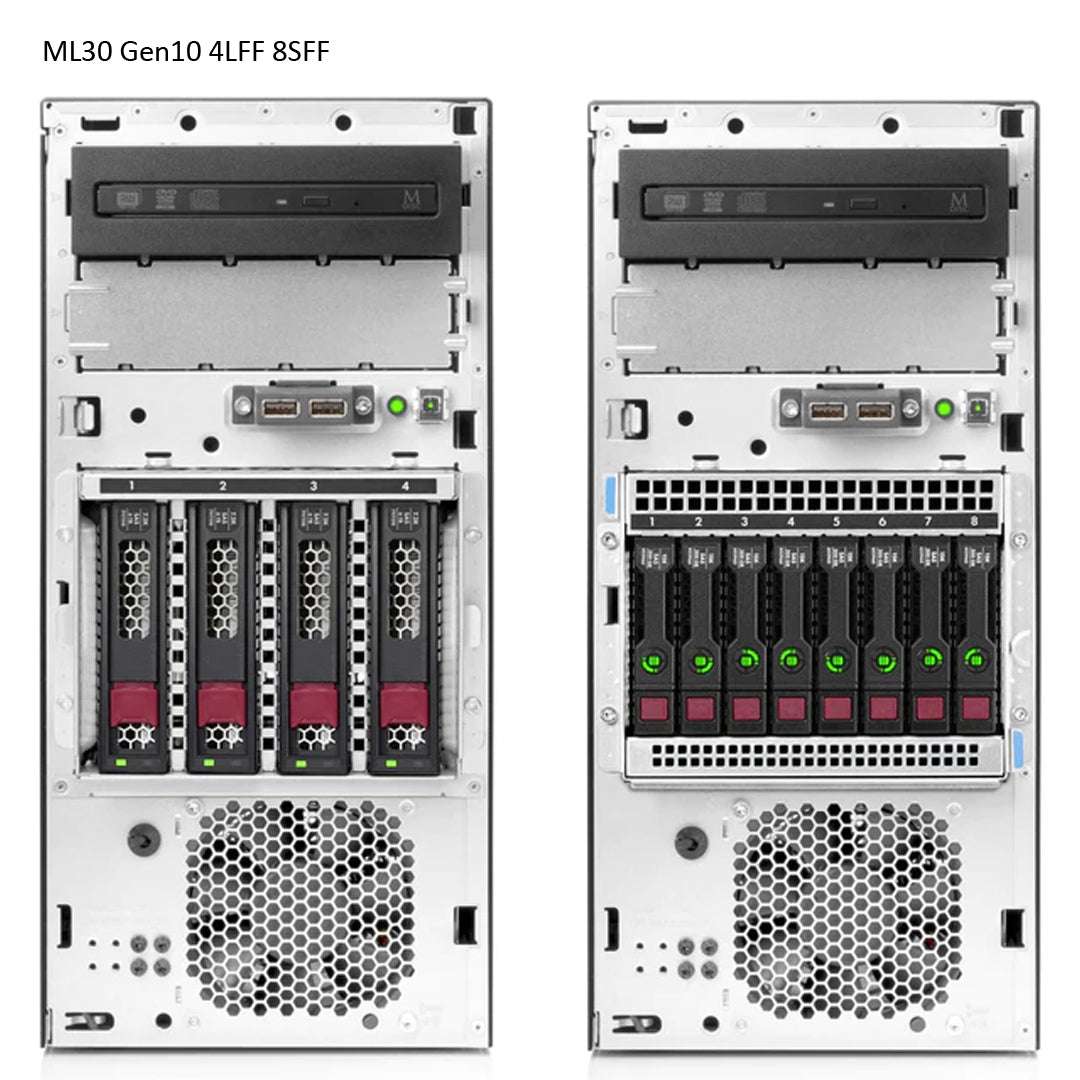

| Drive Cage | 4 LFF Non Hot Plug | 4 LFF Hot Plug | 8 SFF Hot Plug |
| M.2 Slot | 1 M.2 PCIe 3.0 x2 slot | ||
| Network Controller | Embedded HPE Ethernet 1Gb 2-Port 361i Adapter, optional 1/10Gb standup card | ||
| Fans | 1 non hot plug, non-redundant system fan | ||
| Management | HPE ILO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE ILO Advanced, HPE ILO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) | ||
| USB | 2 front, 4 rear, 1 internal | ||
*** Each server has a spot for 1xM.2 NVMe SSD for boot this also supports the dedicated iLO port

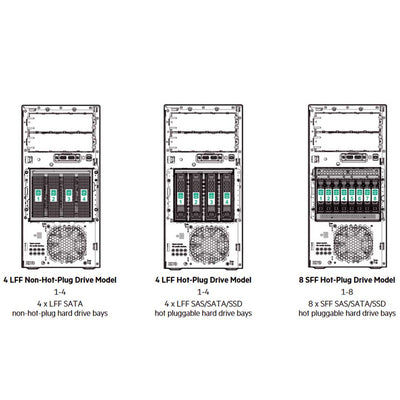

4 Non Hot-Plug LFF (P06760-B21)Software RAID
Smart Array E208e-p
Smart Array P408e-p
Max CapacityLFF 24TB = 4x 4TB + 2x 4TB
+2LFF optional | Non hot-plug only
4 Hot-Plug LFF (P06761-B21)Software RAID
Smart Array E208i-p
Smart Array E208e-p
Smart Array P408i-p
Smart Array P408e-p
Max CapacityLFF 72TB = 4x 18TB
LFF 7.68TB = 4x 1.92TB
8 Hot-Plug SFF (P06762-B21)Software RAID
Smart Array E208i-p
Smart Array E208e-p
Smart Array P408i-p
Smart Array P408e-p
Max CapacitySFF 19.2TB = 8x 2.4TB
SFF 16TB = 8x 2TB
SFF 3.2TB = 8x 400GB
SFF 61.44TB = 8x 7.68TB
Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately.
The HPE ML30 GEn 10 supports latest Intel® Xeon® E-2200 processors up to 6 cores and up to 83W, 9th Gen Core™ i3 and Pentium® G processors. There are some limitations to a few of the CPUs. Read the manual for all the rules and requirements.
Limitations
- System Board (P19337-001) Embedded with HPE 361i 1Gb 2-Port Network Adapter and only supports the Intel Xeon E-2200 Family/Intel Core i3-9100/Intel Pentium Gold G5420 processor.
- VMware supported only with Intel® Xeon® E processors, not supported with Intel® Core™ or Pentium® processors
- GPUs can only be used when a Xeon E processor is selected.
The HPE ML30 Tower server can easily be converted into a Rack server by simply adding the HPE ML Gen10 Tower to Rack Conversion Kit with Sliding Rail Rack Shelf and Cable Management Arm (874578-B21).
This kit is everything you need to get “Sliding”. This rail kit comes with the rail tray that the server sits on top of and is mounted to from the back. The server tray is that actual piece mounted to the rails that slide out for easy access to the server.
To go from the 300W Non-Hot-Plug Power Supply Unit (PSU) (P21652-B21) to the Flex Slot Platinum 500W Power Supply Unit (PSU) (865408-B21). You’ll need the enablement cage (686665-001) and the Flexible Slot power supply backplane (P07479-001) . If you only install one of the Hot-Plug Redundant Power Supplies, then you’ll also need the Flexible Slot Power Supply Blank (775423-001) to keep the airflow optimal.
EU countries
Starting March 1st, 2020, only the 350W Gold-level PSU (power supply) and the 500W PSU meet the European Union (EU) Lot 9 regulation requirement for CE marking. Do not order the Bronze-level 350W PSU (820303-B21) in countries that require CE marking, especially the EU countries.
First off the GPUs can only be used when a Xeon E processor is selected. These are not allowed with the Non-Hot-Plug Chassis system.
- HPE NVIDIA Quadro P2200 75W Gen3 GPU Module (R2U55C)
- HPE NVIDIA Quadro P1000 47W Gen3 GPU Module (R3K70C)
- *** Must install the HPE 500W Flex Slot Power Supply Kit (865408-B21)
- *** Must install the HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21)
If you install the M.2 SSD dedicated iLO module (P06687-B21), any PCI-e Cards or you select the 4 LFF Hot-Plug or the 8 SFF Hot-Plug Chassis. Then the HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21) is required. Except if you choose the Non-Hot-Plug Chassis with the E208e-p controller and 1Gb network adapters.
14.50 (H) x 6.89 (W) x 18.70 (D) in
36.83 (H) x 17.50 (W) x 47.50 (D) cm
Weight
Minimum: 22.1 lb | 10.1 kg
Maximum: 38.7 lb | 17.6 kg
