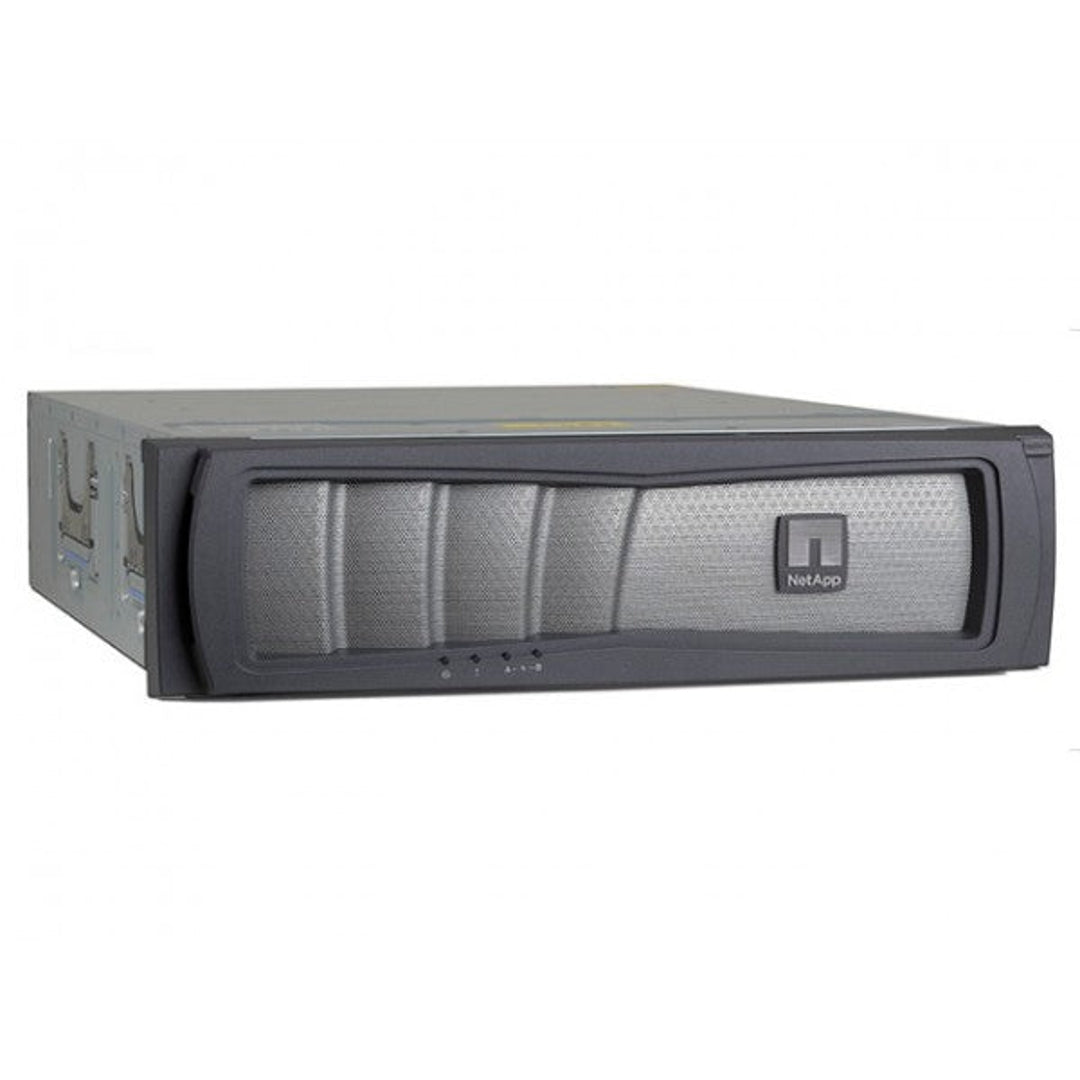

NetApp FAS3270 Single Controller + IOMX Filer Head (Stand Alone)

Quick Specs

The NetApp FAS3270 in a single-chassis, 3U form factor delivers powerful, high-availability storage for mid-sized to large enterprises. Dual controllers with up to 40GB of shared memory ensure consistent performance and reliable data access under heavy workloads. RAID 4, RAID-DP, and RAID-TEC provide flexible protection, safeguarding critical information as demands evolve.

Powered by four 64-bit, 3.00GHz dual-core processors, this system offers robust connectivity through 1GbE, 4Gb Fibre Channel, and 6Gb SAS. With 12 PCIe expansion slots, administrators can customize network or storage interfaces to meet specific environment requirements. Remote management capabilities also help streamline setup, monitoring, and maintenance.

Supporting up to 960 drives and scaling to nearly 15PB, the FAS3270 accommodates a variety of NetApp disk shelves—including DS212C, DS2246, DS224C, DS424x, DS4486, and DS460C—and works with multiple drive types (MSATA, NL-SAS, SAS, SATA, SSD). This versatility makes it a dependable choice for organizations looking to consolidate and expand their storage infrastructure efficiently.

System Config

• Model: NetApp FAS3270
• Chassis: Single Chassis
• Total Rack Height: 3U
• Controllers: Single Controller + IOMX (Stand Alone)
• Memory (HA): 20GB
• Processor Model:2x 64-bit 2-core 3.00 Ghz
• Ethernet Ports: 2 x RJ45 (1Gb)
• Fibre Channel Ports: 2 x SFP (4Gb)
• SAS Ports: 2 x QSFP (6Gb)
• PCIe Expansion Slots: 6 x PCIe
• Max Drives (total): 960
• Max Capacity: 14,992TB (14.99PB)
• Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
• Filer Heads: N/A

Dimensions & Weight

• Chassis Rack Height: 3U
• Chassis Heights: 5.12" (13 cm)
• Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
• Chassis Depth w/ Cable Mgmt: 23.9" (60.7 cm)
• Chassis Weight: up to 79.4 lb (36.0 kg)

---

Expansion IOMX Controller Specs

• PCI Slot (per): 4 x PCIe

Controller Specs

• Max Controllers: 2 (Per Chassis)
• PCI Slot (per): 2 x PCIe
• Ethernet Ports (per): 2 x RJ45 (1Gb)
• Fibre Channel Ports (per): 2 x SFP (4Gb)
• UTA2 Ports (per): N/A
• SAS Ports (per): 2 x QSFP (6Gb)
• Remote Management: Yes
• Processor Model (per):2x 64-bit 2-core 3.00 Ghz
• Memory (Single/HA): 20GB/40GB
• NVRAM (Single/HA): 1GB/3GB

Storage

• Max Number of Internal Drives: 0
• Max Number Drives (total): 960
• Max Capacity: 3,600TB (3.6PB)
• Max Number of MSATA Drives: 960
• Max Number of NL-SAS Drives: 960
• Max Number of SAS Drives: 960
• Max Number of SATA Drives: 960
• Max Number of SSD Drives: 240
• Drive Interface: MSATA, NL-SAS, SAS, SATA, SSD
• RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
• Max # of DS212C Shelves: 40 external
• Max # of DS2246 Shelves: 40 external
• Max # of DS224C Shelves: 40 external
• Max # of DS4243 Shelves: 40 external
• Max # of DS4246 Shelves: 40 external
• Max # of DS4486 Shelves: 20 external
• Max # of DS460C Shelves: 16 external

---
