Specs
Quick Specs
Form Factor:
5U rack server
Controllers:Supports only a Dual Configuration
Controller Ports:Three 12Gb SAS Connection
Controller Cache:8GB Cache
Expansion:Up to three can be connected
Storage:84 LFF Drives
Max Storage:336 drives or 4PB
Other ME Options
Expansion Options
Expansion Options

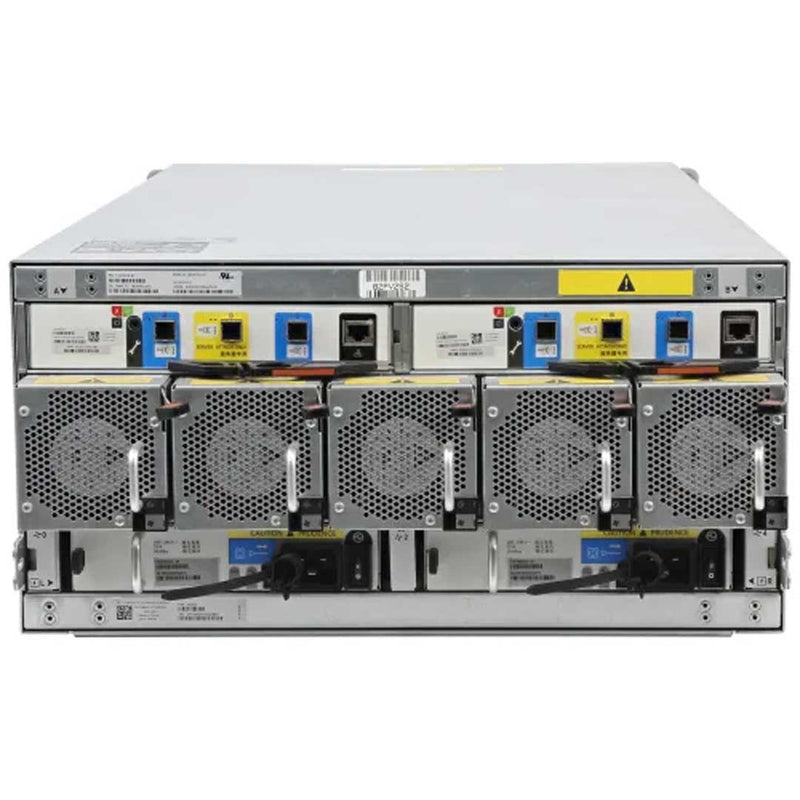

The Dell PowerVault ME484 is an exceptional storage array that offers high-speed data transfer and ample cache memory for optimal performance. With 8GB of cache in the 84 3.5" HDDs chassis, this storage array is designed to meet the needs of small businesses that require a reliable and efficient storage solution.

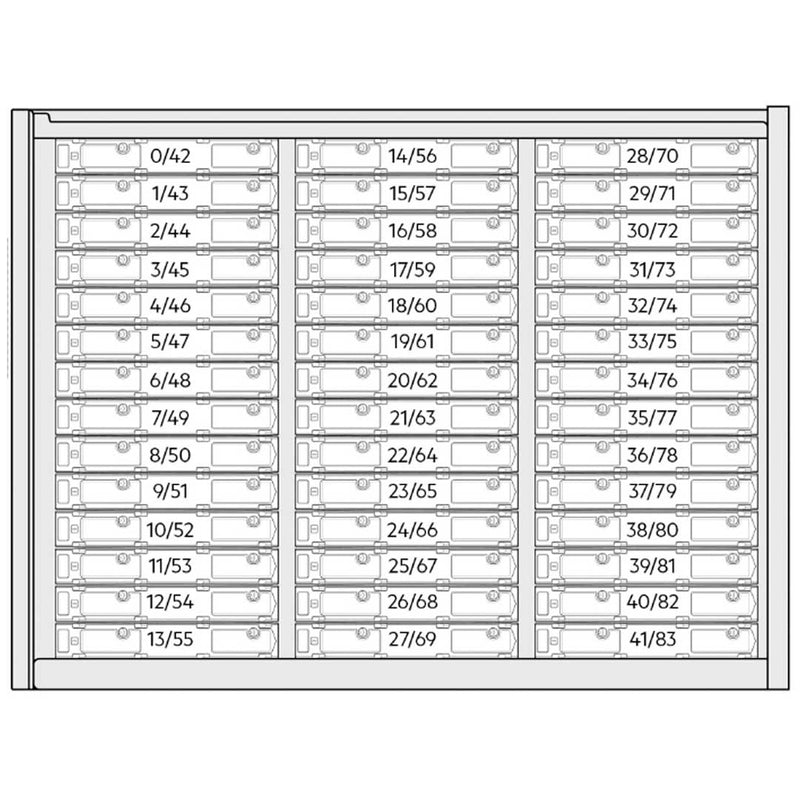

Drive Options (View ME4084 Storage Array CTO)84 x 3.5” drive bays

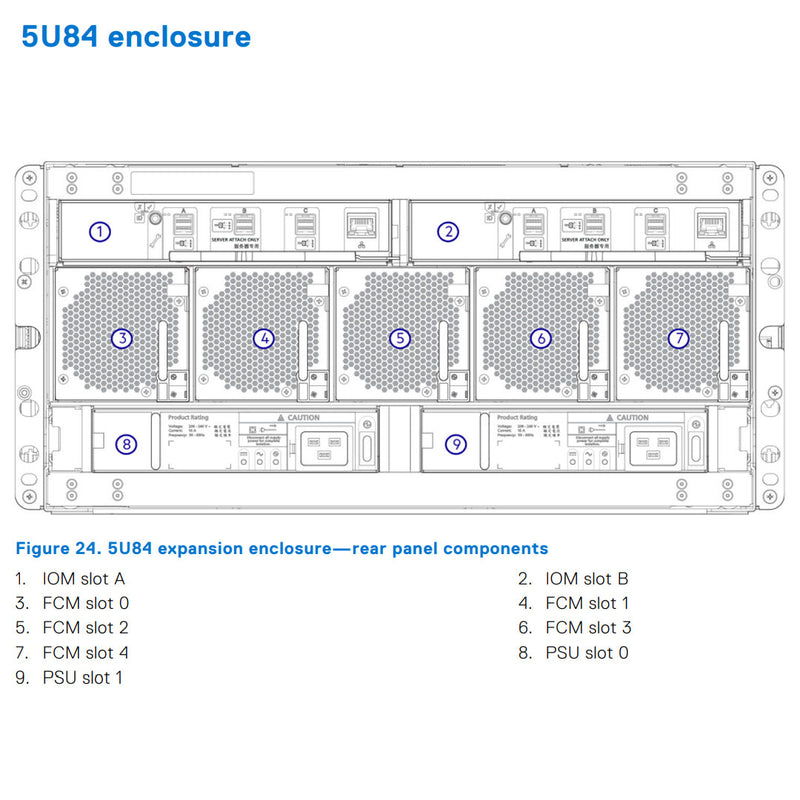

The ME484 dense expansion enclosure is supported behind any of the ME base arrays.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| PowerVault ME4 Series Specifications | |
|---|---|
| Chassis Overview | |
| Chassis format | All-in-one (single/dual controllers, internal drive bays, networking) with expansion options |
| Rack size | 2U or 5U |
| Controllers | 2 hot-swappable per chassis (dual active) Single/dual controller support for 2U Dual controller only support for 5U |
| Processor | Intel® 2-core, 2.2GHz |
| Internal storage |
|
| System memory | 8GB per controller |
| Expansion Capacity | |
| Expansion enclosures |
|
| Min/Max drive count |
|
| Max raw capacity |
|
| NAS Support | Supported with NX Series Windows NAS appliance |
| Storage media | SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:
|
| Network and Expansion I/O | |
| Host interface | FC, iSCSI, SAS (supports simultaneous multiprotocol FC/iSCSI) |
| Max 16Gb FC ports | 8 per array (support auto-negotiate to 8Gb) |
| Max 10Gb iSCSI ports | 8 SFP+ or BaseT ports per array (BaseT only support auto negotiate to 1Gb) |
| Max 12Gb SAS ports | 8 12Gb SAS ports |
| Max multi-protocol ports |
4 ports 16Gb FC SFP+ 4 ports 10Gb iSCSI SFP+ |
| Max management ports | 2 per array (1Gb BASE-T) |
| Disk expansion protocol | 12Gb SAS |
| Disk interface expansion ports |
2 12Gb SAS (wide-Port) per array (1 port per controller) Up to 9 2U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 5U base array |
| Data Optimization | |
| Auto-tiering | Up to 3 primary (media-based) tiers (2 level tiering supported) |
| RAID support | RAID 0, 1, 5, 6, 10, 50 or Adapt; any combination of RAID levels can exist in single array |
| Adapt | Distributed erasure coding that reduces rebuild times when drive failures occur |
| Thin provisioning | Active by default on all volumes, operates at full performance across all features |
| Snapshots | 1024 maximum snapshots per array |
| Physical Base System | |
| Rack size |
|
| Base system height |
|
| Base system width |
|
| Base system depth |
|
| Weight (max configuration) |
|
| Weight (empty) |
|
| Physical Expansion Enclosure | |
| Rack size |
|
| Base system height |
|
| Base system width |
|
| Base system depth |
|
| Weight (max configuration) |
|
| Weight (empty) |
|
| Base System Power | |
| Power/wattage |
|
| Heat dissipation |
|
| Voltage |
|
| Expansion System Power | |
| Power/wattage |
|
| Heat dissipation |
|
| Voltage |
|
